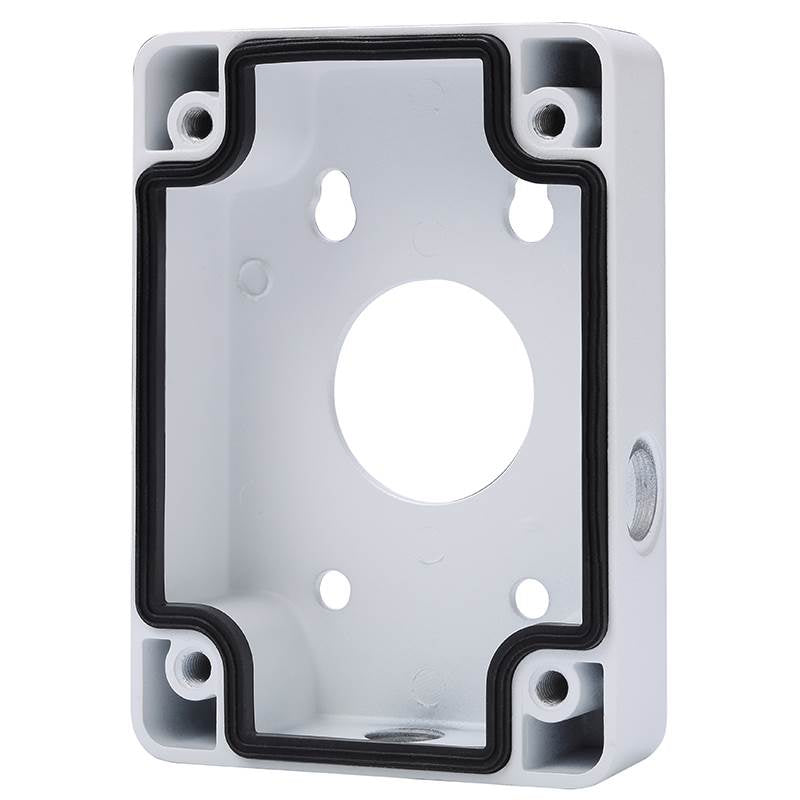

Dahua DH-PFA120 Dahua Water proof Junction Box

Model: DH-PFA120

Who This Is For

For installers who need a clean, weatherproof cable termination point behind outdoor Dahua cameras, the DH-PFA120 junction box solves the problem of exposed cabling at the mounting surface. Wall and eave installations in Australian conditions - where temperature swings, humidity, and UV exposure wear on unprotected connections - call for a purpose-built enclosure rather than improvised alternatives. The PFA120 is an aluminium junction box rated across -40°C to +60°C and built around an M20 (G1/2") conduit thread, so it suits both surface-run conduit and direct cable entry depending on how the site is cabled. At 115mm x 160mm x 38.8mm and a 7.0kg load bearing rating, it sits flush behind compatible Dahua turret and dome cameras without adding bulk or creating cable management headaches. Suitable for residential eaves, commercial fascia, and light industrial wall mounting.

What This Junction Box Actually Does

Who Buys This Model

• CCTV Installers on Conduit Runs: Trade installers running surface conduit to outdoor camera positions who need the M20 thread to land conduit fittings cleanly at the mounting point.
• Commercial Property Contractors: Contractors working on retail centres, warehouses, or office buildings where exposed cabling at the camera head is not acceptable to the client or the building owner.
• Residential Builders and Electricians: Trades specifying a neat, weatherproof termination for Cat cable or coax at eave-mounted Dahua cameras on new builds or renovations.
• Industrial Site Installers: Installers at sites with wide temperature swings or chemical exposure in the air who need the aluminium shell and -40°C to +60°C rating to protect terminations.

Honest Assessment

The DH-PFA120 does what a junction box should do without complication - it puts an aluminium, weatherproof enclosure behind the camera mount so cabling terminations stay protected and conduit connections land correctly. The 7.0kg load bearing rating, M20 thread, and -40°C to +60°C operating range are all genuinely useful specs that reflect real installation conditions rather than marketing headroom. The compact profile keeps the wall finish tidy on both residential and commercial sites.

What it will not do is replace a larger adaptable box where multiple cable runs or complex connector arrangements need more internal volume. If you are terminating conduit on a large PTZ or multi-cable installation, a deeper enclosure with more internal space may suit the job better. The PFA120 is designed specifically for compatible Dahua cameras - confirm the mounting pattern matches your chosen camera model before ordering. Available through Security Australia alongside the full range of Dahua mounting accessories.

Before You Buy

Quick Fit Check

• Good match if: You are running M20 surface conduit to an outdoor Dahua turret or dome camera position and need a weatherproof termination point that sits flush to the wall.
• Good match if: The installation is in a high-temperature or high-humidity environment - the -40°C to +60°C rating and less than 90% RH tolerance confirm it is built for Australian outdoor conditions.
• You may need a different model if: Your installation involves a larger PTZ camera mount, a bullet-style camera with a separate arm bracket, or a multi-cable conduit entry - a larger adaptable enclosure or a PTZ-specific wall mount from the Dahua accessories range will be more appropriate for those applications.

Key Features & Technical Specifications

Real-World Scenarios

How It Compares

• Choose this if: You need a compact, weatherproof aluminium junction box with an M20 conduit thread for outdoor Dahua turret or dome camera positions where cable protection and a clean wall finish are both required.
• You may need a different model if: Your camera position involves heavier hardware, arm-style bullet mounts, or multiple conduit entries - a larger adaptable enclosure or a dedicated PTZ wall bracket from the Dahua accessory range will provide the internal volume and mounting interface those installations need.
• Pairs well with: Dahua outdoor turret and dome cameras, along with PoE switches or NVR kits that require neat cable management between the network backbone and the camera mount point.

Common Questions

1. Will the DH-PFA120 work with any Dahua outdoor camera?

   Not all Dahua outdoor cameras - it is designed for compatible turret and dome models that share Dahua's standard junction box mounting pattern. Bullet cameras use arm brackets and PTZ cameras use dedicated wall mounts with different base dimensions. Check the mounting compatibility for your specific Dahua camera model before ordering to confirm the base footprint matches the PFA120.

2. Does this junction box work with 20mm conduit?

   Yes. The PFA120 has an M20 (G1/2") conduit thread, which is the standard 20mm conduit entry size. Standard M20 conduit locknuts and fittings thread directly into the box without modification. If you are running 25mm conduit, you will need a reducing adapter to suit the M20 entry.

3. Is the PFA120 suitable for outdoor use in Queensland or Northern Territory conditions?

   Yes. The operating temperature ceiling of +60°C is the key figure for tropical and arid Australian climates where wall surface temperatures on north-facing or metal-clad structures can significantly exceed ambient air temperature. The less than 90% RH humidity rating also covers the high-humidity months in tropical regions.

4. How much weight can the PFA120 carry?

   It is rated at 7.0kg load bearing. Most Dahua compact turret and dome cameras sit well under 1kg, so the structural rating is not the limiting factor for standard camera models. If you are stacking additional mounting hardware or adapters on top of the junction box, confirm the total assembled weight of all hardware does not approach the 7.0kg limit.

5. Do I need a gasket or sealant when installing the PFA120 on an exterior wall?

   The PFA120 is designed as a weatherproof enclosure, but the quality of the wall penetration seal depends on the installation. Where the cable enters the wall behind the box, apply an appropriate weatherproof sealant around the penetration to prevent water tracking along the cable into the wall cavity. The box itself protects the terminations inside, but it does not seal the wall penetration automatically. The DH-PFA120 is part of the Security Australia range of Dahua mounting accessories.

6. What are the exact dimensions of the PFA120 and how does the 38.8mm depth affect installation on a soffit?

   The box measures 115.0mm x 160.0mm x 38.8mm. The 38.8mm depth is the standoff distance from the wall or soffit surface to the camera's back face. On a timber soffit, this depth is typically not an issue. On a narrow eave or flush soffit where space between the mounting surface and a gutter or fascia is limited, confirm there is at least 40mm of clearance in the direction the box protrudes to avoid contact with surrounding structure.
