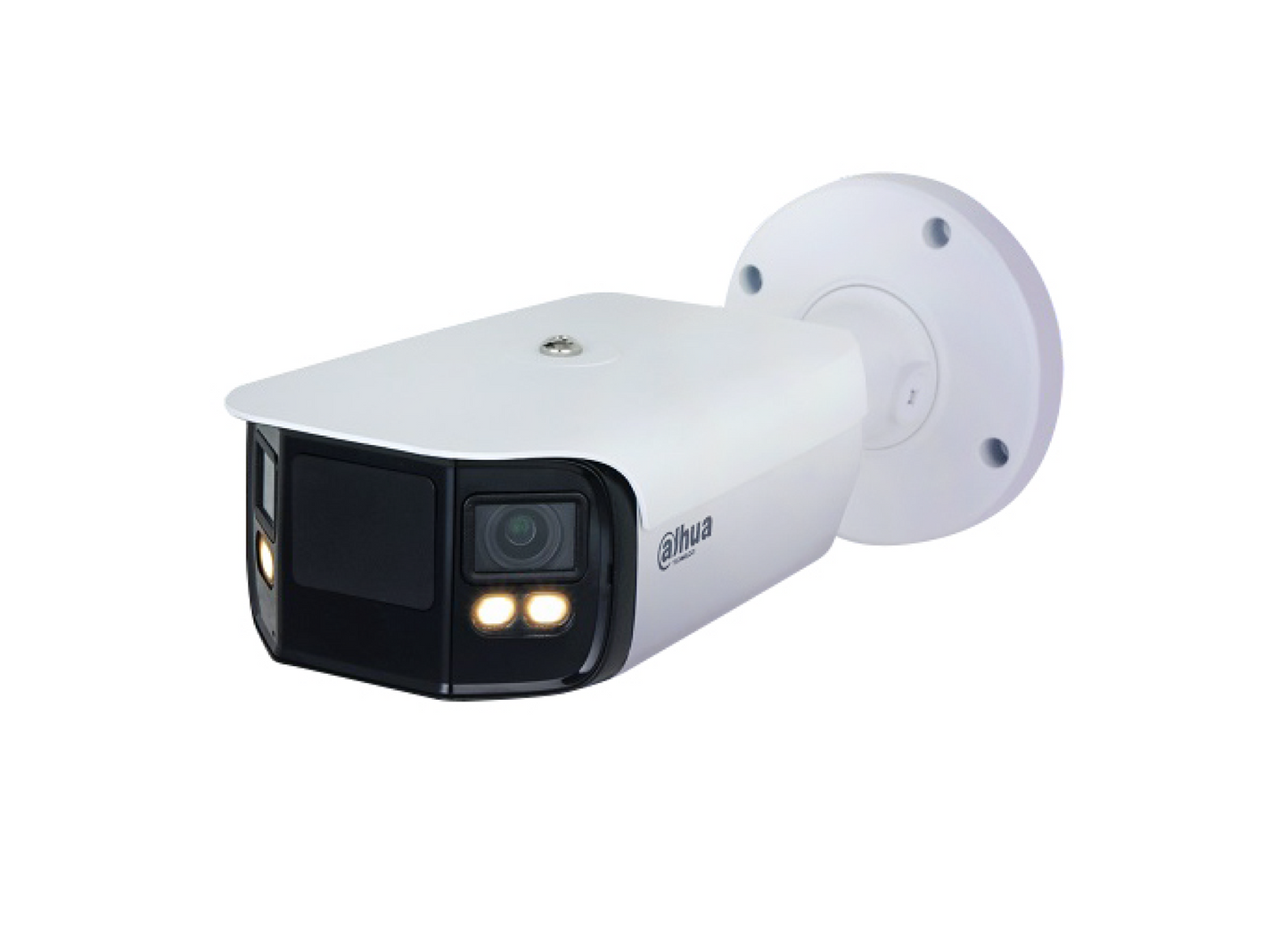

2×4MP Full-color Duo Splicing WizMind Network Camera
The Dahua Security 2×4MP Full-color Duo Splicing WizMind Network Camera (IPC-PFW5849-A180-E2-ASTE) is an advanced surveillance solution designed to deliver high-definition imaging with exceptional clarity. Featuring two 4MP sensors, this camera captures detailed, full-color video across a wide field of view, making it ideal for expansive monitoring areas. The Duo Splicing technology allows seamless integration of the two camera feeds, providing a unified and comprehensive image without visible joins.
Key Features
Code/SKU: DH-IPC-PFW5849-A180-E2-ASTE
Quick Specs: Video Compression: H.265; H.264; H.264H; H.264B; MJPEG (Only supported by the sub stream); Electronic Shutter Speed: Auto/Manual 1/3 s–1/100,000 s
Camera | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Image Sensor | Dual 1/1.8" CMOS | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Max. Resolution | 4096 (H) × 1800 (V) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
ROM | 128 MB | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
RAM | 1 GB | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Scanning System | Progressive | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Electronic Shutter Speed | Auto/Manual 1/3 s–1/100,000 s | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Min. Illumination | 0.0005 lux@F1.0 (Color, 30 IRE) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
S/N Ratio | >56 dB | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Illumination Distance | 40 m (131.23 ft) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Illuminator On/Off Control | Auto | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Illuminator Number | 4 (Warm light) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Pan/Tilt/Rotation Range | Pan: 0°–360° Tilt: 0°–90° Rotation: 0°–360° | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Lens | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Lens Type | Fixed-focal | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Lens Mount | M16 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Focal Length | 3.6 mm | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Field of View | H: 180°±10° V: 48° | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Max. Aperture | F1.0 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Iris Control | Fixed | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Close Focus Distance | 3.6 m (11.81 ft) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
DORI Distance | Lens | Detect | Observe | Recognize | Identify | ||||||||||||||||||||||||||||||||||||||||||||||||||||||
3.6 mm | 70.3 m (230.64 ft) | 28.1 m (92.19 ft) | 14.1 m (46.26 ft) | 7.0 m (22.97 ft) | |||||||||||||||||||||||||||||||||||||||||||||||||||||||
DORI (Detect, Observe, Recognize, Identify) is a standard system (EN-62676-4) for defining the ability of a person viewing the video to distinguish persons or objects within a covered area. The numbers in this table do not reflect intelligent function distances. For intelligent function distances, refer to installation and commissioning manual/project design tool. | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Intelligence | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
IVS (Perimeter Protection) | Intrusion, tripwire, fast moving (the three functions support the classification and accurate detection of vehicle and human); loitering detection, people gathering, and parking detection | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Heat Map | Yes | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Smart Object Detection | Smart abandoned object; smart missing object | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
People Counting | Support the counting of enter number, leave number and pass number, and displaying and outputting yearly/monthly/daily reports. Support the counting of number in area, and 4 rules configuration. Count number of people or stay time and link alarm. Support queue management, and 4 rules configuration. Count number of people or stay time and link alarm | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Video | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Video Compression | H.265; H.264; H.264H; H.264B; MJPEG (Only supported by the sub stream) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Smart Codec | Smart H.265+; Smart H.264+ | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
AI Coding | AI H.265; AI H.264 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Video Frame Rate | WDR Off: Main stream: 4096 × 1800 @ (1–25 fps) sub stream: 1024 × 452 @ (1–25 fps) third stream: 1920 × 832 @ (1–25 fps) WDR On: Main stream: 4096 × 1800 @ (1–20 fps) sub stream: 1024 × 452 @ (1–20 fps) third stream: 1920 × 832 @ (1–20 fps) *The values above are the max. frame rates of each stream; for multiple streams, the values will be subjected to the total encoding capacity. | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Stream Capability | 3 streams | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Resolution | 8M (4096 × 1800); 6.5M (3840 × 1680); 4M (3840 × 1080); 4M (2880 × 1264); 1.6M (1920 × 832); 0.7M (1280 × 560); 0.5M (1024 × 452) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Bit Rate Control | CBR/VBR | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Video Bit Rate | H.264: 9 kbps–8192 kbps | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Day/Night | Color/B/W | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
BLC | Yes | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
HLC | Yes | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
WDR | 140 dB | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Scene Self-adaptation (SSA) | Yes | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
White Balance | Auto; natural; street lamp; outdoor; manual; regional custom | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Gain Control | Auto | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Noise Reduction | 3D NR | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Motion Detection | OFF/ON (4 areas, rectangular) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Region of Interest (RoI) | Yes (4 areas) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Privacy Masking | 4 areas | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Defog | Yes | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Audio | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Built-in MIC | Yes | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Audio Compression | G.711a; G.711Mu; PCM; G.726; G.723 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Alarm | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Alarm Event | No SD card; SD card full; SD card error; network disconnection; IP conflict; illegal access; motion detection; video tampering; tripwire; intrusion; fast moving; abandoned object; missing object; loitering detection; people gathering; parking detection; scene changing; audio detection; voltage detection; external alarm; SMD; people counting in area; stay detection; people counting; security exception | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Network | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Network Port | RJ-45 (10/100 Base-T) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
SDK and API | Yes | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Cyber Security | Video encryption; Firmware encryption; Configuration encryption; Digest; WSSE; Account lockout; Security logs; IP/MAC filtering; Generation and importing of X.509 certification; syslog; HTTPS; 802.1x; Trusted boot; Trusted execution; Trusted upgrade | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Network Protocol | IPv4; IPv6; HTTP;TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; SAMBA; PPPoE; SNMP; Bonjour | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Interoperability | ONVIF (Profile S/Profile G/Profile T); CGI; Milestone | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
User/Host | 20 (Total bandwidth: 80 M) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Storage | FTP; SFTP; Micro SD card (support max. 512 GB); NAS | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Browser | IE: IE 11 and later Chrome Firefox | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Management Software | Smart PSS; DSS; DMSS | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Mobile Client | iOS; Android | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Certification | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Certifications | CE-LVD: EN62368-1 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Port | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Audio Input | 1 channel (RCA port) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Audio Output | 1 channel (RCA port) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Alarm Input | 1 channels in: 5 mA 3 V–5 VDC | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Alarm Output | 1 channel out: 300 mA 12 VDC | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Power | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Power Supply | 12 VDC (±30%)/PoE+ (802.3at)/ePoE | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Power Consumption | Basic: 4.8 W (12 VDC); 5.5 W (PoE) Max. (WDR + intelligence + warm light + SPK): 12.3 W (12 VDC); 13.8 W (PoE) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Environment | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Operating Temperature | –40 °C to +60 °C (–40 °F to +140 °F) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Operating Humidity | ≤95% | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Storage Temperature | –40 °C to +60 °C (–40 °F to +140 °F) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Protection | IP67 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Structure | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Casing | Metal + plastic | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Product Dimensions | 301.2 mm × 128.2 mm × 120.1 mm (11.86" × 5.05" × 4.73") (L × W × H) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Net Weight | 1420 g (3.13 lb) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Gross Weight | 1570 g (3.46 lb) |
All IP cameras and recording devices (NVR’s/DVR’s) are covered by a 3 year back-to-base manufacturer warranty.
Our warranty is limited to the replacement of faulty items or parts and does not include damage due to incorrect fitting of parts or accessories, or damage due to mishandling the equipment once out of the box. All faults are sent to the manufacturer for inspection and diagnosis before a replacement is sent out.
Read more about the Terms & Conditions here – https://www.securityaustralia.com.au/terms-and-conditions/
*Just spend over $100 to activate Fast Free Shipping!
Despatch Times: Products are despatched on the same day if the order was placed before 11am on any weekday, Monday - Friday. All other orders are processed and despatched within 24 hours or next business day.
Order Confirmation: Once you place an order, you will receive a confirmation email. This indicates that your order has been received in our system and is now being processed for dispatch. If your item is back-ordered or unavailable, we will notify you via email, and if we do not receive a response, we will attempt to contact you by phone as soon as possible. We value your time and strive to be prompt. If your item(s) are available for immediate shipment (within 2 days), we will process the charges and prepare the order for shipping.
Shipping Times: General shipping times for StarTrack, TNT and Allied couriers are between 1-3 working days from despatch. Longer delivery times may be caused by your package being held at your local courier depot that is beyond our control. Please contact us or the local post depot for confirmation.
Tracking Numbers: all tracking numbers will be emailed to you by our warehouse processing team within the day, after your order is despatched to our local courier.
Dahua DH-IPC-PFW5849-A180-E2-ASTE 4MP x 2 Full-color Dual-Lens Wizmind Bullet Network Camera
The Dahua Security 2×4MP Full-color Duo Splicing WizMind Network Camera (IPC-PFW5849-A180-E2-ASTE) is an advanced surveillance solution designed to deliver high-definition imaging with exceptional clarity. Featuring two 4MP sensors, this camera captures detailed, full-color video across a wide field of view, making it ideal for expansive monitoring areas. The Duo Splicing technology allows seamless integration of the two camera feeds, providing a unified and comprehensive image without visible joins. Equipped with advanced WizMind AI capabilities, the camera offers intelligent analytics, such as facial recognition, vehicle detection, and line crossing, enhancing security operations. The camera’s full-color imaging technology ensures excellent performance even in low-light conditions, thanks to its high-sensitivity sensors. Its robust construction and IP67 rating make it suitable for various outdoor environments, resisting harsh weather conditions and ensuring durability. The device supports PoE (Power over Ethernet), simplifying installation by reducing the need for separate power cables. With its dual-lens design, the camera offers enhanced depth perception and more accurate object detection.
The built-in IR illuminators extend its effectiveness in complete darkness, maintaining clear visibility. The camera integrates with Dahua’s comprehensive management software, allowing for efficient monitoring and easy configuration. Its compact and sleek design ensures that it can be installed discreetly in various locations. The 2×4MP Full-color Duo Splicing WizMind Network Camera is engineered for high-performance and reliability, making it a valuable addition to any advanced security system. The device is designed to provide uninterrupted surveillance and superior image quality under diverse conditions. Its intuitive user interface and advanced features make it a versatile choice for both residential and commercial applications.
Features
Functions
EPTZ Dahua's EPTZ technology utilizes advanced detection and tracking algorithms to simultaneously zoom in and monitor multiple humans and vehicles that trigger alarms. It provides both detailed imagery and a panoramic view, enhancing situational awareness.
Perimeter Protection Employing deep learning algorithms, Dahua's Perimeter Protection technology accurately distinguishes between humans and vehicles. It reduces false alarms in restricted areas by effectively detecting various scenarios such as tripwires, intrusions, fast-moving objects, parking violations, loitering, and gatherings.
People Counting Dahua's People Counting technology uses deep learning to accurately track and process moving human targets. It provides precise statistics on the number of people entering, leaving, or present in a specific area. Integrated with management platforms, it generates yearly, monthly, and daily reports to meet reporting needs.
ePoE Dahua's ePoE technology offers a cutting-edge solution for transmitting power and data over extended distances between cameras and network switches. It enhances system design flexibility, reliability, and cost efficiency. ePoE allows signals to travel up to 300 meters (984 feet) at 100 Mbps and 800 meters (2625 feet) at 10 Mbps using a single CAT6 cable.
Cyber Security Dahua network cameras incorporate a range of security measures, including authentication and authorization, access control protocols, trusted protection, encrypted transmission, and encrypted storage. These features bolster the camera's defenses against cyber threats and prevent unauthorized access.
Protection (IP67, Wide Voltage) IP67: The camera is rigorously tested for dust and water resistance. It is dust-proof and can operate normally after being submerged in 1 meter of water for up to 30 minutes.
Wide Voltage: The camera supports a wide voltage range with a tolerance of ±30% (for some power supplies), making it suitable for outdoor environments with fluctuating voltage levels.
Camera |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Image Sensor |
Dual 1/1.8" CMOS |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Max. Resolution |
4096 (H) × 1800 (V) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
ROM |
128 MB |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
RAM |
1 GB |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Scanning System |
Progressive |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Electronic Shutter Speed |
Auto/Manual 1/3 s–1/100,000 s |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Min. Illumination |
0.0005 lux@F1.0 (Color, 30 IRE) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
S/N Ratio |
>56 dB |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Illumination Distance |
40 m (131.23 ft) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Illuminator On/Off Control |
Car |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Illuminator Number |
4 (Warm light) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Pan/Tilt/Rotation Range |
Pan: 0°–360° Tilt: 0°–90° Rotation: 0°–360° |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Lens |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Lens Type |
Fixed-focal |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Lens Mount |
M16 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Focal Length |
3.6 mm |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Field of View |
H: 180°±10° V: 48° |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Max. Aperture |
F1.0 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Iris Control |
Fixed |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Close Focus Distance |
3.6 m (11.81 ft) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
DORI Distance |
Lens |
Detect |
I watched |
Recognize |
Identify |
||||||||||||||||||||||||||||||||||||||||||||||||||||||
3.6 mm |
70.3 m (230.64 ft) |
28.1 m (92.19 ft) |
14.1 m (46.26 ft) |
7.0 m (22.97 ft) |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||
DORI (Detect, Observe, Recognize, Identify) is a standard system (EN-62676-4) for defining the ability of a person viewing the video to distinguish persons or objects within a covered area. The numbers in this table do not reflect intelligent function distances. For intelligent function distances, refer to installation and commissioning manual/project design tool. |
