  • Sku: DH-IPC-HFW4230MP-4G-AS-I2-0360B-HW120
  • Vendor: SecurityAustralia

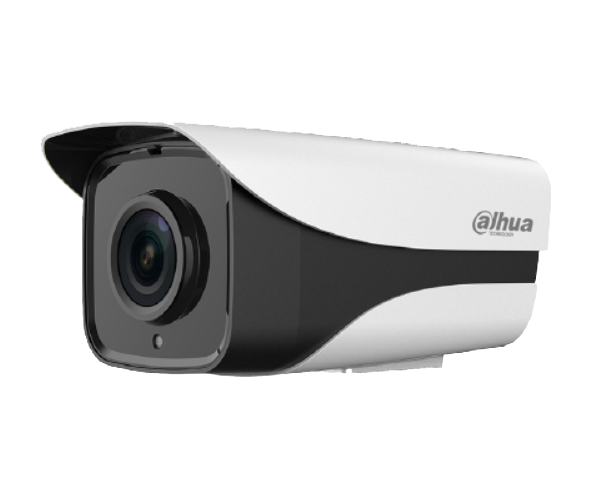

DAHUA DH-IPC-HFW4230MP-4G-AS-I2-0360B-HW120 2MP 4G IR BULLET NETWORK CAMERA

$951.00 AUD
$578.23 AUD
 per
Tax included.
Shipping calculated at checkout.
In stock!
Spend $100.00 to FREE SHIPPING

Free shipping - Enjoy free shipping when your order exceeds $100!

All orders are despatched within the next business day!

Best local support in Aus! We back all products with a 3 year manufacturer warranty.

2MP 4G IR Bullet Network Camera

The 4G supported IR bullet camera delivers 2MP resolution with a 3.6mm or 6mm fixed lens. The camera can be connected to mobile internet as long as you have a SIM card, providing an excellent choice for a variety of small to mid-size applications such as off-grid systems, farms, forests, borders, etc.

Key Features

  • 1/2.9” 2 Megapixel progressive CMOS
  • H.265&H.264 dual-stream encoding
  • 25/30fps@2M(1920×1080)
  • Day/Night(ICR), 3DNR, AWB, AGC, BLC
  • Multiple network monitoring: Web viewer, CMS(DSS/PSS) &DMSS
  • Micro SD card slot, up to 256GB
  • 3.6mm,6mm fixed lens
  • Max. IR LEDs Length 40m
  • 4G supported
  • IP67

Code/SKU: DH-IPC-HFW4230MP-4G-AS-I2-0360B-HW120
Quick Specs:

  • Image Sensor: 1/2.9” 2Megapixel progressive scan CMOS
  • Effective Pixels: 1920(H) x 1080(V)
  • RAM/ROM: 256MB/32MB

Specifications



Technical Specification

Model

DH-IPC-HFW4230M-4G-AS-I2

Camera

Image Sensor

1/2.9” 2Megapixel progressive scan CMOS

Effective Pixels )

1920(H) x 1080(V)

RAM/ROM

256MB/32MB

Scanning System

Progressive

Minimum Illumination

0.04Lux/F2.0( Color,1/3s,30IRE)

0.22Lux/F2.0( Color,1/30s,30IRE)

0Lux/F2.0(IR on)

S/N Ratio

More than 56dB

IR Distance

Distance up tp 40m (131.2ft)

IR On/Off Control

Auto/ Manual

IR LEDs

2

Lens

Lens Type

Fixed

Mount Type

M12

Focal Length

3.6mm (6mm optional)

Max. Aperture

F2.0

Angle of View

H: 82.5° (51.5°), V: 44° (29.5°)

Optical Zoom

N/A

Focus Control

Fixed

Close Focus Distance

0.9m(2m)

29.5ft(6.56ft)

DORI

Distance

Lens

Detect

Observe

Recognize

Identify

3.6mm

53m(174ft)

21m(69ft)

10m(33ft)

5m(17ft)

6mm

80m(262ft)

32m(105ft)

16m(52ft)

8m(26ft)

Pan/Tilt/Rotation

Pan/Tilt/Rotation Range

N/A

Intelligence

Event Trigger

Motion detection, Video tampering , Scene changing, Network disconnection , IP address conflict, Illegal Access,Storage anomaly



IVS

Tripwire, Intrusion

Video

Compression

H.265/H.264H/MJPEG(Sub Stream)

Smart Codec

Support H.265/H.264

Streaming Capability

2 Streams

Resolution

Motion detection, Video tampering , Scene changing, Network disconnection , IP address conflict, Illegal Access,Storage anomaly



Frame Rate

Main Stream: 1080P@25fps

Sub Stream: D1@25fps

Bit Rate Control

CBR/VBR

Bit Rate

H.264: 32~10240Kbps H.265: 12~6400Kbps

Day/Night

Auto ICR

BLC Mode

BLC / HLC / DWDR

White Balance

Auto/Natural/Street Lamp/Outdoor/Manual

Gain Control

Auto

Noise Reduction

3D DNR

Motion Detection

Off / On (4 Zone, Rectangle)

Region of Interest

Off / On (4 Zone)

Electronic Image Stabilization

(EIS)

N/A

Smart IR

Support

Defog

N/A

Digital Zoom

N/A

Flip

0°/90°/180°/270°

Mirror

Off / On

Privacy Masking

Off / On (4 Area, Rectangle)

Audio

Compression

G.711a/ G.711Mu/ AAC/ G.726

Network

Ethernet

RJ-45 (10/100Base-T)

Mobile Communication

4G

Operating band

Model 1: TDD-LTE:Band38/39/40/41 FDD-LTE:Band1/3/5/8 WCDMA:Band1/8 TD-SCDMA:Band34/39 EVDO/CDMA1X:BC0 GSM:Band3/8 Model 2: FDD-LTE:Band1/2/3/4/5/7/8/20 UMTS:Band1/2/5/8 GSM:850/900/1800/1900



Protocol

HTTP;HTTPS;TCP;ARP;RTSP;RTP;RTCP;UDP;SMTP; FTP;DHCP;DNS;DDNS;PPPoE;IPV4/V6;QoS;UPnP; NTP;Bonjour;IEEE 802.1X;Multicast;ICMP;IGMP;TLS



Interoperability

ONVIF Profile S&G, API

Streaming Method

Unicast / Multicast

Max. User Access

10 Users /20 Users

Edge Storage

NAS Local PC for instant recording Mirco SD card 256GB



Web Viewer

IE, Chrome, Firefox, Safari

Management Software

Smart PSS, DSS, DMSS

Smart Phone

IOS, Android

Certifications

Certifications

CE-LVD: EN60950-1 CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU FCC: 47 CFR FCC Part 15, Subpart B



Interface

Audio Interface

1/1 channel In/Out

Alarm

2 channel In: 500mA 5VDC

2 channel Out: 300mA 12VDC

Electrical

Power Supply

DC12V±30%

Power Consumption

3.6W, 9.5W(IR on); 6W(4G on, IR off)



Environmental

Operating Conditions

-30° C ~ +60° C (-22° F ~ +140° F) / Less than 95% RH



Storage Conditions

-30° C ~ +60° C (-22° F ~ +140° F) / Less than 95% RH



Ingress Protection

IP67

Vandal Resistance

N/A

Construction

Casing

Metal+Plastic

Dimensions

194.4mm×96.6mm×89.5mm (7.65”×3.8”×3.52”)

Net Weight

0.7kg (1.54lb)

Gross Weight

0.8kg (1.76lb)

Electrical

Power Supply

DC12V±30%

Power Consumption

3.6W, 9.5W(IR on); 6W(4G on, IR off)

Environmental

Operating Conditions

-30° C ~ +60° C (-22° F ~ +140° F) / Less than 95% RH

Storage Conditions

-30° C ~ +60° C (-22° F ~ +140° F) / Less than 95% RH

Ingress Protection

IP67

Vandal Resistance

N/A

Construction

Casing

Metal+Plastic

Dimensions

194.4mm×96.6mm×89.5mm (7.65”×3.8”×3.52”)

Net Weight

0.7kg (1.54lb)

Gross Weight

0.8kg (1.76lb)

Documentation

3 Years Manufacturer Warranty

All IP cameras and recording devices (NVR’s/DVR’s) are covered by a 3 year back-to-base manufacturer warranty.

Our warranty is limited to the replacement of faulty items or parts and does not include damage due to incorrect fitting of parts or accessories, or damage due to mishandling the equipment once out of the box. All faults are sent to the manufacturer for inspection and diagnosis before a replacement is sent out.

Read more about the Terms & Conditions here – https://www.securityaustralia.com.au/terms-and-conditions/

Trusted Brand Partner & Security Equipment Wholesaler

Authorised Brand Partner with Responsive & Fast Aussie Sales Support Team ★★★★★
Best After-Sales Support and Troubleshooting Team with Years of Installation Experience.

Free Delivery* & Despatch Time

*Just spend over $100 to activate Fast Free Shipping!

Despatch Times: Products are despatched on the same day if the order was placed before 11am on any weekday, Monday - Friday. All other orders are processed and despatched within 24 hours or next business day.

Order Confirmation: Once you place an order, you will receive a confirmation email. This indicates that your order has been received in our system and is now being processed for dispatch. If your item is back-ordered or unavailable, we will notify you via email, and if we do not receive a response, we will attempt to contact you by phone as soon as possible. We value your time and strive to be prompt. If your item(s) are available for immediate shipment (within 2 days), we will process the charges and prepare the order for shipping.

Shipping Times: General shipping times for StarTrack, TNT and Allied couriers are between 1-3 working days from despatch. Longer delivery times may be caused by your package being held at your local courier depot that is beyond our control. Please contact us or the local post depot for confirmation.

Tracking Numbers: all tracking numbers will be emailed to you by our warehouse processing team within the day, after your order is despatched to our local courier.

View full details

DAHUA DH-IPC-HFW4230MP-4G-AS-I2-0360B-HW120 2MP 4G IR BULLET NETWORK CAMERA

$951.00 AUD
$578.23 AUD
 per

The Dahua 2MP 4G IR Bullet Network Camera (DH-IPC-HFW4230M-4G-AS-I2) is a high-performance surveillance solution designed for versatile and reliable monitoring. Featuring a 2-megapixel resolution, this camera provides clear and detailed images suitable for various security applications. It is equipped with 4G LTE connectivity, allowing for remote access and video streaming without the need for wired network connections.

The camera includes infrared (IR) LEDs, enabling it to capture high-quality footage even in low-light conditions, up to a specified range. Its robust bullet design ensures durability and weather resistance, making it suitable for outdoor environments. The camera supports smart detection features, such as motion detection and line crossing, to enhance security management. With its easy-to-install design, the IPC-HFW4230M-4G-AS-I2 integrates seamlessly into existing surveillance systems. The built-in 4G module eliminates the need for additional network infrastructure, providing flexibility in deployment locations. Its advanced video compression technology optimizes storage and bandwidth usage, ensuring efficient performance.

The camera supports various viewing and recording options through Dahua's software, offering comprehensive surveillance capabilities. Its compact size and modern design make it an unobtrusive yet effective security solution. Overall, this camera is ideal for users seeking reliable, high-quality video surveillance with the convenience of wireless connectivity.

Functions:

  • 4G
    The camera can be connected to Mobile Internet as long as you have a SIM card, then you can place it anywhere and no need to worry about the wiring hassles.
  • Intelligent Video analysis (IVS)
    Dahua camera is equipped with a built-in intelligent analytic algorithm based on the video, which can realize intelligent functions like Tripwire and Intrusion, to quickly and accurately respond to monitoring events in a specific area, It can enhance monitoring efficiency. In addition, the camera supports intelligent tamper detection, which is to generate warning messages via detecting dramatic scene changes and guarantees effective video surveillance.
  • Smart IR Technology
    With IR illumination, detailed images can be captured in low light or total darkness. The camera's Smart IR technology adjusts the intensity of the camera's infrared LEDs to compensate for the distance of an object. Smart IR technology prevents IR LEDs from whitening out images as they come closer to the camera. The camera's integrated infrared illumination provides high performance in extreme low-light environments up to 40m.
  • Protection (IP67, wide voltage)
    The camera allows for ±25% input voltage tolerance, suitable for the most unstable conditions for outdoor applications. Its 2KV lightning rating provides effective protection for both the camera and its structure against lightning. Subjected and certified to rigorous dust and immersion tests (IP67), the camera is the choice for installation in even the most unforgiving environments.
  • Environmental
    Dahua cameras operate in extreme temperature environments, rated for use in temperatures from -30° C to +60° C (-22° F to +140° F) with 95% humidity.
  • Smart Codec (H.265+ & H.264+)
    Smart Codec is the optimized implementation of standard video compression (H.265 & H.264) that uses a scene-adaptive encoding strategy, dynamic GOP, dynamic ROI, flexible multi-frame reference structure, and intelligent noise reduction to deliver high-quality video without straining the network. Smart Codec technology reduces bit rate and storage requirements by up to 70% when compared to standard video compression.
