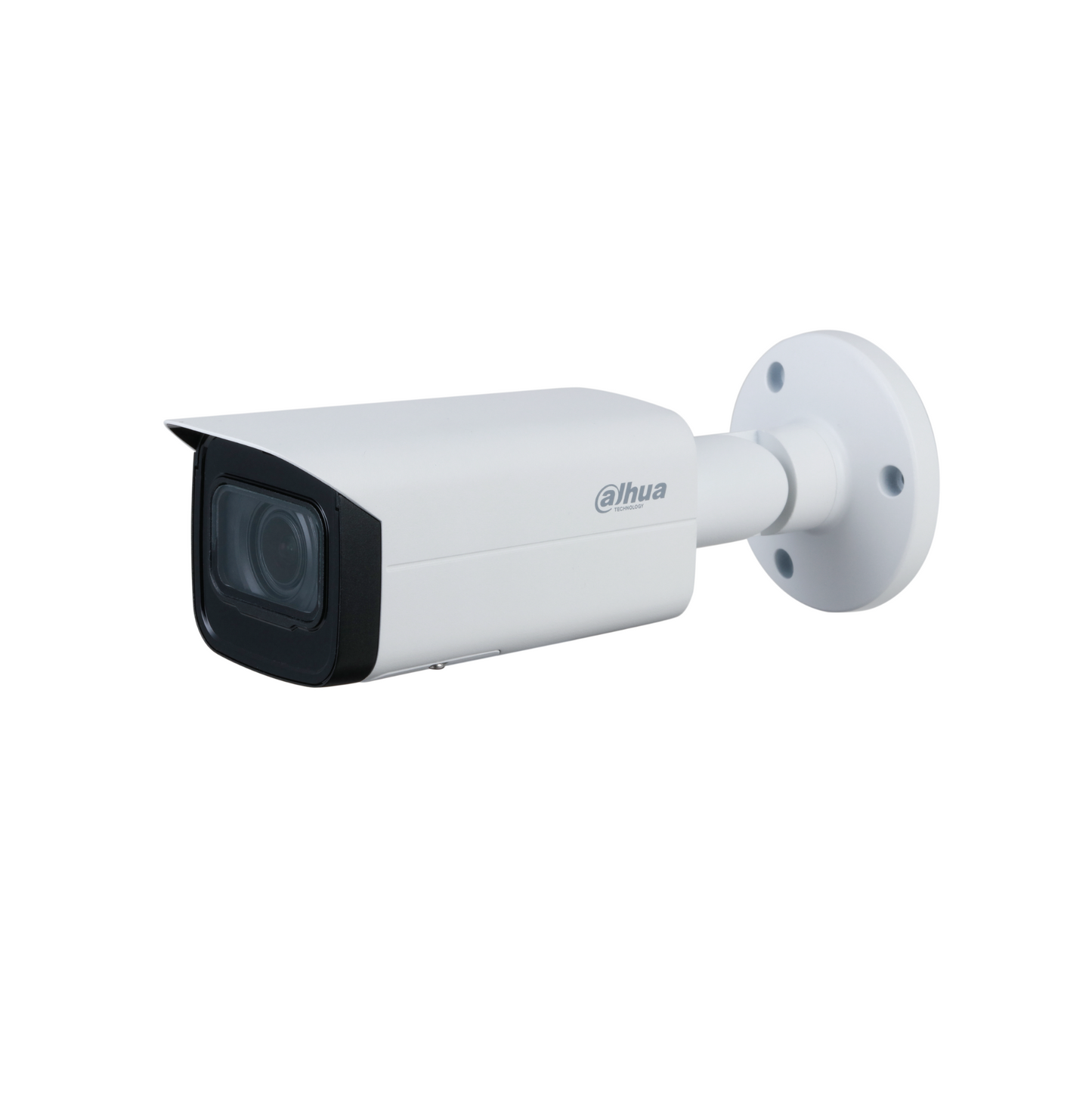

Dahua DH-IPC-HFW3541TP-ZAS-27135 5MP Lite AI Motorised Starlight Bullet, Perimeter, SMD, SD Card, WDR, IR60m,IP67, POE

Model: DH-IPC-HFW3541TP-ZAS-27135

Who This Is For

For installers and security managers who need a single outdoor bullet camera to cover varying distances without committing to a fixed focal length at installation time. The DH-IPC-HFW3541TP-ZAS-27135 suits perimeter runs where the exact standoff distance is determined on-site - think logistics yards, construction site entries, school perimeters, and commercial car parks where a fixed lens would either miss coverage or lose detail. The motorised 2.7 mm to 13.5 mm lens adjusts remotely, so there is no need to physically reposition the camera after mounting. At 5MP resolution with Starlight low-light sensitivity and 60 m IR reach, it handles the long unlit approaches that catch out lower-resolution fixed cameras. SMD Plus filters humans and vehicles from irrelevant motion, keeping alarm fatigue manageable on sites with wind, foliage, or passing headlights.

What This Camera Actually Does

Who Buys This Model

• Commercial Property Installers: Specifying a single camera to cover a long driveway or car park entrance where standoff distance varies - the motorised lens removes the guesswork of fixed focal length selection before site confirmation.
• Industrial Facility Managers: Needing perimeter tripwire or intrusion alerts on warehouse yards and loading dock approaches, with human and vehicle classification to avoid overnight false alarms from wind or animals.
• School and Childcare Facility Security Leads: Covering long perimeter fence lines or entry approaches where the 60 m IR range and 5MP resolution provide usable identification detail at distance after hours.
• Construction Site Security Coordinators: Deploying temporary perimeter coverage where the SD card fallback recording matters and exact mounting distances change between stages of the build.
• Integrators Pairing with Dahua AI NVRs: Combining SMD Plus and perimeter protection features with a compatible Dahua AI recorder to enable push notifications and event search by target type across multi-camera sites.

Honest Assessment

The DH-IPC-HFW3541TP-ZAS-27135 earns its place on perimeter and approach applications where a fixed lens camera would require guesswork at specification stage. The motorised zoom, 5MP sensor, and 60 m IR genuinely work together - you can mount it, confirm the field of view remotely, and have actionable image quality at the distances this housing is typically deployed. SMD Plus and perimeter protection reduce alarm load meaningfully compared to standard motion detection on exposed outdoor runs. Available through Security Australia, this is a well-suited choice for commercial and industrial outdoor positions. Where it will not serve as well: sites needing full-colour night vision without IR (there is no built-in white light on this model), wide-area coverage that requires 180 or 360 degree views (a fisheye or multi-sensor camera handles that), or applications needing motorised optical zoom beyond the 5x range this lens provides. The audio input supports recording but there is no confirmed built-in speaker, so two-way audio is not applicable here.

Before You Buy

Quick Fit Check

• Good match if: You are covering a long outdoor approach, driveway, or perimeter fence line where the exact standoff distance is not confirmed until on-site - the motorised 2.7-13.5 mm lens lets you lock in the field of view after mounting without repositioning.
• Good match if: Your site needs rule-based perimeter alerts (tripwire, intrusion zones) with human and vehicle classification, and you want SD card backup recording in case the network path to the NVR is interrupted.
• You may need a different model if: Your application requires full-colour night-time footage without IR illumination - a full-colour or TiOC bullet with built-in white light would be a more appropriate product type for that requirement.

Key Features & Technical Specifications

Real-World Scenarios

How It Compares

• Choose this if: Your outdoor perimeter position needs flexible focal length adjustment after mounting, combined with AI-based human and vehicle perimeter alerts and 60 m IR reach at 5MP resolution.
• You may need a different model if: Your application requires full-colour night-time imagery without IR - a full-colour bullet or TiOC model with built-in white light is a more suitable product type for colour-at-night requirements.
• Pairs well with: A Dahua AI-capable NVR with SMD Plus support, which unlocks event search by target type, push notification filtering, and the full perimeter protection rule set across multiple cameras on the one system.

Common Questions

1. Does this camera work with PoE, or does it need a separate power supply?

   Yes. The DH-IPC-HFW3541TP-ZAS-27135 supports IEEE 802.3af PoE, so a single Cat5e or Cat6 cable carries both power and data from a PoE switch or NVR. It also accepts 12V DC if you have an existing low-voltage power run at the mounting position. Standard 802.3af PoE (up to 15.4W) is sufficient - you do not need PoE+.

2. How does the motorised zoom actually work - do I need to be at the camera to adjust it?

   No. Zoom and focus adjust remotely. Once the camera is powered and connected to your NVR or accessed via browser, you control the lens position from your desk. The motorised mechanism moves the lens elements electronically in response to the zoom commands. Auto-focus runs after zoom adjustment to confirm sharpness. This means you can trial different field of view settings without a ladder return, which is the primary reason installers choose this model over a fixed lens bullet on positions where the optimal focal length is uncertain.

3. What is the actual detection range at the tele end of the lens, and how far can I identify a person?

   At the tele end (13.5 mm), the DORI specification puts detection at 222 m, observation at 88.8 m, recognition at 44.4 m, and identification at 22.2 m. In practice, identification at 22.2 m means you can resolve enough facial or clothing detail to positively identify a subject at that distance in adequate light. The 60 m IR range is the limiting factor after dark - beyond that distance, IR illumination falls off and image detail reduces regardless of lens position.

4. Will this camera work for perimeter protection, and what is the difference between SMD Plus and Perimeter Protection?

   Yes, it supports both. SMD Plus is a passive classification layer - it filters motion events and only flags those involving a human or vehicle, reducing the volume of irrelevant recordings. Perimeter Protection goes further: you draw virtual tripwire lines or intrusion zones in the camera's field of view and set rules (direction of crossing, dwell time) that trigger active alarms when a classified human or vehicle target meets those conditions. For restricted-access outdoor areas, Perimeter Protection gives you rule-based alerting rather than just filtered recording.

5. Does the camera need a Dahua NVR to use the AI features, or do they work standalone?

   The AI processing runs on the camera itself - SMD Plus and perimeter protection are on-camera functions that do not require an AI NVR to operate. However, a compatible Dahua AI NVR unlocks additional value: event search filtered by target type, consolidated push notifications across multiple cameras, and management of perimeter rules from the NVR interface. A non-AI NVR will record video normally but will not surface classified events or relay AI-triggered alerts. Check with Security Australia that your existing NVR model is compatible before assuming full AI feature availability.

6. Does this camera support two-way audio?

   No. The camera includes a built-in microphone and an audio output terminal, but there is no confirmed built-in speaker in this housing. Audio input recording is supported. For two-way audio at a door or gate, a separate intercom or a camera model with a confirmed built-in speaker is the appropriate product type.

7. Is the IP67 rating sufficient for exposed outdoor use in Australia?

   Yes. IP67 confirms full dust ingress protection and submersion resistance to 1 m depth for 30 minutes, which exceeds the demands of normal exposed outdoor mounting. For standard eave, pole, or wall mounting in rain-exposed positions, IP67 is adequate. The wide voltage tolerance of the power input also accounts for the fluctuations common on rural or industrial power supplies. The camera does not carry an IK vandal-resistance rating confirmed in the specification data, so if physical impact is a concern at low mounting heights, factor in a protective mount or choose a housing with a confirmed IK rating.

8. How much storage does the SD card provide, and how long will footage last on a 256GB card?

   The camera accepts a microSD card up to 256GB. Recording duration depends on the resolution, frame rate, and Smart H.265+ compression settings you configure. At 5MP with Smart H.265+ and event-only recording, a 256GB card can provide several days of retention. Continuous recording at full resolution and standard H.265 will reduce that figure significantly. For precise calculation based on your specific settings, use Dahua's online storage calculator, or configure the camera for motion or AI event-triggered recording to extend the SD card lifespan between overwrites.
