Dahua DH-IPC-HFW3541EP-AS-0280B 5MP Lite AI Fixed Starlight Bullet, Perimeter, SMD, SD Card, WDR, IR50m, Mic, IP67, POE

$240.00 AUD
In stock!
Spend $100.00 to FREE SHIPPING

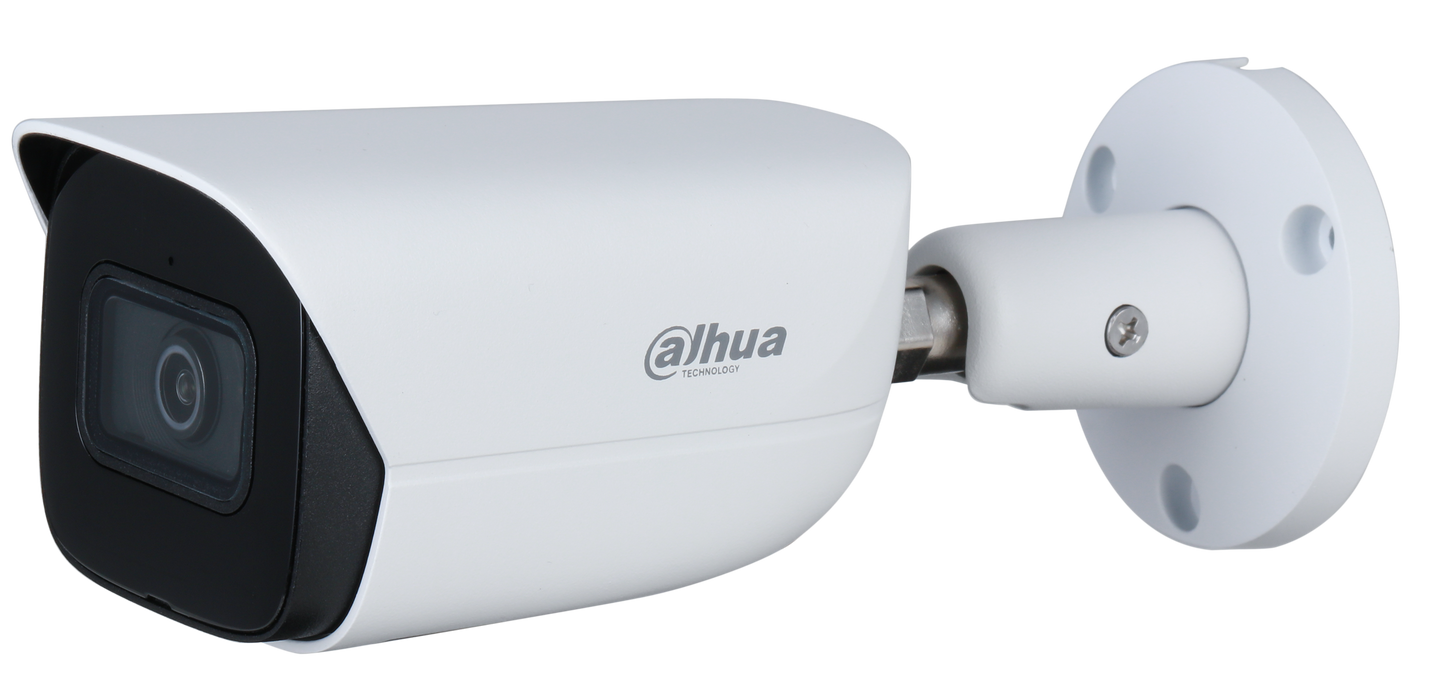

5MP IR Fixed focal Bullet WizSense Network Camera

The Dahua 5MP IR Fixed-focal Bullet WizSense Network Camera (DH-IPC-HFW3541E-AS) offers advanced surveillance with a 5MP sensor that delivers clear and detailed images. This camera is equipped with intelligent features such as perimeter protection and smart motion detection, enhancing security monitoring efficiency. Its fixed-focal lens ensures consistent focus and image clarity across its field of view.

Key Features

  • 5MP, 1/2.7” CMOS image sensor, low illuminance, high image definition
  • Outputs max. 5MP (2592 × 1944) @20 fps, and supports 4MP (2688 × 1520) @25/30 fps
  • H.265 codec, high compression rate, low bit rate
  • Built-in IR LED, max. IR distance: 50 m
  • ROI, SMART H.264+/H.265+, flexible coding, applicable to various bandwidth and storage environments
  • Rotation mode, WDR, 3D DNR, HLC, BLC, digital watermarking, applicable to various monitoring scenes
  • Intelligent detection: Intrusion, tripwire (supports the classification and accurate detection of vehicle and human)
  • Abnormality detection: Motion detection, video tampering, scene changing, audio abnormality detection, no SD card, SD card full, SD card error, network disconnection, IP conflict, illegal access, voltage detection
  • Alarm: In, out; Audio: In, out; Supports max. 256 G Micro SD card, built-in Mic
  • 12V DC/POE power supply
  • IP67 protection
  • SMD Plus

Code/SKU: DH-IPC-HFW3541E-AS
Quick Specs:

Field of View

  • 2.8 mm: Horizontal: 98°; vertical: 72°; diagonal: 130°
  • 3.6 mm: Horizontal: 80°; vertical: 59°; diagonal: 106°
  • 6 mm: Horizontal: 50°; vertical: 36°; diagonal: 64°

Iris Type

  • Fixed

Close Focus Distance

  • 2.8 mm: 0.9 m (3.0 ft)
  • 3.6 mm: 1.6 m (5.3 ft)
  • 6 mm: 3.2 m (10.5 ft)

Specifications



Camera

Image Sensor

1/2.7”5Megapixel progressive CMOS

Max. Resolution

2592 (H) ×1944 (V)

ROM

128 MB

RAM

512 MB

Scanning System

Progressive

Electronic Shutter Speed

Auto/Manual 1/3 s–1/100000 s

Min. Illumination

0.005 Lux@F1.6 (Color, 30IRE)

0.0005 Lux@F1.6 (B/W, 30IRE)

0 Lux (Illuminator on)

S/N Ratio

> 56 dB

Illumination Distance

50 m (164.0 ft)

Illuminator On/Off Control

Auto/Manual

Illuminator Number

1 (IR LED)

Pan/Tilt/Rotation Range

Pan: 0°–360°; Tilt: 0°–90°; Rotation: 0°–360°

Lens

Lens Type

Fixed-focal

Mount Type

M12

Focal Length

2.8 mm; 3.6 mm; 6 mm

Max. Aperture

F1.6

Field of View

2.8 mm: Horizontal: 98°; vertical: 72°; diagonal: 130°

3.6 mm: Horizontal: 80°; vertical: 59° ; diagonal: 106°

6 mm: Horizontal: 50°; vertical: 36°; diagonal: 64°

Iris Type

Fixed

Close Focus Distance

2.8 mm: 0.9 m (3.0 ft)
3.6 mm: 1.6 m (5.3 ft)
6 mm: 3.2 m (10.5 ft)

DORI Distance

Lens

Detect

Observe

Recognize

Identify

2.8mm

56.0 m

(183.7 ft)

22.4 m

(73.5 ft)

11.2 m

(36.8 ft)

5.6 m

(18.4 ft)

3.6mm

80.0 m

(262.5 ft)

32.0 m

(105.0 ft)

16.0 m

(52.5 ft)

8.0 m

(26.3 ft)

6mm

120.0 m (393.7 ft)

48.0 m

(157.5 ft)

24.0 m

(78.7 ft)

12.0 m (39.4ft)

Professional, Intelligent

Perimeter Protection

Tripwire; intrusion (Recognition of human and vehicle)

Intelligent Search

Work together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos

Video

Video Compression

H.265; H.264; H.264H; H.264B; MJPEG(only supported

by sub stream)

Smart Codec

Smart H.265+/ Smart H.264+

Video Frame Rate

Main stream (2592 × 1944@1–20 fps)

(2688 × 1520@1–25/30 fps)

sub stream(704 × 576@1–25 fps/704 × 480@1–30 fps)

third stream(1280 × 720@1–25/30 fps)

Stream Capability

3 streams

Resolution

5M (2592 × 1944); 4M (2688 × 1520); 3M (2304 × 1296); 1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240)

Bit Rate Control

CBR/VBR

Video Bit Rate

H.264: 3 Kbps–8192 Kbps
H.265: 3 Kbps–8192 Kbps

Day/Night

Auto(ICR)/Color/B/W

BLC

Yes

HLC

Yes

WDR

120 dB

White Balance

Auto/natural/street lamp/outdoor/manual/regional custom

Gain Control

Auto/Manual

Noise Reduction

3D DNR

Motion Detection

OFF/ON (4 areas, rectangular)

Region of Interest(RoI)

Yes (4 areas)

Smart Illumination

Yes

Image Rotation

0°/90°/180°/270° (Support 90°/270° with 1920 × 1080 resolution and lower.)

Mirror

Yes

Privacy Masking

4 areas

Audio

Built-in MIC

Yes

Audio Compression

G.711a; G.711Mu; G726

Alarm

Alarm Event

No SD card; SD card full; SD card error; less service time of SD card (smart card supports); network disconnection; IP conflict; illegal access; voltage detection; security exception; motion detection; video tampering; scene changing; intensity change; tripwire; intrusion; SMD

Network

Network

RJ-45 (10/100 Base-T)

SDK and API

Yes

Protocol

IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; PPPoE; SNMP

Cyber Security

Video encryption; firmware encryption; configuration encryption; Digest; WSSE; account lockout; security logs; IP/MAC filtering; generation and importing of X.509 certification; syslog; HTTPS; 802.1x; trusted boot; trusted execution; trusted upgrade

Interoperability

ONVIF(Profile S/Profile G/Profile T);CGI;P2P;Milestone;

Genetec

Scene Self-adaptation (SSA)

Yes

User/Host

20 (Total bandwidth: 64 M)

Storage

FTP; SFTP; Micro SD Card (support max. 256 G); NAS

Browser

IE: IE8, IE9, IE11

Chrome

Firefox

Management Software

Smart PSS, DSS, DMSS

Mobile Phone

IOS; Android

Certification

Certifications

CE-LVD: EN62368-1
CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU
FCC: 47 CFR FCC Part 15, Subpart B
UL/CUL: UL60950-1 CAN/CSA C22.2 No.60950-1-07

Port

Audio Input

1-channel (RCA port)

Audio Output

1-channel (RCA port)

Alarm Input

1 channel in: 5mA 3V–5V DC

Alarm Output

1 channel out: 300mA 12V DC

Power

Power Supply

12V DC/PoE (802.3af)

Power Consumption

< 5.4W

Environment

Operating Conditions

-40°C to +60°C (-40°F to +140°F)/less than 95%

Storage Conditions

-40°C to +60°C (-40°F to +140°F)

Protection Grade

IP67

Structure

Casing

Metal

Dimensions

192.7 mm × 70.5 mm × 66.4 mm

(7.6''×2.8''×2.6'') (L × W × H)

Net Weight

590 g (1.3lb)

Gross Weight

780 g (1.7lb)

Documentation

DH-IPC-HFW3541E-AS_Datasheet_20190918.pdf
6-Dahua-Network-Camera-Web-3.0-Operation-Manual_V2.0.11.pdf
1.2.51.32.15258-000-Dahua-HD-IR-Bullet-Network-Camera_QSG_V1.0.04.pdf

3 Years Manufacturer Warranty

All IP cameras and recording devices (NVR’s/DVR’s) are covered by a 3 year back-to-base manufacturer warranty.

Our warranty is limited to the replacement of faulty items or parts and does not include damage due to incorrect fitting of parts or accessories, or damage due to mishandling the equipment once out of the box. All faults are sent to the manufacturer for inspection and diagnosis before a replacement is sent out.

Read more about the Terms & Conditions here – https://www.securityaustralia.com.au/terms-and-conditions/

Trusted Brand Partner & Security Equipment Wholesaler

Authorised Brand Partner with Responsive & Fast Aussie Sales Support Team ★★★★★
Best After-Sales Support and Troubleshooting Team with Years of Installation Experience.

Free Delivery* & Despatch Time

*Just spend over $100 to activate Fast Free Shipping!

Despatch Times: Products are despatched on the same day if the order was placed before 11am on any weekday, Monday - Friday. All other orders are processed and despatched within 24 hours or next business day.

Order Confirmation: Once you place an order, you will receive a confirmation email. This indicates that your order has been received in our system and is now being processed for dispatch. If your item is back-ordered or unavailable, we will notify you via email, and if we do not receive a response, we will attempt to contact you by phone as soon as possible. We value your time and strive to be prompt. If your item(s) are available for immediate shipment (within 2 days), we will process the charges and prepare the order for shipping.

Shipping Times: General shipping times for StarTrack, TNT and Allied couriers are between 1-3 working days from despatch. Longer delivery times may be caused by your package being held at your local courier depot that is beyond our control. Please contact us or the local post depot for confirmation.

Tracking Numbers: all tracking numbers will be emailed to you by our warehouse processing team within the day, after your order is despatched to our local courier.

View full details

Dahua DH-IPC-HFW3541EP-AS-0280B 5MP Lite AI Fixed Starlight Bullet, Perimeter, SMD, SD Card, WDR, IR50m, Mic, IP67, POE

$240.00 AUD

The Dahua 5MP IR Fixed-focal Bullet WizSense Network Camera (DH-IPC-HFW3541E-AS) offers advanced surveillance with a 5MP sensor that delivers clear and detailed images. This camera is equipped with intelligent features such as perimeter protection and smart motion detection, enhancing security monitoring efficiency. Its fixed-focal lens ensures consistent focus and image clarity across its field of view. With infrared night vision capabilities, the camera provides reliable performance even in low-light conditions. The camera is designed for outdoor use, featuring an IP67-rated weatherproof housing that resists harsh weather elements. It also supports H.265 video compression, reducing bandwidth and storage requirements without compromising image quality.

The built-in microphone enables audio recording, adding an extra layer of information to surveillance footage. Easy to install, the camera supports Power over Ethernet (PoE) for simplified wiring. It integrates seamlessly with Dahua’s WizSense technology, offering AI-powered analytics for more accurate detection and reduced false alarms. The compact bullet design makes it suitable for a variety of installation environments. Additionally, the camera's robust construction ensures long-term durability, making it a reliable choice for various security applications.

Features

  • 5MP, 1/2.7” CMOS image sensor, low illuminance, high image definition
  • Outputs max. 5MP (2592 × 1944) @20 fps, and supports 4MP (2688 × 1520) @25/30 fps
  • H.265 codec, high compression rate, low bit rate
  • Built-in IR LED, max. IR distance: 50 m
  • ROI, SMART H.264+/H.265+, flexible coding, applicable to various bandwidth and storage environments
  • Rotation mode, WDR, 3D DNR, HLC, BLC, digital watermarking, applicable to various monitoring scenes
  • Intelligent detection: Intrusion, tripwire (supports the classification and accurate detection of vehicle and human)
  • Abnormality detection: Motion detection, video tampering, scene changing, audio abnormality detection, no SD card, SD card full, SD card error, network disconnection, IP conflict, illegal access, voltage detection
  • Alarm: In, out; Audio: In, out; Supports max. 256 G Micro SD card, built-in Mic
  • 12V DC/POE power supply
  • IP67 protection
  • SMD Plus



Functions

SMD Plus:
Dahua's Smart Motion Detection technology uses an intelligent algorithm to categorize motion detection triggers, filtering out irrelevant targets to provide precise and effective alarms.

Smart H.265+ & Smart H.264+:
Utilizing an advanced scene-adaptive rate control algorithm, Dahua's smart encoding technology offers superior encoding efficiency over standard H.265 and H.264. This ensures high-quality video while significantly reducing storage and transmission costs.

Perimeter Protection:
Powered by deep learning algorithms, Dahua's Perimeter Protection technology accurately identifies human and vehicle movement. It minimizes false alarms in restricted areas, such as pedestrian and vehicle zones, by focusing on specific target types like tripwire and intrusion.

Starlight:
Dahua's Starlight technology excels in low-light conditions, delivering clear and vibrant video even in minimal illumination, ensuring superior image quality.

Cyber Security:
Dahua network cameras are fortified with key security technologies, including security authentication and authorization, access control, trusted protection, encrypted transmission, and storage. These features bolster security defenses and safeguard data from malicious attacks.

Protection (IP67, Wide Voltage):
The camera is rated IP67, having undergone rigorous dust and water resistance tests. It remains dustproof and continues to function normally even after 30 minutes of submersion in 1-meter deep water. The wide voltage tolerance of ±30% allows the camera to operate reliably in outdoor environments with unstable power supplies.

Technical Specifications:

Camera

Image Sensor

1/2.7”5Megapixel progressive CMOS

Max. Resolution

2592 (H) ×1944 (V)

ROM

128 MB

RAM

512 MB

Scanning System

Progressive

Electronic Shutter Speed

Auto/Manual 1/3 s–1/100000 s

Min. Illumination

0.005 Lux@F1.6 (Color, 30IRE)

0.0005 Lux@F1.6 (B/W, 30IRE)

0 Lux (Illuminator on)

S/N Ratio

> 56 dB

Illumination Distance

50 m (164.0 ft)

Illuminator On/Off Control

Auto/Manual

Illuminator Number

1 (IR LED)

Pan/Tilt/Rotation Range

Pan: 0°–360°; Tilt: 0°–90°; Rotation: 0°–360°

Lens

Lens Type

Fixed-focal

Mount Type

M12

Focal Length

2.8 mm; 3.6 mm; 6 mm

Max. Aperture

F1.6

Field of View

2.8 mm: Horizontal: 98°; vertical: 72°; diagonal: 130°

3.6 mm: Horizontal: 80°; vertical: 59° ; diagonal: 106°

6 mm: Horizontal: 50°; vertical: 36°; diagonal: 64°

Iris Type

Fixed

Close Focus Distance

2.8 mm: 0.9 m (3.0 ft)
3.6 mm: 1.6 m (5.3 ft)
6 mm: 3.2 m (10.5 ft)

DORI Distance

Lens

Detect

Observe

Recognize

Identify

2.8mm

56.0 m

(183.7 ft)

22.4 m

(73.5 ft)

11.2 m

(36.8 ft)

5.6 m

(18.4 ft)

3.6mm

80.0 m

(262.5 ft)

32.0 m

(105.0 ft)

16.0 m

(52.5 ft)

8.0 m

(26.3 ft)

6mm

120.0 m (393.7 ft)

48.0 m

(157.5 ft)

24.0 m

(78.7 ft)

12.0 m (39.4ft)

Videos
