  • Sku: DH-IPC-HDW5631RP-ZE-27135
  • Vendor: SecurityAustralia

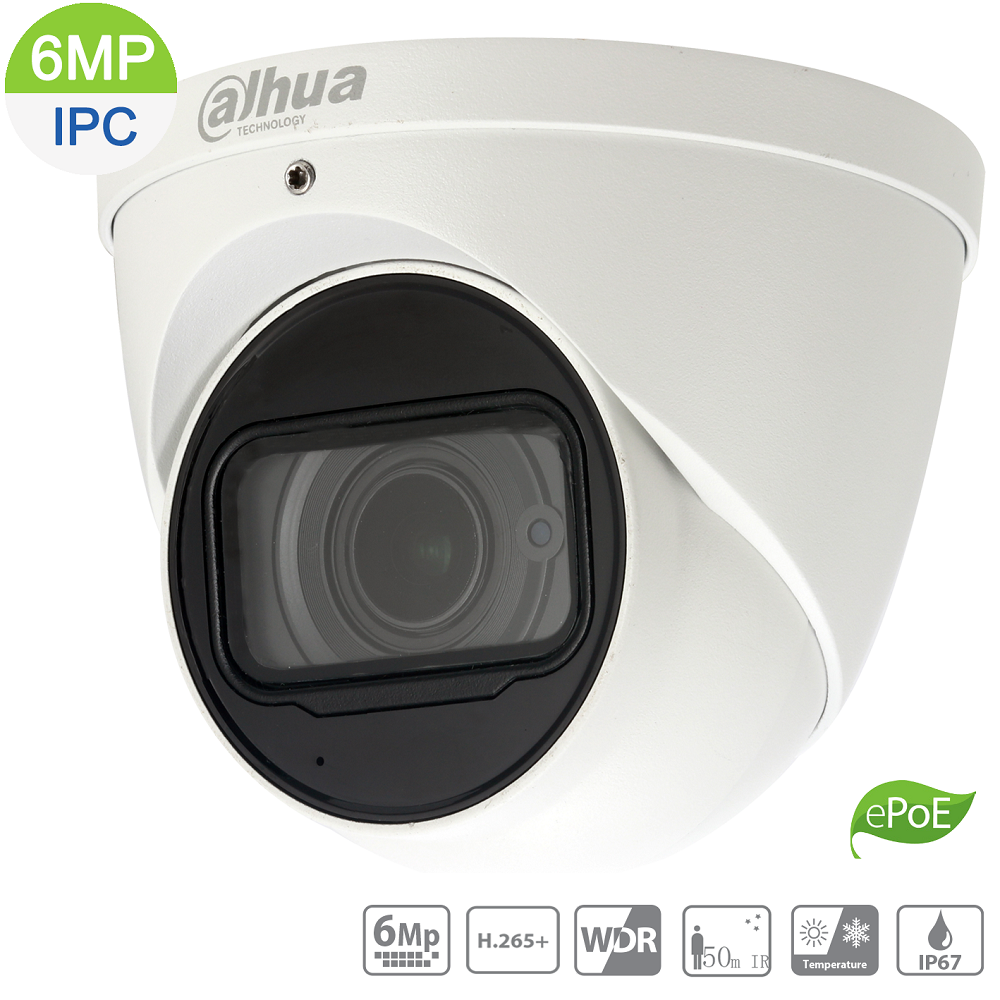

Dahua DH-IPC-HDW5631RP-ZE-27135 6MP Built-In Mic Eyeball Network Camera WDR, 50m IR, Varifocal Zoom Function

$455.00 AUD
 per
Spend $100.00 to FREE SHIPPING

6MP WDR IR Eyeball Network Camera

The 6MP WDR IR Eyeball Network Camera (DH-IPC-HDW5631R-ZE) from Dahua Security is a high-performance surveillance solution designed for versatile applications. It features a 6MP progressive scan CMOS sensor, delivering clear and detailed images with a maximum resolution of 3072 x 2048 pixels. The camera supports a motorized 2.7-13.5mm lens, offering flexible focal length adjustments to suit various monitoring scenarios. Equipped with Wide Dynamic Range (WDR) technology, the camera ensures optimal image quality even in challenging lighting conditions by balancing exposure in both bright and dark areas.

Key Features

  • 1/2.9” 6 Megapixel progressive scan CMOS
  • H.265 & H.264 dual-stream encoding
  • 20fps@6M (3072×2048), 25/30fps@4M (2688×1520)
  • Day/Night (ICR), 3DNR, AWB, AGC, BLC
  • Multiple network monitoring: Web viewer, CMS (DSS/PSS) & DMSS
  • 2.7mm ~ 13.5mm motorized lens
  • Built-in microphone
  • Max. IR LEDs length: 50m
  • Micro SD card memory, IP67, PoE

Code/SKU: DH-IPC-HDW5631R-ZE
Quick Specs:

  • Lens Type: Motorized/Auto Iris (DC)
  • Mount Type: Board-in
  • Focal Length: 2.7mm~13.5mm
  • Max. Aperture: F1.6
  • Angle of View: H: 91°~27°, V: 58°~18°
  • Optical Zoom: 5x

Specifications

Camera
Image Sensor 1/2.9” 6Megapixel progressive scan CMOS
Effective Pixels 3072(H)x2048(V)
RAM/ROM 512MB/32MB
Scanning System Progressive
Electronic Shutter Speed Auto/Manual, 1/3~1/100000s
Minimum Illumination 0.03Lux/F1.6 (Color,1/3s,30IRE) 0.3Lux/F1.6 (Color,1/30s,30IRE) 0Lux/F1.6(IR on)
S/N Ratio More than 50dB
IR Distance Distance up to 50m (164ft)
IR On/Off Control Auto/ Manual
IR LEDs 2
Lens
Lens Type Motorized/ Auto Iris(DC)
Mount Type Board-in
Focal Length 2.7mm~13.5mm
Max. Aperture F1.6
Angle of View H:91°~27° , V:58°~18°
Optical Zoom 5x
Focus Control Motorized
Close Focus Distance 0.3m
DORI Distance Lens Detect Observe Recognize Identify
W 79m(259ft) 32m(105ft) 16m(52ft) 8m(41ft)
T 256m(840ft) 102m(334ft) 51m(167ft) 25m(84ft)
Pan/Tilt/Rotation
Pan/Tilt/Rotation Range Pan:0˚~360˚; Tilt:0˚~78˚; Rotation:0˚~360˚
Intelligence
IVS Tripwire, Intrusion, Object Abandoned/Missing
Advanced Intelligent Functions Face Detection
Video
Compression H.265+/H.265/H.264+/H.264
Streaming Capability 3 Streams
Resolution 6M(3072×2048)/5M(3072x1728)/ 5M(2592×1944)/ 4M(2688×1520)/ 3M(2048x1536)/ 3M(2304×1296)/ 1080P(1920×1080)/1.3M(1280x960)/ 720P(1280×720)/ D1(704×576/704×480)/ VGA(640×480)/ CIF(352×288/352×240)
Frame Rate Main Stream: 6M(1~20fps)/4M(1~25/30fps)
Sub Stream: D1(1~25/30fps)
Third Stream: 720P(1~25/30fps)
Bit Rate Control CBR/VBR
Bit Rate H.264: 24K ~ 10240Kbps H.265: 14K ~ 9984Kbps
Day/Night Auto(ICR) / Color / B/W
BLC Mode BLC / HLC / WDR
White Balance Auto/Natural/Street Lamp/Outdoor/Manual
Gain Control Auto/Manual
Noise Reduction 3D DNR
Motion Detetion Off / On (4 Zone, Rectangle)
Region of Interest Off / On (4 Zone)
Electronic Image Stabilization (EIS) N/A
Smart IR Support
Defog N/A
Digital Zoom 16x
Flip 0°/90°/180°/270°
Mirror Off / On
Privacy Masking Off / On (4 Area, Rectangle)
Audio
Compression G.711a/ G.711Mu/ AAC/ G.726
Network
Ethernet RJ-45 (10/100Base-T)
Protocol HTTP; HTTPs; TCP; ARP; RTSP; RTP; UDP; SMTP; FTP; DHCP; DNS; DDNS; PPPOE; IPv4/v6; QoS; UPnP;NTP; Bonjour; 802.1x; Multicast; ICMP; IGMP; SNMP
Interoperability ONVIF, PSIA, CGI
Streaming Method Unicast / Multicast
Max. User Access 10 Users /20 Users
Edge Storage NAS Local PC for instant recording Mirco SD card 128GB
Web Viewer IE, Chrome, Firefox, Safari
Management Software Smart PSS, DSS, Easy4ip
Smart Phone IOS, Android
Certifications
Certifications CE (EN 60950:2000) UL:UL60950-1 FCC: FCC Part 15 Subpart B
Interface
Video Interface N/A
Audio Interface Built-in Mic
RS485 N/A
Alarm N/A
Electrical
Power Supply DC12V, PoE(802.3af)(Class 0)
Power Consumption <8.5W
Environmental
Operating Conditions -30° C ~ +60° C (-22° F ~ +140° F) / Less than 95% RH
Strorage Conditions -30° C ~ +60° C (-22° F ~ +140° F) / Less than 95% RH
Ingress Protection IP67
Vandal Resistance N/A
Construction
Casing Metal
Dimensions Φ122mm×104mm( 4.8”×4.09”)
Net Weight 0.6Kg (1.32lb)
Gross Weight 0.76Kg (1.67lb)

Documentation

3 Years Manufacturer Warranty

All IP cameras and recording devices (NVR’s/DVR’s) are covered by a 3 year back-to-base manufacturer warranty.

Our warranty is limited to the replacement of faulty items or parts and does not include damage due to incorrect fitting of parts or accessories, or damage due to mishandling the equipment once out of the box. All faults are sent to the manufacturer for inspection and diagnosis before a replacement is sent out.

Read more about the Terms & Conditions here – https://www.securityaustralia.com.au/terms-and-conditions/

Trusted Brand Partner & Security Equipment Wholesaler

Authorised Brand Partner with Responsive & Fast Aussie Sales Support Team ★★★★★
Best After-Sales Support and Troubleshooting Team with Years of Installation Experience.

Free Delivery* & Despatch Time

*Just spend over $100 to activate Fast Free Shipping!

Despatch Times: Products are despatched on the same day if the order was placed before 11am on any weekday, Monday - Friday. All other orders are processed and despatched within 24 hours or next business day.

Order Confirmation: Once you place an order, you will receive a confirmation email. This indicates that your order has been received in our system and is now being processed for dispatch. If your item is back-ordered or unavailable, we will notify you via email, and if we do not receive a response, we will attempt to contact you by phone as soon as possible. We value your time and strive to be prompt. If your item(s) are available for immediate shipment (within 2 days), we will process the charges and prepare the order for shipping.

Shipping Times: General shipping times for StarTrack, TNT and Allied couriers are between 1-3 working days from despatch. Longer delivery times may be caused by your package being held at your local courier depot that is beyond our control. Please contact us or the local post depot for confirmation.

Tracking Numbers: all tracking numbers will be emailed to you by our warehouse processing team within the day, after your order is despatched to our local courier.

View full details

Dahua DH-IPC-HDW5631RP-ZE-27135 6MP Built-In Mic Eyeball Network Camera WDR, 50m IR, Varifocal Zoom Function

$455.00 AUD
 per

The 6MP WDR IR Eyeball Network Camera (DH-IPC-HDW5631R-ZE) from Dahua Security is a high-performance surveillance solution designed for versatile applications. It features a 6MP progressive scan CMOS sensor, delivering clear and detailed images with a maximum resolution of 3072 x 2048 pixels. The camera supports a motorized 2.7-13.5mm lens, offering flexible focal length adjustments to suit various monitoring scenarios. Equipped with Wide Dynamic Range (WDR) technology, the camera ensures optimal image quality even in challenging lighting conditions by balancing exposure in both bright and dark areas. The camera's IR illumination range reaches up to 50 meters, enabling effective nighttime surveillance. Its intelligent video system (IVS) includes features like tripwire, intrusion detection, and face detection, enhancing security by promptly identifying potential threats. The camera is designed with IP67 weatherproof protection, making it suitable for outdoor use in harsh environments. Additionally, it supports smart H.265+ video compression, reducing bandwidth and storage requirements without compromising image quality.

The DH-IPC-HDW5631R-ZE also offers Power over Ethernet (PoE) support, simplifying installation by allowing power and data transmission over a single cable. It includes a built-in microSD card slot for local storage, ensuring video footage is safely recorded even during network interruptions. With ONVIF compatibility, this camera easily integrates into existing security systems. Its compact design and durable construction make it an ideal choice for various security applications, from residential to commercial settings. The camera also features a 3D Digital Noise Reduction (DNR) function, which minimizes noise in low-light conditions, ensuring clear images. Moreover, the camera's advanced image processing technologies provide superior performance in diverse lighting conditions. Lastly, the camera's easy-to-use interface and multiple language support enhance user experience and accessibility.

Features

  • 1/2.9” 6 Megapixel progressive scan CMOS
  • H.265 & H.264 dual-stream encoding
  • 20fps@6M (3072×2048), 25/30fps@4M (2688×1520)
  • Day/Night (ICR), 3DNR, AWB, AGC, BLC
  • Multiple network monitoring: Web viewer, CMS (DSS/PSS) & DMSS
  • 2.7mm ~ 13.5mm motorized lens
  • Built-in microphone
  • Max. IR LEDs length: 50m
  • Micro SD card memory, IP67, PoE



Functions

ePoE Technology

Dahua's ePoE technology, developed in-house, utilizes advanced 2D-PAM3 coding modulation at the physical layer. It enables full duplex transmission over 800 meters at 10Mbps or 300 meters at 100Mbps using Cat 5 or coaxial cables. Additionally, it supports PoE and PoC power supply technologies, simplifying construction and wiring. This technology provides a new approach for long-distance transmission between IP cameras and network switches, offering greater flexibility in surveillance system design, enhancing reliability, and reducing construction and wiring costs.

Wide Dynamic Range

The camera employs industry-leading Wide Dynamic Range (WDR) technology to produce clear images even in extreme lighting conditions. True WDR (120 dB) adjusts both bright and dark areas of a scene simultaneously, ensuring usable video in environments with rapidly changing lighting conditions.

Intelligent Video System (IVS)

The built-in Intelligent Video System (IVS) features a video analytics algorithm that enables functions such as Tripwire violations, intrusion detection, and the monitoring of abandoned or missing objects. The camera with IVS can quickly and accurately respond to events in a specific area. It also supports face detection, capturing faces and uploading images to a server, and includes tamper detection to identify dramatic scene changes and issue warning messages for inspection.

Protection (IP67, IK10, Wide Voltage)

The camera is designed to withstand ±30% input voltage fluctuations, making it suitable for unstable outdoor conditions. It features a 6KV lightning rating for effective protection against lightning. With rigorous testing for dust and immersion (IP67) and impact resistance (IK10), this camera is ideal for installation in harsh environments.

Smart H.265+

Smart H.265+ is an enhanced version of the H.265 codec, incorporating scene-adaptive encoding, dynamic GOP, dynamic ROI, flexible multi-frame reference structures, and intelligent noise reduction. This technology delivers high-quality video while reducing bit rate and storage requirements by up to 70% compared to standard H.265 compression.

Technical Specifications:

Camera

Image Sensor

1/2.9” 6Megapixel progressive scan CMOS

Effective Pixels

3072(H)x2048(V)

RAM/ROM

512MB/32MB

Scanning System

Progressive

Electronic Shutter Speed

Auto/Manual, 1/3~1/100000s

Minimum Illumination

0.03Lux/F1.6 (Color,1/3s,30IRE)

0.3Lux/F1.6 (Color,1/30s,30IRE)

0Lux/F1.6(IR on)

S/N Ratio

More than 50dB

IR Distance

Distance up to 50m (164ft)

IR On/Off Control

Auto/ Manual

IR LEDs

2

Lens

Lens Type

Motorized/ Auto Iris(DC)

Mount Type

Board-in

Focal Length

2.7mm~13.5mm

Max. Aperture

F1.6

Angle of View

H:91°~27° , V:58°~18°

Optical Zoom

5x

Focus Control

Motorized

Close Focus Distance

0.3m

DORI Distance

Lens

Detect

Observe

Recognize

Identify

W

79m(259ft)

32m(105ft)

16m(52ft)

8m(41ft)

T

256m(840ft)

102m(334ft)

51m(167ft)

25m(84ft)
