  • Sku: IPC-HDW3449TM-AS-LED
  • Vendor: SecurityAustralia

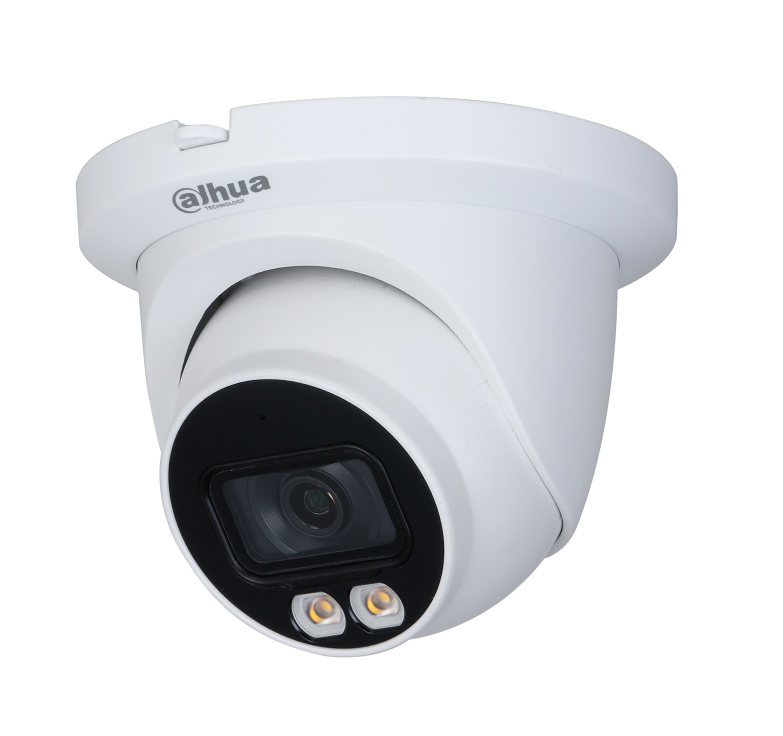

Dahua IPC-HDW3449TM-AS-LED 4MP Full-color Warm LED Fixed-focal Eyeball WizSense Network Camera, Wizsense

$193.00 AUD
 per
Spend $100.00 to FREE SHIPPING

4MP Full-color Warm LED Fixed-focal Eyeball WizSense Network Camera

The 4MP Full-color Warm LED Fixed-focal Eyeball WizSense Network Camera, model DH-IPC-HDW3449TM-AS-LED, from Dahua Security is designed to deliver high-resolution color images even in low-light conditions. It features a 4-megapixel sensor, which ensures sharp and detailed video footage. The camera is equipped with warm LED illumination, enhancing visibility in darkness while providing a natural color reproduction. With its fixed-focal lens, it offers a stable and reliable field of view for various surveillance needs.

Key Features

  • 4MP, 1/2.7” CMOS image sensor, low illuminance, high image definition
  • Outputs max. 4MP (2688 × 1520) @ 30 fps
  • H.265 codec, high compression rate, low bit rate
  • Built-in Warm LED, max. LEDs distance: 30 m
  • ROI, SMART H.264+/H.265+, flexible coding, applicable to various bandwidth and storage environments
  • Rotation mode, WDR, 3D DNR, HLC, BLC, digital watermarking, applicable to various monitoring scenes
  • Intelligent detection: Intrusion, tripwire (support the classification and accurate detection of vehicle and human)
  • Abnormality detection: Motion detection, video tampering, scene changing, audio detection, no SD card, SD card full, SD card error, network disconnection, IP conflict, illegal access, voltage detection
  • Supports max. 256 G Micro SD card, built-in Mic
  • 12V DC/PoE power support
  • IP67 protection
  • SMD Plus

Code/SKU: DH-IPC-HDW3449TM-AS-LED
Quick Specs:

Pan/Tilt/Rotation Range

  • Horizontal: 0°–360°; vertical: 0°–78°; rotation: 0°–360°

Field of View

  • 2.8 mm: Horizontal 103° × vertical 53° × diagonal 122°
  • 3.6 mm: Horizontal 80° × vertical 43° × diagonal 95°

Specifications



Camera

Image Sensor

1/2.7”4Megapixel progressive CMOS

Max. Resolution

2688 (H) ×1520 (V)

ROM

128 MB

RAM

512 MB

Scanning System

Progressive

Electronic Shutter Speed

Auto/Manual 1/3 s–1/100, 000 s

Min. Illumination

0.003 Lux@F1.0

S/N Ratio

> 56 dB

Illumination Distance

30 m (98.4 ft) (Warm light)

Illuminator On/Off Control

Auto/Manual

Illuminator Number

2 (warm LED)

Pan/Tilt/Rotation Range

Horizontal: 0°–360°; vertical: 0°–78°; rotation: 0°–360°

Lens

Lens Type

Fixed-focal

Mount Type

M12

Focal Length

2.8 mm; 3.6 mm

Max. Aperture

F1.0

Field of View

2.8 mm: Horizontal 103° × vertical 53° × diagonal 122°

3.6 mm: Horizontal 80° × vertical 43° × diagonal 95°

Iris Type

Fixed

Close Focus Distance

2.8 mm: 1.2 m (3.9 ft)

3.6 mm: 2.4 m (7.9 ft)

DORI Distance

Lens

Detect

Observe

Recognize

Identify

2.8mm

56m

(183.7 ft)

22.4 m

(73.5 ft)

11.2 m

(36.7 ft)

5.6 m

(18.4 ft)

3.6mm

80.0 m

(262.5 ft)

32.0 m

(105.0 ft)

16.0 m

(52.5 ft)

8.0 m

(26.3 ft)

Professional, Intelligent

Perimeter Protection

Tripwire, intrusion (Recognition of vehicle and people)

Intelligent Search

Work together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos

Video

Video Compression

H.265; H.264; H.264H; H.264B; MJPEG(only supported by the sub stream)

Smart Codec

Smart H.265+/ Smart H.264+

Video Frame Rate

Main stream (2688 × 1520 @ 1–25/30 fps)
sub stream (704 × 576 @ 1–25/704 × 480 @ 1-30 fps)
third stream (1280 × 720 @ 1–25/30 fps)

Stream Capability

3 streams

Resolution

4M (2688 × 1520); 3M (2304 × 1296); 1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240)

Bit Rate Control

CBR; VBR

Video Bit Rate

H.264: 3 kbps–8192 kbps
H.265: 3 kbps–8192 kbps

Day/Night

Color/B/W

BLC

Yes

WDR

120 dB

White Balance

Auto/natural/street lamp/outdoor/manual/regional custom

Gain Control

Auto/Manual

Noise Reduction

3D DNR

Motion Detection

OFF/ON (4 areas, rectangular)

Region of Interest (RoI)

Yes (4 areas)

Smart Illumination

Yes

Image Rotation

0°/90°/180°/270° (Support 90°/270° with 1920 × 1080 resolution and lower.)

Mirror

Yes

Privacy Masking

4 areas

Audio

Built-in MIC

Yes

Audio Compression

G.711a; G.711Mu; G726

Alarm

Alarm Event

No SD card; SD card full; SD card error; less service time of SD card (smart card supports); network disconnection; IP conflict; illegal access; voltage detection; security exception; motion detection; video tampering; scene changing; intensity change; tripwire; intrusion; SMD

Network

Network

RJ-45 (10/100 Base-T)

SDK and API

Yes

Protocol

IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; PPPoE; SNMP

Cyber Security

Video encryption; firmware encryption; configuration encryption; Digest; WSSE; account lockout; security logs; IP/MAC filtering; generation and importing of X.509 certification; syslog; HTTPS; 802.1x; trusted boot; trusted execution; trusted upgrade

Interoperability

ONVIF(Profile S/Profile G/Profile T);CGI;P2P;Milestone;

Genetec

Scene self-adaptation (SSA)

Yes

User/Host

20 (Total bandwidth: 64M.)

Storage

FTP; SFTP; Micro SD Card (support max. 256 G); NAS

Browser

IE: IE8; IE9; IE11
Chrome
Firefox

Management Software

Smart PSS; DSS; DMSS

Mobile Phone

IOS; Android

Certification

Certifications

CE-LVD: EN62368-1
CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU
FCC: 47 CFR FCC Part 15, Subpart B
UL/CUL: UL60950-1 CAN/CSA C22.2 No.60950-1-07

Power

Power Supply

12V DC/PoE

Power Consumption

< 8.5W

Environment

Operating Conditions

-40°C to +60°C (-40°F to +140°F)/ less than 95%

Storage Conditions

-40°C to +60°C (-40°F to +140°F)

Protection Grade

IP67

Structure

Casing

Inner core: Metal

Cover: Metal

Decoration ring: Plastic

Dimensions

99.1 mm × Φ121.9 mm (3.9" × Φ4.8")

Net Weight

480 g (1.05 lb)

Gross Weight

660 g (1.45 lb)

Documentation

3 Years Manufacturer Warranty

All IP cameras and recording devices (NVR’s/DVR’s) are covered by a 3 year back-to-base manufacturer warranty.

Our warranty is limited to the replacement of faulty items or parts and does not include damage due to incorrect fitting of parts or accessories, or damage due to mishandling the equipment once out of the box. All faults are sent to the manufacturer for inspection and diagnosis before a replacement is sent out.

Read more about the Terms & Conditions here – https://www.securityaustralia.com.au/terms-and-conditions/

Trusted Brand Partner & Security Equipment Wholesaler

Authorised Brand Partner with Responsive & Fast Aussie Sales Support Team ★★★★★
Best After-Sales Support and Troubleshooting Team with Years of Installation Experience.

Free Delivery* & Despatch Time

*Just spend over $100 to activate Fast Free Shipping!

Despatch Times: Products are despatched on the same day if the order was placed before 11am on any weekday, Monday - Friday. All other orders are processed and despatched within 24 hours or next business day.

Order Confirmation: Once you place an order, you will receive a confirmation email. This indicates that your order has been received in our system and is now being processed for dispatch. If your item is back-ordered or unavailable, we will notify you via email, and if we do not receive a response, we will attempt to contact you by phone as soon as possible. We value your time and strive to be prompt. If your item(s) are available for immediate shipment (within 2 days), we will process the charges and prepare the order for shipping.

Shipping Times: General shipping times for StarTrack, TNT and Allied couriers are between 1-3 working days from despatch. Longer delivery times may be caused by your package being held at your local courier depot that is beyond our control. Please contact us or the local post depot for confirmation.

Tracking Numbers: all tracking numbers will be emailed to you by our warehouse processing team within the day, after your order is despatched to our local courier.

View full details

Dahua IPC-HDW3449TM-AS-LED 4MP Full-color Warm LED Fixed-focal Eyeball WizSense Network Camera, Wizsense

The 4MP Full-color Warm LED Fixed-focal Eyeball WizSense Network Camera, model IPC-HDW3449TM-AS-LED, from Dahua Security is designed to deliver high-resolution color images even in low-light conditions. It features a 4-megapixel sensor, which ensures sharp and detailed video footage. The camera is equipped with warm LED illumination, enhancing visibility in darkness while providing a natural color reproduction. With its fixed-focal lens, it offers a stable and reliable field of view for various surveillance needs. The WizSense technology integrated into the camera provides advanced AI capabilities, including human and vehicle detection, which helps in reducing false alarms. The camera supports H.265 compression, which optimizes storage and bandwidth usage without compromising image quality. Its durable construction ensures reliable performance in various environmental conditions.

The IPC-HDW3449TM-AS-LED is also designed for easy installation and maintenance, making it suitable for both residential and commercial applications. It offers remote access and management through Dahua's software, allowing for convenient monitoring from anywhere. The camera’s full-color imaging and warm LED lighting make it ideal for scenarios where accurate color representation and clarity are crucial. The model also supports various mounting options, providing flexibility in installation. Overall, this camera combines advanced features with user-friendly design, making it a valuable addition to any security system.

Features

  • 4MP, 1/2.7” CMOS image sensor, low illuminance, high image definition
  • Outputs max. 4MP (2688 × 1520) @ 30 fps
  • H.265 codec, high compression rate, low bit rate
  • Built-in Warm LED, max. LEDs distance: 30 m
  • ROI, SMART H.264+/H.265+, flexible coding, applicable to various bandwidth and storage environments
  • Rotation mode, WDR, 3D DNR, HLC, BLC, digital watermarking, applicable to various monitoring scenes
  • Intelligent detection: Intrusion, tripwire (support the classification and accurate detection of vehicle and human)
  • Abnormality detection: Motion detection, video tampering, scene changing, audio detection, no SD card, SD card full, SD card error, network disconnection, IP conflict, illegal access, voltage detection
  • Supports max. 256 G Micro SD card, built-in Mic
  • 12V DC/PoE power support
  • IP67 protection
  • SMD Plus



Functions

Full-Color Technology
Dahua's Full-Color technology leverages a high-performance sensor and large aperture lens to deliver vibrant, clear images even in extremely low light conditions. This advanced photosensitivity technology enables the camera to capture more available light and reveal more detailed, colorful images.

SMD Plus
Dahua's Smart Motion Detection (SMD) technology, powered by intelligent algorithms, can accurately categorize targets that trigger motion detection. This reduces false alarms by filtering out non-relevant triggers, ensuring more effective and precise alerts.

Smart H.265+ & Smart H.264+
With an advanced scene-adaptive rate control algorithm, Dahua's smart encoding technology offers greater efficiency compared to traditional H.265 and H.264 standards. This results in high-quality video while reducing storage and transmission costs.

Perimeter Protection
Utilizing deep learning algorithms, Dahua's Perimeter Protection technology accurately identifies humans and vehicles. This minimizes false alarms in restricted areas, such as pedestrian or vehicle zones, by intelligently distinguishing between different types of motion, such as tripwires or intrusions.

Cyber Security
Dahua network cameras are equipped with robust security features, including authentication, authorization, access control, trusted protection, encrypted transmission, and encrypted storage. These measures enhance security and protect against malicious attacks.

Protection (IP67, Wide Voltage)
IP67: The camera has been rigorously tested for dust and water resistance. It remains operational after being submerged in 1 meter of water for up to 30 minutes, ensuring reliable performance in harsh conditions.
Wide Voltage: The camera supports a ±30% voltage tolerance, making it suitable for outdoor environments with unstable power sources.

Technical Specifications:

Camera

Image Sensor

1/2.7”4Megapixel progressive CMOS

Max. Resolution

2688 (H) ×1520 (V)

ROM

128 MB

RAM

512 MB

Scanning System

Progressive

Electronic Shutter Speed

Auto/Manual 1/3 s–1/100, 000 s

Min. Illumination

0.003 Lux@F1.0

S/N Ratio

> 56 dB

Illumination Distance

30 m (98.4 ft) (Warm light)

Illuminator On/Off Control

Auto/Manual

Illuminator Number

2 (warm LED)

Pan/Tilt/Rotation Range

Horizontal: 0°–360°; vertical: 0°–78°; rotation: 0°–360°

Lens

Lens Type

Fixed-focal

Mount Type

M12

Focal Length

2.8 mm; 3.6 mm

Max. Aperture

F1.0

Field of View

2.8 mm: Horizontal 103° × vertical 53° × diagonal 122°

3.6 mm: Horizontal 80° × vertical 43° × diagonal 95°

Iris Type

Fixed

Close Focus Distance

2.8 mm: 1.2 m (3.9 ft)

3.6 mm: 2.4 m (7.9 ft)

DORI Distance

Lens

Detect

Observe

Recognize

Identify

2.8mm

56m

(183.7 ft)

22.4 m

(73.5 ft)

11.2 m

(36.7 ft)

5.6 m

(18.4 ft)

3.6mm

80.0 m

(262.5 ft)

32.0 m

(105.0 ft)

16.0 m

(52.5 ft)

8.0 m

(26.3 ft)
