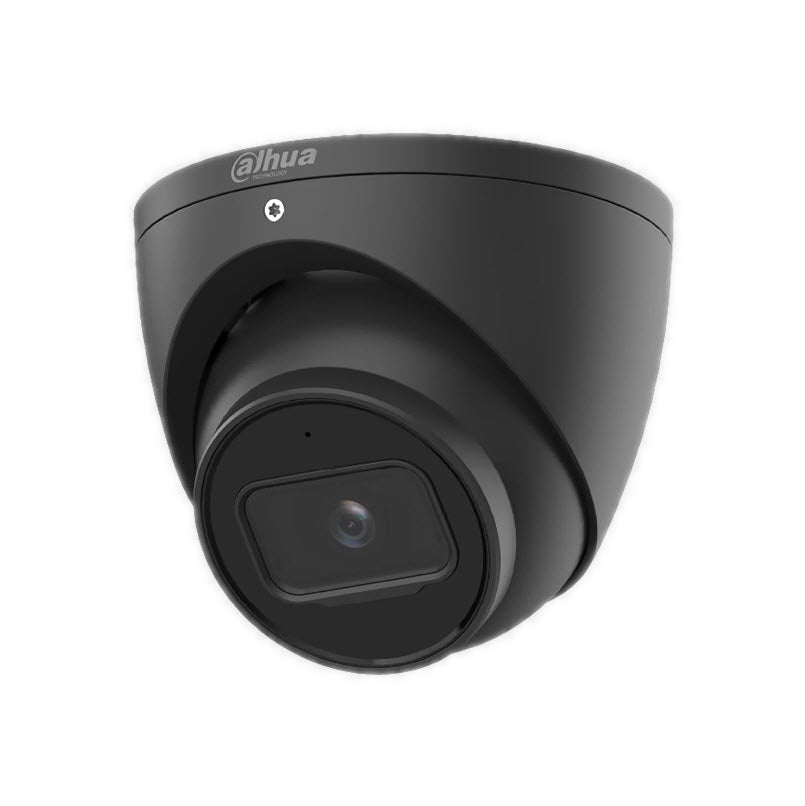

Dahua DH-IPC-HDW3866EMP-S-AUS 8MP Turret 2.8mm, WizSense, Starlight, SMD 4.0 BLACK

Model: DH-IPC-HDW3866EMP-S-AUS-BLACK

Who This Is For

When blending into a finished building while still delivering 4K detail and AI-filtered alerts is the priority, the Dahua HDW3866EMP-S in black is built for exactly that scenario. Installers specifying cameras for rendered homes, dark-framed shopfronts, commercial facades, or any site where a white housing creates an aesthetic mismatch will find the black variant a straightforward answer. The 2.8mm lens covers a wide 107-degree horizontal field, making it well suited to eave and soffit positions where a single camera needs to capture entry points, driveways, or outdoor areas without a narrower lens cutting off the frame. WizSense SMD 4.0 means the camera classifies humans and vehicles at the edge, so the NVR or monitoring station receives far fewer irrelevant motion alerts. With IP67 weatherproofing, a Starlight-rated sensor, and 30m IR, this camera handles Australian outdoor conditions without needing supplementary lighting in most residential and small commercial installs.

What This Camera Actually Does

Who Buys This Model

• Residential installers on design-conscious builds: The black housing suits dark fascias, charcoal cladding, and timber-look eaves where a white turret would visually clash. 8MP resolution ensures the wide 2.8mm frame still captures actionable detail at the entry zone.
• Small business owners self-monitoring via a Dahua NVR: SMD 4.0 filters nuisance alerts from pets and vegetation, meaning push notifications through DMSS or DSS are limited to genuine human and vehicle events - practical for anyone monitoring without a staffed control room.
• Builders and property developers specifying outdoor cameras for units or townhouses: IP67 weatherproofing, PoE power delivery, and the compact eyeball form factor keep installation consistent across multiple units without requiring additional weatherproof housings or separate power runs.
• Integrators deploying perimeter tripwire and intrusion detection: The camera supports perimeter protection rules - tripwire and intrusion zone alerts - with human and vehicle classification built into the alarm logic, reducing the manual filtering work normally required on busy outdoor zones.

Honest Assessment

This camera does its best work as an outdoor fixed-position unit where a wide field of view, reliable low-light performance, and AI-filtered alerting are more important than optical zoom. The Starlight sensor with F1.4 aperture produces colour footage in genuinely dim conditions, and SMD 4.0 classification means a busy driveway or garden path generates meaningful alerts rather than constant noise. The 30m IR range is honest and appropriate for residential and small commercial distances. H.265+ compression keeps storage requirements manageable on a multi-channel NVR. It is available through Security Australia alongside compatible Dahua NVRs that unlock Quick Pick search across SMD events. Where this camera is not the right tool: if the installation requires long-range identification beyond the 8.8m identify distance of the 2.8mm lens, a longer focal length or varifocal model will serve better. It is not a deterrence device - there is no built-in speaker, strobe, or active warning capability. For that, a TiOC-equipped model is the appropriate choice.

Before You Buy

Quick Fit Check

• Good match if: You are mounting under an eave or on a soffit to cover a wide entry zone at 4-8m distance - the 107-degree horizontal field of view and 8.8m identify range align well with this scenario.
• Good match if: The site has a dark or charcoal exterior finish and a white camera housing is visually unacceptable - this SKU is specifically the black variant of the HDW3866EMP-S.
• You may need a different model if: The install requires active deterrence with a strobe and speaker - a TiOC-equipped turret is the appropriate product type for that outcome.

Key Features & Technical Specifications

Real-World Scenarios

How It Compares

• Choose this if: You need 4K outdoor resolution in a black housing with AI-filtered human and vehicle alerts, and the install distance is within the 2.8mm DORI range.
• You may need a different model if: The site requires active deterrence with strobe and audio warnings on detection - a TiOC-series turret is the appropriate product type for that use case.
• Pairs well with: A Dahua WizSense NVR with SMD support, which unlocks Quick Pick search to filter and retrieve human and vehicle events directly from the SMD timeline.

Common Questions

1. Does this camera work with a standard PoE switch, or does it need PoE+?

   Standard IEEE 802.3af PoE is sufficient. The HDW3866EMP-S draws within the 802.3af power budget, so any standard PoE switch or PoE NVR port will power it without needing an 802.3at PoE+ supply. A single Cat5e or Cat6 cable carries both power and data, keeping the install clean with no separate power adapter required at the camera end.

2. Will this camera record audio?

   Yes, for audio capture. A built-in microphone is confirmed. There is no built-in speaker, so this camera records ambient audio but does not support two-way communication or remote voice warnings. If live voice interaction or remote deterrence audio is needed, a camera with both a built-in microphone and speaker is required.

3. How does SMD 4.0 actually differ from standard motion detection, and what does it change in practice?

   SMD 4.0 is a meaningful operational difference from basic motion detection. Standard pixel-change motion detection triggers on any movement in the frame - animals, tree branches, passing car headlights, insects near the lens. SMD 4.0 uses on-camera deep learning to classify detected motion as human, vehicle, or neither before deciding whether to generate an alert. Only human and vehicle events are passed as SMD alarms to the NVR. In practice, on a garden-facing or street-facing camera, this can reduce nuisance alerts by a very large margin. When paired with a compatible Dahua NVR, Quick Pick adds the ability to search and jump directly to human or vehicle events in the SMD recording timeline, which cuts footage review time considerably on incident follow-up.

4. What does AI SSA actually do, and is it something that needs to be configured?

   AI SSA operates automatically with no manual configuration required. It runs continuously in the background, using deep learning to detect environmental conditions - rain, fog, strong backlight, low light, and fluorescent flicker - and adjusts ISP parameters in real time. The practical benefit is that a camera facing east will self-correct when morning sun creates harsh backlight, and a camera in a coastal environment will compensate for fog without the installer needing to schedule maintenance visits to retune image settings seasonally. It works alongside WDR rather than replacing it.

5. What is the actual identify distance on this camera, and will it capture usable face detail at my gate?

   The DORI identify distance on the 2.8mm lens is 8.8m. Identify-level detail - sufficient to determine whether a recorded face matches a known individual - is achievable with a subject within approximately 8-9 metres of the camera. Recognise-level detail (sufficient to confirm it is the same person seen previously) extends to 17.5m. For a gate or entry door positioned within 8m of the mounting point, the 2.8mm lens is appropriate. If the gate is further than 10m away, the 3.6mm variant or a varifocal model will deliver better identification quality at that distance, and Security Australia stocks multiple focal length options in the HDW3866 range.

6. Does the camera need a separate NVR, or can it record locally to a card?

   Both options are supported. The camera accepts a microSD card up to 256GB for local edge recording, which functions independently of a network recorder. For most installs, a Dahua NVR is the practical choice as it provides centralised management, remote viewing, and SMD Quick Pick search across events. Edge recording to SD is useful as a backup or for standalone single-camera deployments where running cable back to a central recorder is not feasible.
