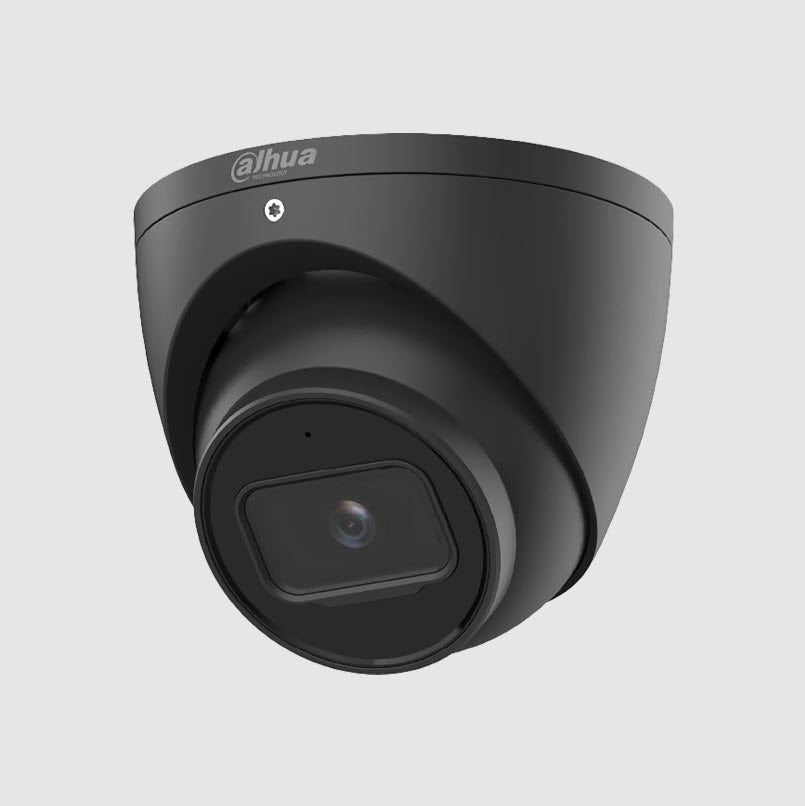

Dahua DH-IPC-HDW3866EMP-S-AUS 8MP Turret 2.8mm, WizSense, Starlight, SMD 4.0

Model: DH-IPC-HDW3866EMP-S-AUS

Who This Is For

For installers and property managers who need genuine 4K detail from a compact outdoor camera without the bulk of a bullet housing, the Dahua DH-IPC-HDW3866EMP-S-AUS is built for eave, soffit, and wall mounting on residential and small commercial sites. The 2.8mm fixed lens gives a wide 107-degree horizontal field of view, making it well suited to driveways, carpark entries, shopfronts, and building perimeters where you want maximum scene coverage from a single position. WizSense SMD 4.0 classifies humans and vehicles at the detection stage, which means alarm fatigue from moving foliage and passing animals is significantly reduced. Starlight sensitivity down to 0.007 lux keeps colour detail in poorly lit areas before IR kicks in at 30 metres. The IP67 rating and eyeball form factor make it a practical choice for standard outdoor installs where aesthetics and reliable year-round performance both matter.

What This Camera Actually Does

Who Buys This Model

• Residential installers specifying 4K upgrades: Homeowners replacing ageing HD cameras who want future-proof resolution at a compact form factor, with enough pixel density to capture licence plate or facial detail within recognition range.
• Small retail and cafe operators: Sites needing wide-angle coverage of entrances or service counters where SMD 4.0 reduces nuisance alerts from foot traffic and the 107-degree field of view covers the full width of a standard shopfront entrance.
• Property managers on residential strata or small office buildings: Eave and soffit mounting where a low-profile turret is preferred over a visible bullet camera, and IP67 rating handles the exposed outdoor environment without additional weatherproof housings.
• Integrators building out Dahua AI NVR systems: Adding edge-AI cameras that support Quick Pick search on SMD event clips, reducing review time when an incident requires searching hours of footage for a specific person or vehicle.

Honest Assessment

The DH-IPC-HDW3866EMP-S-AUS does two things particularly well: it delivers 4K resolution in a compact, weatherproof eyeball form factor, and its SMD 4.0 classification meaningfully reduces false alarm rates compared to standard motion detection. The Starlight sensor and F1.4 aperture produce a noticeably better low-light colour image than entry-level 4K alternatives at this price point. AI SSA is a practical feature for outdoor installs where lighting and weather conditions vary across seasons without requiring return visits to adjust settings.

Where this camera has limits: the IR range is 30 metres, which is sufficient for most residential and small commercial applications but not adequate for long driveways, loading docks, or large perimeter runs - a bullet or varifocal camera with longer IR range would serve those scenarios better. The fixed 2.8mm lens cannot be adjusted after installation, so site measurement before ordering matters. This model is available through Security Australia and suits sites where wide-angle 4K coverage and smart classification are the priority.

Before You Buy

Quick Fit Check

• Good match if: You are mounting at eave or soffit height of 2.5-4 metres and need wide-angle 4K coverage of a driveway, entrance, or carpark lane where 30 metres of IR range is sufficient and SMD 4.0 classification will reduce alert noise.
• Good match if: You are building a Dahua AI NVR system and want edge-based human and vehicle classification at the camera level, with the option to use Quick Pick event search on a compatible recorder without additional analytics licensing.
• You may need a different model if: Your install covers long outdoor approaches, loading docks, or perimeter fencing beyond 30 metres - an outdoor bullet camera with extended IR range and a varifocal lens would be a more suitable product type for those distances.

Key Features & Technical Specifications

Real-World Scenarios

How It Compares

• Choose this if: You need a compact 4K outdoor turret with onboard human and vehicle classification at this price point, where the 30-metre IR range and 2.8mm wide-angle view match your mounting position and subject distance.
• You may need a different model if: Your monitoring distance exceeds 30 metres or you need coverage of long perimeter runs and extended approaches - an outdoor bullet camera with varifocal lens and longer IR projection is a more suitable product type for those requirements.
• Pairs well with: A Dahua AI NVR with SMD Quick Pick support and PoE switching to simplify cabling and unlock full event search capability across all connected cameras.

Common Questions

1. Does this camera work with a standard PoE switch or does it need PoE+?

   Standard IEEE 802.3af PoE is sufficient. The DH-IPC-HDW3866EMP-S-AUS operates on standard PoE, so any 802.3af-compliant PoE switch or NVR with PoE ports will power it without needing the higher-wattage 802.3at PoE+ standard. A single Cat5e or Cat6 cable carries both power and data, which keeps the install straightforward.

2. Will this camera identify faces or read number plates?

   No. The DORI identify distance for the 2.8mm lens is 8.8 metres, which means the pixel density to identify an individual is within approximately 8-9 metres of the camera. The camera does not have dedicated ANPR or face recognition functions - it classifies detected objects as human or vehicle using SMD 4.0 but does not perform identity matching or licence plate character reading.

3. What does SMD 4.0 actually change compared to standard motion detection?

   SMD 4.0 runs a deep learning classification step at the camera level before generating an alert. Standard motion detection triggers on any pixel change - wind-blown leaves, passing headlights, or a cat will all generate alerts. SMD 4.0 filters those out and only sends an alert when the detected target is classified as a human or vehicle. On a compatible Dahua AI NVR, the Quick Pick feature also lets you search SMD event clips by target type, which significantly reduces investigation time after an incident.

4. How does AI SSA work and does it require configuration?

   AI SSA is active by default and requires no manual configuration. The onboard algorithm continuously analyses the scene for environmental conditions including rain, fog, backlight, low light, and artificial light flicker. When a condition is detected, it adjusts image parameters such as exposure, white balance, and noise reduction automatically. For sites with variable outdoor lighting - such as cameras facing west for afternoon sun - this reduces the need for scheduled image profile changes.

5. What are the DORI distances for this camera and what do they mean practically?

   For the 2.8mm lens: Detect 87.7 m, Observe 35.1 m, Recognise 17.5 m, Identify 8.8 m. DORI is a standardised way to express what detail you can extract from the image at a given distance. At 87.7 metres, you can detect that something is present. At 35.1 metres, you can observe that it is a person or vehicle. At 17.5 metres, you can recognise distinguishing features such as clothing colour or vehicle type. At 8.8 metres, you have enough pixel density to identify the individual. For an entrance or driveway camera, mounting within 17 metres of the primary subject zone gives you recognise-level detail, which is practical for most evidence capture needs.

6. Does this camera support two-way audio?

   No. The DH-IPC-HDW3866EMP-S-AUS has a built-in microphone for audio capture but does not have a built-in speaker. Audio can be recorded alongside video, but you cannot push audio back through this camera - it is a one-way audio device. If two-way communication is required at an entrance point, a video intercom or a camera model with both microphone and speaker hardware would be the appropriate product type to consider at Security Australia.

7. Will the camera work in heavy coastal rainfall or direct sun exposure?

   Yes for moisture and dust. The IP67 rating means the camera is fully dust-sealed and tested for submersion in 1 metre of water for 30 minutes. It is built for outdoor use in Australian weather conditions including heavy rain. For direct sun exposure, the AI SSA function adjusts for strong backlight scenarios. There is no rated operating temperature published in the available spec data, so for extreme heat applications - such as unshaded north-facing wall mounts in far north Queensland - confirm suitability with the data sheet prior to installation.
