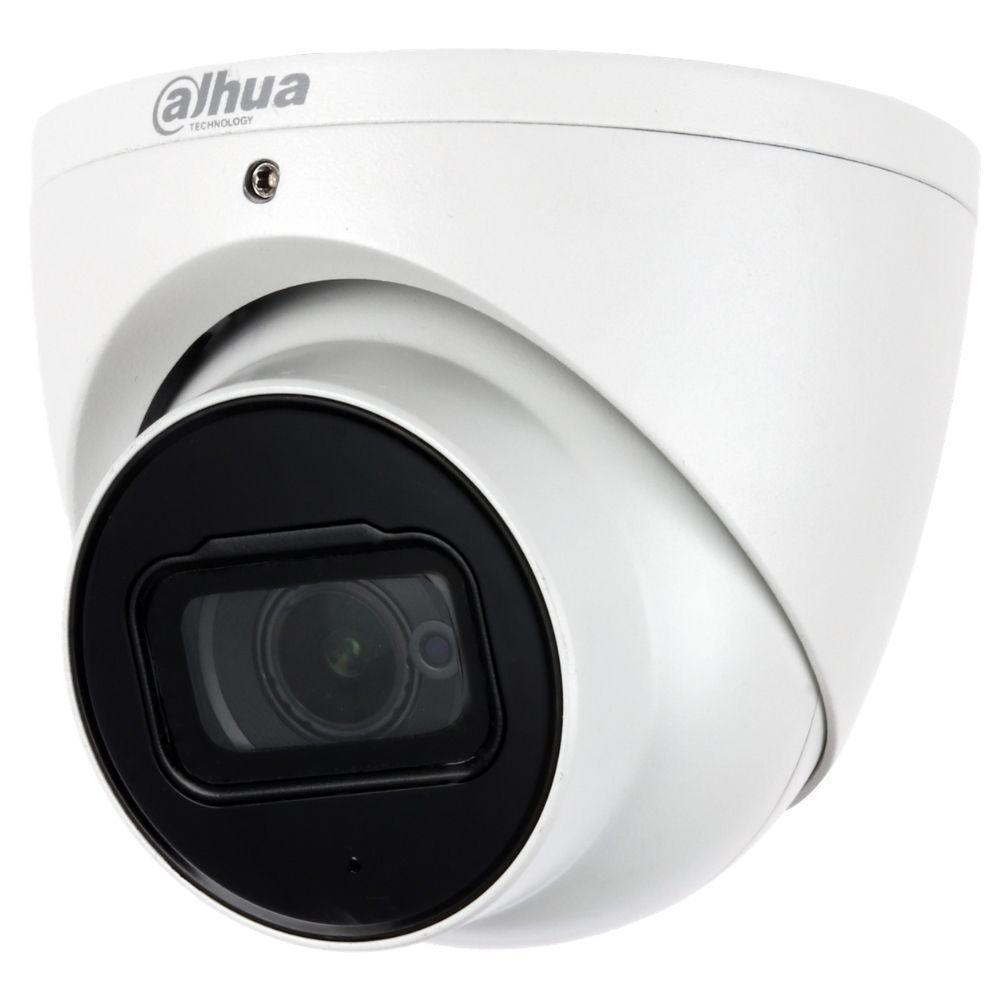

6MP IR Fixed focal Eyeball WizSense Network Camera
The Dahua 6MP IR Fixed-focal Eyeball WizSense Network Camera, model DH-IPC-HDW3641EM-S-S2, offers exceptional image quality with its 6-megapixel resolution, ensuring clear and detailed surveillance footage. Equipped with WizSense technology, it features intelligent functions such as motion detection, intrusion detection, and tripwire analytics, enhancing security monitoring capabilities.
Key Features
Code/SKU: DH-IPC-HDW3641EM-S-S2
Quick Specs:
Pan/Tilt/Rotation Range
Field of View
| Camera | |
| Image Sensor | 1/2.7” 6Megapixel progressive scan CMOS |
| Max. Resolution | 3072(H) x 2048 (V) |
| ROM | 128 MB |
| RAM | 512 MB |
| Scanning System | Progressive |
| Electronic Shutter Speed | Auto/Manual, 1/3 s–1/100000 s |
| Min. Illumination | 0.005 Lux @F1.6 |
| S/N Ratio | ＞56 dB |
| Illumination Distance | 50 m (164.0 ft) |
| Illuminator On/Off Control | Auto/Manual |
| Illuminator Number | 2 (IR LED) |
| Pan/Tilt/Rotation Range | Pan: 0˚–360˚; Tilt: 0˚–78˚; Rotation: 0˚–360˚ |
| Lens | |
| Lens Type | Fixed-focal |
| Mount Type | M12 |
| Focal Length | 2.8 mm; 3.6 mm |
| Max. Aperture | F1.6 |
| Field of View | 2.8 mm: Horizontal 99° × Vertical 53° × Diagonal 115° |
| 3.6 mm: Horizontal 80° × Vertical 43° × Diagonal 94° | |
| Iris Type | Auto |
| Close Focus Distance | 2.8 mm: 0.9 m (3.0 ft) |
| 3.6 mm: 1.6 m (5.3 ft) | |
| Professional and Intelligent | |
| IVS (Perimeter Protection) | Tripwire; intrusion (Recognition of human and vehicle) |
| Intelligent Search | Work together with Smart NVR to perform a refined intelligent search, event extraction and merging to event videos. |
| Video | |
| Video Compression | H.265,H.264,H.264B,H.264H, MJPEG (only supported by sub stream) |
| Smart Codec | Smart H.265+/ Smart H.264+ |
| Video Frame Rate | Mainstream (3072 × 1728@1–20 fps/2688 × 1520@1–25/30 fps) |
| Substream (704 × 576@1–25 fps/704 × 480@1–30 fps) | |
| Third stream (1920 × 1080@1–25/30 fps) | |
| Stream Capability | 3 streams |
| Resolution | 3072 × 1728 |
| 2592 × 1944 | |
| 2688 × 1520 | |
| 2560 × 1440 | |
| 2304 × 1296 | |
| 1080p (1920 × 1080) | |
| 1.3M (1280 × 960) | |
| 720p (1280 × 720) | |
| D1 (704 × 576/704 × 480) | |
| VGA (640 × 480) | |
| CIF (354 × 288/354 × 240) | |
| Bit Rate Control | CBR/VBR |
| Video Bit Rate | H.264: 32 Kbps–8192 Kbps |
| H.265: 19 Kbps–8192 Kbps | |
| Day/Night | Auto (ICR)/Color/B/W |
| BLC | Yes |
| HLC | Yes |
| WDR | 120 dB |
| Scene Self-adaptation | Yes |
| White Balance | Auto/Natural/Street Lamp/Outdoor/Manual/Regional/Custom |
| Gain Control | Auto/Manual |
| Noise Reduction | 3D DNR |
| Motion Detection | OFF/ON (4 areas, rectangular) |
| Region of Interest (RoI) | Yes (4 areas) |
| Smart Illumination | Yes |
| Defog | Yes |
| Image Rotation | 0°/90°/180°/270° (Support with 1080p resolution and lower) |
| Mirror | Yes |
| Privacy Masking | 4 areas |
| Audio | |
| Built-in MIC | Yes |
| Audio Compression | G.711a; G.711Mu; G.726; AAC; G.723 |
| Alarm | |
| Alarm Event | No SD card; SD card full; SD card error; less service time of SD card (smart card supports); network disconnection; IP conflict; illegal access; voltage detection; security exception; motion detection; video tampering; scene changing; intensity change; tripwire; intrusion; SMD |
| Network | |
| Network | RJ-45 (10/100 Base-T) |
| SDK and API | Yes |
| Protocol | IPv4; IPv6; HTTP; HTTPS; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; PPPoE; 802.1x; SNMP |
| Interoperability | ONVIF (Profile S/Profile G/Profile T), CGI, Milestone, Genetec, P2P |
| User/Host | 20 Users |
| Storage | FTP; SFTP; Micro SD Card (support max. 256 G); Dahua Cloud; NAS |
| Browser | IE: IE8 and later |
| Chrome | |
| Firefox | |
| Management Software | Smart PSS, DSS, DMSS |
| Mobile Phone | IOS; Android |
| Certification | |
| Certification | EN 55032 |
| EN 61000-3-2 | |
| EN 61000-3-3 | |
| EN 55024 | |
| EN 50130-4 | |
| EN55035 | |
| Power | |
| Power Supply | 12V DC (±30%), PoE (802.3af) |
| Power Consumption | <7.2W |
| Environment | |
| Operating Conditions | -40°C to +60°C (-40°F to +140°F)/less than 95% |
| Storage Conditions | -40° C to +60° C (-40° F to +140° F) |
| Protection Grade | IP67 |
| Structure | |
| Casing | Metal |
| Dimensions | Φ106 mm × 93.6 mm (4.17” × 3.69”) |
| Net Weight | 0.55 kg (1.21 lb) |
| Gross Weight | 0.71 kg (1.57 lb) |
All IP cameras and recording devices (NVR’s/DVR’s) are covered by a 3 year back-to-base manufacturer warranty.
Our warranty is limited to the replacement of faulty items or parts and does not include damage due to incorrect fitting of parts or accessories, or damage due to mishandling the equipment once out of the box. All faults are sent to the manufacturer for inspection and diagnosis before a replacement is sent out.
Read more about the Terms & Conditions here – https://www.securityaustralia.com.au/terms-and-conditions/
*Just spend over $100 to activate Fast Free Shipping!
Despatch Times: Products are despatched on the same day if the order was placed before 11am on any weekday, Monday - Friday. All other orders are processed and despatched within 24 hours or next business day.
Order Confirmation: Once you place an order, you will receive a confirmation email. This indicates that your order has been received in our system and is now being processed for dispatch. If your item is back-ordered or unavailable, we will notify you via email, and if we do not receive a response, we will attempt to contact you by phone as soon as possible. We value your time and strive to be prompt. If your item(s) are available for immediate shipment (within 2 days), we will process the charges and prepare the order for shipping.
Shipping Times: General shipping times for StarTrack, TNT and Allied couriers are between 1-3 working days from despatch. Longer delivery times may be caused by your package being held at your local courier depot that is beyond our control. Please contact us or the local post depot for confirmation.
Tracking Numbers: all tracking numbers will be emailed to you by our warehouse processing team within the day, after your order is despatched to our local courier.
Dahua DH-IPC-HDW3641EM-AS-0280B-AUS 6MP Eyeball Network Camera 50m IR 2.8mm with SMD, Wizsense
With advanced deep learning algorithm, Dahua WizSense 3 Series network camera supports intelligent functions, such as perimeter protection and smart motion detection. With starlight technology, this series camera provides a better image effect in the condition of low illuminance.
The Dahua 6MP IR Fixed-focal Eyeball WizSense Network Camera, model DH-IPC-HDW3641EM-S-S2, offers exceptional image quality with its 6-megapixel resolution, ensuring clear and detailed surveillance footage. Equipped with WizSense technology, it features intelligent functions such as motion detection, intrusion detection, and tripwire analytics, enhancing security monitoring capabilities. This camera is designed for versatility and durability, with an IP67 weatherproof rating that ensures reliable performance in various environmental conditions. Its infrared (IR) illumination enables night vision up to 30 meters, providing clear images even in complete darkness. The camera supports H.265 compression, reducing bandwidth and storage requirements without compromising video quality.
It has a fixed focal length of 2.8mm, offering a wide-angle view suitable for monitoring large areas. With its compact and sleek design, the DH-IPC-HDW3641EM-S-S2 is easy to install and integrate into existing security systems. The camera also supports Power over Ethernet (PoE), simplifying installation by eliminating the need for separate power cables. Advanced image processing features, such as wide dynamic range (WDR) and 3D noise reduction, ensure optimal performance in challenging lighting conditions.
This model is part of Dahua's WizSense series, which focuses on human and vehicle classification to reduce false alarms and improve accuracy. The camera's robust construction and high-quality components make it a reliable choice for both indoor and outdoor applications. Additionally, it offers remote access and management through the Dahua mobile app, allowing users to monitor their property from anywhere. Overall, the DH-IPC-HDW3641EM-S-S2 provides a comprehensive and intelligent surveillance solution for various security needs.
Features
Functions
SMD Plus Dahua Smart Motion Detection (SMD) technology uses an intelligent algorithm to categorize targets that trigger motion detection, filtering out non-relevant targets to deliver accurate and effective alarms.
Smart H.265+ & Smart H.264+ Dahua's advanced scene-adaptive rate control algorithm in smart encoding technology offers higher encoding efficiency compared to H.265 and H.264, ensuring high-quality video while reducing storage and transmission costs.
Perimeter Protection Dahua Perimeter Protection technology leverages deep learning algorithms to accurately recognize humans and vehicles. It significantly reduces false alarms in restricted areas (such as pedestrian and vehicle zones) by intelligently detecting and filtering events like tripwire, intrusion, fast moving, parking, loitering, and gathering.
Starlight Dahua Starlight technology excels in low-light environments, providing clear, colorful video even under minimal illumination, ensuring good image quality.
WDR With advanced Wide Dynamic Range (WDR) technology, Dahua network cameras deliver clear details in high-contrast lighting conditions. Both bright and dark areas are captured clearly, even in challenging lighting scenarios or with backlight shadows.
Protection (IP67, Wide Voltage) IP67: The camera is rigorously tested for dust and water resistance, capable of operating normally after being submerged in 1 meter of water for 30 minutes.
Wide Voltage: The camera supports ±30% input voltage tolerance, making it suitable for outdoor environments with unstable voltage conditions.
| Camera | |
| Image Sensor | 1/2.7” 6Megapixel progressive scan CMOS |
| Max. Resolution | 3072(H) x 1728(V) |
| ROM | 128 MB |
| RAM | 512 MB |
| Scanning System | Progressive |
| Electronic Shutter Speed | Auto/Manual, 1/3 s–1/100000 s |
| Min. Illumination | 0.005 Lux @F1.6 |
| S/N Ratio | ＞56 dB |
| Illumination Distance | 50 m (164.0 ft) |
| Illuminator On/Off Control | Auto/Manual |
| Illuminator Number | 2 (IR LED) |
| Pan/Tilt/Rotation Range | Pan: 0˚–360˚; Tilt: 0˚–78˚; Rotation: 0˚–360˚ |
| Lens | |
| Lens Type | Fixed-focal |
| Mount Type | M12 |
| Focal Length | 2.8 mm; 3.6 mm |
| Max. Aperture | F1.6 |
| Field of View | 2.8 mm: Horizontal 99° × Vertical 53° × Diagonal 115° |
| 3.6 mm: Horizontal 80° × Vertical 43° × Diagonal 94° | |
| Iris Type | Auto |
| Close Focus Distance | 2.8 mm: 0.9 m (3.0 ft) |
| 3.6 mm: 1.6 m (5.3 ft) | |
