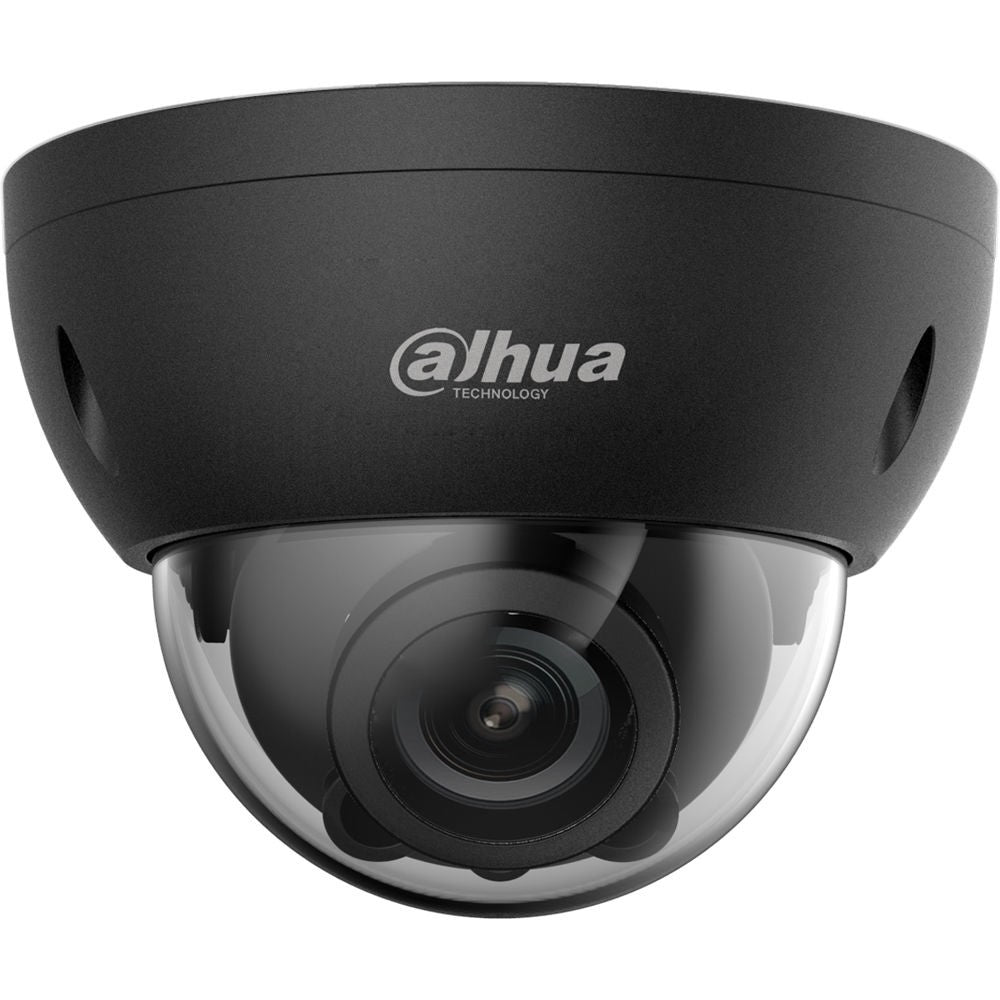

Dahua DH-IPC-HDBW5631RP-ZE-27135-BLK 6MP Dome Motorised Network Camera (Black), Zoom Function, WDR IR

Model: DH-IPC-HDBW5631RP-ZE-27135-1

Who This Is For

For installers and security specifiers who need a fixed dome that can adapt its field of view after mounting, the Dahua DH-IPC-HDBW5631RP-ZE is a 6MP motorised varifocal dome built for installations where the coverage zone cannot be determined with certainty before the camera goes on the ceiling. The 2.7mm to 13.5mm motorised lens lets you dial in the angle of view remotely once the camera is in position - no ladders back up, no manual refocus. At 6MP resolution with IK10 vandal resistance and IP67 weatherproofing, it suits applications where image detail and housing durability both matter: covered car parks, building entries, retail floors, stairwells, and outdoor eaves where the housing will take the occasional knock. The black housing blends into dark ceiling surfaces where a white dome would stand out. IVS analytics including tripwire and intrusion detection make this a step above a basic recording camera for sites that need event-driven alerts.

What This Camera Actually Does

Who Buys This Model

• Commercial Installers: Specifying ceiling domes for retail, office, or hospitality sites where the final camera angle needs to be confirmed after fitout is complete - the motorised lens removes the need for a return visit to adjust focus.
• Car Park Operators: Needing IK10-rated cameras in covered multi-level car parks where both vandalism exposure and variable lighting from entries and exits create demanding capture conditions.
• Building Managers: Running Dahua NVR-based systems who want IVS analytics - particularly tripwire and intrusion detection - without moving to a higher-tier camera platform.
• Architects and Security Consultants: Specifying black-housing cameras for projects where ceiling aesthetics require the camera to recede visually rather than draw attention.

Honest Assessment

The DH-IPC-HDBW5631RP-ZE delivers genuine flexibility for installations where fixed-lens domes create problems. The motorised varifocal lens with remote focus control is a real time saver on high ceiling fits, and the combination of IK10 housing, IP67 sealing, and 6KV lightning protection covers most difficult outdoor and semi-outdoor placements. At 6MP with Smart H.265+, bandwidth and storage footprint stay manageable across multi-camera deployments. The STARVIS sensor handles low light without IR more capably than budget-tier sensors, and 120dB WDR is a confirmed hardware spec rather than digital processing only. Where this camera will not serve as well: it has no full-colour night vision capability, so scenes with no ambient light will render in IR monochrome at 50m. For perimeter detection at range beyond 50m, or for sites needing active deterrence with light and audio warnings, a different product type would serve better. Available through Security Australia with full Dahua warranty.

Before You Buy

Quick Fit Check

• Good match if: You are installing in a space where the exact coverage angle cannot be confirmed until fitout is complete and a motorised lens lets you fine-tune remotely once the camera is mounted and sealed.
• Good match if: The install site has high-impact vandalism risk and requires an IK10-rated housing combined with IP67 weatherproofing - both confirmed on this model.
• You may need a different model if: Full-colour night vision in zero ambient light is a requirement - a TiOC or full-colour dome camera with warm-light LEDs would be a better product type for that scenario.

Key Features & Technical Specifications

Real-World Scenarios

How It Compares

• Choose this if: You need a ceiling dome with remote focus adjustment after installation - the motorised varifocal lens solves the angle-uncertainty problem that fixed-lens domes cannot handle on complex fitouts.
• You may need a different model if: Full-colour night vision is required for your site - a full-colour or TiOC dome camera with integrated warm-light LEDs is the appropriate product type for zero-ambient-light colour capture.
• Pairs well with: A Dahua PoE NVR with IVS compatibility to fully utilise the onboard tripwire and intrusion detection analytics without additional licensing.

Common Questions

1. Can I adjust the zoom and focus without physically accessing the camera after it is mounted?

   Yes. The motorised varifocal lens and motorised focus control both operate remotely via the camera's web interface, compatible NVR, or Dahua management software. Once the camera is ceiling-mounted and sealed, you can dial the focal length from 2.7mm to 13.5mm and trigger autofocus without returning to the install point - a significant advantage on high-ceiling or hard-to-access placements.

2. Does this camera work with standard PoE switches or does it require a specific Dahua switch?

   It works with any IEEE 802.3af-compliant PoE switch or NVR PoE port. No proprietary switch is required for standard installations. If you intend to use ePoE for extended cable runs beyond 100m, you will need a Dahua ePoE-compatible NVR or switch - this is a separate product category and should be confirmed before purchasing cabling infrastructure.

3. What does IK10 actually mean for a ceiling dome in a vandalism-risk area?

   IK10 is the highest impact resistance classification under the IEC 62262 standard, corresponding to protection against 20 joules of impact energy. In practical terms, the housing is designed to resist direct blows from objects such as thrown items or deliberate strikes. Combined with IP67 dust and water sealing, this camera is confirmed suitable for exposed or high-risk indoor and covered outdoor locations where a standard dome would not withstand the environment.

4. Will this camera capture colour footage at night without additional lighting?

   Only in conditions where ambient light is present. The minimum illumination of 0.03 lux at F1.4 with a 1/3s shutter means the camera can produce colour images in very low light - equivalent to dim street lighting or minimal emergency lighting. In complete darkness, the 2 IR LEDs activate and footage switches to monochrome IR mode out to 50m. If full-colour night footage in zero-ambient environments is the requirement, a full-colour dome with integrated warm-light LEDs is the correct product type.

5. Does the IVS tripwire or intrusion detection require a separate analytics licence or server?

   No. IVS analytics including tripwire, intrusion detection, face detection, abandoned object, and tamper detection are built into the camera's onboard processor. No separate analytics server or additional software licence is required for these functions. The camera generates alerts natively and can push notifications to a compatible Dahua NVR or management platform. This is confirmed by Security Australia from the product specification.

6. What is the maximum frame rate at 6MP resolution?

   20fps at full 6MP (3072 x 2048). If 25 or 30fps is required, the camera operates at 4MP (2688 x 1520) to achieve that frame rate. For most fixed surveillance applications - entrances, retail floors, car parks - 20fps at 6MP is sufficient for event review and identification. Applications requiring smooth motion capture at full resolution, such as high-speed traffic, may benefit from a different sensor configuration.

7. How far can this camera identify a person's face at telephoto focal length?

   25m at the telephoto end (13.5mm). The confirmed DORI identify distance at the tele position is 25m (84ft). At wide angle (2.7mm), the identify distance drops to 8m (41ft) due to the broader field of view. For installations where facial identification beyond 25m is required, a higher-resolution sensor or dedicated PTZ camera would be a more appropriate product type.
