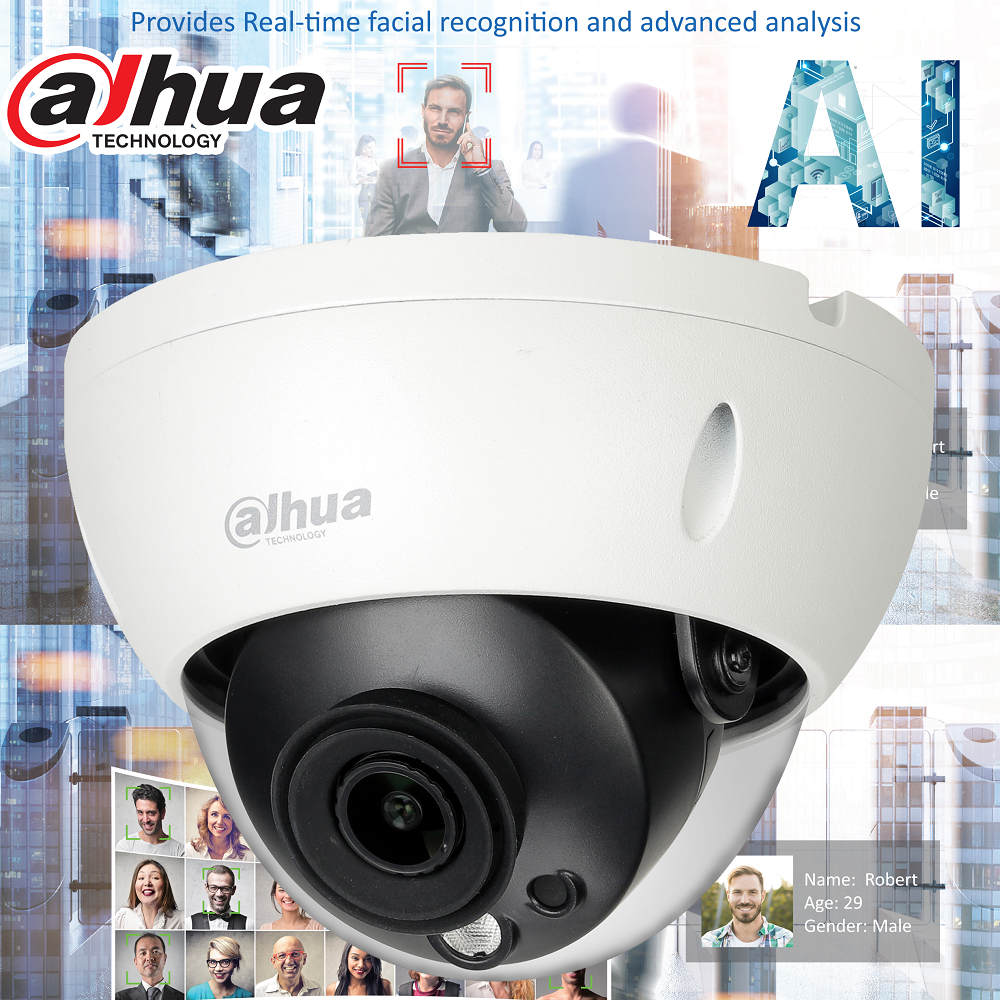

Dahua DH-IPC-HDBW5442EP-ZE-2712 Dahua AI 4MP Starlight+ IP Vandal Dome Motorized 2.7mm~12mm

Model: DH-IPC-HDBW5442EP-ZE-2712

Who This Is For

Property managers specifying cameras for locations where the mounting position is fixed but the coverage zone may change - think stairwells, car park entries, retail floor areas, or building lobbies - will find the Dahua DH-IPC-HDBW5442EP-ZE-2712 directly addresses that challenge. The motorised 2.7mm-12mm varifocal lens lets you dial in the exact field of view after installation without touching the dome housing, which matters when ceilings are high or access is restricted. The 1/1.8" CMOS sensor reaches 0.0007 lux in colour mode, so low-light corridors and poorly lit car parks do not require separate lighting upgrades. IK10 vandal resistance and IP67 weatherproofing make it equally suited to exposed indoor areas like basement car parks or covered outdoor soffit mounts. The built-in WizMind AI analytics - including SMD 3.0, face detection, people counting, and perimeter protection - add meaningful detection capability without requiring a separate analytics server.

What This Camera Actually Does

Who Buys This Model

• Commercial Property Installers: Specifying cameras for multi-level car parks, lobbies, and stairwells where ceiling height makes post-install lens adjustment essential - the motorised varifocal removes the need for a second site visit to refocus.
• Retail Loss Prevention Teams: Deploying AI-enabled perimeter monitoring and people counting in stockrooms, loading bays, and retail floor areas where accurate human-vs-vehicle classification from SMD 3.0 cuts alarm noise.
• Facility Managers at Educational or Healthcare Sites: Requiring IK10-rated cameras in accessible corridors or covered walkways where tamper risk is real and IP67 protection handles hose-down cleaning or weather exposure.
• Security Integrators Working on Large Campus Projects: Using ePoE infrastructure to extend camera runs well beyond standard PoE limits without installing additional switch cabinets across large sites.
• Site Managers Needing Standalone Backup Recording: Installing cameras in remote locations where NVR connectivity may be unreliable - the 512GB Micro SD slot provides independent local recording as a fallback.

Honest Assessment

The DH-IPC-HDBW5442EP-ZE-2712 does several things genuinely well. The motorised varifocal lens is the standout installation advantage - adjusting zoom remotely after mounting is a real time-saver in high-ceiling environments. The 1/1.8" sensor with 0.0007 lux colour sensitivity handles low-light conditions that would push lesser sensors into noisy monochrome. IK10 and IP67 together give the housing enough toughness for covered outdoor and high-risk indoor use. The WizMind AI suite - face detection, SMD 3.0, people counting, perimeter protection - is substantive, not decorative. Where this camera is not the right tool: it uses infrared-only night vision, so if you specifically need full-colour night footage without any IR, a camera with white-light or active deterrence illumination would serve better. At 4MP it is strong for most applications, but very large open areas requiring facial identification at distances beyond 26 metres (telephoto identify range) may need a higher-resolution model. Available through Security Australia as part of the Dahua WizMind lineup.

Before You Buy

Quick Fit Check

• Good match if: You are ceiling-mounting in a car park, lobby, or corridor at 4-6 metres height where the final coverage angle cannot be confirmed until after installation - the motorised 2.7mm-12mm lens lets you zoom and focus remotely once positioned.
• Good match if: Your site has extended cable runs beyond standard PoE limits and you are using a compatible Dahua ePoE NVR - ePoE supports 10Mbps data and power to 800 metres on a single Cat5 run.
• You may need a different model if: Your application requires full-colour night vision without IR illumination - a camera with built-in white-light or active deterrence illuminators from the Security Australia range would be more suitable for that requirement.

Key Features & Technical Specifications

Real-World Scenarios

How It Compares

• Choose this if: You need a vandal-rated dome with a remotely adjustable lens, confirmed IK10/IP67 protection, and on-camera AI analytics including face detection and people counting - all without requiring an external analytics server.
• You may need a different model if: Your site requires full-colour night footage without any IR light - a camera with built-in white-light active deterrence illumination would be a better fit for that requirement.
• Pairs well with: A Dahua ePoE-compatible NVR for extended cable run management, or a standard PoE NVR with WizMind analytics support for centralised AI event management and face search across multiple channels.

Common Questions

1. Does this camera work on a standard PoE switch or does it require special hardware?

   Yes, it works on a standard PoE switch. The DH-IPC-HDBW5442EP-ZE-2712 supports standard IEEE 802.3af/at PoE, 12VDC, and 24VAC - any of these will power the camera normally up to the standard 100-metre Cat5e or Cat6 cable limit. The ePoE function is an additional capability that only activates when paired with a compatible Dahua ePoE NVR or ePoE switch; it is not required for standard installs.

2. Will this camera identify faces at distance, and how far does recognition actually reach?

   Yes, but the range depends on which lens position you are using. At the wide end (2.7mm), the facial recognition distance is approximately 5.8 metres based on DORI identify figures. At the telephoto end (12mm), identify range extends to approximately 13.1 metres. For longer-distance facial identification requirements, a higher-resolution camera or dedicated ANPR camera would be more appropriate depending on your application.

3. How does the motorised varifocal lens actually adjust - do I need to physically access the dome?

   No physical access is needed after mounting. The 2.7mm-12mm motorised varifocal lens adjusts zoom and focus electronically via the camera's web interface, a compatible Dahua NVR, or Dahua's Smart PSS software. You mount the dome, connect power and data, then dial in the field of view from ground level. This is particularly useful on high ceilings or in locations where repeated access to the mounted camera is impractical once commissioned.

4. Does this camera have two-way audio?

   No, not in the full two-way sense from the camera alone. The camera has a built-in microphone and 1 audio input plus 1 audio output, but a separate external speaker would be required to deliver audio output at the camera location. If you need a camera with a fully integrated built-in speaker and microphone in the one housing, check the Security Australia range for models that confirm both components are included.

5. What does SMD 3.0 actually do, and how is it different from standard motion detection?

   SMD 3.0 (Smart Motion Detection 3.0) uses on-camera deep learning to classify detected motion as either a human, vehicle, or neither - then only triggers an alert for the target type you specify. Standard pixel-based motion detection triggers on any movement including animals, shadows, or swaying vegetation. SMD 3.0 significantly reduces nuisance alerts in outdoor or mixed-traffic environments by discarding non-human, non-vehicle motion before it ever generates a notification.

6. How far can the ePoE cable run extend, and what cable type is required?

   Dahua's ePoE extends to 800 metres at 10Mbps, or 300 metres at 100Mbps, using Cat5 or coaxial cable. Standard Cat5e or Cat6 is suitable for the Cat5 mode. The key requirement is that the head-end device - the NVR or switch - must be an ePoE-compatible Dahua unit; a standard third-party PoE switch will not activate ePoE mode and will only provide standard 100-metre PoE operation. Confirm ePoE compatibility with your NVR before planning runs beyond 100 metres.

7. Does the IR hotspotting issue common on varifocal domes apply to this camera at telephoto zoom?

   It can, if the illuminator is left on a fixed setting. The DH-IPC-HDBW5442EP-ZE-2712 includes a Zoomprio illuminator control mode specifically to address this - when set, the 3 IR LEDs automatically narrow their beam angle to match the lens as you zoom in, preventing centre hotspotting. Setting the illuminator control to Auto or Zoomprio (rather than Manual) during commissioning is the recommended approach for telephoto positions, particularly in long narrow scenes like driveways or corridors.

Downloads & Resources

No downloads available for this product.
