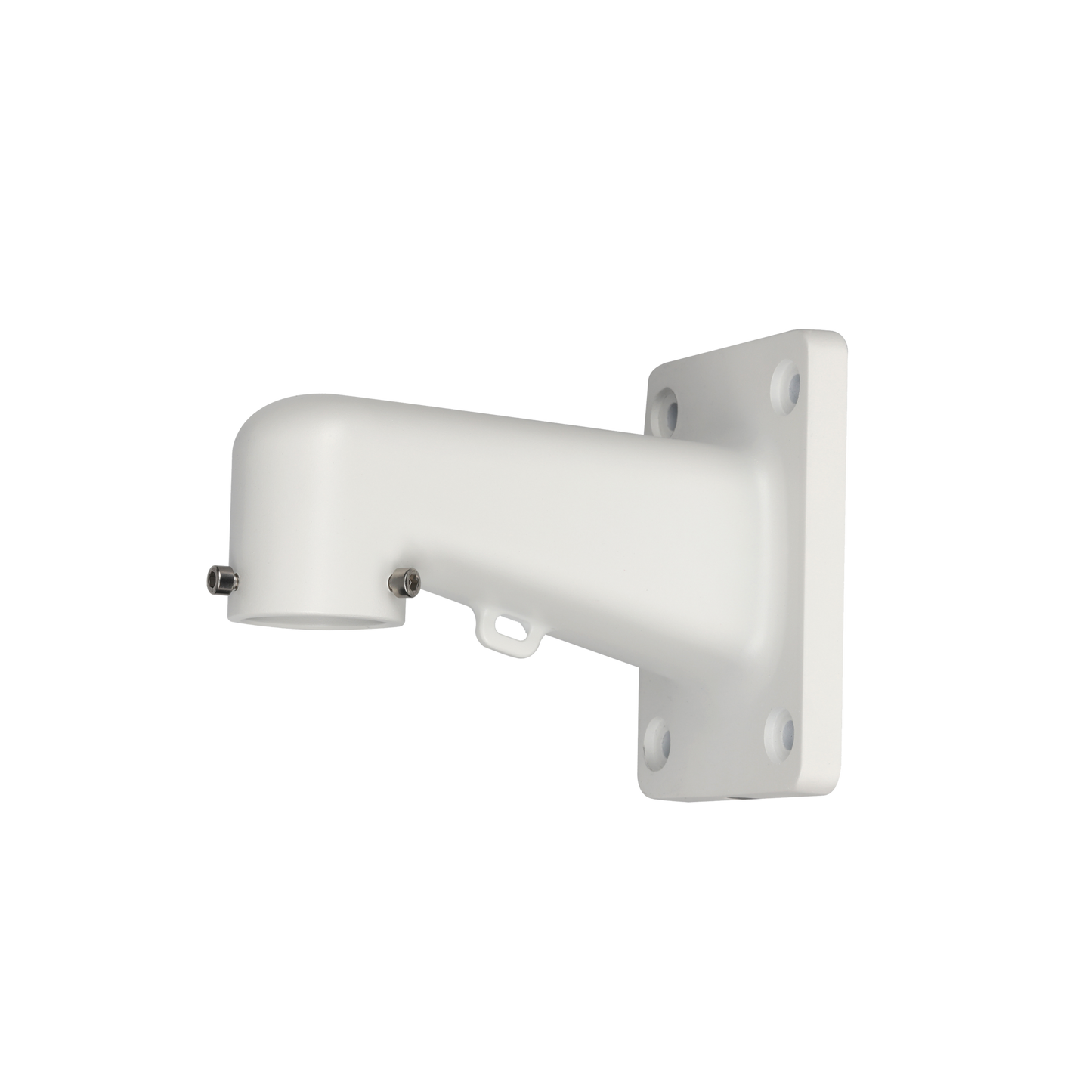

Dahua DH-AC-PFB305W Dahua Wall Mount Bracket

Model: DH-AC-PFB305W

Who This Is For

For installers and integrators who need a purpose-built wall mounting solution for compatible Dahua junction-box and surface-mount adapters, the DH-AC-PFB305W delivers a clean, low-profile finish on vertical surfaces. This bracket is designed to work with Dahua's PFA-series adapters - specifically the DH-PFA106, DH-PFA120, DH-PFA150, and DH-PFA151 - giving installers a controlled, verified pairing rather than improvising with generic hardware. The aluminium construction keeps the bracket lightweight at 0.87kg while supporting a load of up to 5.0kg, covering the weight range of most Dahua camera and adapter combinations. Suited to both indoor and outdoor installations, the white finish and compact 200 x 160 x 115mm footprint keep the mounting assembly tidy against rendered walls, fascias, and brick surfaces. The integrated safety rope hook adds a retention point during installation, which is particularly useful when working at height on commercial or multi-storey sites.

What This Bracket Actually Does

Who Buys This Model

• Security Installers: Professionals completing Dahua camera installations who need a verified, matched wall bracket for PFA-series junction box adapters rather than sourcing generic hardware.
• Commercial Integrators: Integrators fitting cameras on rendered brick, concrete tilt-panel, or masonry walls where a clean, low-profile bracket keeps the final installation looking professional on client sites.
• Property Managers: Those replacing or adding wall-mounted cameras across multi-tenancy or mixed-use buildings who need a bracket that handles outdoor conditions without requiring ongoing maintenance.
• DIY Installers: Competent home installers building a full Dahua system who want factory-matched mounting hardware rather than working around incompatible third-party brackets.

Honest Assessment

The DH-AC-PFB305W does what a quality wall bracket needs to do: it is aluminium, rated across a wide temperature range, and confirmed compatible with four specific Dahua PFA-series adapters. The 5.0kg load rating comfortably covers the weight of standard Dahua turret, dome, and bullet cameras when paired with a compatible adapter. The integrated safety rope hook is a genuine practical addition for installers working at height, and the white finish suits most residential and light commercial facades. What this bracket will not do is serve as a universal mounting solution - it is designed to work with specific PFA-series adapters, and attempting to use it with incompatible Dahua housings or third-party cameras may result in a poor fit or unreliable mount. If your installation requires a ceiling drop-arm, pole mount, or corner bracket, a different mounting product type from the Security Australia accessories range will be more appropriate.

Before You Buy

Quick Fit Check

• Good match if: You are mounting a Dahua camera via a DH-PFA106, DH-PFA120, DH-PFA150, or DH-PFA151 adapter on a vertical wall surface and need a factory-matched bracket with a 5.0kg load rating.
• Good match if: The installation is outdoors in a climate that sees temperature extremes, and you need a bracket rated from -40°C to 60°C with an aluminium body that will not corrode or deform over time.
• You may need a different model if: Your installation requires a ceiling-mount drop arm, corner bracket, pole clamp, or a mount rated for a camera system weighing more than 5.0kg - a different mounting product type from the accessories range will suit those applications better.

Key Features & Technical Specifications

Real-World Scenarios

How It Compares

• Choose this if: Your installation uses a compatible DH-PFA series adapter and you need a wall bracket with confirmed Dahua ecosystem compatibility, a 5.0kg load rating, and a wide temperature operating range for outdoor use.
• You may need a different model if: Your installation requires ceiling mounting, pole mounting, corner mounting, or a bracket designed for cameras heavier than 5.0kg - a different bracket or mounting arm type from the accessories range will be the correct fit.
• Pairs well with: Compatible DH-PFA series junction box and surface mount adapters (DH-PFA106, DH-PFA120, DH-PFA150, or DH-PFA151) and a matching Dahua IP or HDCVI camera within the 5.0kg load limit.

Common Questions

1. Does this bracket attach directly to a Dahua camera?

   No. The DH-AC-PFB305W is a wall bracket designed to work with a compatible DH-PFA series adapter, which is the intermediate fitting between the camera and the bracket. You will need to confirm you have a compatible adapter - DH-PFA106, DH-PFA120, DH-PFA150, or DH-PFA151 - before the bracket can be used in a complete installation.

2. Will this bracket work outdoors in harsh Australian conditions?

   Yes. The PFB305W is rated for operating temperatures from -40°C to 60°C and humidity below 90% RH, making it suitable for outdoor use across all Australian climates including coastal, alpine, and high-heat inland environments. The aluminium construction does not rust, which is particularly relevant in humid or coastal locations.

3. What is the maximum camera weight this bracket can support?

   The confirmed load bearing rating is 5.0kg. This covers the combined weight of the camera body and adapter for the vast majority of standard Dahua IP cameras. If you are considering a larger multi-sensor unit or PTZ head, verify the total assembled weight before selecting this bracket.

4. Does this bracket come with mounting hardware?

   Yes. The bracket is supplied with the hardware needed for installation. The package is described as including all necessary hardware to facilitate installation on a wall surface, consistent with the Dahua accessory range supplied by Security Australia.

5. What does the safety rope hook actually do?

   The integrated safety rope hook is an attachment point on the bracket body that allows an installer to loop a tether from the camera or adapter assembly during fitting. This prevents the camera from falling if it slips during positioning, which is particularly useful when working at height on a ladder or scaffold. It does not function as a permanent camera retention device - the camera is secured through its normal mounting interface.

6. Will the white colour remain stable outdoors over time?

   Aluminium brackets with a white powder-coat or painted finish generally hold their colour well in outdoor conditions compared to plastic housing alternatives. The confirmed temperature range up to 60°C indicates the bracket is designed for direct sun exposure without material degradation, though surface finish longevity in extreme UV environments will vary with the quality of the coating and local conditions.

Downloads & Resources

No downloads available for this product.
