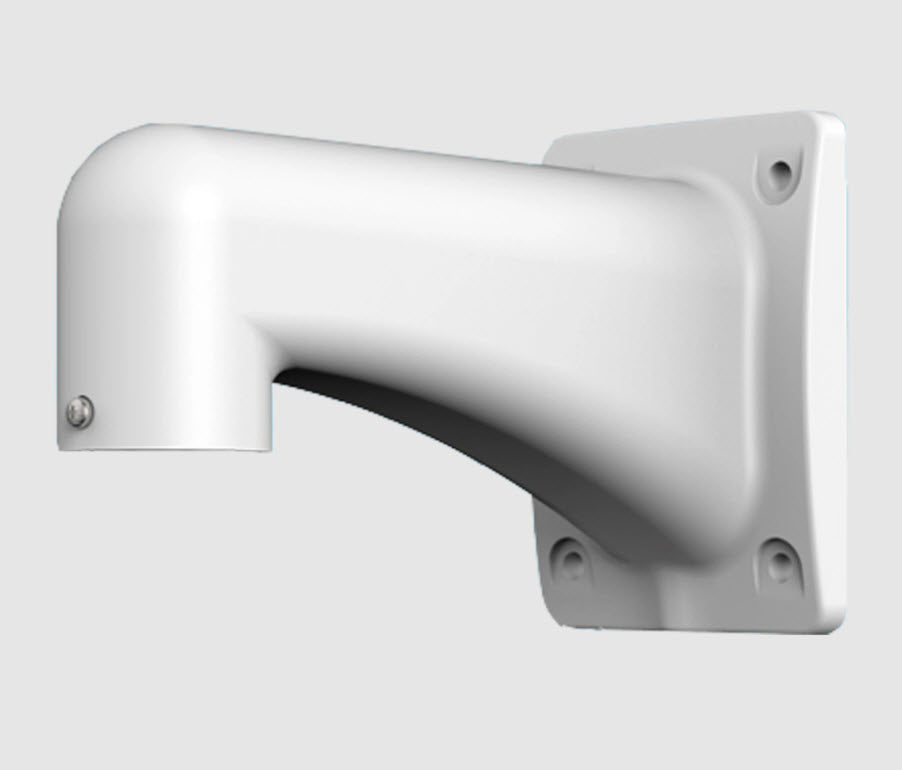

Dahua DH-AC-PFB303W Dahua Wall Mount Bracket

Model: DH-AC-PFB303W

Who This Is For

For installers and integrators who need a dependable outdoor wall mount that holds up in Australian conditions without adding bulk to the installation. The Dahua PFB303W is a compact aluminium wall mount bracket designed for outdoor camera deployments where a secure, weather-rated fixing point matters as much as the camera itself. With a 7kg load bearing capacity and an operating temperature range of -40°C to +60°C, it handles heavy-duty turret, eyeball, and dome cameras across coastal, industrial, and residential sites. The white powder-coat finish blends cleanly with eaves, rendered walls, and fascia boards. If you are specifying a Dahua outdoor system and need a mount that keeps the camera stable, correctly angled, and protected from the elements, the PFB303W is the bracket to reach for before pulling cable.

What This Bracket Actually Does

Who Buys This Model

• Security Installers: Adding a properly rated wall mount to Dahua outdoor camera jobs where brick, rendered masonry, or Colorbond requires a dedicated bracket rather than relying on the camera's own base plate.
• Integrators Specifying Kits: Rounding out a full Dahua system with manufacturer-matched accessories to ensure camera angle adjustability, load rating, and finish are all consistent across the installation.
• Property Managers and Facilities Teams: Replacing failed or corroded brackets on existing camera deployments without changing camera position or pulling new cabling.
• Industrial Site Contractors: Mounting cameras on warehouse exteriors, loading dock walls, and perimeter fence posts where temperature swings and humidity demand a bracket rated beyond standard residential hardware.

Honest Assessment

The PFB303W does one thing well: it provides a solid, weather-rated wall fixing for outdoor Dahua cameras in locations where the camera housing alone cannot be directly surface-mounted. The aluminium build, 7kg load capacity, and wide temperature tolerance mean it is genuinely suited to harsh outdoor environments, not just sheltered residential eaves. The white finish is clean and works on most residential and light commercial facades without looking out of place. This bracket is stocked by Security Australia as part of the broader Dahua accessories range. What it will not do is replace a pole mount, ceiling mount, or corner bracket when the geometry of the install requires a different fixing type - if the camera needs to be positioned at a wall junction, a soffit, or on a pole, a different bracket from the Dahua accessories range will serve better. Confirm camera compatibility with the specific model's base thread and footprint dimensions before ordering.

Before You Buy

Quick Fit Check

• Good match if: You are mounting a Dahua outdoor turret or dome camera on a flat wall surface in an exposed location and need a manufacturer-rated bracket with a 7kg load capacity and full weather tolerance.
• Good match if: The install is in a high-temperature or high-humidity environment - industrial sites, coastal properties, or rooftop plant rooms - where the -40°C to +60°C operating range rules out standard plastic mounts.
• You may need a different model if: The camera position requires mounting on a pole, ceiling, corner junction, or parapet - a pole mount bracket, ceiling drop arm, or corner mount from the Dahua accessories range will be the right fit for those configurations.

Key Features & Technical Specifications

Real-World Scenarios

How It Compares

• Choose this if: You need a flat wall mount for an outdoor Dahua camera in a location with temperature extremes, humidity, or UV exposure that rules out plastic or generic aftermarket brackets.
• You may need a different model if: The camera position requires ceiling, soffit, pole, or corner mounting - a ceiling drop arm, pole mount, or junction box bracket from the Dahua accessories range will be better suited to those configurations.
• Pairs well with: Dahua outdoor turret, dome, and eyeball cameras rated up to 7kg, particularly those installed on building perimeters without eave or overhang coverage.

Common Questions

1. Will this bracket work with any Dahua outdoor camera?

   It works with most Dahua outdoor cameras, but confirm the camera's base plate thread and fixing pattern before ordering. The PFB303W has a 7kg load rating, so verify your camera's weight - including housing and any junction box - does not exceed this. Most standard Dahua turret and dome cameras fall well under this limit.

2. Is the PFB303W suitable for fully exposed outdoor use without a roof or eave?

   Yes. The PFB303W is designed for exposed outdoor positions with a humidity tolerance of less than 90% RH and an aluminium body that does not degrade under direct UV exposure. It is suited to walls, fence posts with flat backing plates, and any surface where the bracket itself will face direct weather.

3. What is the maximum load this bracket can hold?

   7kg is the confirmed load bearing rating. This comfortably exceeds the weight of most standard Dahua outdoor cameras. If you are mounting a larger housing with an integrated junction box or additional hardware, calculate the combined weight before installing.

4. Does this bracket come with mounting hardware included?

   Mounting hardware is included with the bracket. You will need to source appropriate wall anchors for your specific surface type - masonry anchors for brick or block, and suitable fasteners for concrete or timber stud surfaces. The bracket itself does not supply rawl plugs or chemical anchors for masonry.

5. Can this bracket handle Australian summer temperatures on a north-facing wall?

   Yes. The operating temperature rating extends to +60°C, which covers radiant heat conditions on north-facing Colorbond or masonry walls in Australian summers. This is a meaningful difference from standard plastic brackets, which can soften or lose clamping force at elevated surface temperatures. The aluminium construction maintains structural integrity across this full range, as noted in the Security Australia product listing.

6. How far does the camera sit from the wall with this bracket installed?

   The bracket depth is 255mm, so the camera mounting point sits approximately 255mm from the wall surface. This standoff is intentional - it allows the camera to be angled downward toward an entry point or path without the wall edge cutting into the field of view, which is a common problem with shorter-arm brackets on corner or beside-door positions.

Downloads & Resources

No downloads available for this product.
