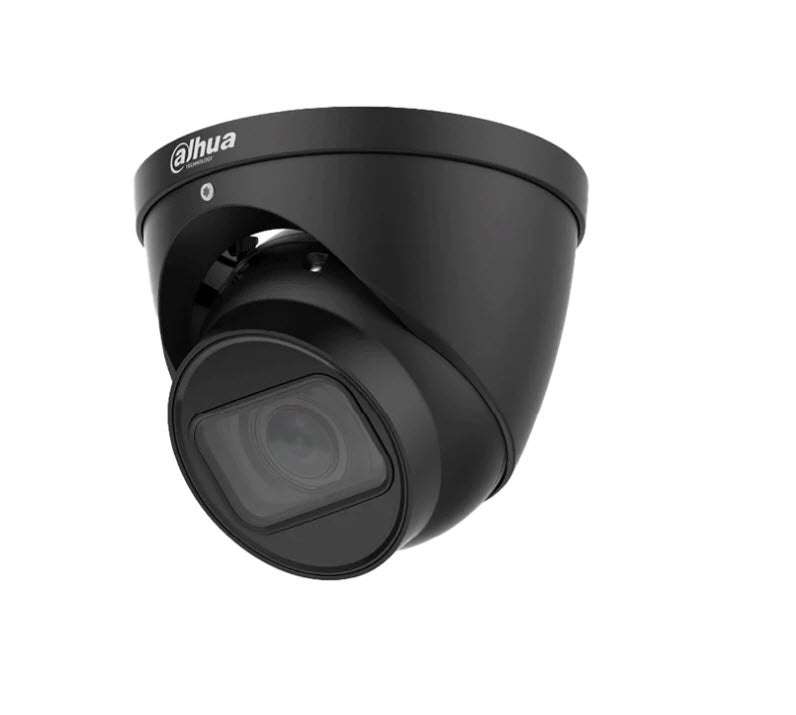

Dahua 8MP DH-IPC-HDW3866TP-ZS-AUS (4K) Starlight IP Turret Motorised WDR, IR 40m, IP67, POE

Model: DH-IPC-HDW3866TP-ZS-AUS

Who This Is For

Property managers specifying cameras across multi-tenancy sites, mixed-use retail precincts, or commercial carparks will find the Dahua DH-IPC-HDW3866TP-ZS-AUS well suited to locations where the exact field of view cannot be locked in at quote stage. The motorised varifocal lens - spanning 2.7 mm to 13.5 mm - lets an installer dial in the precise coverage zone from ground level after mounting, without repositioning the camera or swapping lenses. At 8MP 4K resolution and with SMD 4.0 filtering out animals and environmental triggers, this camera is aimed at sites where human and vehicle detections need to be actionable rather than buried in noise. IP67 weatherproofing, 40 m IR range, and PoE power make it straightforward to deploy on eaves, soffits, or exterior walls where a single Cat cable is the preferred installation method.

What This Camera Actually Does

Who Buys This Model

• Commercial Installers on Multi-Site Contracts: The motorised lens eliminates lens-swap callbacks - zoom and focus can be adjusted remotely after commissioning, which matters when managing multiple sites with varying mounting heights and standoff distances.
• Retail and Hospitality Operators: Sites needing to cover both a wide entry zone and a tighter cash register or reception area from a single ceiling or eave mount, using the zoom range to choose one or the other at commissioning.
• Light Industrial and Warehousing Facilities: IP67 protection and 40 m IR handle outdoor loading dock and yard approaches, while SMD 4.0 filters forklifts from pedestrian detections when tripwire rules are configured by target class.
• Body Corporate and Strata Managers: PoE single-cable installation keeps conduit runs simple in carparks and common areas, and 8MP resolution means fewer camera positions are needed to achieve adequate scene coverage across wide corridors or parking bays.

Honest Assessment

The DH-IPC-HDW3866TP-ZS-AUS earns its place on a specification list because of the combination of motorised zoom and 4K resolution in a compact turret housing - that pairing is genuinely useful when mounting positions are fixed but coverage requirements are not yet finalised. SMD 4.0 delivers meaningfully fewer false alerts than standard motion detection, and the F1.5 aperture provides real low-light colour performance before the IR kicks in. Smart H.265+ keeps storage demands manageable across an 8MP stream, which is relevant when planning NVR channel capacity. What it will not do: the IR range of 40 m is adequate for most residential and light commercial applications but falls short for long outdoor approaches or perimeter fencing on larger industrial sites, where a dedicated bullet or multi-sensor camera would serve better. It also lacks colour-at-night full-time illumination - if 24-hour colour output is the primary requirement, a full-colour TiOC variant is a better fit. Available through Security Australia.

Before You Buy

Quick Fit Check

• Good match if: You are mounting to a fixed eave or soffit position and need to adjust the field of view after installation - the 2.7-13.5 mm motorised lens means zoom and focus can be set remotely without physically repositioning the camera.
• Good match if: The site requires human and vehicle detection alerts to be reliable rather than frequent - SMD 4.0 filters animals and environmental motion, delivering only classified target events to the NVR.
• You may need a different model if: The primary requirement is continuous full-colour night vision with no IR illumination - a full-colour turret or TiOC model with white light will serve that use case better than this IR-based camera.

Key Features & Technical Specifications

Real-World Scenarios

How It Compares

• Choose this if: The mounting position is confirmed but the exact field of view is not - the motorised 2.7-13.5 mm lens can be adjusted remotely after install, which a fixed-lens turret cannot offer.
• You may need a different model if: The site requires continuous full-colour night imaging without IR illumination - a full-colour or TiOC turret with built-in white light will better serve that requirement.
• Pairs well with: A Dahua AI-capable NVR with SMD support to unlock Quick Pick event search and full perimeter protection alert management across multiple camera channels.

Common Questions

1. Does this camera work with a standard PoE switch or does it need PoE+?

   Standard IEEE 802.3af PoE is sufficient. The DH-IPC-HDW3866TP-ZS-AUS supports both PoE and 12 VDC power, and the standard 802.3af output of 15.4 W is adequate for this model. You do not need a higher-output PoE+ switch for this camera, which keeps compatibility broad across common NVR and switch combinations.

2. Will this camera work for after-hours detection without generating constant false alerts from animals or wind?

   Yes, when SMD 4.0 is enabled. The camera uses deep learning to classify motion events as human, vehicle, or other. Animals, foliage movement, and headlight wash are filtered out before an alert is generated. The result is that motion events reaching the NVR are classified targets rather than unfiltered triggers - practically useful for unmanned sites running overnight.

3. How do I set the zoom and focus on the motorised lens after mounting?

   The motorised lens is adjusted via the camera's web interface or a compatible Dahua NVR interface - no manual lens ring access is needed. After logging into the camera, zoom and focus controls are available in the image or lens configuration menu. Auto-focus can be triggered via software, though manually confirming focus at the selected focal length during commissioning is recommended to ensure sharpness at the correct subject distance.

4. What are the DORI distances and what does that mean practically for this camera?

   At the wide end (2.7 mm), the camera can detect a person at 88.3 m and identify at 8.8 m. At the telephoto end (13.5 mm), detection extends to 289.7 m and identification to 29.0 m. In practical terms, zooming to telephoto significantly extends the range at which the 8MP sensor can resolve detail sufficient for identification - relevant when the camera is covering a long driveway, open yard, or extended perimeter where human identification distance matters.

5. Does the motorised zoom work automatically or only manually during commissioning?

   Manual adjustment via software only - this is not an optical zoom that moves in response to detected motion. The DH-IPC-HDW3866TP-ZS-AUS is a fixed-installation varifocal camera, meaning the lens is zoomed and focused once at commissioning and then locked. It does not re-zoom dynamically in response to events. For auto-tracking zoom behaviour in response to detected movement, a PTZ camera is the appropriate product type. The motorised lens here is a commissioning convenience, not a live tracking function.

6. Can this camera record locally without an NVR?

   Yes. The camera supports a Micro SD card up to 256 GB for local edge recording. This allows continuous or event-triggered recording directly to the card, which is useful as a standalone deployment or as backup recording if the NVR connection is interrupted. SD card health is monitored, and the camera can generate alerts for SD card full, SD card error, and no SD card conditions via its abnormality detection settings. The stocked by Security Australia range includes compatible Micro SD cards if local storage is part of the design.

7. What does AI SSA actually do and when does it make a difference?

   AI SSA (AI Scene Self-adaptation) uses deep learning to assess environmental conditions in real time - including rain, fog, low light, backlight, and fluorescent flicker - and automatically adjusts image parameters to compensate. In practical terms, it means the camera adapts its WDR, noise reduction, and exposure settings to the current conditions without requiring manual tuning. The biggest benefit is in sites with variable lighting throughout the day - a covered car entry with strong backlight at noon and near-darkness at midnight, for example - where a single fixed image profile would compromise quality at one or both extremes.
