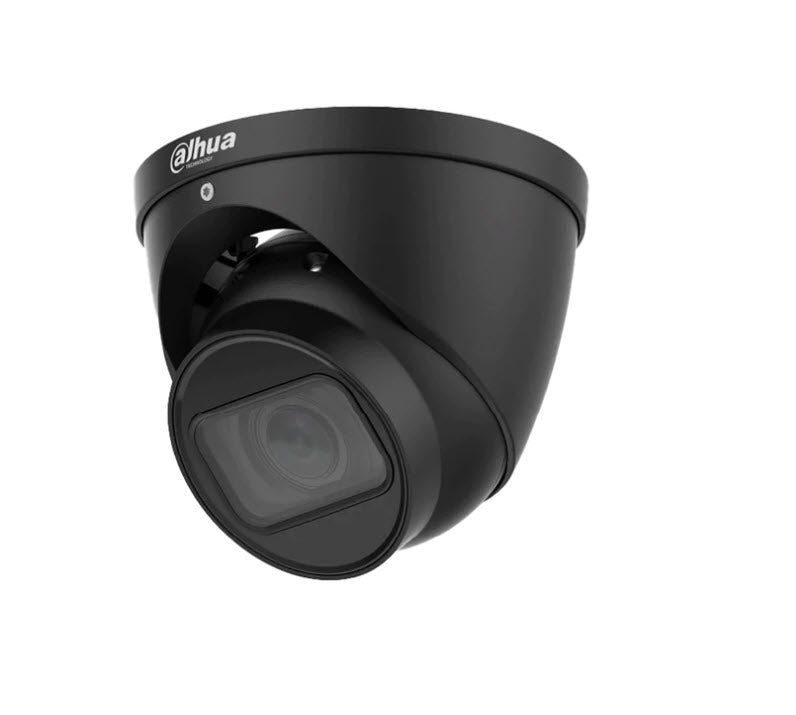

Dahua 8MP DH-IPC-HDW3866TP-ZS-AUS (4K) Starlight IP Turret Motorised WDR, IR 40m BLACK

Model: DH-IPC-HDW3866TP-ZS-AUS-BLK

Who This Is For

When getting the framing right at install time - without ladder returns - is the priority, the Dahua HDW3866TP-ZS-AUS in black is the camera to reach for. The motorised 2.7mm-13.5mm vari-focal lens lets installers dial in the field of view remotely through Dahua's software once the camera is mounted and cabled, which matters enormously on eave or soffit positions where repositioning is awkward. At 8MP 4K resolution, it captures enough detail that a tighter crop in post still holds usable image quality. SMD 4.0 human and vehicle filtering keeps alert fatigue low in busy outdoor environments, and the F1.5 aperture combined with Starlight-class low-light sensitivity means the camera continues producing colour detail well into dusk. This model suits commercial property installers, small business owners specifying their own systems, and residential projects where a single camera needs to cover a driveway or car park approach with adjustable reach.

What This Camera Actually Does

Who Buys This Model

• Commercial Property Installers: Specify this on retail shopfront, office car park, or warehouse perimeter installs where the mounting position is fixed but the required focal length varies by site - the motorised lens solves that without a camera swap.
• Small Business Owners: Operators monitoring a service lane, yard entry, or loading area who need human and vehicle alerts without constant false alarms from passing traffic or animals triggering notifications overnight.
• Residential Installers on Premium Projects: Homes with long driveways, pool areas, or side access gates where a fixed-lens turret does not have enough reach - the 13.5mm tele end pushes recognition distance to nearly 58m at 8MP resolution.
• System Integrators Building Dahua-Native Systems: Sites already using Dahua NVRs gain direct SMD Quick Pick integration and AI SSA scene adaptation without additional configuration, keeping the whole system coherent on one platform.

Honest Assessment

The HDW3866TP-ZS-AUS delivers genuine value in 3 areas: the motorised lens removes the most frustrating part of turret installs, the 8MP sensor provides real investigative detail at 4K, and SMD 4.0 keeps push notifications to events that actually matter. The F1.5 aperture is a legitimate differentiator at this price point for dusk-to-dark colour performance. Where this camera has limits: the IR range tops out at 40m, so for long outdoor approaches beyond that distance a bullet camera with extended IR would serve better. It is also a single-sensor fixed-position turret - it cannot pan under power or track moving subjects, so high-value perimeter zones requiring active tracking need a PTZ instead. The built-in microphone captures audio, but there is no built-in speaker, so two-way communication is not available from this unit alone. Available through Security Australia with standard Australian warranty support.

Before You Buy

Key Features & Technical Specifications

Real-World Scenarios

How It Compares

• Choose this if: You need a compact turret form factor with 4K resolution, motorised zoom flexibility, and on-camera AI filtering - particularly where the mount position is fixed but the exact focal length cannot be determined before install.
• You may need a different model if: Your site requires active motor-driven pan and tilt to track subjects or cover a wide area from a single mounting point - a PTZ camera with optical zoom and auto-tracking would be more appropriate for that use case.
• Pairs well with: A compatible Dahua AI NVR (for Quick Pick event search and full SMD integration) and a managed PoE switch sized for your total camera count and cable run lengths.

Common Questions

1. Does this camera adjust its zoom remotely, or do I need to physically access it after mounting?

   Yes, zoom and focus adjust remotely. The motorised vari-focal lens is controlled through the camera's web interface or Dahua's DSS/DMSS software once the unit is powered and on the network. You set the focal length during commissioning without touching the camera housing - which is particularly useful on eave, soffit, or pole mounts where physical access is awkward after cabling.

2. What are the actual DORI recognition and identification distances for this camera at wide and tele settings?

   At the wide end (2.7mm), the DORI specification lists a recognition distance of 17.7m and an identification distance of 8.8m. At the tele end (13.5mm), recognition extends to 57.9m and identification to 29.0m. These figures apply to a standard 1.8m-tall person under the EN 62676-4 standard and represent the practical distances at which you can determine who a person is (identification) versus confirm a person is present (recognition) - useful for planning camera placement relative to entry points or gates.

3. Will this camera work for a site that already uses a Dahua NVR?

   Yes, it integrates directly. The HDW3866TP-ZS-AUS is part of the Dahua WizSense ecosystem, so it connects to compatible Dahua NVRs with full SMD event classification, Perimeter Protection alert types, and - on AI-capable NVR models - Quick Pick forensic search. No third-party middleware is required; the camera appears as a managed device with full feature access inside Dahua DSS or the NVR's local interface.

4. Does this camera support two-way audio?

   No. The camera includes a built-in microphone for audio recording, but there is no built-in speaker. Two-way audio - where you can both listen and speak through the camera - requires a speaker, which this model does not have. If two-way communication at the camera location is required, a separate IP intercom or a camera model with both microphone and speaker would be needed.

5. Does the motorised zoom on this camera work like optical zoom on a PTZ, and can it auto-track subjects?

   No on both counts. The motorised vari-focal lens is a commissioning tool, not a real-time zoom mechanism. It adjusts the fixed field of view during setup and holds that position - it does not zoom dynamically during operation and does not pan, tilt, or track moving subjects. The camera's physical adjustment range (pan 0-360 degrees, tilt 0-78 degrees, rotation 0-360 degrees) refers to manual bracket positioning at install time, not motor-driven movement. For real-time optical zoom and subject tracking, a PTZ camera with auto-tracking firmware is required. The range of PTZ options stocked by Security Australia covers single-site and multi-zone tracking scenarios.

6. What PoE standard does this camera require, and will it work with a standard PoE switch?

   Yes, it is compatible with standard IEEE 802.3af PoE switches. The camera accepts 12VDC or PoE power, and the 802.3af standard (up to 15.4W per port) is sufficient - you do not need PoE+ (802.3at) ports. A standard Cat5e or Cat6 cable carries both power and data in a single run, up to the standard 100m Ethernet distance limit. Confirm your switch has enough 802.3af budget if you are running multiple 8MP cameras from the same unit, as 4K streams at full frame rate can place meaningful load on switch backplane capacity.

Downloads & Resources

No downloads available for this product.
