Dahua 8 x 8MP BLACK TIOC Advanced 2.0 with SMD4.0 Active Deterrance Turret Kit with 8CH Wizsense NVR

Model: TIOC2.0TURRETx8+DHI-NVR4108/AI-BLACK

Who This Is For

When active deterrence across an entire property - not just recording - is the priority, this kit is built around that outcome. The Dahua 8MP Black TiOC Advanced 2.0 SMD 4.0 Active Deterrence Turret Kit pairs 8 full-colour night-vision cameras with a dedicated 8-channel WizSense NVR into a single, matched system. Each camera carries a built-in siren, red and blue strobe lights, and a dual-illuminator that switches from IR to warm white the moment a human or vehicle is classified by SMD 4.0 - triggering a real-time audio-visual alarm rather than a silent recording. Installers and security-conscious property owners specifying coverage for residential perimeters, small commercial premises, warehouses, or rural properties with multiple entry points will find the 8-camera count practical for complete boundary coverage without a second NVR or additional PoE switch.

What This System Actually Does

Who Buys This Model

• Residential security integrators: Specifying a complete 8-camera perimeter solution for larger homes, acreage properties, or gated estates where every entry point needs active deterrence, not just recording.
• Small business owners: Running warehouses, trade yards, or hospitality premises who want a system that challenges intruders in the moment rather than discovering a break-in the following morning.
• Rural and semi-rural property owners: Where delayed police response times make on-camera deterrence - siren, strobe, voice - a practical first line of defence against trespass and theft.
• DIY-capable buyers: Who want a single matched kit with no compatibility guesswork - cameras, NVR, and PoE all confirmed to work together out of the box.
• Strata and property managers: Overseeing carparks, common areas, or multi-tenancy sites who need human-and-vehicle-only alerting to keep after-hours call-outs to legitimate events only.

Honest Assessment

This kit does active deterrence at scale genuinely well. The TiOC 2.0 architecture means the camera itself handles detection, illumination switching, and alarm triggering at the edge - so response is near-instant and does not depend on NVR processing speed or network latency. SMD 4.0's human-and-vehicle filtering makes the alarm system usable in real-world environments where animals, wind, and lighting changes would render generic motion detection unworkable. 8MP resolution across all 8 cameras provides substantial detail headroom, and the all-PoE NVR keeps the install clean. Where this kit reaches its natural limits: the 30 m IR and warm-light range means it is not suited to monitoring long driveways or open yards beyond that distance - a bullet camera with longer IR reach would serve those zones better. It also does not include optical zoom, so fixed coverage zones must be planned carefully at install time. Security Australia stocks the full Dahua WizSense range if specific coverage requirements call for a different lens or form factor.

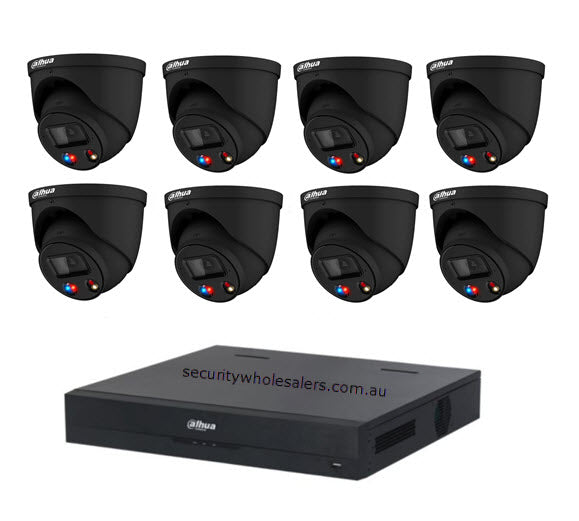

Complete Package Contents

• 8 x Dahua IPC-HDW3849H-AS-PV - 8MP TiOC 2.0 Active Deterrence Turret Camera, SMD 4.0, Dual Illumination (IR + Warm Light), IP67, PoE, Two-Way Audio, Fixed-focal
• 1 x Dahua DHI-NVR4108HS-8P-AI - 8-Channel WizSense NVR, 8-Port PoE, 1U Compact, AI Analytics, 1x HDD Bay

Before You Buy

Quick Fit Check

• Good match if: You need a complete 8-camera active deterrence system where cameras will challenge intruders in real time via siren, strobe, and two-way audio - and PoE from the NVR handles all power runs.
• Good match if: Your site generates high false alarm rates from animals or environmental movement and SMD 4.0's human-and-vehicle-only classification would make after-hours alerting genuinely useful rather than ignored.
• You may need a different model if: Your coverage zones extend beyond 30 m, include long open approaches, or require optical zoom to identify subjects at distance - a long-range IR bullet camera system would be a better fit for those scenarios.

Key Features & Technical Specifications

Real-World Scenarios

How It Compares

• Choose this if: You need a matched 8-camera system where every camera can both detect and actively respond to a human or vehicle intrusion with siren and strobe at the moment of classification, not just record it.
• You may need a different model if: Your coverage zones are long approaches or open yards beyond 30 m - a long-range IR bullet camera system will achieve the illumination and detail distance those scenarios require.
• Pairs well with: A surveillance-rated HDD (4TB or 6TB), a UPS for the NVR to maintain recording through power interruptions, and a structured Cat6 cabling run to each camera position.

Common Questions

1. Does the active deterrence actually trigger automatically, or does someone have to manually activate the siren?

   Both modes are available. When TiOC 2.0 is configured with intrusion or tripwire zones, the siren and strobe trigger automatically the moment SMD 4.0 classifies a human or vehicle crossing the defined boundary - no human monitoring required. Manual activation is also available through the DMSS mobile app for operators who prefer to verify before alarming. Custom pre-recorded voice messages can be linked to automatic triggers.

2. Will this kit work with cameras or NVRs I already have?

   Partially. The NVR4108HS-8P-AI is ONVIF-compatible and can accept third-party IP cameras on its standard channels, but SMD 4.0 and Quick Pick AI functions will only operate correctly with Dahua WizSense cameras. Similarly, the IPC-HDW3849H-AS-PV cameras can be added to an existing Dahua WizSense NVR. If you are expanding an existing system, confirm NVR firmware compatibility before mixing hardware.

3. How does SMD 4.0 differ from standard motion detection, and why does it matter for false alarms?

   Standard motion detection triggers on any pixel change - wind, animals, light shifts. SMD 4.0 analyses the shape and movement pattern of detected objects and classifies them as human, vehicle, or non-target before raising an event. Only human or vehicle classifications trigger the active deterrence alarm and push notifications. In practical terms, a property with cats, birds, or overhanging trees that would generate dozens of false alerts nightly under standard motion detection may produce only genuine human-detection events under SMD 4.0.

4. What is the TiOC 2.0 trigger classification accuracy, and can it distinguish a person from a large dog?

   Dahua's SMD 4.0 is specifically engineered to filter large animals as non-targets, meaning a dog or similarly-sized animal moving through frame should not trigger the active deterrence alarm in a properly configured zone. The camera applies AI classification at the edge processor level, not at the NVR, so the decision is made in real time without network dependency. Classification accuracy is influenced by camera mounting height, angle, subject distance relative to the 30 m illumination range, and zone configuration - tight, well-defined intrusion zones produce higher accuracy than broad catch-all motion areas. Dahua rates SMD 4.0 as a material improvement over SMD 3.0 in reducing animal-triggered false alarms, though exact published accuracy percentages for this specific model are not confirmed in available specifications.

5. Does the NVR support remote viewing, and what app is used?

   Yes. The DHI-NVR4108HS-8P-AI supports remote viewing and management through the Dahua DMSS app (iOS and Android). Live view, playback, two-way audio, and manual deterrence activation are all accessible remotely. The NVR requires a network connection and port forwarding or P2P cloud access to be configured - the DMSS app supports both methods. Multiple users can be granted different access levels.

6. How much storage do I need for 8 cameras running continuously at 8MP?

   A 4TB surveillance-rated HDD is the practical starting point for this kit. Running 8 cameras at 8MP with Smart H.265+ compression and event-based recording at moderate scene activity, 4TB typically delivers between 14 and 21 days of retention. Continuous 24/7 recording at maximum quality will reduce that figure. A 6TB or 8TB drive extends retention proportionally. The NVR supports 1 internal HDD bay - a drive is not included with this kit and must be purchased separately. Security Australia recommends sourcing a Western Digital Purple or Seagate SkyHawk surveillance-rated drive for compatibility and longevity in continuous-write applications.

7. Can each camera record locally to a Micro SD card independently of the NVR?

   Yes. Each IPC-HDW3849H-AS-PV supports a Micro SD card up to 256GB for independent local recording. This acts as a redundant backup - if the network connection to the NVR is interrupted, the camera continues recording to its own card. SD card recording can be configured for continuous, schedule, or event-only modes through the camera's local settings or via the NVR interface.

8. Is the camera housing rated for coastal or harsh outdoor environments?

   The IP67 rating confirms complete dust protection and resistance to water immersion at 1 m depth for 30 minutes, making it suitable for exposed outdoor installations including rain, sprinkler exposure, and high-humidity environments. The camera also supports a wide voltage tolerance of plus or minus 30% on 12VDC input, which is useful in rural or unstable power supply situations. IP67 does not include a corrosion resistance rating - for coastal saltwater environments within 100-200 m of the ocean, additional enclosure protection or a marine-rated housing should be considered.
