Dahua 8 x 6MP DH-IPC-HDW3641EM Turret Security Kit 50m IR 2.8mm with SMD + 8CH NVR Wizsense

$2,112.00 AUD
 per
In stock!
Spend $100.00 to FREE SHIPPING

Dahua 6 MP Network Camera + 8 Channels NVR Kit is a comprehensive surveillance solution. It includes eight 6 MP Turret Network Camera, offering high-resolution video capture. The kit is paired with a 8-channel NVR, allowing for efficient video recording and management. This setup ensures robust security coverage for various environments.

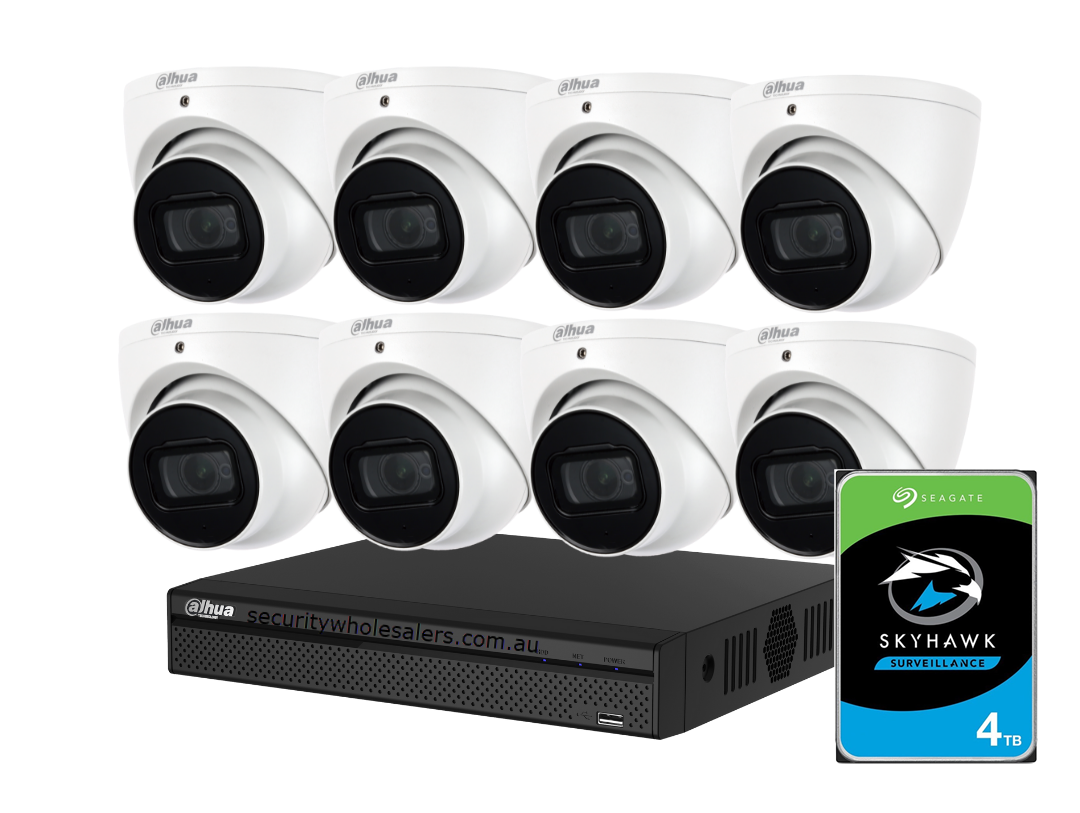

Dahua Camera Kit includes:

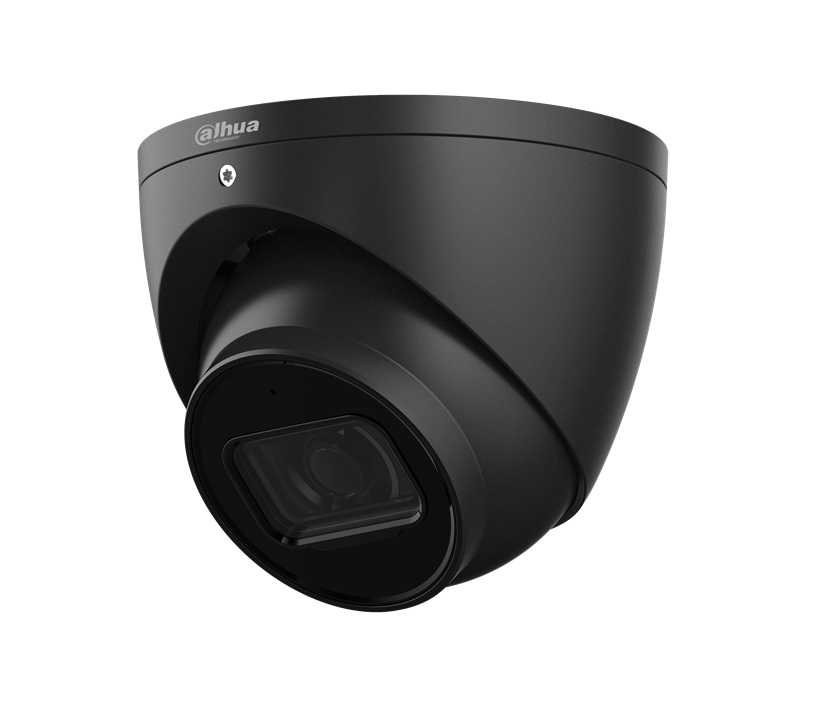

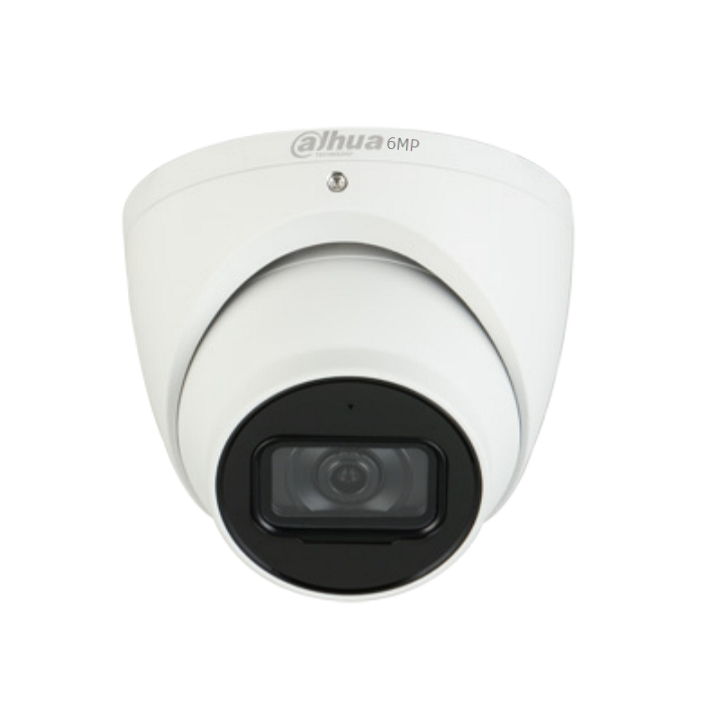

8 x 6MP IR Fixed focal Eyeball WizSense Network Camera

The Dahua 6MP IR Fixed-focal Eyeball WizSense Network Camera, model DH-IPC-HDW3641EM-S-S2, offers exceptional image quality with its 6-megapixel resolution, ensuring clear and detailed surveillance footage. Equipped with WizSense technology, it features intelligent functions such as motion detection, intrusion detection, and tripwire analytics, enhancing security monitoring capabilities.

Key Features

  • 6MP, 1/2.7” progressive scan CMOS, low illuminance, high image definition
  • Outputs max. 6MP (3072 × 1728) @ 20 fps, and supports 4MP (2688 x 1520) @ 30 fps
  • H.265 codec, high compression rate, low bit rate
  • Built-in IR LED, max. IR distance: 50 m
  • ROI, SMART H.264+/H.265+, flexible coding, applicable to various bandwidth and storage environments
  • Rotation mode, WDR, 3D DNR, HLC, BLC, digital watermarking, applicable to various monitoring scenes
  • Intelligent detection: Tripwire, intrusion
  • Abnormality detection: Motion detection, video tampering, defocus detection; scene changing, audio detection, no SD card, SD card full, SD card error, network disconnection, IP conflict, illegal access, voltage detection
  • Supports max. 256 G Micro SD card, built-in Mic
  • 12V DC/PoE power supply
  • IP67 protection
  • SMD Plus

Code/SKU: DH-IPC-HDW3641EM-S-S2
Quick Specs:

Pan/Tilt/Rotation Range

  • Pan: 0˚–360˚; Tilt: 0˚–78˚; Rotation: 0˚–360˚

Field of View

  • 2.8 mm: Horizontal 99° × Vertical 53° × Diagonal 115°
  • 3.6 mm: Horizontal 80° × Vertical 43° × Diagonal 94°



1 x 8 Channel Compact 1HDD 1U 8PoE Network Video Recorder 2TB HDD

The 8 Channel Compact 1HDD 1U 8PoE Network Video Recorder, model DHI-NVR4108HS-8P-4KS2/L, from Dahua Security is a powerful and efficient surveillance solution designed for small to medium-sized installations. This NVR supports up to 8 IP cameras with a maximum resolution of 8MP, providing clear and detailed video footage. It features H.265+ video compression, significantly reducing storage and bandwidth requirements without compromising video quality.

Key Features

  • New 4.0 user interface, Security baseline 2.1
  • H.264, H.265, Smart H.264+, and Smart H.265+. H.265 auto switch
  • Max. decoding capability: 8 × 1080p@30 fps. Supports adaptive decoding
  • Supports mainstream cameras of ONVIF and RTSP protocols
  • P2P remote surveillance, video play on mobile device
  • VGA/HDMI simultaneous video output, maximum resolution of HDMI is 4K
  • AI by Camera: Face detection, perimeter protection, IVS, people counting, heat map, and SMD
  • Supports remote configuration and management of IPC, such as setting parameters, getting information, and upgrading IPC of the same model in batches

Code/SKU: DHI-NVR4108HS-8P-4KS2/L
Quick Specs: Main Processor: Industrial-grade embedded processor, OS: Embedded Linux, Operation Interface: Web/operating in local GUI

Specifications

Camera
Image Sensor 1/2.7” 6Megapixel progressive scan CMOS
Max. Resolution 3072(H) x 2048 (V)
ROM 128 MB
RAM 512 MB
Scanning System Progressive
Electronic Shutter Speed Auto/Manual, 1/3 s–1/100000 s
Min. Illumination 0.005 Lux @F1.6
S/N Ratio >56 dB
Illumination Distance 50 m (164.0 ft)
Illuminator On/Off Control Auto/Manual
Illuminator Number 2 (IR LED)
Pan/Tilt/Rotation Range Pan: 0˚–360˚; Tilt: 0˚–78˚; Rotation: 0˚–360˚
Lens
Lens Type Fixed-focal
Mount Type M12
Focal Length 2.8 mm; 3.6 mm
Max. Aperture F1.6
Field of View 2.8 mm: Horizontal 99° × Vertical 53° × Diagonal 115°
3.6 mm: Horizontal 80° × Vertical 43° × Diagonal 94°
Iris Type Auto
Close Focus Distance 2.8 mm: 0.9 m (3.0 ft)
3.6 mm: 1.6 m (5.3 ft)
Professional and Intelligent
IVS (Perimeter Protection) Tripwire; intrusion (Recognition of human and vehicle)
Intelligent Search Work together with Smart NVR to perform a refined intelligent search, event extraction and merging to event videos.
Video
Video Compression H.265,H.264,H.264B,H.264H, MJPEG (only supported by sub stream)
Smart Codec Smart H.265+/ Smart H.264+
Video Frame Rate Mainstream (3072 × 1728@1–20 fps/2688 × 1520@1–25/30 fps)
Substream (704 × 576@1–25 fps/704 × 480@1–30 fps)
Third stream (1920 × 1080@1–25/30 fps)
Stream Capability 3 streams
Resolution 3072 × 1728
2592 × 1944
2688 × 1520
2560 × 1440
2304 × 1296
1080p (1920 × 1080)
1.3M (1280 × 960)
720p (1280 × 720)
D1 (704 × 576/704 × 480)
VGA (640 × 480)
CIF (354 × 288/354 × 240)
Bit Rate Control CBR/VBR
Video Bit Rate H.264: 32 Kbps–8192 Kbps
H.265: 19 Kbps–8192 Kbps
Day/Night Auto (ICR)/Color/B/W
BLC Yes
HLC Yes
WDR 120 dB
Scene Self-adaptation Yes
White Balance Auto/Natural/Street Lamp/Outdoor/Manual/Regional/Custom
Gain Control Auto/Manual
Noise Reduction 3D DNR
Motion Detection OFF/ON (4 areas, rectangular)
Region of Interest (RoI) Yes (4 areas)
Smart Illumination Yes
Defog Yes
Image Rotation 0°/90°/180°/270° (Support with 1080p resolution and lower)
Mirror Yes
Privacy Masking 4 areas
Audio
Built-in MIC Yes
Audio Compression G.711a; G.711Mu; G.726; AAC; G.723
Alarm
Alarm Event No SD card; SD card full; SD card error; less service time of SD card (smart card supports); network disconnection; IP conflict; illegal access; voltage detection; security exception; motion detection; video tampering; scene changing; intensity change; tripwire; intrusion; SMD
Network
Network RJ-45 (10/100 Base-T)
SDK and API Yes
Protocol IPv4; IPv6; HTTP; HTTPS; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; PPPoE; 802.1x; SNMP
Interoperability ONVIF (Profile S/Profile G/Profile T), CGI, Milestone, Genetec, P2P
User/Host 20 Users
Storage FTP; SFTP; Micro SD Card (support max. 256 G); Dahua Cloud; NAS
Browser IE: IE8 and later
Chrome
Firefox
Management Software Smart PSS, DSS, DMSS
Mobile Phone IOS; Android
Certification
Certification EN 55032
EN 61000-3-2
EN 61000-3-3
EN 55024
EN 50130-4
EN55035
Power
Power Supply 12V DC (±30%), PoE (802.3af)
Power Consumption <7.2W
Environment
Operating Conditions -40°C to +60°C (-40°F to +140°F)/less than 95%
Storage Conditions -40° C to +60° C (-40° F to +140° F)
Protection Grade IP67
Structure
Casing Metal
Dimensions Φ106 mm × 93.6 mm (4.17” × 3.69”)
Net Weight 0.55 kg (1.21 lb)
Gross Weight 0.71 kg (1.57 lb)

Documentation

3 Years Manufacturer Warranty

All IP cameras and recording devices (NVR’s/DVR’s) are covered by a 3 year back-to-base manufacturer warranty.

Our warranty is limited to the replacement of faulty items or parts and does not include damage due to incorrect fitting of parts or accessories, or damage due to mishandling the equipment once out of the box. All faults are sent to the manufacturer for inspection and diagnosis before a replacement is sent out.

Read more about the Terms & Conditions here – https://www.securityaustralia.com.au/terms-and-conditions/

Trusted Brand Partner & Security Equipment Wholesaler

Authorised Brand Partner with Responsive & Fast Aussie Sales Support Team ★★★★★
Best After-Sales Support and Troubleshooting Team with Years of Installation Experience.

Free Delivery* & Despatch Time

*Just spend over $100 to activate Fast Free Shipping!

Despatch Times: Products are despatched on the same day if the order was placed before 11am on any weekday, Monday - Friday. All other orders are processed and despatched within 24 hours or next business day.

Order Confirmation: Once you place an order, you will receive a confirmation email. This indicates that your order has been received in our system and is now being processed for dispatch. If your item is back-ordered or unavailable, we will notify you via email, and if we do not receive a response, we will attempt to contact you by phone as soon as possible. We value your time and strive to be prompt. If your item(s) are available for immediate shipment (within 2 days), we will process the charges and prepare the order for shipping.

Shipping Times: General shipping times for StarTrack, TNT and Allied couriers are between 1-3 working days from despatch. Longer delivery times may be caused by your package being held at your local courier depot that is beyond our control. Please contact us or the local post depot for confirmation.

Tracking Numbers: all tracking numbers will be emailed to you by our warehouse processing team within the day, after your order is despatched to our local courier.

View full details

Dahua 8 x 6MP DH-IPC-HDW3641EM Turret Security Kit 50m IR 2.8mm with SMD + 8CH NVR Wizsense

$2,112.00 AUD
 per

With advanced deep learning algorithm, Dahua WizSense 3 Series network camera supports intelligent functions, such as perimeter protection and smart motion detection. With starlight technology, this series camera provides a better image effect in the condition of low illuminance.

The Dahua 6MP IR Fixed-focal Eyeball WizSense Network Camera, model DH-IPC-HDW3641EM-S-S2, offers exceptional image quality with its 6-megapixel resolution, ensuring clear and detailed surveillance footage. Equipped with WizSense technology, it features intelligent functions such as motion detection, intrusion detection, and tripwire analytics, enhancing security monitoring capabilities. This camera is designed for versatility and durability, with an IP67 weatherproof rating that ensures reliable performance in various environmental conditions. Its infrared (IR) illumination enables night vision up to 30 meters, providing clear images even in complete darkness. The camera supports H.265 compression, reducing bandwidth and storage requirements without compromising video quality.

It has a fixed focal length of 2.8mm, offering a wide-angle view suitable for monitoring large areas. With its compact and sleek design, the DH-IPC-HDW3641EM-S-S2 is easy to install and integrate into existing security systems. The camera also supports Power over Ethernet (PoE), simplifying installation by eliminating the need for separate power cables. Advanced image processing features, such as wide dynamic range (WDR) and 3D noise reduction, ensure optimal performance in challenging lighting conditions.

This model is part of Dahua's WizSense series, which focuses on human and vehicle classification to reduce false alarms and improve accuracy. The camera's robust construction and high-quality components make it a reliable choice for both indoor and outdoor applications. Additionally, it offers remote access and management through the Dahua mobile app, allowing users to monitor their property from anywhere. Overall, the DH-IPC-HDW3641EM-S-S2 provides a comprehensive and intelligent surveillance solution for various security needs.

Features

  • 6MP, 1/2.7” progressive scan CMOS, low illuminance, high image definition
  • Outputs max. 6MP (3072 × 1728) @ 20 fps, and supports 4MP (2688 x 1520) @ 30 fps
  • H.265 codec, high compression rate, low bit rate
  • Built-in IR LED, max. IR distance: 50 m
  • ROI, SMART H.264+/H.265+, flexible coding, applicable to various bandwidth and storage environments
  • Rotation mode, WDR, 3D DNR, HLC, BLC, digital watermarking, applicable to various monitoring scenes
  • Intelligent detection: Tripwire, intrusion
  • Abnormality detection: Motion detection, video tampering, defocus detection; scene changing, audio detection, no SD card, SD card full, SD card error, network disconnection, IP conflict, illegal access, voltage detection
  • Supports max. 256 G Micro SD card, built-in Mic
  • 12V DC/PoE power supply
  • IP67 protection
  • SMD Plus



Functions

SMD Plus Dahua Smart Motion Detection (SMD) technology uses an intelligent algorithm to categorize targets that trigger motion detection, filtering out non-relevant targets to deliver accurate and effective alarms.

Smart H.265+ & Smart H.264+ Dahua's advanced scene-adaptive rate control algorithm in smart encoding technology offers higher encoding efficiency compared to H.265 and H.264, ensuring high-quality video while reducing storage and transmission costs.

Perimeter Protection Dahua Perimeter Protection technology leverages deep learning algorithms to accurately recognize humans and vehicles. It significantly reduces false alarms in restricted areas (such as pedestrian and vehicle zones) by intelligently detecting and filtering events like tripwire, intrusion, fast moving, parking, loitering, and gathering.

Starlight Dahua Starlight technology excels in low-light environments, providing clear, colorful video even under minimal illumination, ensuring good image quality.

WDR With advanced Wide Dynamic Range (WDR) technology, Dahua network cameras deliver clear details in high-contrast lighting conditions. Both bright and dark areas are captured clearly, even in challenging lighting scenarios or with backlight shadows.

Protection (IP67, Wide Voltage) IP67: The camera is rigorously tested for dust and water resistance, capable of operating normally after being submerged in 1 meter of water for 30 minutes.
Wide Voltage: The camera supports ±30% input voltage tolerance, making it suitable for outdoor environments with unstable voltage conditions.

Technical Specifications:
Camera
Image Sensor 1/2.7” 6Megapixel progressive scan CMOS
Max. Resolution 3072(H) x 1728(V)
ROM 128 MB
RAM 512 MB
Scanning System Progressive
Electronic Shutter Speed Auto/Manual, 1/3 s–1/100000 s
Min. Illumination 0.005 Lux @F1.6
S/N Ratio >56 dB
Illumination Distance 50 m (164.0 ft)
Illuminator On/Off Control Auto/Manual
Illuminator Number 2 (IR LED)
Pan/Tilt/Rotation Range Pan: 0˚–360˚; Tilt: 0˚–78˚; Rotation: 0˚–360˚
Lens
Lens Type Fixed-focal
Mount Type M12
Focal Length 2.8 mm; 3.6 mm
Max. Aperture F1.6
Field of View 2.8 mm: Horizontal 99° × Vertical 53° × Diagonal 115°
3.6 mm: Horizontal 80° × Vertical 43° × Diagonal 94°
Iris Type Auto
Close Focus Distance 2.8 mm: 0.9 m (3.0 ft)
3.6 mm: 1.6 m (5.3 ft)



The 8 Channel Compact 1HDD 1U 8PoE Network Video Recorder, model DHI-NVR4108HS-8P-4KS2/L, from Dahua Security is a powerful and efficient surveillance solution designed for small to medium-sized installations. This NVR supports up to 8 IP cameras with a maximum resolution of 8MP, providing clear and detailed video footage. It features H.265+ video compression, significantly reducing storage and bandwidth requirements without compromising video quality. The device includes one SATA interface, supporting up to 10TB of storage, ensuring ample space for recording and archiving footage. Equipped with 8 PoE ports, it simplifies the installation process by delivering power and data over a single cable to each connected camera. The NVR offers intelligent video system (IVS) capabilities, such as intrusion detection, tripwire, and facial detection, enhancing security and monitoring effectiveness. With its easy-to-use web interface and support for mobile access via the Dahua DMSS app, users can manage and view their surveillance system remotely.

The NVR also supports various network protocols and has a built-in P2P feature for simplified network setup. Additionally, it provides multiple recording modes, including manual, schedule, and alarm-based recording, offering flexibility to meet different security needs. The compact 1U design ensures efficient use of space and easy integration into existing setups. High reliability is guaranteed with features like redundant power supply options and ANR (Automatic Network Replenishment) technology, which ensures continuous recording even during network interruptions. The DHI-NVR4108HS-8P-4KS2/L is an ideal choice for users seeking a robust and versatile network video recorder for their security infrastructure.

Features

  • New 4.0 user interface, Security baseline 2.1
  • H.264, H.265, Smart H.264+, and Smart H.265+. H.265 auto switch
  • Max. decoding capability: 8 × 1080p@30 fps. Supports adaptive decoding
  • Supports mainstream cameras of ONVIF and RTSP protocols
  • P2P remote surveillance, video play on mobile device
  • VGA/HDMI simultaneous video output, maximum resolution of HDMI is 4K
  • AI by Camera: Face detection, perimeter protection, IVS, people counting, heat map, and SMD
  • Supports remote configuration and management of IPC, such as setting parameters, getting information, and upgrading IPC of the same model in batches



Functions

Perimeter Protection by Camera
This feature automatically filters out false alarms caused by animals, rustling leaves, bright lights, and other non-threats. It enhances the system's ability to recognize true threats, thereby improving alarm accuracy.

Face Detection by Camera
Utilizing deep learning algorithms, this technology detects human faces in the video feed. It supports face detection, tracking, optimization, and capturing, ultimately outputting the best face snapshot for identification purposes.

SMD Plus by Camera
Dahua's Smart Motion Detection technology uses intelligent algorithms to categorize motion detection targets, filtering out non-essential alarms. This ensures effective and accurate alerting for relevant movements.

People Counting by Camera
Employing deep learning algorithms, Dahua People Counting technology tracks and processes moving human targets. It provides accurate statistics on the number of people entering, leaving, and present in an area. Integrated with a management platform, it generates detailed yearly, monthly, weekly, and daily reports.

Smart Codec
Dahua's smart codec technology, featuring an advanced scene-adaptive rate control algorithm, offers higher encoding efficiency compared to H.265 and H.264 standards. This results in high-quality video while reducing storage and transmission costs.

DMSS
Available on the iOS App Store and Google Play, the DMSS app simplifies surveillance. It allows remote access to back-end devices, live video viewing, event push notifications, and recorded video searches from an iPhone, iPad, or Android device anytime, anywhere.

Technical Specifications:


System

Main Processor

Industrial-grade embedded processor

OS

Embedded Linux

Operation Interface

Web/operating in local GUI

Perimeter Protection by Camera

Performance

8 channels

AI Search

Search for pictures by channel, time and event type

Face Detection by Camera

Performance

4 channels

Face Attributes

6 attributes: Gender, age, glasses, expression, mouth mask, and beard

AI Search

Search for pictures by channel, time and face attributes

SMD Plus by Camera

Performance

8 channels

AI Search

Search by target classification (human, vehicle)

Video

Access Channel

8

Network Bandwidth

Access: 80 Mbps; Storage: 80 Mbps; Forward: 60 Mbps

Resolution

8MP; 6MP; 5MP; 4MP; 3MP; 1080p; 720p; D1

Decoding Capability

8 × 1080p@30 fps

Video Output

1 × VGA output, 1 × HDMI output, supports simultaneous video sources output for VGA and HDMI

Multi-screen Display

1, 4, 8, 9 views

Third-party Camera Access

ONVIF; RTSP

Compression

Video

Smart H.265/H.265/Smart H.264/H.264/MJPEG

Audio

PCM/G711A/G711U/G726/AAC

Network

Network Protocol

HTTP; HTTPS; TCP/IP; IPv4/IPv6; UPnP; SNMP; RTSP; UDP; SMTP; NTP; DHCP; DNS; IP Filter; DDNS; FTP; Alarm Server; IP Search (Support Dahua IP camera; DVR; NVS; etc.); P2P; auto register

Mobile Phone Access

Android; iOS

Interoperability

ONVIF(profile T/S/G); CGI; SDK

Browser

Chrome; IE9 or later; firefox

Record Playback

Multi-channel Playback

Up to 8 channels for playback

Record Mode

Manual record; alarm recording; SMD recording; smart recording

Storage

Local HDD; network

Backup

USB storage device

Playback Function

1. Play/pause/stop/slow/quick/backward/by frame
2. Full screen, backup (video clip/file), partial zoom in, and audio on/off

Storage

Disk Group

Yes

Alarm

General Alarm

Motion detection, privacy masking, video loss, scene changing, PIR alarm, IPC external alarm

Anomaly Alarm

Camera disconnection, storage error, disk full, IP conflict, MAC conflict, login locked, and cybersecurity exception

Intelligent Alarm

Face detection, perimeter protection (intrusion and tripwire), IVS, people counting, heat map, and SMD alarms

Alarm Linkage

Recording, snapshot, audio, buzzer, log, preset, and email

External Port

Audio Input

1 × RCA input

Audio Output

1 × RCA output

HDD

1 SATA III ports, up to 10 TB for a single HDD. The maximum HDD capacity varies with environment temperature

USB

2 (1 × front USB2.0; 1 × back USB2.0)

HDMI

1 (supports up to 4K resolution output)

VGA

1

Network

1 × RJ-45, 10/100 Mbps self-adaptive Ethernet port

POE

8

General Parameter

Power Supply

DC48 V/53 V, 2A/1.8 A

Power Consumption

< 10 W (HDD not included, idling)
Total output power of PoE is 72W, the maximum output power of a single port is 25.5W

Net Weight

0.92 kg (2.03 lb)

Gross Weight

2.07 kg (4.56 lb)

Product Dimensions

260 mm × 232.5 mm × 50.3 mm (10.24" × 9.15" × 1.98") (W × L × H)

Package Dimensions

117 mm × 373 mm × 307 mm (4.61" × 14.69" × 12.09") (W × L × H)

Operating Conditions

–10 °C to +55 °C (+10 °F to +131 °F)

Storage Conditions

0 °C to +40 °C (32 °F to 104 °F)

Operating Humidity

10℅~93℅

Storage Humidity

30%~85%

Operating Altitude

3000 m (9842.52 ft)

Installation

Desktop mounted

Certifications

CE: EN62368-1; EN55032,EN55024, EN55035, EN61000-3-2, EN61000-3-3 EN50130-4
FCC: Part 15 Subpart B



Enhance your security with the Dahua Camera System Kit. Experience superior clarity, advanced analytics, and reliable performance. Upgrade your surveillance system today!

Videos

Recently viewed products

SECURITY AUSTRALIA - YOUR TRUSTED SOURCE FOR SECURITY EQUIPMENT

Discover our wide range of security equipment designed to keep you safe and secure.

We offer competitive prices to trades and commercial projects. Speak to one of our experienced consultants if you require a custom quote on larger orders.

Sales Support & Enquiry Form

Got a question or just want to chat?
