Dahua 8MP + 8 Channels Kit: 2 x 8MP TiOC and 2 x 8MP Turret Cameras with 8CH AI NVR - Black

Model: DH-8M8C2T2TIOCB

Who This Is For

Property managers specifying a complete 8-channel system who need to cover both high-risk entry points and general outdoor areas from a single kit will find this bundle well matched to that task. The Dahua 8MP 8-Channel Kit combines 2 Smart Dual Illumination Active Deterrence cameras - known as TiOC - with 2 standard 8MP IR turret cameras, all feeding into an 8-channel AI NVR with 8 PoE ports. The TiOC cameras handle driveway entries, car parks, or perimeter gates where visible deterrence matters - the built-in siren and white light activate on detection. The IR turret cameras cover secondary zones such as side access paths or yard areas. With 4 camera positions filled and 4 ports remaining, the system has genuine room to grow without replacing hardware. The black housing suits installations where a low-profile aesthetic is preferred.

What This System Actually Does

Who Buys This Model

• Small Business Owners: Retail shops, cafes, or trade premises needing active deterrence on the main entry or car park and standard coverage on secondary zones - the TiOC/turret split maps directly to that layout.
• Residential Property Owners: Homeowners with a driveway, garage, or rear gate that warrants deterrence capability, plus side paths or yard areas needing standard IR coverage, who want a pre-matched kit rather than specifying cameras individually.
• Installers Running Multi-Phase Jobs: Professionals who quote a 4-camera first stage with a confirmed expansion path - the 8-channel NVR makes the second stage a cable-and-camera addition only, with no recorder swap needed.
• Strata and Property Managers: Those managing townhouse complexes or small commercial lots where one NVR covers multiple zones and the AI classification reduces nuisance alert calls from tenants.

Honest Assessment

This kit does the combination of deterrence and general coverage well. The TiOC cameras handle the active deterrence role with on-camera siren and white light that fires on a confirmed human or vehicle classification - not just motion. Across all 4 cameras, 8MP resolution gives recorded footage enough detail to be useful for identification. The 8-channel NVR with 8 PoE ports means no additional switch is needed for the initial install, and 4 spare channels support future expansion without hardware replacement. H.265 compression keeps storage demand manageable. Where this kit will not stretch: the IR turret cameras have a 30-metre IR range, which is adequate for residential and small commercial zones but will not cover long industrial approaches or wide open areas. The NVR accommodates 1 HDD only - large sites needing extended retention will find that a constraint. For wide-area coverage or high-channel-count applications, a higher-tier system available through Security Australia would be a better starting point.

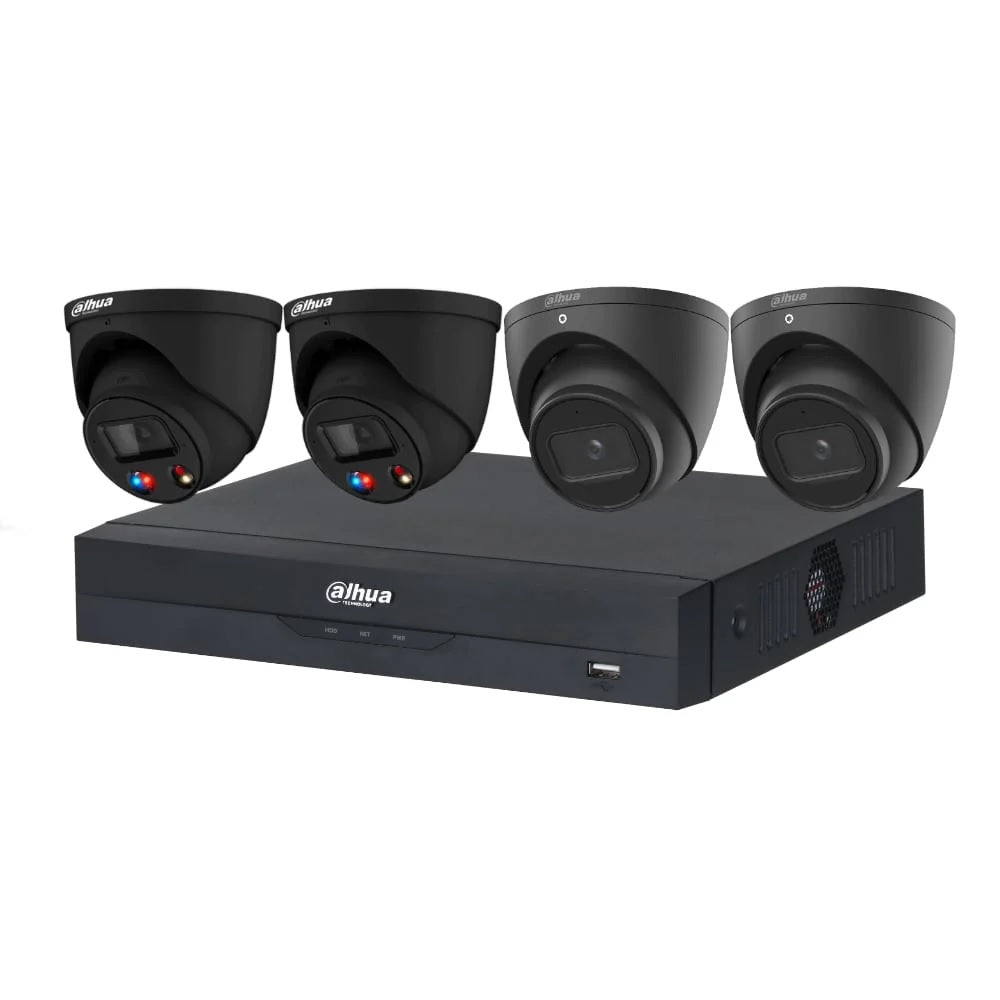

Complete Package Contents

• 2 x Dahua 8MP Smart Dual Illumination Active Deterrence Eyeball WizSense Network Camera - DH-IPC-HDW3849H-AS-PV-ANZ, 8MP, TiOC, built-in siren and white light, IP67, PoE
• 2 x Dahua 8MP IR Fixed-focal Eyeball WizSense Network Camera - IPC-HDW3866EMP-S-AUS, 8MP, 30m IR, IP67, PoE
• 1 x Dahua 8-Channel Compact 1U 8PoE 1HDD WizSense Network Video Recorder - NVR4108HS-8P-AI/ANZ, 8 channels, 8 PoE ports, 1 HDD bay, AI processing

Before You Buy

Quick Fit Check

• Good match if: You need active deterrence on 1-2 high-risk entry points and standard 8MP IR coverage on secondary zones, and want both camera types managed from a single PoE NVR without additional switching equipment.
• Good match if: Your install is a first stage with planned expansion - the 8-channel NVR leaves 4 PoE ports free for additional cameras without requiring a recorder replacement at phase 2.
• You may need a different model if: Your site has long outdoor approaches exceeding 30 metres, requires more than 1 HDD for extended retention, or needs more than 8 camera positions - a higher-channel NVR kit with longer-range bullet cameras would be a better fit for those requirements.

Key Features & Technical Specifications

Real-World Scenarios

How It Compares

• Choose this if: You need a mixed camera setup combining active deterrence and standard IR coverage in a single pre-matched kit with a PoE NVR that has spare channels for future expansion.
• You may need a different model if: Your site requires more than 8 camera positions, extended-range IR beyond 30 metres on general cameras, or multiple HDD bays for long-term retention - a higher-channel NVR kit with industrial-grade bullet cameras would serve those requirements better.
• Pairs well with: A surveillance-rated 4TB HDD for the NVR, additional compatible 8MP WizSense turret or TiOC cameras for the open PoE channels, and a UPS (uninterruptible power supply) to protect the NVR during brief power interruptions.

Common Questions

1. Does the TiOC siren and light activate automatically, or does someone need to trigger it manually?

   Automatically. The TiOC cameras (DH-IPC-HDW3849H-AS-PV-ANZ) run the human and vehicle classification on the camera's own AI chip. When a classified target enters the configured detection zone, the siren and white light activate without any manual trigger or NVR-side action. This means the deterrence response fires even if the NVR is mid-write cycle or network latency exists between camera and recorder.

2. Will this kit work with cameras I already own, or is it limited to the 4 included cameras?

   It works with additional Dahua IP cameras. The NVR4108HS-8P-AI/ANZ has 8 PoE ports - 4 are used by the kit, leaving 4 open. Compatible Dahua IP cameras can be added to those ports. Third-party ONVIF cameras may also connect, though AI features like Quick Pick and SMD 4.0 classification are confirmed only with Dahua WizSense cameras on this NVR.

3. Does this system need a hard drive to record, and what size is recommended?

   Yes - the NVR ships without a hard drive and will not record until one is installed. The NVR4108HS-8P-AI/ANZ supports 1 HDD bay. A surveillance-rated drive (such as Seagate SkyHawk or WD Purple) is required - standard desktop drives are not rated for the continuous read/write cycles of a surveillance recorder. With 4 cameras at 8MP and H.265 encoding, a 4TB drive provides approximately 20-30 days of continuous recording depending on scene activity and motion density.

4. What does SMD 4.0 actually do differently from standard motion detection?

   It filters. Standard motion detection triggers on any pixel change - animals, vehicle headlights sweeping across a wall, or a tree branch moving in the wind all generate alerts. SMD 4.0 uses the camera's deep learning chip to classify whether the detected object is a human or a vehicle before flagging an event. Non-classified objects - animals, environmental movement - are filtered out at the camera level. The result is significantly fewer alert notifications and a cleaner event log on the NVR.

5. How does the TiOC camera decide when to use IR versus white light, and can I control this?

   By default, the TiOC camera uses IR for continuous low-light recording and switches to white light when an SMD-classified human or vehicle is detected within the perimeter zone. This automatic switching behaviour is configurable - via the NVR interface or the DMSS app, you can adjust the detection zone boundaries, the sensitivity threshold, and whether the siren activates alongside the white light or independently. You can also set schedules to limit when active deterrence is active, which is useful if the camera faces a shared path during business hours. Security Australia supplies this kit with the ANZ firmware version, which includes the DMSS remote management app support.

6. Does the 8MP resolution on these cameras help with number plate identification?

   It helps, but placement is the primary factor. At 3840 x 2160, there is more pixel data to work with when zooming into recorded footage compared to a 4MP or 2MP camera. However, number plate readability depends on how much of the frame the plate occupies, vehicle speed, and camera angle. These cameras are fixed-focal eyeball/turret types - for dedicated number plate capture on a vehicle approach, a purpose-positioned fixed camera with an appropriate lens pointed directly at the entry point gives far more consistent results than relying on wide-area coverage footage.

7. Can I access live and recorded footage remotely from my phone?

   Yes. The NVR4108HS-8P-AI/ANZ supports remote access via Dahua's DMSS mobile application (iOS and Android). Live view, playback, and push notifications for SMD and perimeter events are all accessible through DMSS once the NVR is registered to an account. Remote access requires the NVR to be connected to a router with internet access - a static IP or DDNS configuration is recommended for reliable remote connection.

Cabling Considerations

• Cable Type: Cat5e minimum, Cat6 recommended - each camera runs a single cable to an NVR PoE port carrying both data and power.
• Max Cable Run: 100 metres per PoE run from NVR to camera (standard IEEE 802.3af PoE limit). For runs exceeding this, a PoE extender or mid-span switch is required.
• PoE Notes: All 4 cameras are powered directly from the NVR's built-in PoE ports - no external PoE switch or separate power supply is needed for the initial 4-camera configuration. Check the NVR's total PoE budget before adding further cameras on the remaining 4 ports.
• Wiring Tips: Run all cables before mounting camera brackets - the eyeball and TiOC housings require the cable to exit through or behind the mounting base. For external runs, use UV-rated conduit or a weatherproof cable cover to protect Cat cable from direct sunlight degradation over time. Terminate all runs at the NVR location into a patch panel or labelled patch leads to simplify future troubleshooting.
