Dahua 6 x DH-IPC-HDW3867EM-S-IL-ANZ Starlight Turret Cameras, AI NVR CCTV Kit

Model: DH-IPC-HDW3867EM-S-IL-ANZ6X8CHKit

Who This Is For

For property owners and installers who need a complete 8MP IP surveillance system without building it component by component, this Dahua 6-camera WizSense kit delivers a matched, ready-to-configure setup out of the box. The bundle pairs 6 x DH-IPC-HDW3867EM-S-IL-ANZ Starlight turret cameras with an 8-channel AI PoE NVR, making it well suited to residential properties, small commercial premises, childcare facilities, and light industrial sites where consistent image quality across every camera position matters. The dual-light design on each camera means full-colour footage after dark without requiring external lighting, and the WizSense AI engine on both the cameras and NVR filters motion events down to confirmed human and vehicle detections - reducing false alerts from trees, insects, and passing headlights. With 6 cameras occupying 6 of 8 available channels, there is room to add 2 further compatible Dahua cameras as the site grows.

What This Camera Actually Does

Who Buys This Model

• Residential installers: Running new builds or upgrades where the client wants colour night footage and AI alerts on a single matched system without sourcing NVR and cameras separately.
• Small business owners: Retail shopfronts, cafes, and trade yards that need human/vehicle-filtered alerts during closed hours to cut down on nuisance notifications from the app.
• Childcare and aged care facilities: Sites where 8MP detail at entry points, car parks, and outdoor play areas is required for compliance and incident review, and where clean ceiling or soffit mounting suits the environment.
• Light industrial and warehouse operators: Smaller facilities with 4-6 defined coverage zones - loading areas, entry gates, and internal aisles - who need a single matched kit rather than a piecemeal build.
• Property managers and strata committees: Multi-tenancy residential blocks and commercial strata where a single-supplier matched kit simplifies installation quoting and ongoing warranty management.

Honest Assessment

This kit does the fundamentals well at 8MP. The dual-light system on each camera is a genuine practical advantage over standard IR-only turrets - full-colour night video requires no separate lighting infrastructure, and the WizSense AI filtration on the NVR side means alert fatigue is considerably lower than on basic motion-detection systems. The matched camera-NVR pairing also means AI features work at the NVR level, not just at the camera, so intelligent search and event filtering carry through to playback. Available through Security Australia, this is a considered bundle for installers who want a single-order, single-warranty system.

It will not suit sites that require coverage beyond 30m after dark, long-range perimeter monitoring, or applications where optical zoom or PTZ tracking is needed. The fixed lens also means the field of view is set at installation - if coverage requirements change, repositioning or adding a different camera type is the only option. For sites requiring more than 8 channels from the outset, a higher-channel NVR kit would be a better starting point.

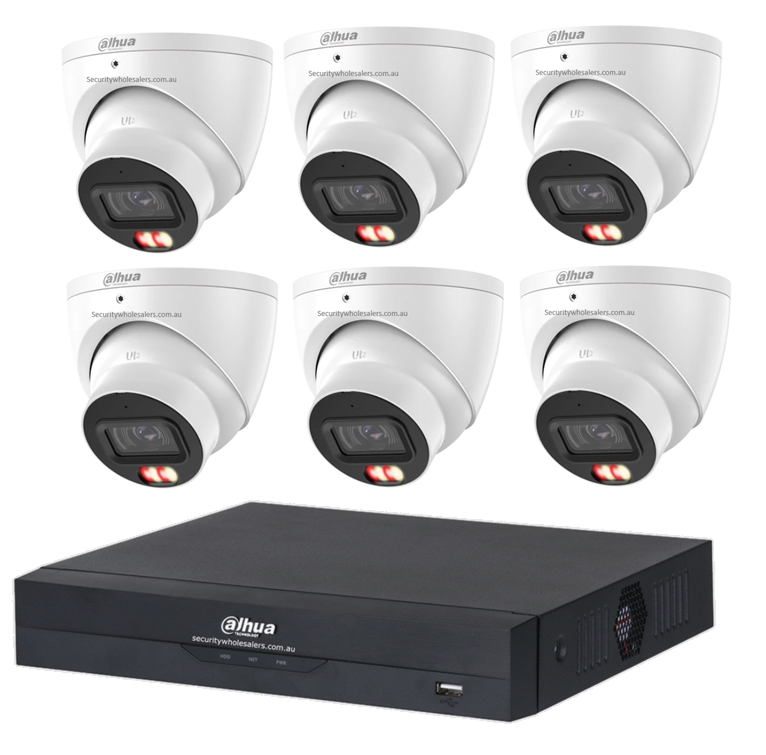

Complete Package Contents

• 6 x Dahua DH-IPC-HDW3867EM-S-IL-ANZ - 8MP WizSense Starlight Smart Dual Light Turret Camera, IP67, IK10, PoE
• 1 x Dahua 8-Channel AI PoE NVR - H.265+, SMD Plus, built-in 8-port PoE switch, HDD bay

Before You Buy

Quick Fit Check

• Good match if: You have 4-6 camera positions across a home, small commercial site, or light industrial property and want full-colour night footage without installing external lighting at each position.
• Good match if: You need WizSense AI human and vehicle detection filtering to reduce nuisance alerts, and want that intelligence working at both the camera and NVR level rather than relying on a third-party app to sort events.
• You may need a different model if: Your site has long perimeter approaches over 30m, requires optical zoom or auto-tracking, or needs more than 8 channels from the start - a bullet camera kit or PTZ-inclusive system from the Security Australia range would be a better fit.

Key Features & Technical Specifications

Real-World Scenarios

How It Compares

• Choose this if: You need a matched 6-camera 8MP system with full-colour night vision and AI human/vehicle filtering, without the overhead of sourcing and pairing compatible components separately.
• You may need a different model if: Your site has long-range perimeter approaches or exposed positions requiring deterrence lighting at distance - a bullet camera kit with long-range IR or a combined bullet and turret kit would cover those scenarios more effectively.
• Pairs well with: A surveillance-rated CMR hard drive (4TB-8TB recommended), a PoE network switch if additional cameras are added beyond the NVR's built-in ports, and a UPS battery backup unit to maintain recording during brief power outages.

Common Questions

1. Does this kit include a hard drive?

   No. The NVR ships without a HDD installed. You will need to add a surveillance-rated CMR/PMR hard drive separately. For 6 cameras recording at 8MP with motion-triggered retention, a 4TB drive provides approximately 14-21 days of storage depending on scene activity, while 8TB extends that to 30 days or more. Avoid SMR drives in surveillance NVRs as write performance under continuous recording can cause dropped frames.

2. Will this camera work in colour at night without any external lighting?

   Yes. Each DH-IPC-HDW3867EM-S-IL-ANZ has a built-in warm white LED that activates after dark to produce full-colour video. No external flood light or garden light is required. The camera can also be set to IR-only monochrome mode if you want night illumination without visible white light, or to a hybrid mode that activates colour on motion detection and reverts to IR during quiet periods.

3. How does the WizSense AI actually reduce false alerts?

   The SMD Plus engine classifies every motion event as human, vehicle, or non-target before triggering a notification or recording. Wind-blown foliage, rain, insects flying past the IR, and car headlights sweeping across the sensor are the most common sources of false alerts on standard motion-detection cameras. By filtering to confirmed human or vehicle detections only, the NVR and DMSS app can be configured to push alerts exclusively for those targets, which typically cuts notification volume by 80-90% compared with pixel-change motion detection on a busy outdoor scene.

4. Does this kit support remote viewing on a phone?

   Yes. The Dahua DMSS app for iOS and Android connects to the NVR over your internet connection for live view, playback, and push notifications. Setup is done by scanning a QR code in the NVR menu - no static IP or port forwarding is required for basic remote access. The app also allows you to adjust AI alert settings, review event clips, and control individual camera parameters remotely. Security Australia stocks this kit as part of the broader Dahua WizSense range if you need advice on app configuration before purchasing.

5. Can I add more cameras to this kit later?

   Yes, up to 2 additional cameras. The 8-channel NVR has 8 built-in PoE ports and 6 are used by this kit, leaving 2 spare channels available for expansion. Any compatible Dahua WizSense IP camera can be added. If you anticipate needing more than 8 cameras total, it is worth starting with a 16-channel NVR kit rather than replacing the NVR later.

6. What cable is needed to install these cameras?

   Cat5e or Cat6 ethernet cable is used for both power and data via PoE from the NVR to each camera. Maximum recommended cable run is 100m per camera from the NVR. If any camera position is beyond 100m, a PoE extender or a separate PoE injector closer to the camera position is required. Use outdoor-rated UV-resistant Cat6 cable for any exposed external runs to avoid insulation degradation over time in Australian sun exposure.

7. Does the 1/1.8-inch sensor make a difference compared with smaller sensors at the same 8MP resolution?

   Yes, noticeably in low light. A larger sensor at the same resolution captures more light per pixel, which improves detail retention in dim conditions before the IR or white LED activates. The 1/1.8-inch format used in the DH-IPC-HDW3867EM-S-IL-ANZ means the camera handles transitional lighting - dusk, dawn, and partly-lit scenes - significantly better than 8MP cameras built around smaller 1/2.8-inch or 1/3.2-inch sensors at comparable price points.

Cabling Considerations

• Cable Type: Cat5e minimum, Cat6 recommended for all runs. Use outdoor UV-rated Cat6 for any exposed roof, eave, or external wall sections.
• Max Cable Run: 100m per camera from the NVR PoE port. Runs over 100m require a PoE extender or mid-span injector to maintain power and signal integrity.
• PoE Notes: All 6 cameras draw standard IEEE 802.3af PoE. The NVR's built-in PoE switch supplies all 6 cameras directly - no external switch or injector is required within the 100m limit. The 2 spare NVR ports can power additional cameras without any additional equipment.
• Wiring Tips: Run cables back to the NVR location before terminating - it is easier to shorten a long pull than add cable once walls are closed. In roof spaces, use cable clips or conduit to separate ethernet runs from 240V mains cable by at least 50mm to avoid interference. For external runs exposed to weather, seal RJ45 connections with self-amalgamating tape or use weatherproof RJ45 boots to prevent moisture ingress at the camera connection point.
