Dahua 4 x 6MP DH-IPC-HDW3649H-AS-PV-ANZ TIOC 2.0 with Wizsense Turret 4CH Kit

Model: DH-IPC-HDW3649H-AS-PV-ANZ x4 + DHI-NVR4104HS-AI

Who This Is For

For property owners and small business operators who want active deterrence built into every camera position - not just passive recording. This 4-channel kit pairs the Dahua TiOC 2.0 turret with the DHI-NVR4104HS-AI recorder to deliver a complete WizSense AI system that detects humans and vehicles, triggers real-time strobes and sirens on approach, and captures full-colour footage around the clock without switching to greyscale at night. It suits retail shopfronts, warehouses, residential properties with perimeter fencing, childcare centres, and small office buildings where visible, reactive deterrence is as important as the recording itself. Installers appreciate the turret form factor - eave, soffit, and wall mounting all work - and the consistent full-colour image quality means footage is useful for identification, not just detection.

What This Camera Actually Does

Who Buys This Model

• Retail and Hospitality Operators: Shopfronts, bottle shops, and small venues where after-hours intrusions are a recurring issue - the active strobe and siren provide a visible, real-time response without requiring monitoring centre involvement.
• Residential Property Owners: Homes on larger blocks, rural properties, or properties with long driveways where perimeter detection and a deterrent response is more useful than standard recording alone.
• Warehouse and Trade Premises: Light industrial sites, yards, or storage facilities that need full-colour footage at night for after-hours incident identification alongside active alarm output.
• Childcare and Educational Facilities: Sites that need AI-filtered human detection to manage after-hours alerts without excessive false alarms from foliage, wildlife, or passing traffic near boundary fences.

Honest Assessment

This kit does two things well: it reduces false alarm fatigue through WizSense human/vehicle classification, and it gives property owners a real-time deterrence response - not just passive recording. The full-colour night imaging is genuinely useful; footage captured in colour at night is far more actionable than greyscale IR footage for identification purposes. The 6MP resolution across 4 camera positions also gives reasonable coverage density for a single-switch small site.

Where this kit has limits: the DHI-NVR4104HS-AI does not include built-in PoE ports, so a separate PoE switch is required to power the cameras - this adds to the installation cost and should be budgeted for. The 4-channel ceiling also means this is a starting point; sites with more than 4 coverage zones need a higher-channel NVR. The warm supplemental light that enables full-colour night vision is visible to anyone in the scene, which suits deterrence but is not suitable for covert monitoring. Available through Security Australia with ANZ firmware loaded as standard.

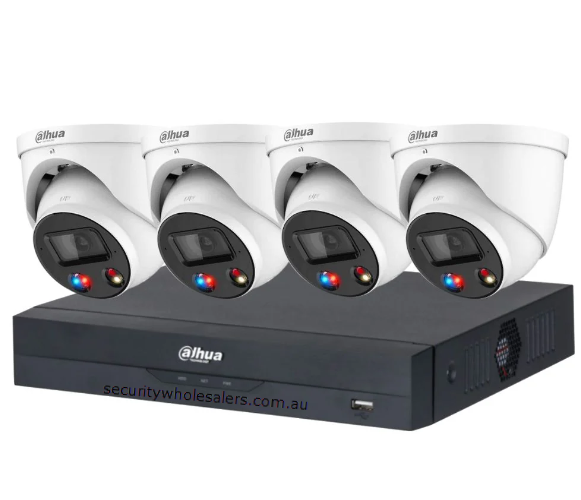

Complete Package Contents

• 4 x Dahua DH-IPC-HDW3649H-AS-PV-ANZ - 6MP TiOC 2.0 WizSense Turret Camera, full-colour, active deterrence, two-way audio, IP67, PoE
• 1 x Dahua DHI-NVR4104HS-AI - 4-channel WizSense AI NVR, H.265+, supports up to 8MP, 1x SATA HDD bay (HDD not included)

Before You Buy

Key Features & Technical Specifications

Real-World Scenarios

How It Compares

• Choose this if: You need active deterrence built into every camera - the combination of WizSense AI classification, full-colour night imaging, strobe, and siren in a single turret housing is the core reason to specify this kit over standard IP camera systems.
• You may need a different model if: You need to cover more than 4 zones from the outset - an 8-channel or 16-channel NVR kit with matching cameras will serve larger sites without requiring an NVR replacement down the line. Alternatively, if long-range IR coverage of a 30-50m approach is the priority, a bullet-format camera system may be more appropriate for that specific zone.
• Pairs well with: A managed 4-port PoE switch for camera power and network delivery, a surveillance-rated 4TB SATA hard drive for the NVR, and a UPS (uninterruptible power supply) to maintain recording and deterrence function during power interruptions.

Common Questions

1. Does the strobe and siren activate on every motion event, or only specific targets?

   Only on confirmed human or vehicle detections. WizSense SMD 4.0 classifies moving objects before triggering the active deterrence output. Wind-blown foliage, passing animals, rain, and lighting changes do not activate the strobe or siren. This classification step is what separates TiOC 2.0 from older motion-triggered alarm cameras that generated constant false activations and were subsequently disabled by site owners.

2. Can the active deterrence be set to trigger automatically, or does someone have to manually activate it?

   Both modes are supported. The camera can be configured to trigger the strobe and siren automatically when WizSense detects a human or vehicle within a defined zone - no human intervention required. It can also be activated manually via the DMSS app or NVR interface when reviewing a live feed. Most installations use automatic triggering for after-hours periods and disable it during business hours to avoid activating on legitimate foot traffic.

3. Will this kit work with cameras I already have from another brand?

   Partially. The DHI-NVR4104HS-AI is ONVIF-compatible, so basic video streams from third-party ONVIF cameras can be added. However, WizSense AI features - SMD 4.0 detection, active deterrence triggering via the NVR, and full integration with the DMSS app - only function with Dahua WizSense cameras. Mixing brands will reduce the system to basic recording for non-Dahua channels.

4. Does this kit include everything I need to get recording?

   No - 3 items are not included. You will need: (1) a surveillance-rated SATA HDD for the NVR, (2) a PoE switch to power the cameras, as the DHI-NVR4104HS-AI has no built-in PoE ports, and (3) Cat5e or Cat6 cable runs from the switch to each camera position. These are standard installation components stocked by Security Australia and most electrical wholesalers.

5. Does the full-colour night vision work in complete darkness, or does it need some ambient light?

   It works in complete darkness. The warm supplemental LEDs built into the camera produce the light needed for full-colour imaging - they are not relying on ambient street lighting or moonlight. The trade-off is that the LEDs are visible in the scene, emitting a warm glow. This is by design for a deterrence-focused camera. If completely covert low-light operation is required, a camera with IR illumination and a larger sensor would be more appropriate.

6. Can the NVR be expanded beyond 4 channels if I need to add cameras later?

   No. The DHI-NVR4104HS-AI is a fixed 4-channel device and cannot be expanded. If you anticipate needing more than 4 cameras within 12-24 months, specifying an 8-channel WizSense NVR from the outset is a more cost-effective approach than replacing the recorder later. The cameras in this kit are fully compatible with higher-channel Dahua WizSense NVRs.

7. How does TiOC 2.0 differ from the original TiOC, and does the difference matter for this installation?

   Yes, the difference is meaningful in practice. TiOC 2.0 (used in the DH-IPC-HDW3649H-AS-PV-ANZ) integrates the AI classification, full-colour imaging, and active deterrence into a single coordinated system with faster response times and reduced false activation rates compared to first-generation TiOC. The SMD 4.0 engine in TiOC 2.0 has improved human/vehicle separation accuracy compared to the earlier SMD version, which matters in environments with frequent background movement such as roadside installations or windy coastal properties.

Downloads & Resources

No downloads available for this product.
