Dahua 4 x 6MP DH-IPC-HDW3641EM Turret Security Kit 50m IR 2.8mm with SMD + 4CH NVR, Wizsense AI

Model: DH-IPC-HDW3641EM-AS-KIT-NOHDD

Who This Is For

For small business owners and residential installers who need a complete, AI-capable surveillance system without the complexity of sourcing compatible components separately. This kit pairs 4 x Dahua DH-IPC-HDW3641EM 6MP WizSense turret cameras with a matched 4-channel WizSense NVR, giving you a verified end-to-end system that works out of the box. The 2.8mm fixed lenses and 50m IR range suit driveways, entries, carparks, and building perimeters where wide-angle coverage and night visibility matter. SMD Plus AI filters out false alerts triggered by trees, animals, and passing headlights - flagging only human and vehicle movement. The kit ships without a hard drive, so you select storage to match your retention needs. Suitable for homes, small commercial premises, retail shopfronts, and light industrial sites where 4 camera positions cover the full perimeter.

What This System Actually Does

Who Buys This Model

• Residential installers: Running a 4-camera job on a house perimeter where confirmed camera-NVR compatibility saves commissioning time and eliminates codec mismatch issues at handover.
• Small retail and hospitality operators: Needing human and vehicle alerts on a carpark or entry without committing staff time to reviewing hours of irrelevant motion footage - SMD Plus handles that filtering automatically.
• Property managers and strata committees: Covering 4 fixed positions on a building site - entries, exits, stairwells, carpark - where a 2.8mm wide-angle lens and 6MP resolution make each camera position work harder.
• Light industrial and warehouse sites: Using the 50m IR range to cover loading dock approaches and gate entries after hours, where external lighting is limited or absent.
• DIY installers with networking knowledge: Who want a PoE system where each camera runs on a single cable from the NVR - no separate power supply runs, no plugpacks at each camera location.

Honest Assessment

This kit does the job of a verified, AI-capable 4-camera PoE system without requiring you to confirm individual camera-NVR compatibility. The SMD Plus filtering is genuinely useful in day-to-day operation - it reduces notification fatigue in a way that standard motion detection systems cannot. The 6MP resolution and 50m IR perform well across typical residential and small commercial perimeter distances, and H.265+ keeps storage consumption manageable. That said, the 2.8mm fixed lens is not the right choice if you need to read number plates at distances beyond 5-8 metres, or if you need to observe a narrow corridor where a longer focal length would perform better. This kit also does not include a hard drive - you will need to add one separately based on your retention requirements. For sites needing more than 4 camera positions, optical zoom, or PTZ coverage, a different system type would serve better. Available through Security Australia with a matched NVR already included in the package price.

Complete Package Contents

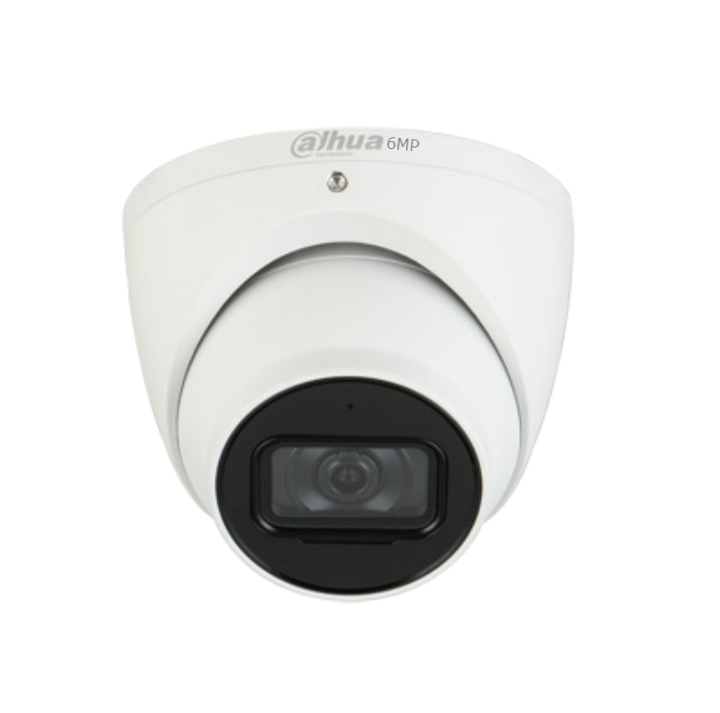

• 4 x Dahua DH-IPC-HDW3641EM WizSense Turret Camera - 6MP, 2.8mm fixed lens, 50m IR, SMD Plus, IP67
• 1 x Dahua 4-Channel WizSense PoE NVR - H.265+, AI-enabled, built-in PoE switch, no HDD included

Before You Buy

Quick Fit Check

• Good match if: You need to cover 4 positions on a home or small commercial site and want AI-filtered alerts that distinguish humans and vehicles from general motion - SMD Plus handles this without any additional software subscription.
• Good match if: Your cable runs are under 100 metres per camera and you want a single-cable PoE install - each DH-IPC-HDW3641EM camera draws power and transmits video over the one Cat6 run back to the included NVR.
• You may need a different model if: You need more than 4 camera positions, require optical zoom or motorised lens cameras for licence plate capture at distance, or need full-colour night vision without IR - an 8-channel system or a TiOC full-colour camera kit would be more appropriate for those requirements.

Key Features & Technical Specifications

Real-World Scenarios

How It Compares

• Choose this if: You want a 4-camera WizSense AI system where the cameras and NVR are pre-matched, reducing compatibility risk and cutting commissioning time compared to sourcing components separately.
• You may need a different model if: Your site needs more than 4 camera positions, requires full-colour night vision without IR (TiOC camera kits), or demands optical or motorised zoom for number plate capture at longer distances - an 8-channel kit or a PTZ-based system would be more appropriate.
• Pairs well with: A surveillance-rated SATA hard drive (2TB or 4TB) added to the NVR for your target retention period, and a UPS to protect the NVR and PoE switch from power outages.

Common Questions

1. Does this kit include a hard drive?

   No. This kit ships without a hard drive - you add your own to the NVR based on how many days of footage you want to retain. For 4 cameras recording continuously at 6MP with H.265+ compression, a 2TB surveillance-grade drive typically stores around 20-30 days depending on scene activity levels. A 4TB drive doubles that. Use only surveillance-rated drives designed for continuous write cycles.

2. Will this system work for after-hours perimeter monitoring without external lighting?

   Yes. Each DH-IPC-HDW3641EM camera has built-in IR illuminators rated to 50 metres, providing clear monochrome night vision in complete darkness. This covers most residential driveways, rear yards, and small commercial approaches without requiring any external floodlights or lighting upgrades at the camera positions.

3. How does SMD Plus reduce false alerts compared to standard motion detection?

   Standard motion detection triggers on any pixel change - wind-blown trees, insects, passing headlights. SMD Plus uses onboard AI to classify detected objects as human or vehicle before sending an alert. Only classified human or vehicle targets trigger a notification. This means you receive far fewer irrelevant alerts overnight and can trust that a push notification to your phone represents actual activity worth reviewing.

4. Can I add more cameras to this system later?

   No, not to this NVR. The included NVR is a 4-channel unit, which is fully occupied by the 4 cameras in this kit. If you anticipate needing additional cameras in the future, you would need to either add a second NVR or replace it with an 8-channel WizSense NVR that can accommodate expansion. Plan your channel count before purchasing if site growth is expected.

5. Does the NVR need a separate power supply for the cameras?

   No. The NVR has built-in PoE (Power over Ethernet) ports. Each camera draws power and sends video over a single Cat5e or Cat6 cable run back to the NVR. There are no separate power supplies, adaptors, or power points required at each camera location - just a single cable per camera back to the NVR location.

6. Can I view cameras remotely on my phone?

   Yes. The NVR supports remote access via the Dahua DMSS app on iOS and Android. Once the NVR is connected to your network, you can view live and recorded footage, receive SMD Plus push notifications, and review playback remotely. The setup process is handled through the DMSS app using a QR code scan. Security Australia stocks this kit with the full Dahua WizSense platform support included.

7. Will the 2.8mm lens capture number plates clearly?

   Only at close range. The 2.8mm lens provides a wide field of view, which is effective for general coverage of entries and open areas. For number plate identification, the camera needs to be positioned within approximately 5-8 metres of where vehicles stop or slow. At longer distances - such as a fast-moving street entry - a dedicated ANPR camera with a longer focal length or varifocal lens will produce more reliable plate reads than any 2.8mm wide-angle setup.

Cabling Considerations

• Cable Type: Cat5e minimum, Cat6 recommended for runs approaching the 100m limit or in environments with electrical interference.
• Max Cable Run: 100 metres per camera from the NVR's PoE port - this is the IEEE 802.3 standard for PoE over Ethernet and applies to each individual run.
• PoE Notes: The NVR's built-in PoE ports power each DH-IPC-HDW3641EM camera directly. No external PoE injectors or separate power supplies are needed. Confirm the NVR's total PoE budget covers all 4 cameras simultaneously - standard for this class of Dahua 4-channel WizSense NVR.
• Wiring Tips: Plan and run all cable routes before mounting cameras. Test each cable run with a cable tester before terminating. Use outdoor-rated (UV-stabilised) Cat6 for any cable sections running along external walls or eaves exposed to direct sunlight. Terminate connectors with a weatherproof boot where the cable enters the camera junction box.
