Dahua 10 x 8MP DH-IPC-HDW3867EM-S-IL-ANZ Fixed Starlight Turret Cameras, 16CH AI NVR

Model: DH-IPC-HDW3867EM-S-IL-ANZ-10X16CH

Who This Is For

Property managers specifying a camera upgrade for medium-sized commercial or residential sites will find this kit sized for exactly that scope. The Dahua 10 Camera 8MP WizSense Starlight Dual Light Turret Kit pairs 10 x DH-IPC-HDW3867EM-S-IL-ANZ turret cameras with a 16-channel AI NVR, leaving 6 spare channels for future expansion without replacing the recorder. Each camera delivers 8MP resolution with Starlight low-light sensitivity and Smart Dual Light - combining IR and warm white illumination - so sites running late shifts, car parks, or after-hours access points get usable colour footage well beyond standard IR range. The WizSense AI engine runs Smart Motion Detection Plus on-camera, separating human and vehicle events from general motion to cut false alerts down to what actually warrants attention. This is a wired PoE IP system, suited to sites where Cat5e or Cat6 is being run as part of a structured install.

What This Camera Actually Does

Who Buys This Model

• Commercial property managers: Office buildings, retail centres, and mixed-use sites requiring 8MP coverage across car parks, entries, and common areas - with 6 spare NVR channels held in reserve for tenant fit-outs or additional zones.
• Security installers on medium commercial contracts: Sites where the client wants AI-filtered alerts and colour-at-night performance without moving to a higher-tier camera range - the SMD Plus and Dual Light combination delivers both within the WizSense tier.
• Warehouse and light industrial operators: Facilities running late shifts or 24-hour operations where IR-only cameras have previously failed to capture usable colour footage of staff or vehicle activity in loading areas and yard approaches.
• Schools and childcare centre administrators: Sites requiring detailed coverage of outdoor areas, drop-off zones, and building perimeters, where 8MP resolution supports clear identification and the AI filtering reduces alert fatigue for staff monitoring the system.

Honest Assessment

This kit performs well where the combination of 8MP resolution, Starlight sensitivity, and Smart Dual Light genuinely matters - sites that need identifiable colour footage in low-light conditions and want AI filtering to reduce false alarms without investing in a higher-tier AI platform. The WizSense SMD Plus engine is a proven, practical tool for human and vehicle classification, and the 16-channel NVR leaves meaningful room to grow. The turret housing suits eave, soffit, and wall mounting on building exteriors and covered outdoor areas.

This kit will not suit sites requiring long-range optical zoom, auto-tracking of moving subjects across large open areas, or wide-area single-point coverage - those applications are better served by PTZ or multi-sensor panoramic cameras available through Security Australia. The fixed lens also means camera placement decisions need to be finalised before installation, as there is no motorised repositioning after the fact.

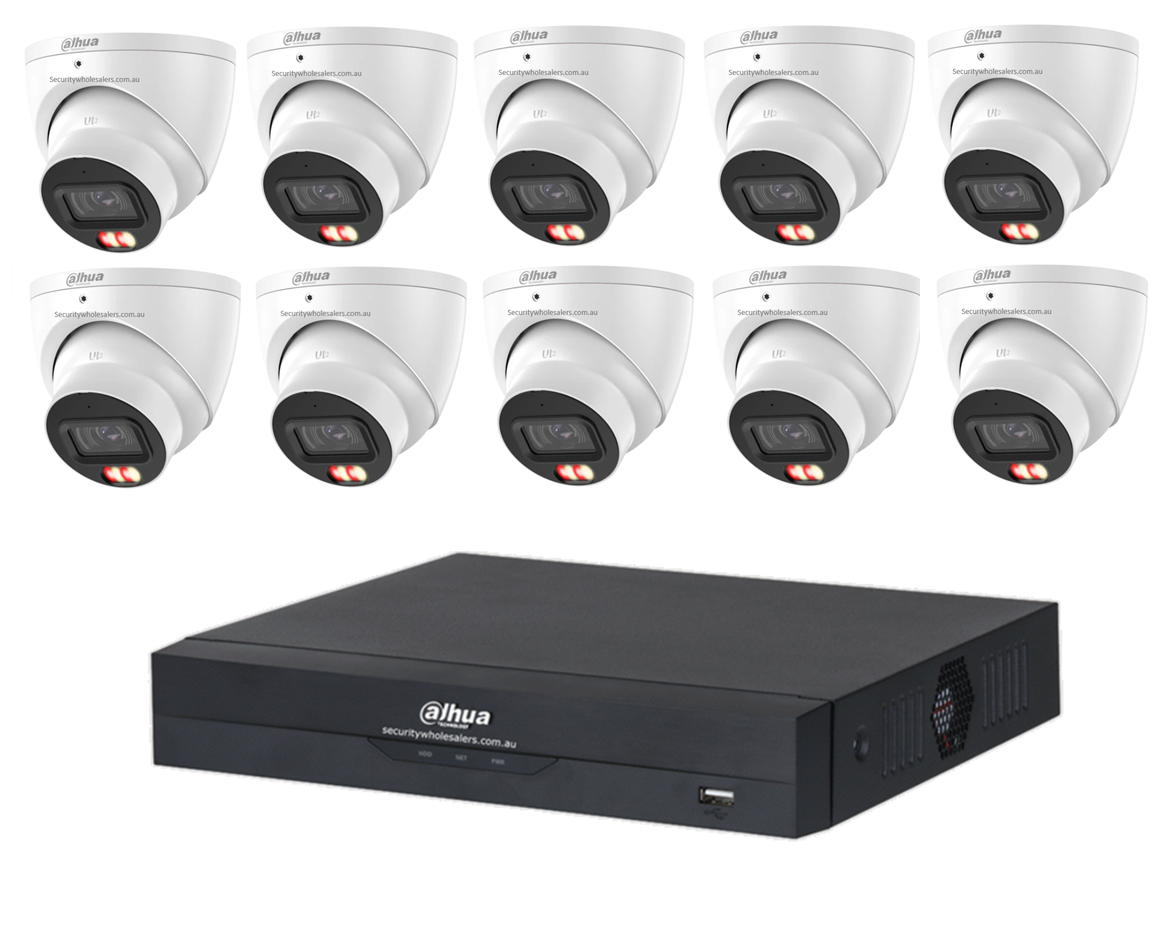

Complete Package Contents

• 10 x Dahua DH-IPC-HDW3867EM-S-IL-ANZ - 8MP WizSense Starlight Smart Dual Light Fixed Turret Camera
• 1 x Dahua 16-Channel AI NVR - PoE-compatible, WizSense AI processing, 6 spare camera channels

Before You Buy

Quick Fit Check

• Good match if: You are covering a medium commercial site with 8-10 camera positions and want 8MP resolution with colour-at-night performance - the Smart Dual Light on each camera delivers both IR and white light illumination from a single unit without additional hardware.
• Good match if: The site has a staged rollout plan - the 16-channel NVR provides 6 open ports so additional cameras can be added to the same recorder as the build-out progresses, without a system replacement.
• You may need a different model if: The site has large open areas, perimeter fencing runs, or long driveways where a single camera needs to actively track movement or cover distances beyond a fixed-lens turret's range - a PTZ camera system would be more appropriate for those scenarios.

Key Features & Technical Specifications

Real-World Scenarios

How It Compares

• Choose this if: You need 8MP resolution with Starlight low-light performance and on-camera AI filtering across 10 positions, with room to add up to 6 more cameras to the same NVR without any system replacement.
• You may need a different model if: The site has long open approaches, wide outdoor perimeters, or areas where a single camera needs to actively follow movement - a PTZ camera system provides optical zoom and auto-tracking that a fixed turret cannot replicate.
• Pairs well with: A PoE network switch if cameras are distributed across a site requiring runs beyond direct NVR port distances, and Dahua-compatible hard drives specified to the NVR's supported drive list for predictable recording performance.

Common Questions

1. Does this kit include hard drives for recording storage?

   No. Hard drives are not included and must be specified and ordered separately. Storage requirements depend on the number of cameras recording simultaneously, the resolution and frame rate settings chosen, and the number of days of footage the site needs to retain. An 8MP system recording 10 cameras continuously will consume significantly more storage than a lower-resolution equivalent - calculate your HDD requirements based on those variables before purchasing.

2. Will this system work with cameras I already have installed?

   It depends on the brand and protocol. The 16-channel NVR in this kit is a Dahua WizSense AI NVR and natively supports all Dahua IP cameras at full AI functionality. Third-party ONVIF-compliant cameras can often be added, but AI features such as SMD Plus classification will not function on non-Dahua cameras. The 6 spare channels are most effectively used with additional Dahua WizSense cameras to maintain consistent AI performance across all feeds.

3. What does Smart Motion Detection Plus actually filter out compared to standard motion detection?

   SMD Plus classifies detected objects as human, vehicle, or other before triggering a recording or alert. Standard motion detection responds to any pixel change in the frame - this includes shadows, insects close to the lens, wind-blown foliage, and changes in ambient lighting. SMD Plus on the DH-IPC-HDW3867EM-S-IL-ANZ processes this classification on-camera, meaning the NVR only stores and alerts on events that pass the human or vehicle threshold, which is particularly useful on sites with high background movement.

4. Does the white light activate continuously at night or only when something is detected?

   By default, the white light activates on detection. The DH-IPC-HDW3867EM-S-IL-ANZ uses IR for continuous night-time illumination, and the warm white light fires when an SMD Plus event is triggered - providing colour detail of the detected subject. Continuous white-light mode is a configurable option, but enabling it will increase power draw and may affect the camera's IR operating parameters for that zone. Confirm the preferred mode with the end client before finalising the configuration.

5. Is remote viewing included and how is it accessed?

   Yes. The Dahua WizSense NVR supports remote viewing via the Dahua DMSS mobile app and the DSS or SmartPSS desktop software at no ongoing subscription cost. Remote access requires the NVR to be connected to a network with internet access. P2P cloud connection via the app is the most common setup for smaller sites, while direct IP or VPN access is recommended for commercial sites with static IP addresses and IT-managed networks.

6. Does this kit suit an outdoor install on a commercial building exterior?

   Yes, provided the cameras are mounted under an eave or soffit that provides rain deflection. The DH-IPC-HDW3867EM-S-IL-ANZ carries an IP67 weather rating, making it suitable for outdoor installation in Australian conditions including rain exposure. The turret housing sits close to the mounting surface, which reduces wind-load profile compared to bullet cameras and makes eave and soffit installs straightforward. For direct exposure to driven rain or high-pressure wash-down environments, confirm the IP67 rating is sufficient for the specific install location. The full kit is stocked by Security Australia with ANZ-specification cameras for local compliance and support.

Cabling Considerations

• Cable Type: Cat5e minimum, Cat6 recommended for runs over 50 metres or in environments with electrical interference.
• Max Cable Run: 100 metres per camera from PoE source (NVR port or PoE switch) to camera, per IEEE 802.3 standard. Runs exceeding this require a PoE extender or mid-span switch.
• PoE Notes: The DH-IPC-HDW3867EM-S-IL-ANZ operates on standard IEEE 802.3af PoE. Confirm the NVR's per-port and total PoE power budget if adding cameras to the 6 spare channels, particularly if those cameras carry higher power draw features.
• Wiring Tips: Run a separate Cat cable to each camera - do not daisy-chain or use passive splitters. Terminate all runs with quality RJ45 connectors and test with a cable certifier before powering the system. For outdoor runs, use outdoor-rated or shielded Cat6 where the cable is exposed to UV or conduit is not used.
