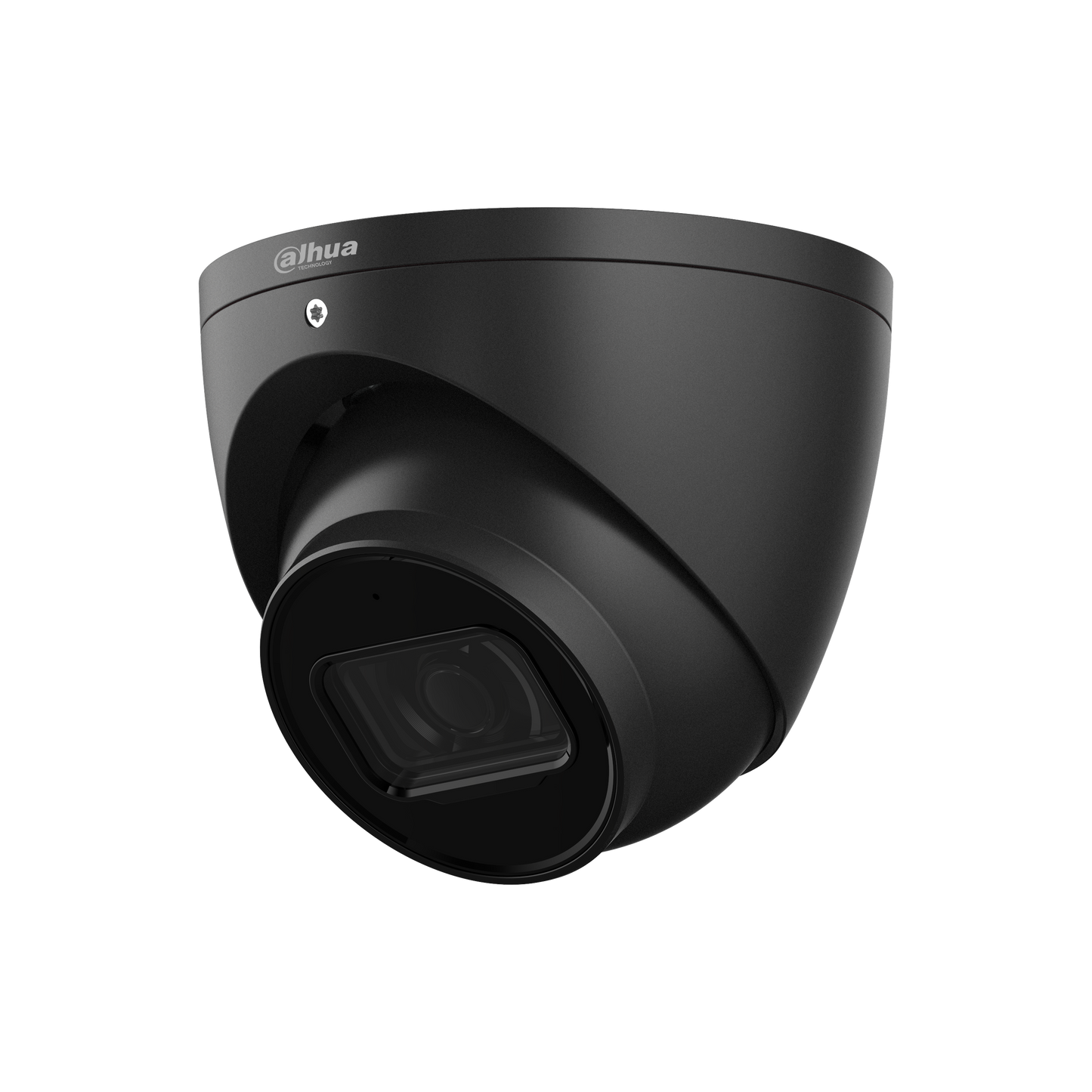

  • black_Dahua_turret_4mp

Dahua 10 x 4MP DH-IPC-HDW3466EMP-S-AUS SMD Wizsense Camera Kit

  • Sku: 10DH-IPC-HDW3466EMP-S-AUS/DHI-NVR4216
  • Vendor: SecurityAustralia
$1,898.00 AUD
Tax included.
Shipping calculated at checkout.
In stock - Ready to ship
Free shipping on orders over $100. Usually ships within 1 business day when available.
Quick Buying Summary

The Dahua 10-camera WizSense kit delivers 4MP Starlight surveillance with SMD AI filtering across 10 channels for small-to-medium commercial or residential installations. Each turret camera provides 50m IR night vision and IP67-rated weather resistance, while the included 16-channel NVR leaves room to expand the system later. No HDD is included - a compatible 3.5" SATA drive is required to enable local recording.

Why This Model

  • SMD WizSense AI: Accurately distinguishes people and vehicles from other motion triggers, so you get far fewer false alarms from animals, shadows, or passing headlights.
  • 50m Starlight IR: The extended infrared range combined with a 0.01 lux minimum illumination rating keeps coverage sharp across large driveways, car parks, or yard perimeters in near-total darkness.
  • 16-channel NVR included: With 10 cameras in the kit and 6 ports free, you can add further cameras down the track without replacing the recorder.
4MP Starlight WizSense SMD AI 50m IR Night Vision IP67 Weatherproof PoE Powered 16-Channel NVR No HDD Included

What's in the Box

  • 10 x Dahua DH-IPC-HDW3466EMP-S-AUS - 4MP WizSense SMD Starlight Turret Camera, 50m IR, IP67, PoE
  • 1 x Dahua DHI-NVR4216 - 16-channel NVR, no HDD included

Accessories

Select options before adding this product to cart.

Need help choosing?

Click to ask a question - same day response (~2 hours during business hours)

Free shipping Enjoy free shipping when your order exceeds $100. Fast dispatch Orders are dispatched within the next business day. Best local support in Aus We back all products with manufacturer warranty support. Official Australian stock Genuine products with local warranty support.

Product Overview

Model: 10DH-IPC-HDW3466EMP-S-AUS/DHI-NVR4216

Who This Is For

When covering an entire site from a single purchase is the priority, this Dahua 10 x 4MP SMD WizSense Camera Kit is built for installers and property owners who need a complete, camera-to-recorder solution without piecing together compatible components. The kit pairs 10 WizSense turret cameras with a 16-channel NVR, making it suited to medium-sized commercial properties, multi-tenancy sites, warehouses, and school campuses where a double-digit camera count is required from day one. Each DH-IPC-HDW3466EMP-S-AUS camera delivers 4MP resolution with 50m IR and IP67 weather resistance, while WizSense SMD technology filters motion events down to human and vehicle targets only - reducing nuisance alerts across a large deployment where multiple cameras are generating constant movement data. The 16-channel NVR also leaves 6 spare inputs for future expansion as site requirements grow.

What This System Actually Does

WizSense Smart Motion Detection

SMD uses deep learning to classify motion events as human or vehicle targets, discarding irrelevant triggers like swaying branches or passing animals. Across a 10-camera deployment, this keeps alarm fatigue manageable and makes recorded footage far faster to review.

4MP Resolution at 25/30fps

2688 x 1520 output gives each camera enough detail to cover wider areas without losing the ability to identify faces or read plates at a reasonable distance. Footage runs at full frame rate, so motion is captured cleanly without blur on fast-moving subjects.

50m IR Night Coverage

Built-in IR LEDs illuminate to 50m in complete darkness, with a minimum illumination rating of 0.01 Lux at F1.6. For outdoor areas like car parks, yards, and loading access points, this range handles most real-world perimeter distances without supplemental lighting.

120dB Wide Dynamic Range

120dB WDR manages scenes with extreme contrast - entry points where a brightly lit exterior meets a shaded interior, or camera positions that see direct sunlight alongside deep shadow. Detail is preserved in both zones simultaneously rather than one washing out.

Smart H.265+ Compression

Smart H.265+ reduces storage consumption significantly versus standard H.265 by applying higher compression rates during low-activity periods. Running 10 cameras continuously, this makes a meaningful difference to how long recordings are retained on the included NVR before overwriting.

16-Channel NVR with Expansion Headroom

The DHI-NVR4216 ships with 10 cameras connected and 6 channels spare. Sites that start with this kit can add cameras later without replacing the recorder - useful for staged rollouts or properties where additional coverage areas are planned but not yet budgeted.

Who Buys This Model

  • Commercial property managers: Covering multi-entry office buildings or retail precincts where 10 camera positions are needed and SMD filtering keeps after-hours alert volume under control.
  • Warehouse and logistics operators: Installing across loading docks, yard perimeters, and internal storage areas where 50m IR night coverage handles large open spaces without lighting upgrades.
  • School and childcare facility administrators: Deploying across multiple buildings and outdoor play areas where IP67-rated cameras handle all weather conditions and the 16-channel NVR allows future additions as campus coverage is extended.
  • Security installers quoting turnkey commercial jobs: Supplying a pre-validated kit where camera-to-NVR compatibility is confirmed out of the box, reducing commissioning time on multi-camera installs.
  • Strata and body corporate managers: Covering common areas, car parks, and entry points across a multi-unit complex with a single kit that ships with all cameras and the recorder pre-matched.

Honest Assessment

This kit does its best work as a complete commercial deployment solution. WizSense SMD is a practical advantage at this camera count - 10 cameras generating purely motion-based alerts on a busy site creates real operational problems, and the human/vehicle classification addresses that directly. The 50m IR range and 120dB WDR make the cameras genuinely capable in mixed outdoor/indoor conditions rather than being compromise-grade hardware bundled with a recorder to hit a price point. Smart H.265+ compression also makes storage retention more viable across all 10 streams simultaneously. What this kit will not do is provide the wide-area single-camera coverage that a PTZ or multi-sensor panoramic delivers - if your site has large open zones where pan/tilt tracking or 180-degree coverage from a single mounting position is required, those camera types would complement or partially replace fixed turrets here. The kit is supplied by Security Australia and includes 6 spare NVR channels for future expansion.

Complete Package Contents

Before You Buy

Storage Planning: The DHI-NVR4216 ships without hard drives included - you will need to specify and install compatible surveillance-grade HDDs before recording begins. With 10 cameras running Smart H.265+, calculate your required retention period and select drive capacity accordingly. A single 6TB or 8TB surveillance HDD is a common starting point for 10-camera systems at this resolution, but continuous 24/7 recording across all channels will require more than motion-only recording configurations.

PoE Switch Requirement: The DHI-NVR4216 does not include built-in PoE ports - powering all 10 cameras via PoE requires a separate PoE switch with sufficient wattage for the camera count. Each DH-IPC-HDW3466EMP-S-AUS operates on standard IEEE 802.3af PoE. Alternatively, cameras can be powered via 12V DC supplies at each mounting position. Plan your cabling and power distribution before committing to camera locations.

Quick Fit Check

  • Good match if: You need 10 camera positions across a commercial or light-industrial site and want SMD human/vehicle filtering to keep alert volumes manageable across the entire deployment.
  • Good match if: You are planning a staged rollout and want the NVR to support future camera additions - the 16-channel DHI-NVR4216 leaves 6 spare inputs once the included 10 cameras are connected.
  • You may need a different model if: Your site has very large open areas - such as wide car parks or open yards - where you need pan/tilt tracking or 180-degree coverage from fewer mounting points. A PTZ or multi-sensor panoramic camera system would serve those zones more effectively.

Key Features & Technical Specifications

Camera Model
Dahua DH-IPC-HDW3466EMP-S-AUS
NVR Model
Dahua DHI-NVR4216
Camera Count
10 cameras included
NVR Channels
16 channels (6 spare for expansion)
Image Sensor
1/3" CMOS
Resolution
4MP - 2688 x 1520
Frame Rate
25/30 fps at max resolution
Minimum Illumination
0.01 Lux @ F1.6
IR Illumination Distance
50 m
Wide Dynamic Range
120 dB
Video Compression
Smart H.265+, Smart H.264+, H.265, H.264
AI / Analytics
WizSense SMD - human and vehicle classification, tripwire detection, intrusion detection
Power Supply (Camera)
PoE / 12V DC
Ingress Protection
IP67
Local Storage (Camera)
Micro SD card, up to 256 GB
Camera Weight
0.48 kg per camera

Real-World Scenarios

Small Industrial Complex

A light manufacturing facility with a yard, 2 entry gates, loading dock, and internal corridors deploys all 10 cameras to cover the full perimeter. SMD filtering means only human and vehicle detections trigger alerts overnight, keeping false alarm callouts to a minimum.

Multi-Level Car Park

Cameras positioned across entry ramps, stairwells, and open bays. The 50m IR range covers long structural bays in complete darkness, while 120dB WDR handles the contrast between bright entry openings and shaded interior decks without loss of detail at either end.

School Campus Staged Rollout

A primary campus deploys 10 cameras across main entrances, administration, and outdoor play areas in the initial install. The 16-channel NVR leaves 6 channels free - when funding allows, additional cameras covering the oval perimeter and car park can be added without replacing any equipment.

Retail Strip or Small Shopping Centre

A body corporate managing common areas across a 6-tenancy retail strip covers entry doors, rear service access, and shared car park. Smart H.265+ reduces HDD consumption across all 10 streams, extending usable recording retention without requiring multiple drives.

Residential Estate Common Areas

A strata scheme covering 3 buildings deploys cameras across lobbies, basement car parks, pool areas, and pedestrian access paths. IP67-rated housings handle outdoor exposure across all positions, and the NVR consolidates all recording into a single managed system in the building's comms room.

How It Compares

  • Choose this if: You need 10 matched cameras and a recorder in one purchase, with WizSense SMD filtering to keep human and vehicle alerts accurate across a busy multi-camera site.
  • You may need a different model if: Your site includes large open areas - wide yards, open-plan car parks, or long approach roads - where PTZ cameras with auto-tracking or multi-sensor panoramic cameras covering 180 degrees from a single mount would reduce overall camera count and provide better wide-area control.
  • Pairs well with: A PoE switch matched to your cable run lengths and total camera count, plus a surveillance-grade HDD (or RAID pair) sized for your target retention period across all 10 streams.

Common Questions

  1. Does this kit include hard drives for the NVR?

    No. The DHI-NVR4216 ships without hard drives installed. You will need to purchase and fit compatible surveillance-grade HDDs separately before the system can record. The NVR supports standard 3.5" SATA drives - check the DHI-NVR4216 product page for confirmed HDD compatibility. For 10 cameras recording continuously at 4MP with Smart H.265+, most installers specify a minimum of 6TB to achieve useful retention periods.

  2. Does the NVR have built-in PoE ports to power the cameras directly?

    No. The DHI-NVR4216 does not include built-in PoE ports. To power the DH-IPC-HDW3466EMP-S-AUS cameras via PoE, a separate PoE switch is required. Each camera supports standard PoE and can also be powered via 12V DC at the mounting location. Factor in the PoE switch and cabling when planning your installation budget and network layout.

  3. Will this system work for outdoor installation in Australian weather conditions?

    Yes. Every DH-IPC-HDW3466EMP-S-AUS camera in the kit carries an IP67 ingress protection rating, meaning it is fully dust-tight and protected against water immersion up to 1 metre for 30 minutes. This rating covers rain, hose-down areas, and exposed eave or soffit positions. The cameras are suitable for permanent outdoor installation across Australian climate conditions including coastal and high-humidity environments.

  4. How does WizSense SMD actually reduce false alarms compared to standard motion detection?

    WizSense SMD uses deep learning algorithms to classify moving objects as human or vehicle targets before triggering an alert. Standard motion detection responds to any pixel change - blowing leaves, passing headlight shadows, insects near the lens. SMD discards those events and only alerts on confirmed human or vehicle detections. Across a 10-camera deployment where multiple cameras overlap active areas, this distinction has a significant practical impact on how many alerts are generated per shift.

  5. Can I add more cameras to the system after purchase?

    Yes. The DHI-NVR4216 has 16 channels total and ships with 10 cameras connected, leaving 6 spare inputs. Additional Dahua IP cameras can be added to fill those channels without replacing the NVR. If your site eventually requires more than 16 cameras, a higher-channel NVR would be required - Security Australia stocks a range of Dahua NVR options across different channel counts if expansion beyond 16 channels is a future consideration.

  6. Do the cameras support local recording independent of the NVR?

    Yes. Each DH-IPC-HDW3466EMP-S-AUS supports a Micro SD card up to 256GB for on-camera local recording. This operates independently of the NVR, meaning individual cameras can continue recording to SD card even if the NVR goes offline or network connectivity is interrupted. SD cards are not included and must be sourced separately.

  7. What is the maximum IR range, and will it cover a standard car park bay length at night?

    The built-in IR LEDs reach a maximum of 50m in complete darkness. A standard Australian parking bay row is typically 15-25m deep, so a single camera mounted at the entry point of a bay row will cover its full length with meaningful IR illumination. For longer parking structures or open yards beyond 50m, additional camera positions or supplemental IR illuminators would be needed to maintain usable image quality at range.

Cabling Considerations

  • Cable Type: Cat5e minimum, Cat6 recommended for runs over 50m or where future upgrades to higher-bandwidth cameras are possible.
  • Max Cable Run: 100m per cable segment from PoE switch to camera for reliable PoE power delivery and network performance.
  • PoE Notes: Each DH-IPC-HDW3466EMP-S-AUS operates on standard IEEE 802.3af PoE. A separate PoE switch is required - the DHI-NVR4216 does not supply PoE. Size the switch for at least 10 ports with sufficient total wattage for all connected cameras plus headroom for any future additions.
  • Wiring Tips: Run cables to all planned future camera positions at initial installation - adding conduit and cable after walls and ceilings are finished significantly increases cost. Even if you are only connecting 10 cameras now, pre-pulling to the 6 spare NVR positions keeps future expansion straightforward.

Downloads & Resources

No downloads available for this product.

What This Product Does

The Dahua 10-camera WizSense kit delivers 4MP Starlight surveillance with SMD AI filtering across 10 channels for small-to-medium commercial or residential installations. Each turret camera provides 50m IR night vision and IP67-rated weather resistance, while the included 16-channel NVR leaves room to expand the system later. No HDD is included - a compatible 3.5" SATA drive is required to enable local recording.

Why This Model

  • SMD WizSense AI: Accurately distinguishes people and vehicles from other motion triggers, so you get far fewer false alarms from animals, shadows, or passing headlights.
  • 50m Starlight IR: The extended infrared range combined with a 0.01 lux minimum illumination rating keeps coverage sharp across large driveways, car parks, or yard perimeters in near-total darkness.
  • 16-channel NVR included: With 10 cameras in the kit and 6 ports free, you can add further cameras down the track without replacing the recorder.
4MP Starlight WizSense SMD AI 50m IR Night Vision IP67 Weatherproof PoE Powered 16-Channel NVR No HDD Included

What's in the Box

  • 10 x Dahua DH-IPC-HDW3466EMP-S-AUS - 4MP WizSense SMD Starlight Turret Camera, 50m IR, IP67, PoE
  • 1 x Dahua DHI-NVR4216 - 16-channel NVR, no HDD included

Not sure if this suits your site?

Ask our team before ordering. We can help confirm lens choice, recorder compatibility, mounting accessories and project quantities.

Specifications

Specifications

Camera

Image Sensor

1/3" CMOS

Max. Resolution

2688 (H) × 1520 (V)

ROM

128 MB

RAM

512 MB

Scanning System

Progressive

Electronic Shutter Speed

Auto/Manual 1/3 s–1/100,000 s

Min. Illumination

0.005 lux@F1.4 (Color, 30 IRE)
0.0005 lux@F1.4 (B/W, 30 IRE)
0 lux (Illuminator on)

S/N Ratio

>56 dB

Illumination Distance

50 m (164.04 ft)

Illuminator On/Off Control

Auto/Manual

Illuminator Number

2 (IR LED)

Pan/Tilt/Rotation Range

Pan: 0°–360°; Tilt: 0°–78°; Rotation: 0°–360°

Lens

Lens Type

Fixed-focal

Lens Mount

M12

Focal Length

2.8 mm; 3.6 mm; 6 mm

Max. Aperture

F1.4

Field of View

2.8 mm: Horizontal:102°; vertical: 54°; diagonal: 121°
3.6 mm: Horizontal:84°; vertical: 42°; diagonal: 101°
6 mm: Horizontal:52°; vertical: 28° ; diagonal: 61°

Iris Control

Fixed

Close Focus Distance

2.8 mm: 0.7 m (2.30 ft)
3.6 mm: 1.3 m (4.27 ft)
6 mm: 2.6 m (8.53 ft)

DORI Distance

Lens

Detect

Observe

Recognize

Identify

2.8 mm

63.6 m
(208.66 ft)

25.4 m
(83.33 ft)

12.7 m
(41.67 ft)

6.4 m
(21.00 ft)

3.6 mm

85.4 m
(280.18 ft)

34.2 m
(112.20 ft)

17.1 m
(56.10 ft)

8.5 m
(27.89 ft)

6 mm

124 m
(406.82 ft)

49.6 m
(162.73 ft)

24.8 m
(81.36 ft)

12.4 m
(40.68 ft)

Intelligence

IVS (Perimeter Protection)

Tripwire, intrusion (support the classification and accurate detection of vehicle and human)

AI SSA

Yes

Quick Pick

With AI NVR, quickly pick up the human/vehicle targets that users are interested in from SMD events

Smart Search

Work together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos

Video

Video Compression

H.265; H.264; H.264H; H.264B; MJPEG (only supported by the sub stream)

Smart Codec

Smart H.265+
Smart H.264+

AI Coding

AI H.265
AI H.264

Video Frame Rate

Main stream: 2688 × 1520 @ (1–25/30) fps
Sub stream 1: 704 × 576 @ (1–25 fps)/704 × 480 @ (1–30 fps)
Sub stream 2: 1920 × 1080 @ (1–25/30 fps)

*The values above are the max. frame rates of each stream; for multiple streams, the values will be subjected to the total encoding capacity

Stream Capability

3 streams

Resolution

4M (2688 × 1520); 3.6M (2560 × 1440); 3M (2048 × 1536); 3M (2304 × 1296); 1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 × 720); D1 (704 × 576/704 × 480); CIF (352 × 288/352 × 240); VGA (640 × 480)

Bit Rate Control

CBR/VBR

Video Bit Rate

H.264: 3 kbps–8192 kbps
H.265: 3 kbps–8192 kbps

Day/Night

Auto (ICR)/Color/B/W

BLC

Yes

HLC

Yes

WDR

120 dB

Scene Self-adaptation (SSA)

Yes

White Balance

Auto; natural; street lamp; outdoor; manual; regional custom

Gain Control

Auto

Noise Reduction

3D NR

Motion Detection

OFF/ON (4 areas, rectangular)

Region of Interest (RoI)

Yes (4 areas)

Defog

Yes

AFSA

Yes

Image Rotation

0°/90°/180°/270° (support 90°/270° with 2688×1520 resolution and lower)

Mirror

Yes

Privacy Masking

4 areas

Audio

Built-in MIC

Yes

Audio Compression

G.711a; G.711Mu; PCM; G.726; G.723

Alarm

Alarm Event

No SD card; SD card full; SD card error; service life warning (only supported by Dahua card); network disconnection; IP conflict; illegal access; motion detection; video tampering; intrusion; tripwire; scene changing; audio detection; voltage detection; SMD; safety exception

Network

Network Port

RJ-45 (10/100 Base-T)

SDK and API

Yes

Network Protocol

IPv4; IPv6; HTTP;TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; SAMBA; PPPoE; SNMP

Cyber Security

Video encryption; Firmware encryption; Configuration encryption; Digest; WSSE; Account lockout; Security logs; IP/MAC filtering; Generation and importing of X.509 certification; syslog; HTTPS; 802.1x; Trusted boot; Trusted execution; Trusted upgrade

Interoperability

ONVIF (Profile S/Profile G/Profile T); CGI; P2P; Milestone; Genetec

User/Host

20 (Total bandwidth: 64 M)

Storage

FTP; SFTP; Micro SD card (support max. 256 G); NAS

Browser

IE:IE11
Chrome
Firefox

Management Software

Smart PSS; DSS; DMSS

Mobile Client

IOS; Android

Certification

Certifications

CE-LVD: EN62368-1;
CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU;
FCC: 47 CFR FCC Part 15, Subpart B;
UL/CUL: UL62368-1 & CAN/CSA C22.2 No. 62368-1-14;

Power

Power Supply

12 VDC/PoE (802.3af)

Power Consumption

Basic: 3.3 W (12 VDC); 4.2 W (PoE)
Max. (WDR + IR intensity + Intelligence): 7.1 W (12 VDC); 7.9 W (PoE)

Environment

Operating Temperature

–40 °C to +60 °C (–40 °F to 140 °F) /Less than 95% RH

Storage Temperature

–40 °C to +60 °C (–40 °F to 140 °F)

Protection

IP67

Structure

Casing

Metal

Product Dimensions

93.6 mm × Φ106.0 mm (3.69" × Φ4.17")

Net Weight

500 g (1.10 lb)

Gross Weight

770 g (1.70 lb)

Downloads

Videos

Get Product Help

Ask our team before ordering. We can help confirm lens choice, recorder compatibility, mounting accessories and project quantities.

Shipping & Warranty

3 Years Manufacturer Warranty

All IP cameras and recording devices (NVR’s/DVR’s) are covered by a 3 year back-to-base manufacturer warranty.

Our warranty is limited to the replacement of faulty items or parts and does not include damage due to incorrect fitting of parts or accessories, or damage due to mishandling the equipment once out of the box. All faults are sent to the manufacturer for inspection and diagnosis before a replacement is sent out.

Read more about the Terms & Conditions here – https://www.securityaustralia.com.au/terms-and-conditions/

Free Delivery* & Despatch Time

*Just spend over $100 to activate Fast Free Shipping!

Despatch Times: Products are despatched on the same day if the order was placed before 11am on any weekday, Monday - Friday. All other orders are processed and despatched within 24 hours or next business day.

Order Confirmation: Once you place an order, you will receive a confirmation email. This indicates that your order has been received in our system and is now being processed for dispatch. If your item is back-ordered or unavailable, we will notify you via email, and if we do not receive a response, we will attempt to contact you by phone as soon as possible. We value your time and strive to be prompt. If your item(s) are available for immediate shipment (within 2 days), we will process the charges and prepare the order for shipping.

Shipping Times: General shipping times for StarTrack, TNT and Allied couriers are between 1-3 working days from despatch. Longer delivery times may be caused by your package being held at your local courier depot that is beyond our control. Please contact us or the local post depot for confirmation.

Tracking Numbers: all tracking numbers will be emailed to you by our warehouse processing team within the day, after your order is despatched to our local courier.

Dahua 10 x 4MP DH-IPC-HDW3466EMP-S-AUS SMD Wizsense Camera Kit

$1,898.00 AUD
Warranty & support guarantee

Recently viewed products
