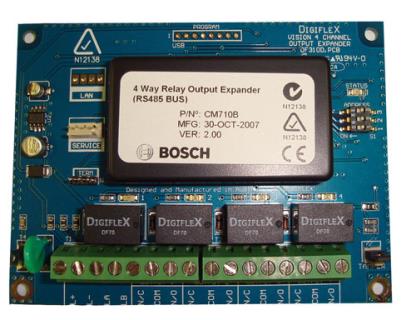

Bosch CM710B 4 Way Relay Output Module RS485
The Bosch CM710B Output Expansion Module is designed to provide additional physical outputs for the CC100 Solution 16i intrusion control panel. This module offers flexibility in installation, as it can be co-located with the intrusion control panel or placed remotely, utilizing its LAN-based connectivity.
Featuring 4 x Form C relay contacts, the CM710B allows for effective control and management of multiple outputs. The module is equipped with a status LED that indicates module functionality and communication status with the control panel; a flashing LED means everything is functioning correctly, while a steady LED indicates a communication failure.
Additionally, the module includes a service code pad connection for local addition of a code pad, making maintenance simpler for remote installations. A separate tamper input is also available, allowing for secure installation in an enclosure without sacrificing intrusion inputs.
Key Specifications:
- Relay Outputs: 4 x Form C relay contacts
- Power Requirements: 10.5 to 14 V DC
- Current Consumption: 30mA standby, 200mA MAX (with all relays and LEDs operated)
- Status LED: Indicates module operation and communication status
- Tamper Input: Separate input for secure mounting
Code/SKU: CM710B
Quick Specs: Modular design for easy installation; Supports 4 wire LAN connections; System Maintenance facilitated by service code pad connection.
Need help choosing?
Click to ask a question - same day response (~2 hours during business hours)
Product Overview
Bosch CM710B 4 Way Relay Output Module is an effective solution for expanding the output capabilities of the CC100 intrusion control panel. Designed for quick and easy installation, this LAN-based module provides enhanced flexibility for security system configurations. It can be located alongside the control panel or installed remotely, optimizing installation options in various settings.
Featuring four Form C relay contacts, the CM710B allows multiple devices to be controlled by a single module, enhancing operational capability. With LAN monitoring and a dedicated tamper input, this module ensures robust and secure performance even from remote locations.
Additionally, the module incorporates a status LED for real-time monitoring and a service code pad connection for simplified maintenance, making it a versatile choice for security professionals.
Key Features
- Four Form C Relay Contacts: Provides versatile output control for various security devices, enhancing system flexibility for diverse applications effectively.
- LAN Monitoring: Facilitates real-time communication with the intrusion control panel, enabling efficient monitoring and control from any location easily.
- Status LED Indicator: Visual feedback for module operation; flashing LED signals proper function while steady LED indicates communication failure.
- Service Code Pad Connection: Temporarily connects a code pad for local access, simplifying maintenance and programming during servicing without additional equipment.
- Separate Tamper Input: Allows installation in a secure enclosure without consuming valuable intrusion inputs, ensuring enhanced protection against tampering effectively.
- Compact PCB Design: Only occupies one module space in the enclosure, maximizing internal space while providing substantial output capabilities for installations.
- Three-Way DIP Switch Addressing: Simple module address selection makes configuration quick and easy, ensuring straightforward setup in various installation scenarios.
Technical Specifications
- Power Requirements: Operates within a voltage range of 10.5 to 14 V DC, accommodating various system power setups efficiently.
- Current Consumption: 30mA standby and 200mA maximum draw when all relays and LEDs function, ensuring low power requirements for operation.
- Installation Flexibility: Can be installed remotely via a 4 wire LAN connection or co-located with the main control panel conveniently.
- Secure Enclosure Installation: Facilitates reliable installation within secure environments, maintaining system integrity and improving overall security against unauthorized access.
- Easy Configuration: Streamlined setup process ensures minimal downtime during installation and quick restoration of system functionalities as needed.
- Compatibility: Specifically designed for use with the CC100 Solution 16i intrusion control panel, ensuring optimal integration and performance in security systems.
- Durable Construction: Built to withstand various installation conditions, ensuring long-term reliability and sustained operational performance in security applications.
Technical Specifications:
| Model | CM710B |
| Output Type | 4 x Form C relay contacts |
| Power Requirements | Voltage: 10.5 to 14 V DC |
| Standby Current | 30 mA |
| Maximum Current | 200 mA (all relays and LEDs operated) |
| Connectivity | 4 wire LAN connection |
| Status LED | Indicates module functioning and communication status |
| Tamper Input | Separate tamper input for secure enclosure installation |
| Service Code Pad Connection | Allows temporary addition of a local code pad |
| Installation | Can be located with the main panel or remotely via LAN |
Key Features
Trusted Brand Partner & Security Equipment Wholesaler
- Authorised Brand Partner with Responsive & Fast Aussie Sales Support Team ★★★★★
- Best After-Sales Support and Troubleshooting Team with Years of Installation Experience.
What This Product Does
The Bosch CM710B Output Expansion Module is designed to provide additional physical outputs for the CC100 Solution 16i intrusion control panel. This module offers flexibility in installation, as it can be co-located with the intrusion control panel or placed remotely, utilizing its LAN-based connectivity.
Featuring 4 x Form C relay contacts, the CM710B allows for effective control and management of multiple outputs. The module is equipped with a status LED that indicates module functionality and communication status with the control panel; a flashing LED means everything is functioning correctly, while a steady LED indicates a communication failure.
Additionally, the module includes a service code pad connection for local addition of a code pad, making maintenance simpler for remote installations. A separate tamper input is also available, allowing for secure installation in an enclosure without sacrificing intrusion inputs.
Key Specifications:
- Relay Outputs: 4 x Form C relay contacts
- Power Requirements: 10.5 to 14 V DC
- Current Consumption: 30mA standby, 200mA MAX (with all relays and LEDs operated)
- Status LED: Indicates module operation and communication status
- Tamper Input: Separate input for secure mounting
Code/SKU: CM710B
Quick Specs: Modular design for easy installation; Supports 4 wire LAN connections; System Maintenance facilitated by service code pad connection.
