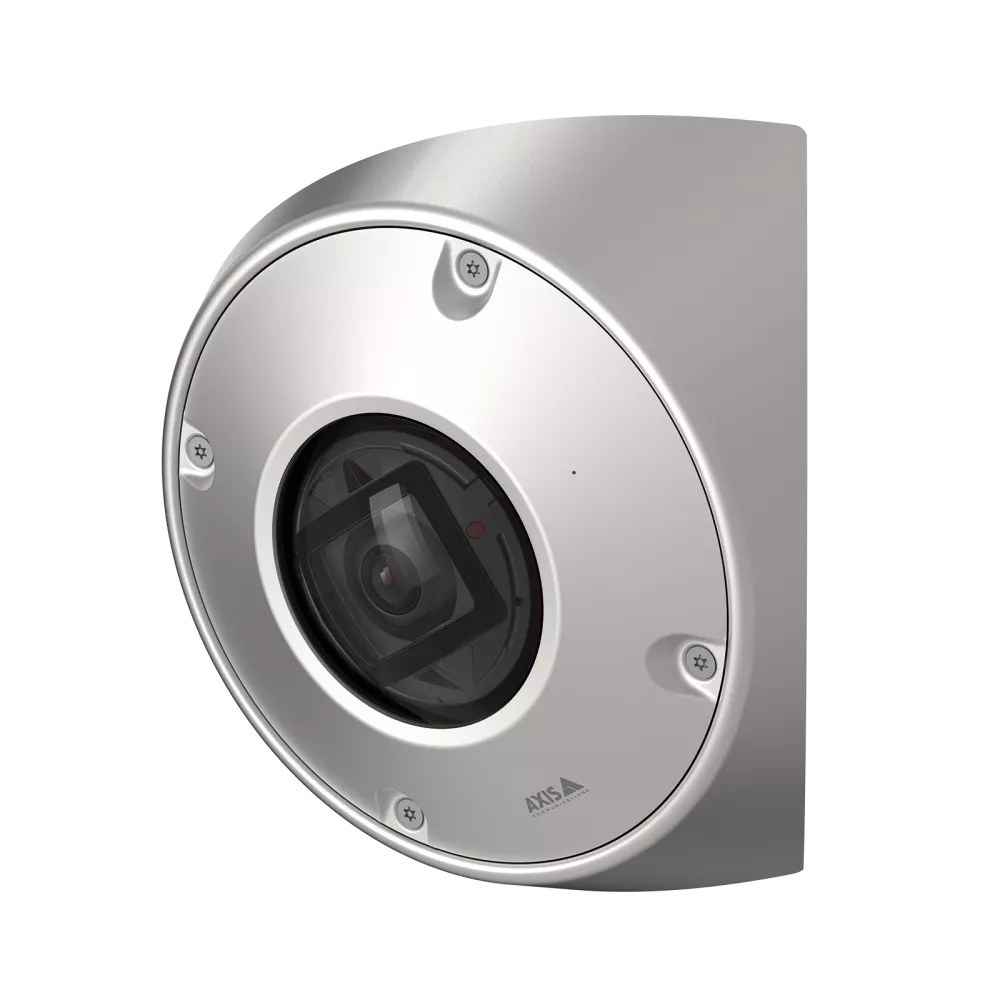

AXIS Q9216-SLV Anti-Ligature Corner-Mount IP Camera – 4 MP, WDR, Invisible IR, IK11, IP66/IP6K9K

Model: Q9216-SLV

Who This Is For

When ligature risk elimination is the priority, standard surveillance cameras are simply not appropriate for the environment. The AXIS Q9216-SLV is built specifically for secure and sensitive facilities where every surface, fixture, and fitting is assessed for harm minimisation - mental health inpatient wards, correctional facilities, juvenile detention centres, and forensic units. It mounts flush into a room corner with no exposed protrusions, no accessible fixings, and no surfaces that could be exploited as a ligature point. The IK11-rated housing withstands the highest mechanical impact classification, and the IP66 and IP6K9K ratings cover both hose-down cleaning and high-pressure wash environments. At 4 MP with WDR and invisible IR, it delivers detailed coverage across a full room from a single corner position - without IR glow that could disturb patients or signal camera placement to occupants.

What This Camera Actually Does

Who Buys This Model

• Healthcare Infrastructure Teams: Specifying cameras for mental health inpatient wards, acute psychiatric units, and forensic mental health facilities where AS/NZS and clinical governance standards require ligature-point-free environments.
• Correctional Facility Designers: Installing cameras in individual cells, observation rooms, and at-risk housing units where IK11 impact resistance and the absence of accessible protrusions are non-negotiable requirements.
• Juvenile Detention Operators: Monitoring sleeping quarters and welfare check zones where standard cameras fail harm-minimisation audits and where invisible IR avoids sleep disruption during overnight observation.
• Security Systems Integrators: Working on institutional tenders that require documented compliance with ligature-risk assessments - the Q9216-SLV's purpose-built credentials support specification submissions and duty-of-care documentation.

Honest Assessment

The Q9216-SLV does a narrow, important job with genuine engineering depth. The anti-ligature housing is not a marketing claim layered onto a standard product - every aspect of the physical design addresses the specific risks of secure care environments. The IK11 rating, invisible IR, corner-mount geometry, and IP6K9K high-pressure wash tolerance are all directly applicable to the facilities this camera is built for. 4 MP with WDR gives operators useful image quality even in rooms with difficult lighting.

It will not suit general commercial or retail applications - its specialised form factor and institutional-grade specification come at a price point that makes no sense for standard monitoring use cases. It is also not a replacement for coverage planning: corner mounting covers a room well but will not substitute for perimeter corridor cameras or external surveillance. Available through Security Australia, this camera is appropriate for projects where the specification document demands a purpose-built ligature-safe solution.

Before You Buy

Quick Fit Check

• Good match if: Your project involves a clinical or correctional environment requiring documented ligature-point-free camera fixtures - the purpose-built anti-ligature housing and IK11 rating directly address that specification requirement.
• Good match if: You need overnight room monitoring without disturbing occupants - the invisible IR delivers low-light imaging with no visible glow that would signal camera activity or disrupt sleep in patient rooms.
• You may need a different model if: Your site is a standard commercial, retail, or residential property - a vandal-resistant dome or turret camera will cover those environments at a significantly lower cost without the institutional-specific engineering this unit is built around. Browse the full dome and turret range on securityaustralia.com.au for suitable alternatives.

Key Features & Technical Specifications

Real-World Scenarios

How It Compares

• Choose this if: Your project requires a camera that passes a ligature-risk assessment - the Q9216-SLV is purpose-built for that standard, with an anti-ligature housing, IK11 impact rating, and invisible IR that standard vandal-resistant domes cannot match.
• You may need a different model if: Your environment is commercial, retail, education, or residential - a vandal-resistant dome or turret camera delivers strong impact protection and image quality for those applications without the institutional-specific engineering overhead. The full range of vandal domes and turret cameras on securityaustralia.com.au covers those use cases well.
• Pairs well with: An enterprise-grade NVR or VMS platform with healthcare or institutional integration support, and fully concealed conduit systems that extend the ligature-safe specification from the camera to all associated cabling infrastructure.

Common Questions

1. Does this camera actually pass a ligature-risk assessment, or is "anti-ligature" just a marketing term here?

   The Q9216-SLV is purpose-engineered for ligature-risk environments, not adapted from a standard housing. The unit is designed with no protruding edges, no exposed fixings, and no geometry that can serve as an anchor point - this is verified Axis engineering, not a label applied to a standard dome. That said, any camera installation must be assessed as part of the broader room specification, including cable routing and conduit concealment, to satisfy a full ligature-risk audit.

2. What does IK11 mean, and how does it differ from the IK10 rating on most vandal domes?

   IK11 is a classification above the standard IK10 scale. IK10 is the highest point on the original IEC 62262 standard, rated for impacts of 20 joules. IK11 exceeds that threshold and is defined under a separate Axis internal classification representing resistance to even greater mechanical force. In practice, it means the Q9216-SLV housing is built to withstand more severe deliberate physical attack than any standard IK10-rated vandal dome.

3. Will this camera work in a room that is routinely cleaned with high-pressure hoses?

   Yes. The IP6K9K rating specifically covers high-pressure, high-temperature washdown - this is a distinct and more demanding test than the standard IP66 dust and water resistance rating. IP66 alone is not sufficient for rooms that use pressure washers or clinical-grade cleaning equipment. The Q9216-SLV carries both ratings, making it suitable for seclusion rooms, de-escalation spaces, and other areas subject to intensive cleaning regimes.

4. Why does invisible IR matter in a clinical or custody environment?

   Standard IR cameras emit a visible red glow when operating in low light - occupants can see when the camera is active and when it is not. In a mental health or custody setting, this has two problems: it can cause sleep disruption or agitation in patient rooms, and it signals camera operating status to occupants who may be looking for observation gaps. The Q9216-SLV's invisible IR illuminates the scene for the camera sensor without any visible emission, enabling consistent overnight monitoring without either of those issues.

5. Does the corner-mount design provide enough coverage for a standard single-occupancy room?

   Yes, for most standard room dimensions. Mounting in a corner maximises the angular field of view across the room compared to a centre-ceiling or single-wall position, and the 4 MP resolution provides usable detail across that coverage area. For unusually large rooms or spaces with obstructions, a site-specific field-of-view calculation is advisable before finalising camera positions. The Security Australia team can assist with coverage planning for complex institutional floor plans.

6. Is this camera compatible with standard ONVIF NVRs and VMS platforms?

   Yes. As an Axis Communications product, the Q9216-SLV supports ONVIF Profile S and is also fully compatible with AXIS Camera Station and other enterprise VMS platforms that support Axis integration. For institutional deployments, confirm your VMS supports the specific Axis device pack version required for full feature access, as generic ONVIF connections may limit access to Axis-specific analytics and configuration options.
