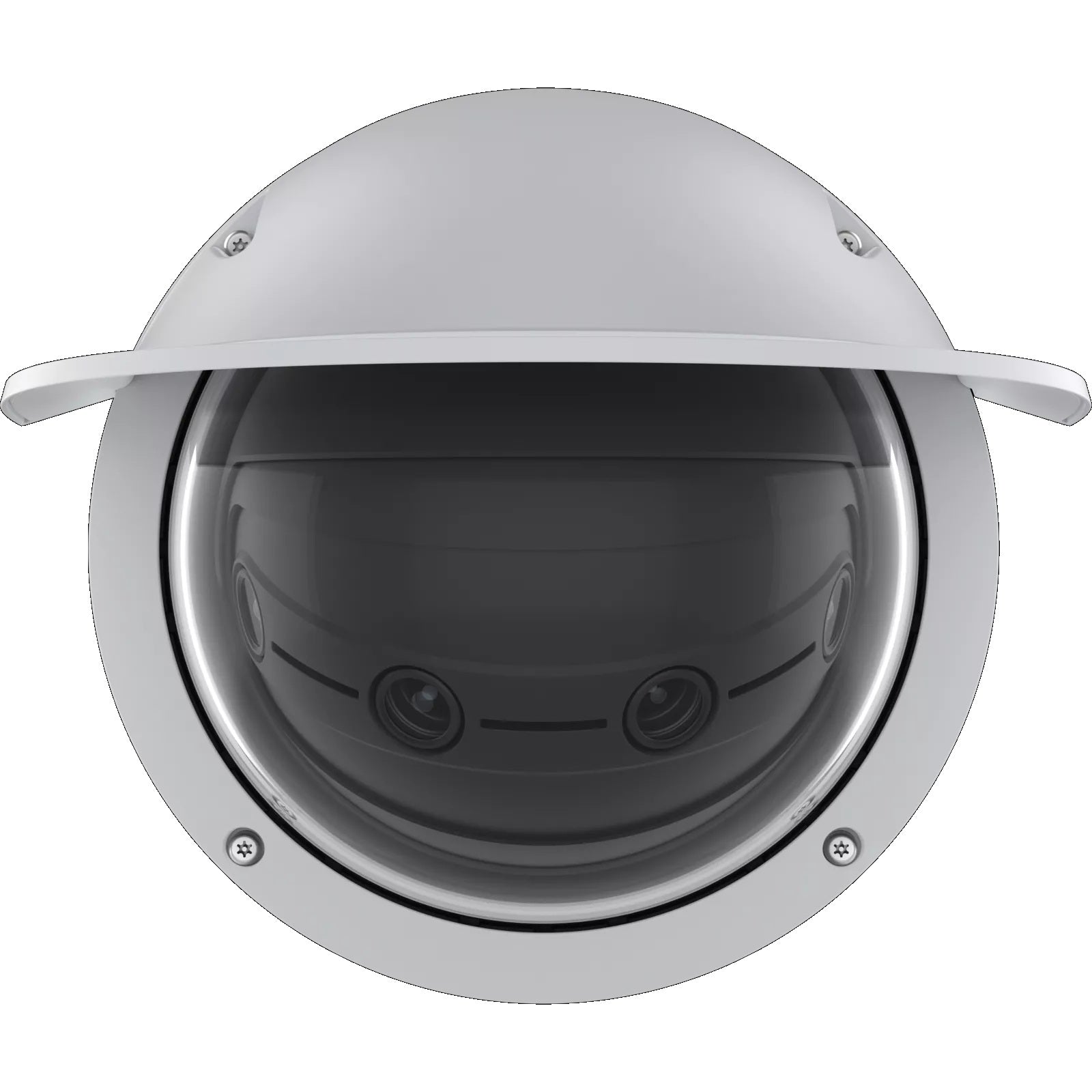

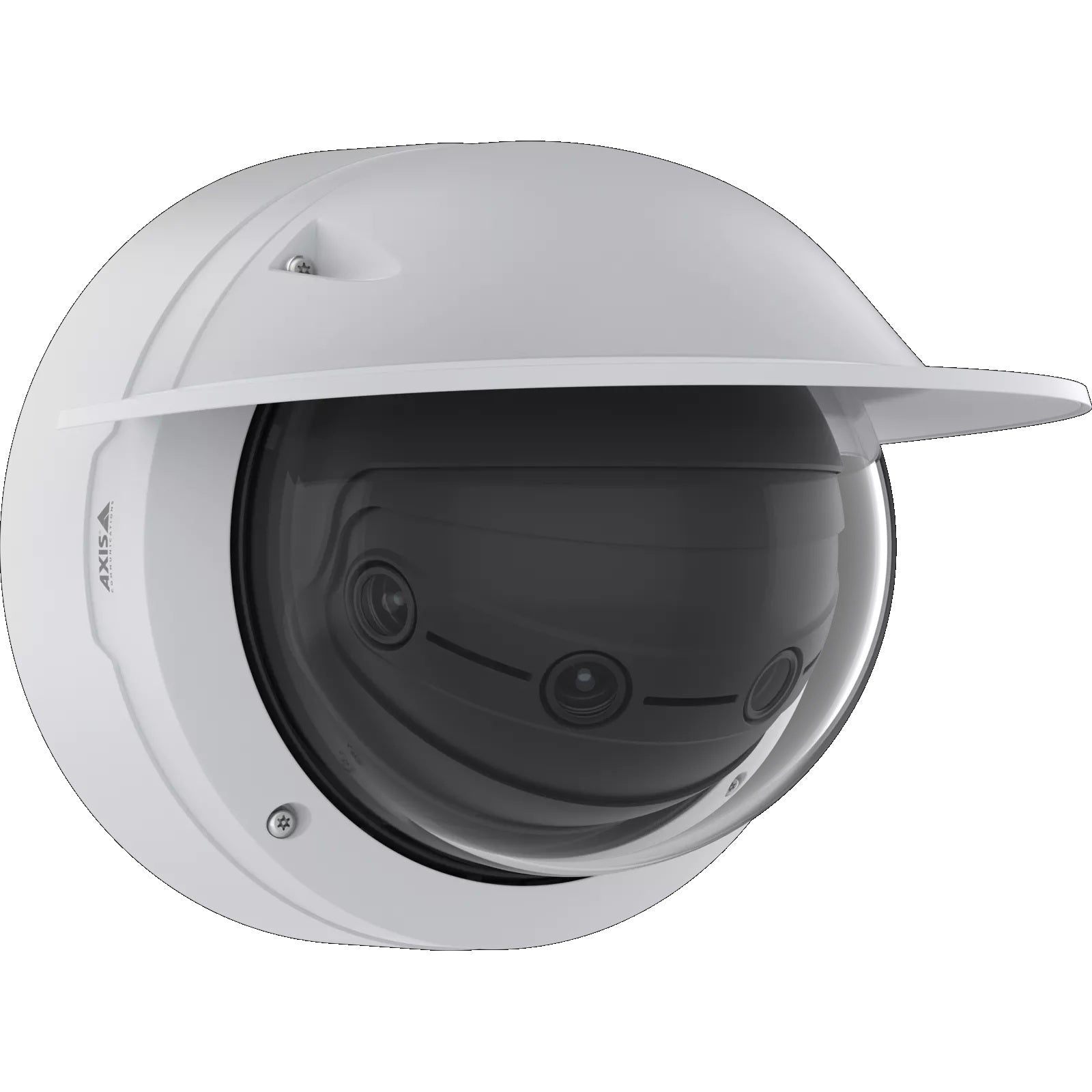

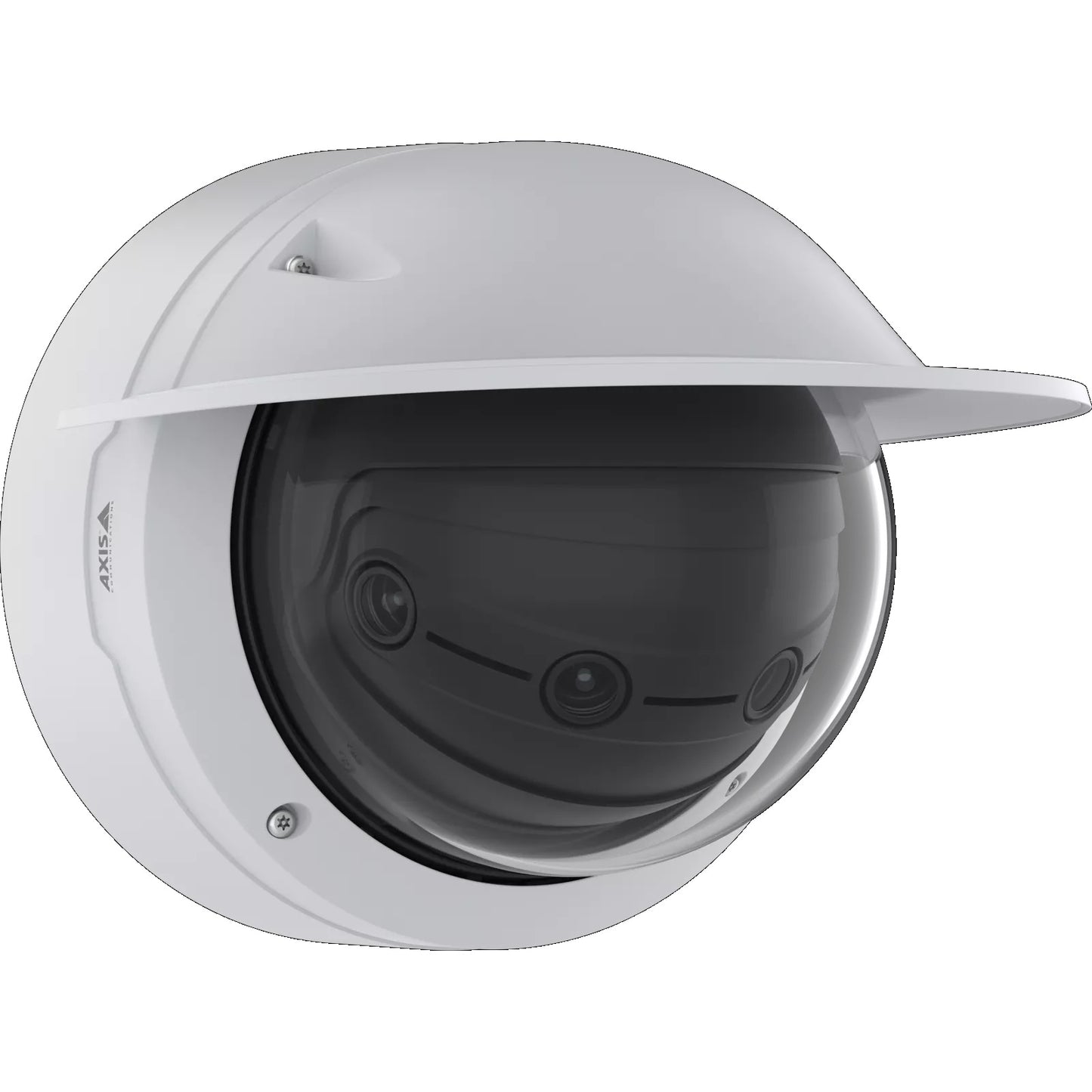

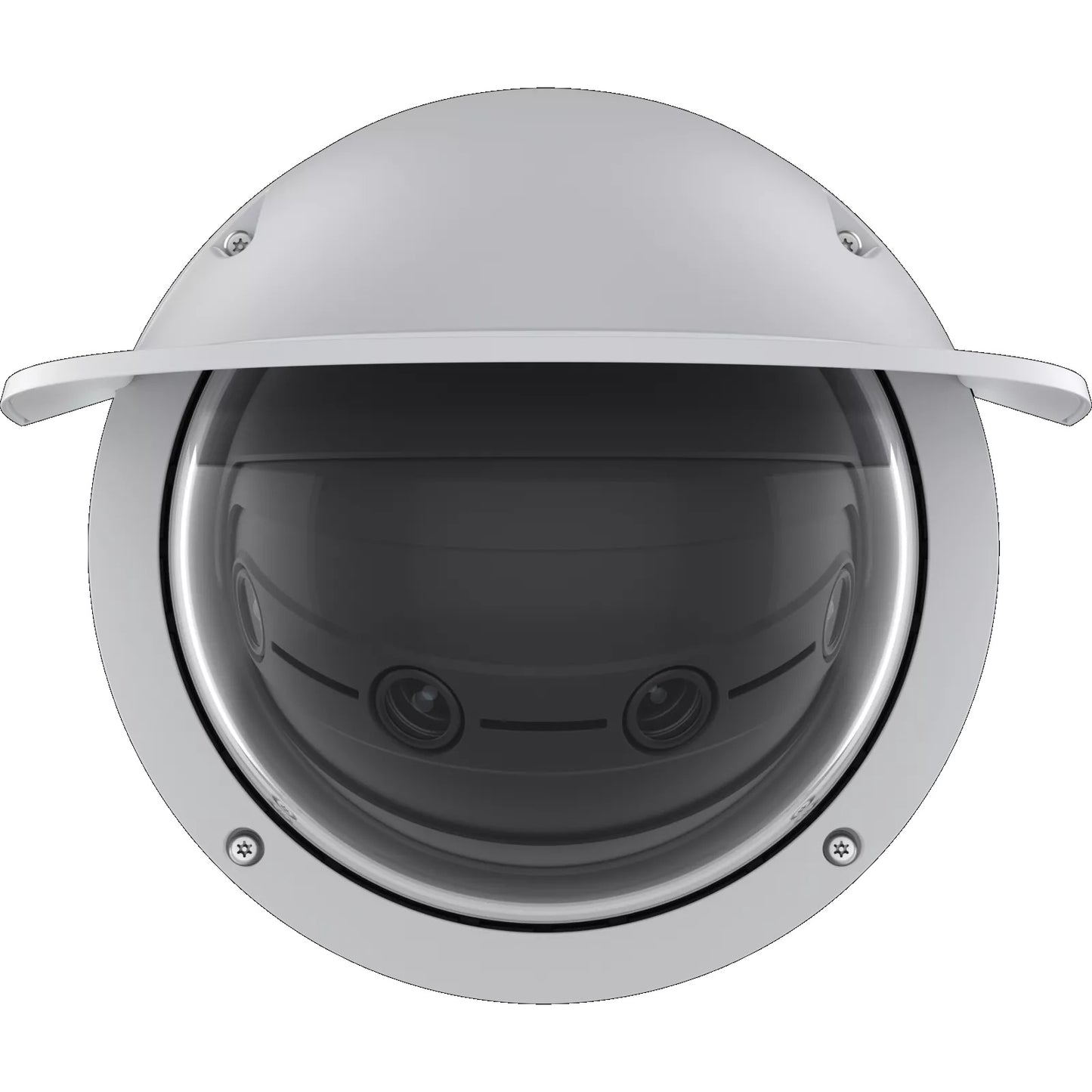

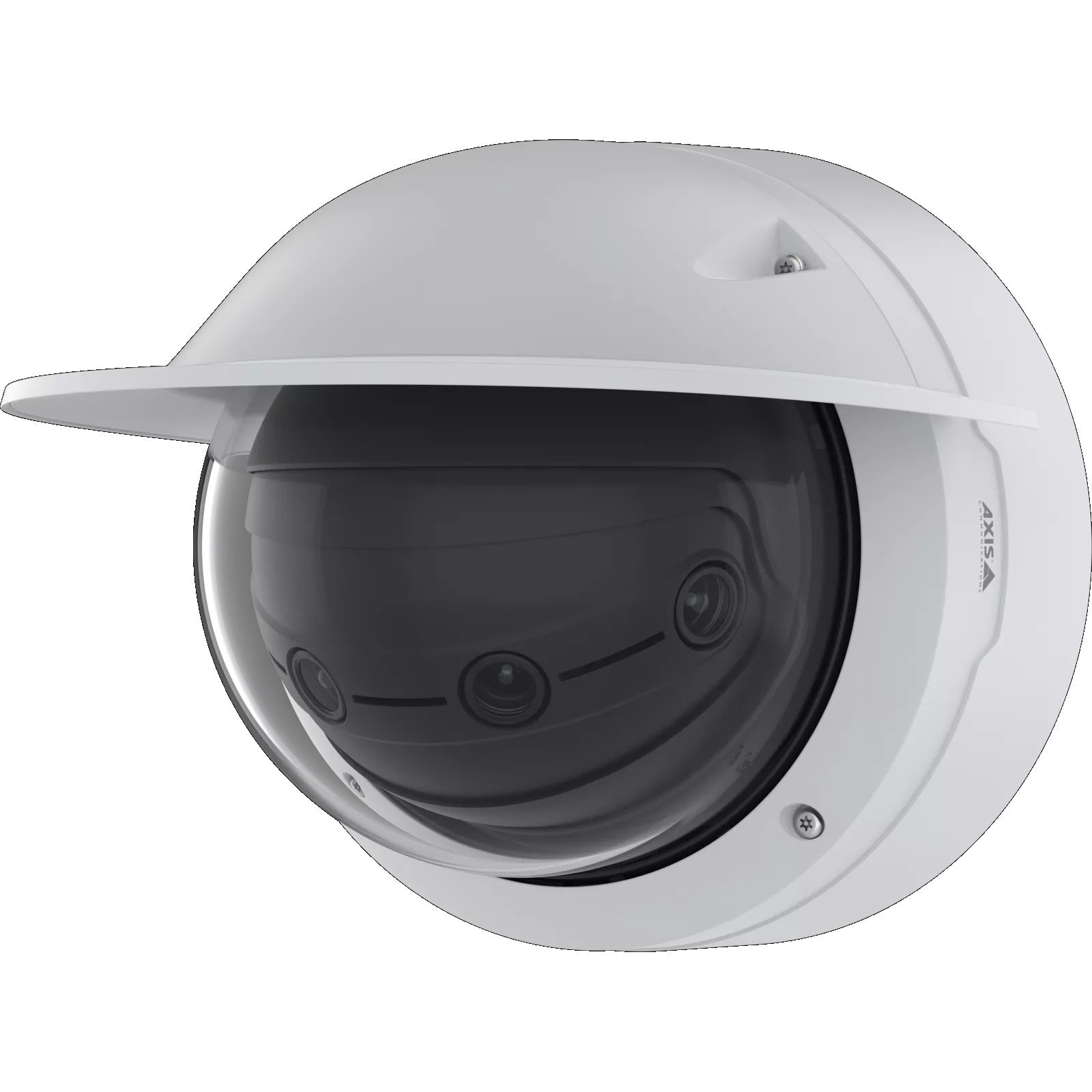

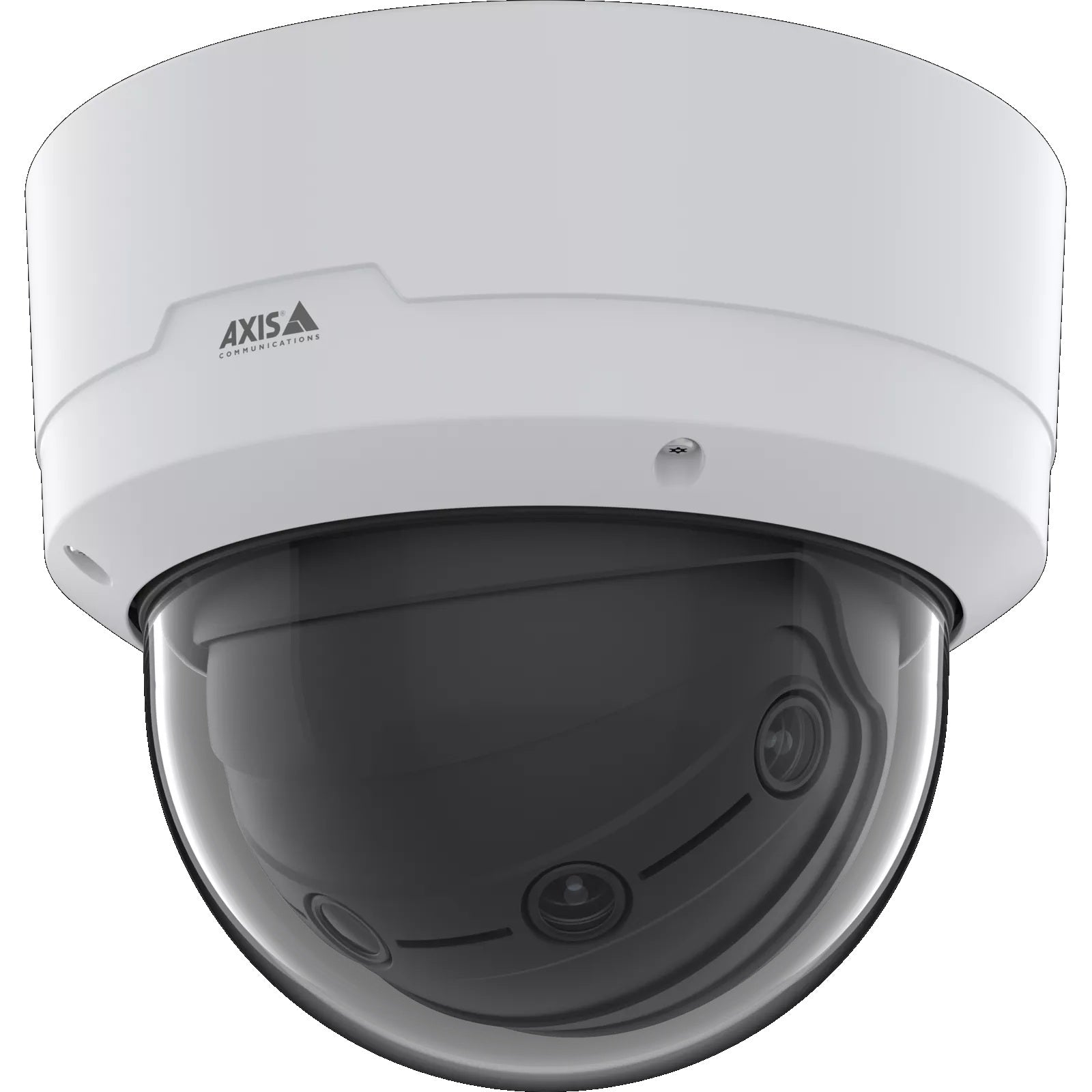

AXIS Q4809-PVE 26MP 10K AI Panoramic Multisensor Camera with 180° Coverage

Model: AXIS Q4809-PVE

Who This Is For

When wide-area surveillance with a single camera position is the priority, the AXIS Q4809-PVE delivers 180-degree panoramic coverage at 26MP across a combined 10K image - purpose-built for sites where multiple standard cameras would otherwise be needed to cover a single scene. Installers specifying large outdoor environments such as transport terminals, sports venues, open carparks, perimeter fence lines, or stadium concourses will find this multisensor format directly addresses the coverage-versus-camera-count problem. The fixed multisensor design means no mechanical PTZ movement to maintain or schedule, and the AI-driven object analytics layer means operators aren't wading through motion noise. If your brief calls for a verifiable, continuous panoramic record of a wide scene - with enough resolution to support object classification across that full field - the Q4809-PVE is built for that specific task.

What This Camera Actually Does

Who Buys This Model

• Transport and transit operators: Bus terminals, rail platforms, and ferry wharves where a single elevated mount needs to cover an entire concourse continuously - no PTZ gaps, full 180-degree record at all times.
• Stadium and venue security teams: Concourses, entry plazas, and carpark entry points where crowds need to be monitored across a wide arc with enough resolution to support post-incident review.
• Industrial site managers: Open storage yards, loading areas, and perimeter fence lines where replacing 4 or 5 standard cameras with a single panoramic position reduces both installation cost and ongoing maintenance points.
• Enterprise security integrators: Specifiers designing VMS-integrated solutions for clients who need AI-classified alerts across wide outdoor areas without relying on operator attention to a PTZ feed.
• Critical infrastructure operators: Utilities, port facilities, and logistics hubs where continuous uninterrupted panoramic coverage of approach routes and access zones is a compliance or insurance requirement.

Honest Assessment

The Q4809-PVE does the panoramic coverage job with genuine capability - 26MP across 180 degrees is a serious specification, and the combination of AXIS Object Analytics and Zipstream makes that resolution operationally workable rather than just a headline number. The fixed multisensor format means no blind spots at any point in a recording, which is a fundamental advantage over PTZ coverage in applications where you need a complete, unbroken record. IP66, IK10, and NEMA 4X certification means the housing suits genuinely exposed outdoor positions, not just sheltered eaves. Where this camera is not the right answer: it has no optical zoom and no mechanical movement, so if your brief includes close-up tracking of a specific target across a large site, a PTZ camera will serve that need better. Infrared illumination is also not a feature of this platform, so low-light performance depends on scene lighting. The Q4809-PVE is part of the Security Australia range and suits integrators who need high-resolution panoramic coverage as a primary design outcome.

Before You Buy

Quick Fit Check

• Good match if: You need continuous, unbroken panoramic coverage of a wide outdoor area - transport concourse, open carpark, or stadium entry - where gaps in recording are not acceptable and a single camera position must cover the full 180-degree arc simultaneously.
• Good match if: Your client requires AI-classified alerts (humans and vehicles) across a wide field without the operational overhead of PTZ preset management or active operator tracking - AXIS Object Analytics handles classification onboard without relying on a separate analytics server.
• You may need a different model if: Your brief requires built-in IR illumination for low-light or zero-light outdoor scenes, active optical zoom for target tracking, or face-level identification at long distances - a PTZ or dedicated long-range camera from the Security Australia range will be more appropriate for those requirements.

Key Features & Technical Specifications

Real-World Scenarios

How It Compares

• Choose this if: Your primary requirement is continuous, unbroken 180-degree panoramic coverage at high resolution from a single mounting point - the fixed multisensor design eliminates the gap risk inherent to PTZ patrol paths.
• You may need a different model if: Active optical zoom, mechanical pan and tilt, built-in IR illumination for dark environments, or long-range target tracking are part of the brief - a PTZ camera will address those requirements where the Q4809-PVE cannot.
• Pairs well with: A dedicated PTZ camera covering the same zone - the panoramic provides the unbroken wide-area record while the PTZ handles active operator tracking and zoom-in response to AXIS Object Analytics alerts.

Common Questions

1. Does this camera work with a standard PoE switch?

   Yes. The Q4809-PVE supports IEEE 802.3af as well as 802.3at (Type 2 Class 4), drawing typically 9.74 W with a maximum of 19.1 W, so a standard PoE switch port will run it. Confirm your switch has sufficient total power budget across all connected devices rather than per-port headroom alone.

2. Does this camera have built-in IR for night-time use without external lighting?

   No. The Q4809-PVE does not include built-in infrared illumination. Low-light and night-time performance depends on adequate scene lighting. For outdoor installations where lighting cannot be guaranteed after dark, supplementary lighting or a different camera platform with integrated IR or full-colour low-light capability will be needed to maintain image quality across the full 180-degree arc.

3. How does the 10K panoramic image differ from a single high-resolution camera?

   The 10K image is produced by stitching multiple sensor outputs into a single continuous panoramic frame rather than a single sensor capturing a wide field. Each individual sensor maintains its own focused field of view across a segment of the 180-degree arc, so edge resolution does not degrade the way it does when a single wide-angle lens is pushed to cover the same span. The result is more usable resolution at the extremes of frame compared to a single ultra-wide sensor.

4. What does AXIS Object Analytics actually classify, and how does it reduce false alarms?

   AXIS Object Analytics classifies detected motion as either humans or vehicles before generating an alert. The classification runs onboard the camera without requiring a separate analytics server. Because alerts are tied to specific object types rather than any pixel change, nuisance triggers from environmental motion - tree movement, shadows, small animals, lighting changes - are filtered before the VMS or operator is notified. This is especially relevant across a wide 180-degree field where motion events are frequent and undifferentiated motion detection would generate unmanageable alert volumes.

5. What are the DORI distances for this camera - can it identify faces at the edge of the panoramic field?

   DORI performance on a multisensor panoramic depends on mounting height, the specific lens angle of each sensor segment, and target position within the frame. The Q4809-PVE is designed for Detection and Observation at wide-area scales rather than face-level Identification at long range across the full arc. At the edges of the 180-degree field, identification-zone distances are shorter than at the centre of each sensor's field of view. If face-level identification at the perimeter of a large scene is a primary requirement, a supplementary tighter-FOV camera covering that zone alongside the panoramic overview is the correct design approach. The team at Security Australia can assist with DORI mapping for specific installation geometry.

6. How much storage does a 26MP 10K camera actually consume?

   Storage consumption at 26MP is significantly higher than a standard 4MP or 8MP camera before compression. AXIS Zipstream dynamically reduces bitrate in low-activity scene areas while preserving full quality in motion zones, which makes retention planning feasible - but the base bitrate in an active scene is still substantially higher than single-sensor cameras. Plan NVR storage and network bandwidth with a Zipstream-adjusted bitrate estimate for your expected scene activity level, not the maximum stream specification, and confirm your NVR has the processing capacity to handle the stream count at this resolution.

7. Is this camera compatible with third-party VMS platforms?

   Yes. The Q4809-PVE supports ONVIF Profile S, G, and T, which provides baseline compatibility with the majority of enterprise VMS platforms. Full feature access - including AXIS Object Analytics events, multi-stream configuration, and Zipstream control - is typically available through the AXIS Camera Application Platform (ACAP) integration layer when using AXIS Camera Station or VMS platforms with native AXIS driver support. Confirm your specific VMS vendor's AXIS Q4809-PVE driver availability before finalising the system design.

Downloads & Resources

No downloads available for this product.
