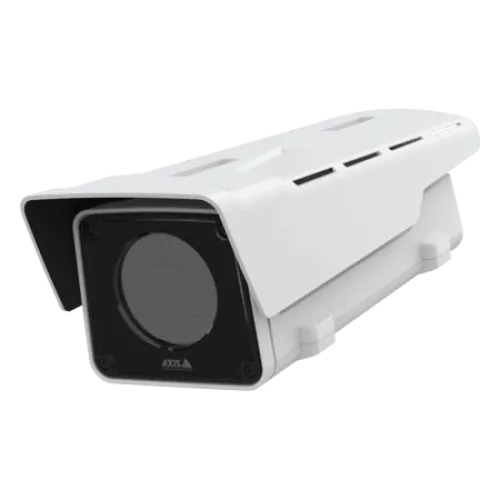

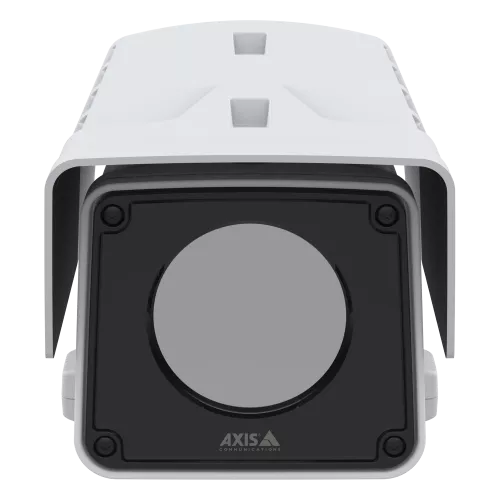

AXIS Q2111-E Thermal Camera | Long-Range Thermal CCTV

Model: AXIS Q2111-E

Who This Is For

When perimeter detection in total darkness, heavy fog, or glare conditions is the core requirement, optical cameras simply cannot deliver consistent results. The AXIS Q2111-E is built for exactly these situations - industrial sites, water treatment facilities, power infrastructure, and remote borders where thermal detection is the only reliable option. It uses an uncooled microbolometer sensor to detect heat signatures rather than reflected light, meaning it performs equally well at 3am in rain as it does at midday. Installers specifying perimeter intrusion detection systems for high-security or remote sites will find this camera well suited to detection-layer roles where early warning over long approaches matters more than colour video detail. It is not a replacement for optical cameras but rather a purpose-built complement to them.

What This Camera Actually Does

Who Buys This Model

• Critical Infrastructure Operators: Power stations, water treatment plants, and substations where perimeter intrusion must be detected 24/7 regardless of lighting or weather conditions.
• Mining and Resources Security Teams: Remote sites with long fence lines and no ambient lighting where IR illuminators would be impractical and optical cameras would deliver no usable image.
• Defence and Government Facility Managers: High-security installations requiring early detection at the boundary layer, often integrated with wider PSIM or VMS platforms via ONVIF or VAPIX.
• Port and Logistics Security Integrators: Waterfront and cargo perimeters where fog, glare off water surfaces, and 24-hour operational requirements eliminate standard optical cameras as a reliable detection layer.
• Fire Risk and Bushfire Monitoring Operators: Organisations using thermal imaging to detect heat sources, hot spots, or fire starts across bushland or industrial sites well before they become visible to optical cameras.

Honest Assessment

The AXIS Q2111-E does one thing that no optical camera can replicate: it detects thermal contrast rather than light, making it genuinely lighting-independent. On perimeter detection tasks - particularly across open ground at night or in fog - it will outperform any standard IR bullet or turret camera at equivalent range. The IP66 and IK10 ratings mean it holds up in exposed industrial conditions without requiring additional housing. ONVIF and VAPIX support make it a practical fit on multi-vendor enterprise projects rather than a proprietary dead end. What it will not do is provide the colour detail, licence plate data, or facial recognition capability that an optical camera delivers. Thermal images show shape and heat signature, not colour or fine facial features. If identification rather than detection is the primary goal, a high-resolution optical camera - or a paired optical and thermal setup - available through Security Australia is the correct approach for that layer of the system.

Before You Buy

Quick Fit Check

• Good match if: You are protecting a perimeter, fence line, or open approach where reliable detection is needed in complete darkness or fog and early warning range matters more than image colour detail.
• Good match if: Your project requires integration with an enterprise VMS or third-party platform via ONVIF Profile S/G or the VAPIX API and you need a ruggedised thermal sensor that meets IP66 and IK10 standards.
• You may need a different model if: Your primary requirement is identifying individuals, reading licence plates, or capturing colour evidence footage - a high-resolution optical camera or ANPR-capable model is the appropriate product type for identification-layer roles.

Key Features & Technical Specifications

Real-World Scenarios

How It Compares

• Choose this if: Your installation requires detection capability that is completely independent of lighting conditions and must operate in fog, smoke, glare, or total darkness at ranges beyond what IR illuminators can practically cover.
• You may need a different model if: Your primary goal is identification rather than detection - a high-resolution optical camera, a multi-sensor panoramic camera, or an ANPR-capable model is a more appropriate product type when colour detail or licence plate legibility is required.
• Pairs well with: A fixed or PTZ optical camera at the same or adjacent position for verification and identification once the thermal layer has triggered an initial alert, creating a complete detection-and-identification system.

Common Questions

1. Will this camera work in complete darkness with no lighting at all?

   Yes. The Q2111-E requires no visible light whatsoever to produce a usable detection image. Because it detects emitted heat rather than reflected light, it operates identically in total darkness, under bright midday sun, or anywhere in between. This is the fundamental difference between thermal and any optical camera with IR illumination - there is no illuminator range limit and no IR reflection washout.

2. Does this camera work with my existing VMS?

   Most likely yes. The Q2111-E supports ONVIF Profile S and Profile G, which are the two most widely adopted interoperability standards in the VMS industry. Profile S covers live streaming and basic configuration; Profile G adds on-camera recording management. Additionally, the full VAPIX API is available for deeper Axis-native integration with platforms that support it.

3. What is NETD and why does it matter for this camera?

   NETD (Noise Equivalent Temperature Difference) is the smallest temperature difference the sensor can reliably distinguish from background noise - lower is better. The Q2111-E is rated at less than 50 mK. In practical terms, a lower NETD means the camera can still detect a person or animal even when their body temperature is only marginally warmer than the surrounding environment, such as in warm ambient conditions or when a subject is partially concealed behind vegetation.

4. How far can this camera detect a person?

   Detection range depends on the lens variant selected. The longer the focal length, the narrower the field of view and the greater the detection distance - the 60mm lens variant is designed for long-range open-ground detection, while the 19mm lens covers a wider area at shorter range. Axis publishes DORI-referenced detection distance figures for each lens variant in the product datasheet, and these should be used for site planning rather than generic range claims.

5. Does this camera produce colour video footage?

   No. The Q2111-E captures thermal imagery only - there is no visible-light sensor in this model. The output is a greyscale thermal image showing heat signatures, not a conventional colour or monochrome optical image. It will not produce footage usable for colour-based identification, licence plate reading, or evidence that requires visual colour detail. If colour footage is required at the same position, a separate optical camera must be installed alongside it.

6. Is this camera suitable for Australian outdoor conditions including extreme heat?

   Yes. The Q2111-E is rated to operate from -40°C to +60°C, which covers the full range of Australian outdoor environments including outback summer conditions. Its IP66 weatherproofing handles rain and dust, and the IK10 impact rating means the aluminium housing resists physical interference. It does not require air conditioning, additional enclosures, or sun shields in standard Australian outdoor deployments, which is confirmed by Security Australia as part of the product specification.

7. What frame rate does the Q2111-E run at, and is there a reason it is lower than a standard optical camera?

   The Q2111-E operates at 8.3 fps rather than the 25 fps typical of optical CCTV cameras. This is a deliberate restriction applied to thermal cameras under international export control regulations (specifically ITAR and EAR), not a sensor limitation. For perimeter detection and intrusion alerting purposes, 8.3 fps is fully adequate - a walking person crossing a detection zone will appear in multiple frames before reaching a boundary. It is not suitable for applications requiring smooth motion analysis at high frame rates.

8. How does the on-edge analytics affect storage and alarm reliability compared to server-side motion detection?

   Significantly. Because AXIS Video Motion Detection runs on the camera processor itself, alarm events are generated at the edge without requiring continuous video to be transmitted to a server for analysis. This reduces both network bandwidth consumption and the load on the recording server. Critically, it also means alarms are generated even during network interruptions - the camera continues processing and can store events locally via SD card if fitted. Motion sensitivity zones are configurable directly in the camera interface, which reduces false alerts from wind-moved vegetation or small animals when correctly set up.

Downloads & Resources

No downloads available for this product.
