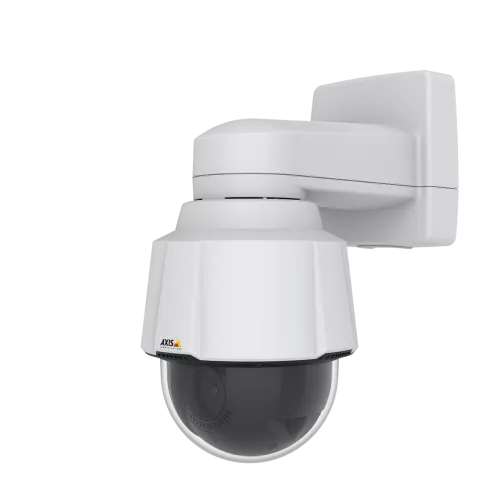

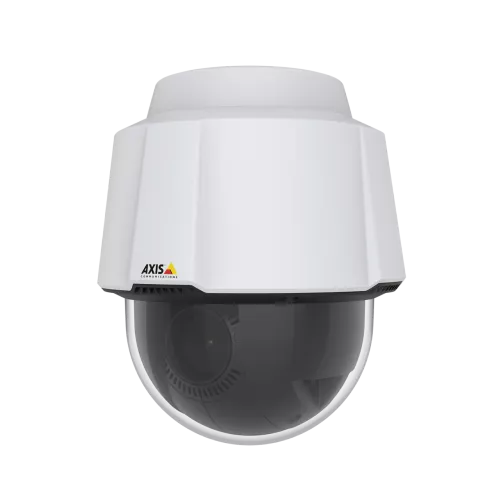

AXIS P5654-E Mk II PTZ Camera – 1080p HDTV 21× PTZ with Wide Coverage & Advanced Analytics

Model: AXIS P5654-E Mk II

Who This Is For

When wide-area outdoor coverage with deep zoom is the priority, the AXIS P5654-E Mk II PTZ Camera is the model installers reach for on mid-to-large commercial projects. It suits facility managers and security integrators specifying coverage for car parks, school grounds, perimeter fencing, and open plazas where a fixed camera simply cannot follow movement or zoom to a useful identification distance. The 21x optical zoom gives operators genuine detail at range, while AXIS Object Analytics and built-in auto-tracking allow the camera to act on movement without requiring a live operator behind the controls. Built to IP66 and IK10 standards, it handles Australian outdoor conditions and resists physical interference - making it a practical choice for exposed mounting positions where both weather and vandalism are real concerns. PoE+ simplifies cabling on new installs.

What This Camera Actually Does

Who Buys This Model

• School and university campus security teams: Cover large open grounds, ovals, and car parks with a single PTZ rather than a grid of fixed cameras. Auto-tracking follows movement across zones that would otherwise require multiple camera handoffs.
• Retail centre and commercial property managers: Monitor large open-air car parks and loading dock areas where a wide overview and the ability to zoom on an incident in progress both matter operationally.
• Industrial facility and logistics site operators: Cover long internal roads, gate entries, and laydown areas. The 21x optical zoom reads detail at distances where fixed cameras provide only silhouettes.
• Security integrators specifying mid-tier commercial systems: The AXIS P5654-E Mk II fits into AXIS Camera Station or third-party VMS platforms via ONVIF, making it compatible with existing infrastructure without forcing a platform change.
• Local councils and public space operators: Monitor parks, town squares, and pedestrian precincts. AXIS Object Analytics on board reduces the monitoring burden in unmanned control rooms by filtering to meaningful events.

Honest Assessment

The AXIS P5654-E Mk II does its best work as a coverage camera on sites where the monitoring area is too large for fixed cameras to handle cost-effectively. The combination of 21x optical zoom, endless pan, auto-tracking, and on-board AXIS Object Analytics gives operators both breadth and detail without a full-time operator managing presets. IK10 and IP66 ratings mean the housing is genuinely suited to exposed outdoor positions. H.265 compression keeps bandwidth and storage demands manageable across multi-stream configurations.

Where this model has limits: a PTZ covers one direction at a time. High-traffic sites with simultaneous incidents in multiple zones need fixed cameras alongside it, not instead of fixed cameras. If complete 360° simultaneous coverage without any blind spot is the brief, a multi-sensor panoramic camera is a better fit - available through Security Australia. This model also requires PoE+ (IEEE 802.3at), not standard PoE, so switch compatibility needs confirming before install.

Before You Buy

Quick Fit Check

• Good match if: You need to cover a large open area - car park, school oval, industrial yard - and want a single camera that can both overview the space and zoom to identify detail on demand or via auto-tracking.
• Good match if: Your VMS is AXIS Camera Station or an ONVIF-compatible platform and you want on-camera AXIS Object Analytics to reduce false alarm events without adding a separate analytics server.
• You may need a different model if: Your site has multiple simultaneous high-activity zones that must all be recorded with full detail at the same time - a multi-sensor panoramic camera type provides continuous 180° or 360° coverage without the trade-off of a single PTZ viewing direction.

Key Features & Technical Specifications

Real-World Scenarios

How It Compares

• Choose this if: You need a single outdoor-rated camera to cover a large open zone with real optical zoom depth, on-board analytics, and auto-tracking - and your switch infrastructure supports PoE+.
• You may need a different model if: Your site demands simultaneous full-perimeter recording from a single unit without any blind spots - a multi-sensor panoramic camera type captures 180° or 360° all at once, which a PTZ cannot replicate while zoomed in on one area.
• Pairs well with: Fixed wide-angle dome or turret cameras covering high-activity zones continuously, with the PTZ providing zoom and tracking capability across the broader space - a common pairing in car park and campus system designs.

Common Questions

1. Does this camera work with a standard PoE switch?

   No. The AXIS P5654-E Mk II requires IEEE 802.3at PoE+, which delivers up to 30W - standard 802.3af PoE is limited to 15.4W and will not reliably power this unit. Before purchasing, confirm that your switch or injector is marked 802.3at or PoE+. If your existing switch is 802.3af only, a PoE+ midspan injector per camera run is the most cost-effective solution without replacing the switch.

2. What is the pan and tilt range on this camera?

   Pan is 360° continuous with no mechanical stop, and tilt covers -5° to 90° from horizontal. The endless pan means the camera can rotate continuously in one direction to follow movement around a full perimeter without needing to reverse. The tilt range allows the camera to look directly downward at 90°, which is practical for mounting on poles above a scene as well as standard elevated wall or rooftop positions.

3. How does auto-tracking work, and will it keep following a subject if it moves out of frame?

   Auto-tracking is driven by AXIS Object Analytics running on the camera's own processor. When a classified object - human or vehicle - triggers tracking, the PTZ follows it within the camera's pan, tilt, and zoom range. If the subject moves behind an obstruction or outside the camera's physical movement limits, tracking pauses and the camera either holds position or returns to a guard tour or preset position depending on configuration in AXIS Camera Station or your VMS. The analytics classification step reduces the likelihood of the camera locking onto irrelevant movement like shadows or foliage.

4. Will this camera work in very hot Australian outdoor conditions?

   Yes. The operating temperature range is -40°C to 50°C, which covers extreme heat across all Australian states including rooftop installations in northern Queensland and Western Australia where ambient temperatures and radiant heat from mounting surfaces can exceed typical air temperature readings. The housing is also IP66 and NEMA 4X rated, so humidity and water exposure in tropical or coastal locations are within spec.

5. Does this camera work with non-AXIS VMS platforms?

   Yes. The P5654-E Mk II supports ONVIF Profile S, Profile G, and Profile T, which provides compatibility with the majority of third-party VMS platforms used in Australian commercial installations. Full PTZ control, event triggers, and basic streaming will work via ONVIF. Advanced features such as AXIS Object Analytics event integration and auto-tracking behaviour may have deeper functionality when paired with AXIS Camera Station, so confirm feature-level VMS compatibility with your integrator before finalising platform selection.

6. How much optical zoom does 21x actually give you in a real installation?

   21x optical zoom provides substantial working distance for detail capture - in practical terms, a camera mounted at 6-8 metres height covering a car park can zoom to identify faces or read number plates at distances that would be completely unreadable on a standard fixed wide-angle lens. The exact identification distance depends on scene lighting, subject size, and the specific DORI (Detection, Observation, Recognition, Identification) distances calculated for the lens at each zoom level. Electronic image stabilisation maintains usability at maximum zoom even from exposed mounts subject to vibration or wind movement.

7. Does AXIS Object Analytics reduce false alarm events compared to standard motion detection?

   Yes, meaningfully so. Standard pixel-based motion detection triggers on any movement in frame - wind-blown trees, lighting changes, insects near the lens. AXIS Object Analytics uses deep learning running on the camera's own processor to classify detected movement as human or vehicle before generating an event. For unmanned monitoring scenarios - overnight recording, after-hours alerts, automated VMS rules - this classification step significantly reduces the number of non-actionable events that would otherwise require review. The camera is stocked by Security Australia specifically as part of the AXIS commercial range suited to analytics-driven site designs.

8. Can this PTZ camera cover an entire site on its own, or does it need to be used alongside fixed cameras?

   No single PTZ can fully replace a fixed camera layout. A PTZ can only look in one direction at a time - if it is auto-tracking a vehicle at one end of a car park, the opposite end has no active coverage during that period. The P5654-E Mk II is most effective as the primary investigative and tracking camera in a hybrid system, paired with fixed wide-angle cameras that maintain constant overview of all zones simultaneously. This combination - fixed cameras for continuous coverage, PTZ for zoom and follow - is the standard design approach for car parks, campuses, and industrial sites of any meaningful size.
