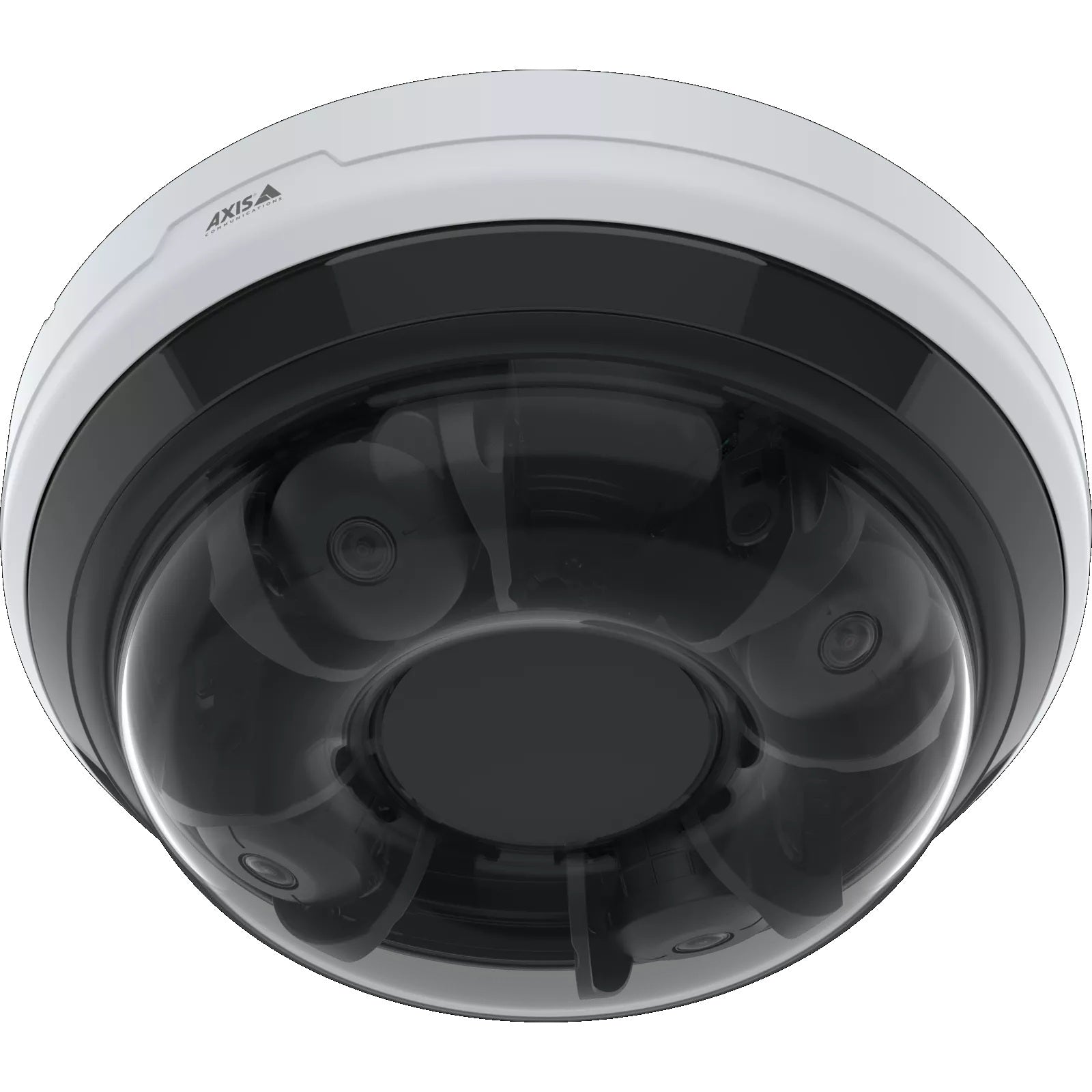

AXIS P3747-PLVE 20MP Multidirectional Panoramic Camera with 4 x 5MP Sensors, 360° IR, Forensic WDR, AI Analytics 02897-001

Model: AXIS P3747-PLVE

Who This Is For

When reducing camera count without sacrificing coverage is the priority, the AXIS P3747-PLVE is the camera security designers reach for. Built around 4 independently aimed 5MP sensors delivering 20MP of combined resolution, this multidirectional panoramic camera is suited to sites where a single mounting position needs to cover multiple approach angles simultaneously - think large open carparks, airport concourses, transit hubs, warehouse floors, and sprawling retail environments. Each sensor head can be directed at a different zone, so one camera replaces what would otherwise require 4 separate units with their own cabling, licensing, and maintenance overhead. The integrated 360-degree IR illumination means night coverage is maintained across all sensor directions without relying on external lighting. AI analytics built in at the edge means the camera classifies what it sees without pushing that load to a server. Facilities managers, integrators specifying large commercial sites, and government infrastructure teams are the core buyers.

What This Camera Actually Does

Who Buys This Model

• Large Venue and Stadium Operators: Concourse areas, entry plazas, and spectator zones where a single overhead mount must cover multiple crowd movement channels simultaneously using 4 independently aimed sensors.
• Airport and Transit Hub Integrators: Terminal check-in floors, bus interchange concourses, and rail station platforms where wide-area coverage from a single structural mount point is preferred over distributing multiple single-sensor cameras across the ceiling.
• Large Warehouse and Logistics Facilities: Dispatch floors, loading hall intersections, and storage bays where 360-degree IR is critical for after-hours coverage and on-camera AI analytics enable zone-crossing alerts without server-side processing overhead.
• Government and Critical Infrastructure Teams: Sites requiring ACAP-compatible third-party analytics, ONVIF integration with existing VMS platforms, and a camera specification that supports future application deployment without hardware replacement.
• Security Integrators Reducing Camera Count: Designers working to lower cabling costs, switch port usage, and VMS channel counts on large-footprint projects where camera-to-coverage ratios directly affect project margin and client cost.

Honest Assessment

The AXIS P3747-PLVE does a specific job well: it delivers wide-area multidirectional coverage from a single mounting position at a resolution level - 20MP across 4 sensors - that holds up under forensic review. The on-camera AI analytics reduce server dependency and the Forensic WDR makes it a practical choice for high-contrast environments like partially covered entry points and glazed atriums. The 360-degree IR means dark-site night coverage does not require separate lighting infrastructure. Where this camera is not the right tool: it does not offer the continuous optical zoom or active auto-tracking of a PTZ, so if your application requires the camera to independently follow a moving subject in real time, a PTZ unit is a better fit. It is also a commercial-tier product - the per-unit cost and PoE+ power requirement sit well above a standard 4MP fixed camera, and it is most cost-effective when the reduction in camera count and cabling justifies the investment. Available through Security Australia with full Axis manufacturer support.

Before You Buy

Quick Fit Check

• Good match if: You need one ceiling-mount position to cover 4 distinct approach zones in a large open space and want to reduce VMS channel count and cabling runs without sacrificing per-zone image resolution.
• Good match if: Your site operates after hours with no artificial lighting and you need 360-degree IR coverage from a single unit alongside on-camera AI object classification for automated zone alerts.
• You may need a different model if: Your application requires real-time active tracking of a moving subject across a large area - a PTZ camera with auto-tracking is better suited to that use case and is worth exploring in the PTZ range on securityaustralia.com.au.

Key Features & Technical Specifications

Real-World Scenarios

How It Compares

• Choose this if: Your project requires 360-degree multidirectional coverage from a single mounting point at high per-zone resolution, with on-camera AI analytics and IR that operates without external lighting infrastructure.
• You may need a different model if: Your primary requirement is active subject tracking - following a moving person or vehicle in real time across a large open area - in which case a PTZ camera with auto-tracking is the more appropriate product type to explore on securityaustralia.com.au.
• Pairs well with: A high-channel PoE+ managed switch with sufficient per-port wattage, a VMS platform with ONVIF Profile T support, and an Axis-compatible NVR or server for recording storage scaled to multi-stream 20MP output.

Common Questions

1. Will this camera work with my existing VMS or NVR platform?

   Yes, in most cases. The AXIS P3747-PLVE supports ONVIF Profile S, Profile G, and Profile T, which covers the majority of modern VMS and NVR platforms. Each of the 4 sensors typically appears as an individual stream, so confirm your VMS handles multi-stream ONVIF devices and that you have sufficient channel licences allocated - this camera can consume 4 channels depending on your platform's handling.

2. Does this camera require a standard PoE port or something more?

   It is powered by IEEE 802.3af/802.3at Type 2 Class 4 PoE, drawing typically 10.8 W and a maximum of 23.7 W. PoE+ (802.3at) is the safe specification when all four sensors and the IR run together - a standard IEEE 802.3af PoE switch port will not power this camera fully, particularly when all 4 sensors and the integrated IR are active. Confirm every switch port assigned to this camera can supply the 23.7 W peak. Budget for a PoE+ managed switch or a dedicated PoE+ injector per unit in your infrastructure planning.

3. How does the multidirectional sensor setup actually work - is it like a fisheye?

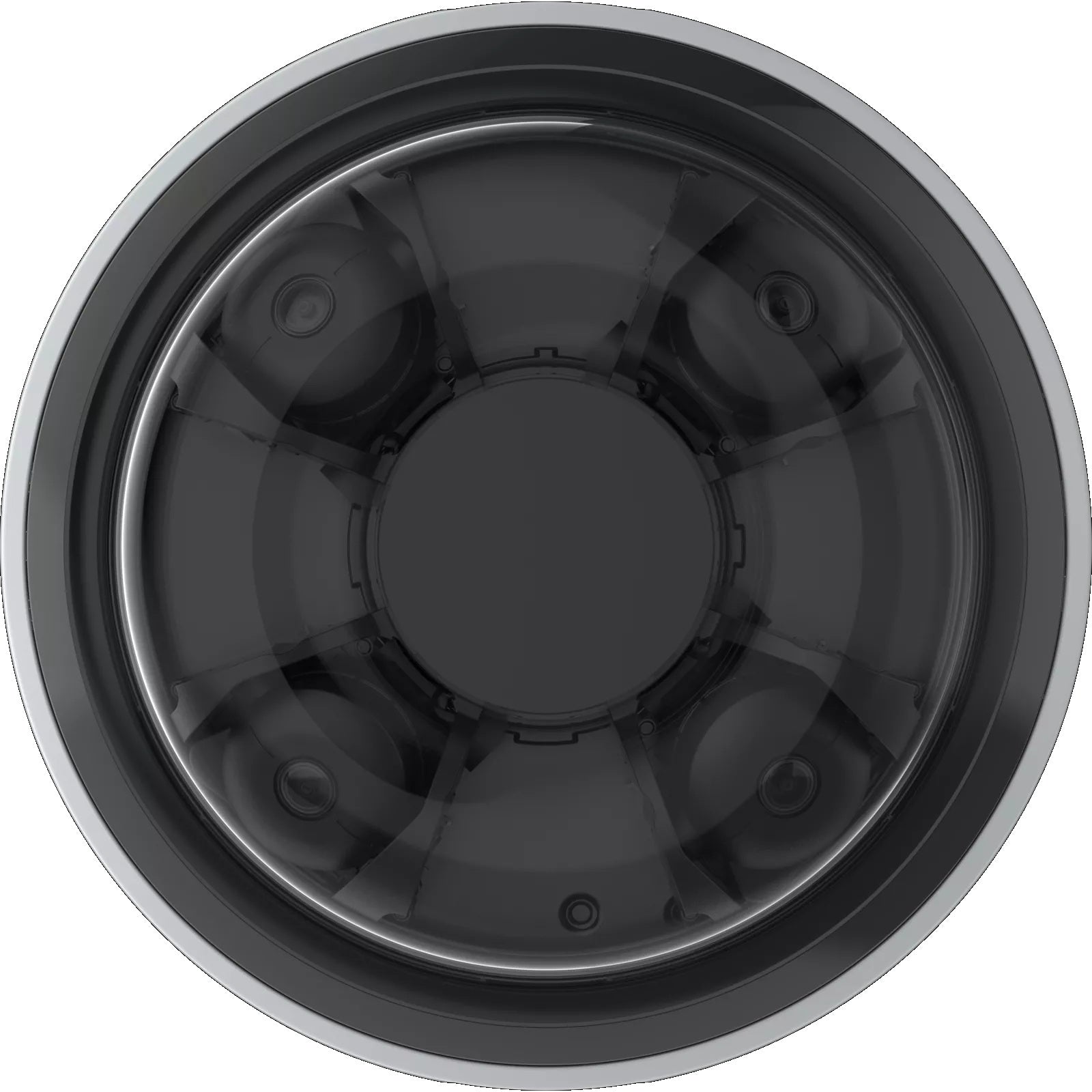

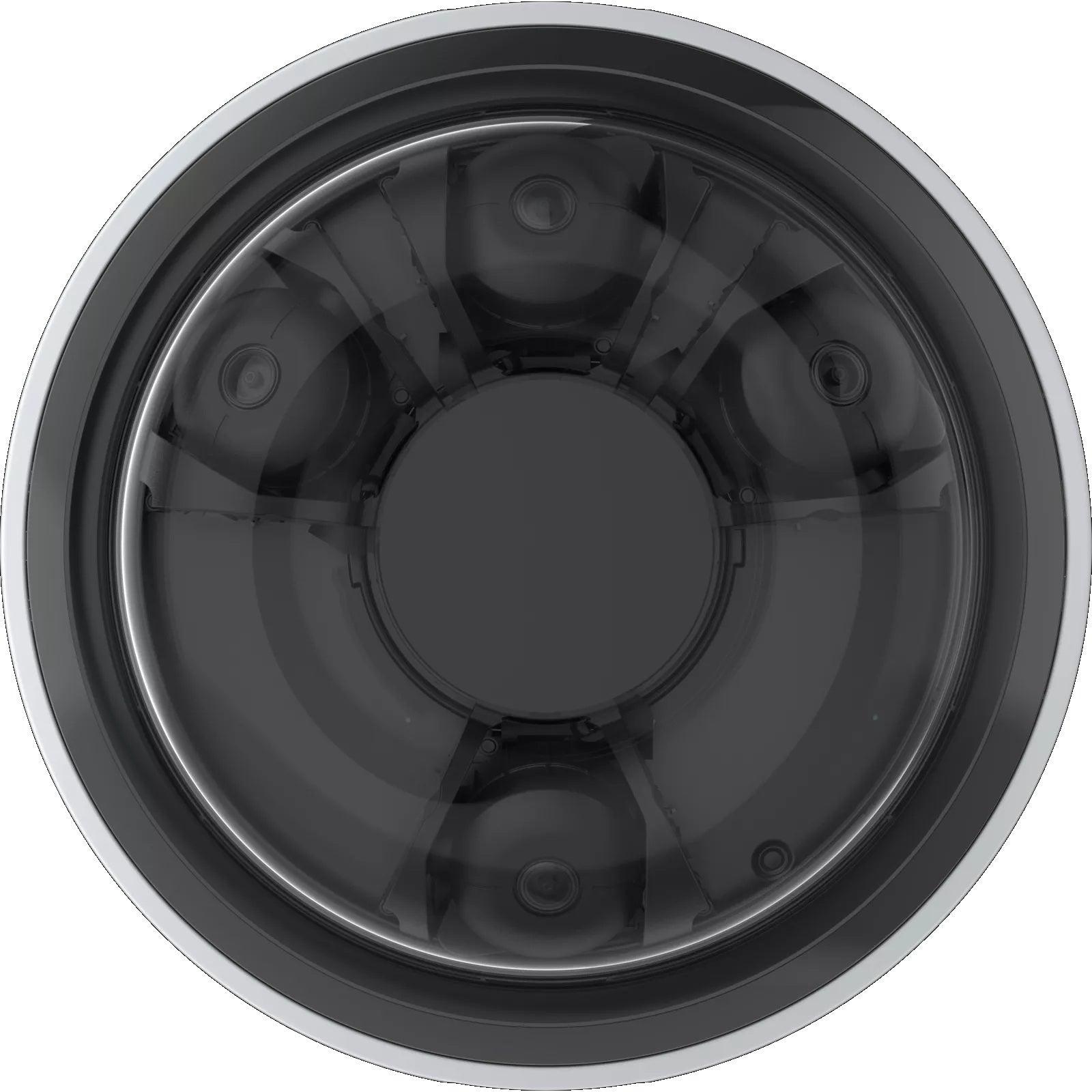

   No, it is not a fisheye. A fisheye camera uses a single ultra-wide lens that captures a distorted 360-degree image requiring software dewarping to produce usable views. The P3747-PLVE uses 4 discrete 5MP sensors each with their own lens, physically aimed in different directions during installation. Each sensor produces its own undistorted 5MP image. There is no barrel distortion to correct, and each zone delivers the full optical resolution of a dedicated 5MP camera rather than a fraction of a stitched panoramic image.

4. What do the on-camera AI analytics actually detect - and how is this different from standard motion detection?

   The AI analytics classify objects, not just movement. Standard motion detection triggers on any pixel change, meaning wind-blown foliage, lighting shifts, or insects near the lens generate alerts. The P3747-PLVE uses AXIS Object Analytics to distinguish people and vehicles from non-classified motion, significantly reducing false alarm rates. Rules can be applied per class - for example, alerting only when a person enters a defined zone after hours while ignoring vehicle movement in the same frame.

5. What is ACAP and does this camera actually need it?

   No, ACAP is not required for the camera to operate - it is a capability. AXIS Camera Application Platform allows third-party applications to run directly on the camera's processor. For most installations, the built-in AXIS Object Analytics is sufficient. ACAP becomes relevant when a project needs specialised analytics beyond people and vehicle detection - such as crowd density measurement, specific industrial monitoring applications, or custom AI models - without deploying additional server hardware to run those processes.

6. Does this camera work outdoors and what is the weather rating?

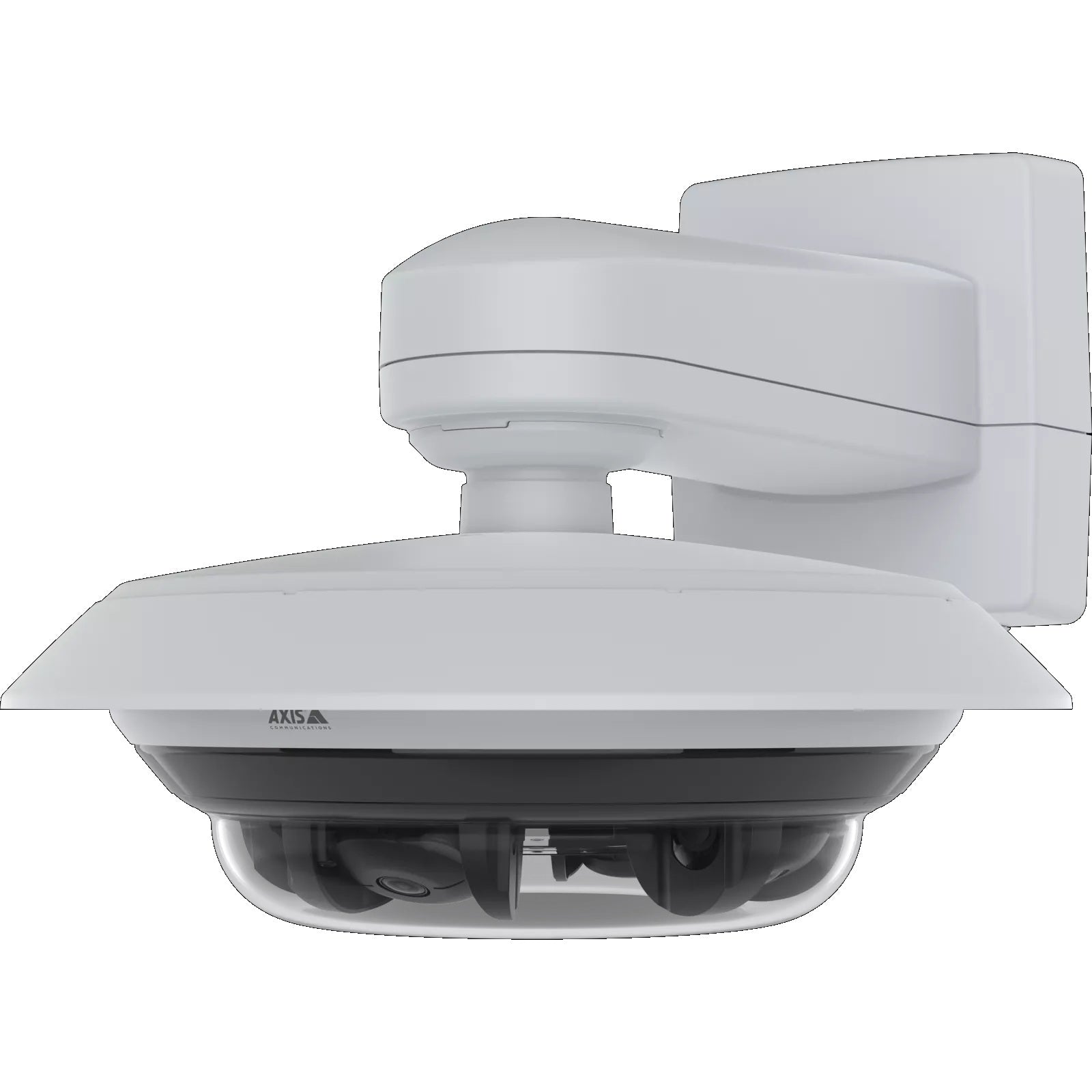

   Yes. The AXIS P3747-PLVE carries an IP66 ingress protection rating, meaning it is sealed against dust ingress and rated to withstand high-pressure water jets. It is also IK10 rated for impact resistance. This makes it suitable for exposed outdoor mounting - covered eave positions, outdoor concourses, and open carpark structures - without requiring additional weatherproof housing. Installers working with Security Australia on large outdoor projects should confirm mounting bracket compatibility with the specific install surface as part of the design phase.

7. How much storage will this camera consume at full resolution?

   It depends on stream configuration, but plan conservatively. At 20MP combined output across 4 sensors, storage demand is substantial compared to a standard 4MP or 8MP single-sensor camera. Using H.265 compression is strongly recommended over H.264 or MJPEG - H.265 typically reduces bitrate by 50% compared to H.264 at equivalent quality. Calculate storage based on each sensor stream individually, factoring in scene complexity, frame rate, and recording schedule. Most integrators run Axis Bandwidth Calculator with the actual VMS compression profile before finalising NAS or server storage sizing.
