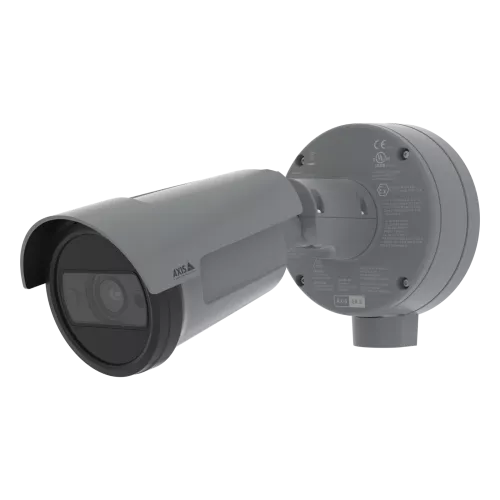

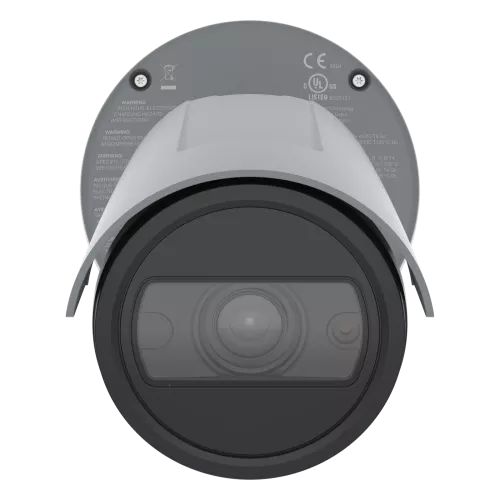

AXIS P1468-XLE 4K Explosion-Protected Bullet Camera, Varifocal Lens | 02534-001

Model: P1468-XLE

Who This Is For

When hazardous area classification is the governing requirement and standard IP66-rated cameras simply cannot be specified, the AXIS P1468-XLE is the camera engineers and safety managers reach for. Built for Zone 1, Zone 2, Zone 21, and Zone 22 environments - oil and gas facilities, chemical processing plants, grain handling terminals, mining sites, and offshore platforms - this camera carries ATEX and IECEx certification alongside its 4K varifocal imaging. Installers working on classified hazardous area projects need a camera that satisfies both the site safety compliance requirements and the surveillance performance brief simultaneously. The P1468-XLE does exactly that, delivering 8-megapixel detail over adjustable focal lengths without requiring a separate explosion-proof enclosure. For project specifiers, safety officers, and industrial security integrators who cannot compromise on either resolution or zone certification, this is the model to evaluate.

What This Camera Actually Does

Who Buys This Model

• Oil, Gas, and Chemical Plant Operators: Facilities with classified Zone 1 or Zone 2 hazardous areas who require surveillance inside or adjacent to processing infrastructure where an uncertified camera cannot legally be installed.
• Mining and Resources Site Security Teams: Large-site security managers covering haul roads, processing areas, and loading zones who need 4K identification capability in a physically robust, certified housing that survives plant environments.
• Grain Handling and Agricultural Storage Facilities: Terminals and silos with Zone 21 and Zone 22 combustible dust classifications - particularly receival pits, conveyor tunnels, and enclosed storage areas - where dust ignition risk governs equipment selection.
• Industrial Security Integrators and EPC Contractors: Integrators building CCTV systems into hazardous area projects for the resources, energy, or heavy industry sectors who need a camera that satisfies the project's area classification schedule without custom fabrication of certified enclosures.
• Offshore and Marine Platform Operators: Platforms and vessels requiring cameras in classified deck areas where both the explosion-protection certification and the corrosion-resistant materials are non-negotiable for ongoing operation in salt-laden environments.

Honest Assessment

The AXIS P1468-XLE does something very few cameras can: it combines genuine hazardous area certification (ATEX and IECEx) with 4K resolution and on-board video analytics in a single unit. For classified-zone installations, that removes the cost and complexity of sourcing separately certified explosion-proof housings and then fitting a standard camera inside. The varifocal lens adds real commissioning flexibility across varying site geometries, and AXIS Object Analytics gives integrators a working analytics layer without additional server-side licensing. Available through Security Australia, this is a well-specified camera for the project type it targets. That said, the P1468-XLE is not a general-purpose industrial camera - its price point reflects the certification engineering behind it, and it is not the right choice for non-classified outdoor industrial areas where a standard IP66-rated bullet camera will perform the same surveillance function at significantly lower cost. Buyers who do not have a documented area classification requirement should look at other models in the industrial range.

Before You Buy

Quick Fit Check

• Good match if: Your site has a documented hazardous area classification (Zone 1, 2, 21, or 22) and you need a camera that can be installed directly in that zone without a separate certified enclosure.
• Good match if: You need 4K identification-quality footage over long distances on an industrial site - such as vehicle access roads, loading dock approaches, or process plant perimeters - where a standard HD resolution camera does not provide enough detail at range.
• You may need a different model if: Your installation area is industrial but not classified as a hazardous zone - a standard IP66/IP67 rated industrial bullet camera will deliver the same or better value per dollar for non-classified outdoor applications.

Key Features & Technical Specifications

Real-World Scenarios

How It Compares

• Choose this if: Your installation area carries a formal ATEX or IECEx zone classification and you need a camera that can be specified directly into that zone at 4K resolution without a separately certified explosion-proof enclosure.
• You may need a different model if: Your site is industrial but the installation areas are not formally classified hazardous zones - a standard IP66/IP67 industrial bullet camera will deliver equivalent or superior imaging performance at a fraction of the cost for non-classified locations.
• Pairs well with: A PoE+ managed switch with VLAN capability for industrial network segmentation, and a VMS platform with ONVIF Profile T support to fully utilise the on-board analytics event stream.

Common Questions

1. Is the P1468-XLE certified for both gas and dust hazardous zones?

   Yes. The P1468-XLE carries ATEX and IECEx certification covering Zone 1 and Zone 2 (flammable gas and vapour atmospheres) as well as Zone 21 and Zone 22 (combustible dust atmospheres). This dual-category certification means a single camera model can be specified across different hazardous area types within the same facility - useful on sites such as grain terminals or chemical plants where both gas and dust zones may exist in adjacent areas.

2. Does this camera work with standard PoE switches?

   No. The P1468-XLE requires IEEE 802.3at PoE+ power delivery. Standard 802.3af PoE switches (15.4W) will not provide sufficient power to operate this camera. Confirm that your switch, NVR, or midspan injector supports PoE+ (up to 30W per port) before purchasing. This is one of the first checks to make when planning the network infrastructure for this camera.

3. Will this camera work with our existing VMS?

   Most likely yes, provided your VMS supports ONVIF Profile S, G, T, or M. The P1468-XLE integrates natively with AXIS Camera Station and is ONVIF-compliant, making it compatible with the majority of enterprise VMS platforms used in industrial security systems. For the on-board AXIS Object Analytics events to appear in your VMS alert feeds, your VMS must support ONVIF Profile M or native AXIS event integration - confirm this with your VMS vendor before deploying analytics-based rules.

4. Can the varifocal lens be adjusted after installation without physical access to the camera?

   Yes. The motorised varifocal lens on the P1468-XLE can be remotely adjusted for zoom and focus via the AXIS web interface or camera management software. On sites where physical access to the installed camera requires a confined space or hot work permit, this remote adjustment capability is a practical advantage - the lens can be fine-tuned during commissioning or after any operational change without raising an additional access permit for a minor camera adjustment.

5. Does the P1468-XLE require explosion-proof cable glands?

   Yes. To maintain the integrity of the explosion-protection certification, cable entry into the camera housing must use Ex-rated cable glands appropriate to the zone classification of the installation area. Standard IP-rated cable glands are not sufficient for classified zone installations. The installer is responsible for selecting the correct certified gland type and installation method consistent with the applicable Australian standard for hazardous area electrical installations (AS/NZS 60079 series). The team at Security Australia can advise on compatible accessories for your zone classification if needed.

6. Does AXIS Object Analytics require a separate licence or subscription?

   No. AXIS Object Analytics is built into the camera firmware and does not require a separate per-camera licence or ongoing subscription to operate. It runs on the camera's on-board processor and classifies moving objects as people or vehicles, supporting line crossing and area intrusion detection. More advanced analytics applications beyond Object Analytics may require separate AXIS application licences, but the core classification and zone-based alert functionality is included with the camera.

7. Is the 4K resolution useful in low-light or night-time industrial site conditions?

   It depends on the available lighting. The P1468-XLE is an optical camera - its 4K resolution provides significant detail advantage over HD cameras under adequate industrial lighting conditions. For night-time surveillance in unlit or poorly lit areas, supplementary industrial-rated lighting at the camera's coverage zone is recommended to achieve identification-quality footage. Unlike some AXIS models, the P1468-XLE does not include built-in IR illumination, so low-light performance is dependent on the site's existing or supplementary lighting infrastructure.

Downloads & Resources

• AXIS P1468-XLE Datasheet (PDF)
• AXIS P1468-XLE Product Page - axis.com
