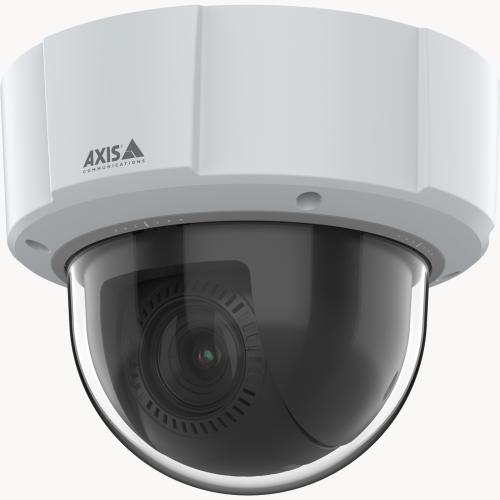

Axis M5526-E PTZ Camera 4 MP with 10x zoom and focus recall

Model: AXIS M5526-E

Who This Is For

For security integrators and facilities managers who need a single camera to cover large, open-plan areas without deploying multiple fixed units, the Axis M5526-E is built for that brief. With continuous 360-degree pan, 10x optical zoom, and autofocus with focus recall, it suits car parks, transit hubs, retail concourses, building forecourts, and campus perimeters where operators need to sweep wide then zoom in on detail without losing image sharpness. The M5526-E is compatible with all Axis PTZ mounts and carries an IP66 rating, making it equally suited to undercover outdoor installations and indoor atriums. AXIS Object Analytics runs directly on the ARTPEC-8 chip, so human and vehicle classification happens at the camera - no server-side processing required. It is a mid-range PTZ that offers genuine AI classification, Forensic WDR, and Zipstream compression in a package that suits both new builds and system upgrades.

What This Camera Actually Does

Who Buys This Model

• Security Integrators on Mid-Range PTZ Projects: Specifying a camera with on-board AI classification and Forensic WDR for clients who need more than basic motion detection but do not require a high-end PTZ with long-range IR.
• Facilities Managers at Commercial Buildings: Replacing multiple fixed cameras in atriums, lobbies, or car parks with a single unit that can be preset to cover key zones and tracked live by a control room operator.
• Campus and Education Security Teams: Covering large outdoor areas such as sports fields, walkways, and courtyards where a single PTZ with 360-degree pan and object classification reduces camera count and cabling cost.
• Retail Loss Prevention Managers: Deploying the M5526-E on a retail concourse or shopping centre food court where mosaic privacy masking is needed to exclude adjacent tenancies while maintaining coverage of common areas.
• IT and Network Security-Conscious Sites: Government agencies, healthcare facilities, and financial institutions specifying Axis Edge Vault as a cybersecurity requirement for camera hardware on their network.

Honest Assessment

The Axis M5526-E performs well in applications where wide-area coverage and zoomed detail need to coexist in a single camera. The combination of continuous 360-degree pan, 10x optical zoom with focus recall, and on-board AXIS Object Analytics is a practical package for car parks, retail floors, and commercial building exteriors. Forensic WDR handling up to 120 dB means high-contrast entry points are manageable without post-processing. Up to 20 configurable video streams and Zipstream in both H.264 and H.265 give integrators flexibility for mixed VMS environments with tight storage budgets. Where the M5526-E is not the right fit: it does not carry built-in IR illumination in its confirmed specification, so sites requiring active infrared for complete darkness coverage should evaluate PTZ models with integrated IR. For applications requiring license plate capture at speed or long-range thermal detection, a dedicated ANPR or thermal PTZ available through Security Australia would be more appropriate. The M5526-E is best matched to monitored, lit environments where its AI classification and zoom capability are fully utilised.

Before You Buy

Quick Fit Check

• Good match if: You need a single camera to cover a large lit area - car park, retail floor, campus walkway - and want on-board human and vehicle classification without a separate analytics server.
• Good match if: Your site has high-contrast lighting conditions at entry points and you need Forensic WDR up to 120 dB to maintain usable footage in both bright and shaded zones simultaneously.
• You may need a different model if: Your site is unlit or relies entirely on IR for night coverage - a PTZ with integrated IR illumination would better suit that requirement; check the Axis PTZ range on securityaustralia.com.au for IR-equipped options.

Key Features & Technical Specifications

Real-World Scenarios

How It Compares

• Choose this if: You need on-camera AI classification, 360-degree continuous pan, and 10x optical zoom in a single mid-range PTZ that works indoors and out with IP66 protection.
• You may need a different model if: Your site relies on IR illumination for operation in complete darkness - a PTZ with integrated IR would be more appropriate for that application; the full PTZ range is available on securityaustralia.com.au.
• Pairs well with: A compatible Axis NVR or VMS with AXIS Object Analytics integration, and a PoE+ managed switch to handle multiple PTZ positions across the same infrastructure.

Common Questions

1. Does this camera work with a standard PoE switch port?

   No. The M5526-E requires PoE+ (IEEE 802.3at) rather than standard PoE (IEEE 802.3af). A standard 15.4 W PoE port will not provide sufficient power to operate the PTZ mechanism and ARTPEC-8 processing simultaneously. Confirm your switch delivers 802.3at on each port used for this camera, or use a dedicated PoE+ injector per run.

2. Will this camera work outdoors in Australian weather conditions?

   Yes. The M5526-E carries an IP66 rating, which covers protection against dust ingress and powerful water jets. It is rated for outdoor installation under an eave, on a wall bracket, or on a pole mount. It is compatible with all Axis PTZ mounts in both indoor and outdoor configurations, and ships with 3 scene profiles including an outdoor-optimised setting.

3. What does AXIS Object Analytics actually classify, and does it need a server?

   No server is required. AXIS Object Analytics runs entirely on the DLPU within the ARTPEC-8 chip in the camera itself. It classifies humans, vehicles, and vehicle types (such as cars, trucks, and buses) and allows rules to be configured - for example, alerting only when a vehicle enters a zone outside of business hours. Classification accuracy depends on scene setup and lighting conditions.

4. How does focus recall work and why does it matter for a PTZ?

   Focus recall stores the correct autofocus position for each preset. When a PTZ returns to a saved position, without focus recall the lens typically hunts briefly to re-acquire focus - this is visible in the live stream and in recordings. The M5526-E recalls the stored focus position along with the pan, tilt, and zoom coordinates, so preset positions return sharp immediately. This matters most in control room environments where operators switch between presets frequently.

5. How many preset positions can this camera store?

   The M5526-E supports a large number of guard tour preset positions per the Axis PTZ architecture - confirm the exact count in the current Axis firmware documentation, as this is configurable and firmware-dependent. Guard tours can be programmed to automatically cycle through preset positions at timed intervals, useful for car parks and perimeter applications where continuous operator attention is not available.

6. Does this camera have two-way audio built in?

   Partial. The M5526-E supports configurable half-duplex and full-duplex audio streaming and has an audio input for an external microphone (including optional 5 V mic power) and a line output for an external speaker or paired speaker. It does not have a built-in microphone or built-in speaker as part of the housing - a connected external microphone and speaker are required to use the two-way audio capability. This is confirmed through Security Australia's product documentation for this model.

7. What is Forensic WDR and how does 120 dB compare to standard WDR?

   Forensic WDR is Axis's implementation of wide dynamic range that processes bright and dark areas of a scene simultaneously in real time, rated up to 120 dB on the M5526-E depending on scene conditions. Standard WDR in lower-tier cameras typically operates in the 60-90 dB range. The practical difference is visible in scenes such as glass-fronted building entries where a 60 dB camera will either clip the sky or lose detail in shadows, while 120 dB maintains usable detail across both zones in the same frame.

8. Does this camera support auto-tracking?

   Auto-tracking is not confirmed in the specification data for the M5526-E. AXIS Object Analytics provides on-camera detection and classification with rules-based alerting, but active mechanical auto-tracking - where the PTZ physically follows a detected object - should be verified against the current Axis firmware release notes before relying on it in an operational specification. If auto-tracking is a firm requirement, confirm this feature is available in the current firmware version prior to purchase.
