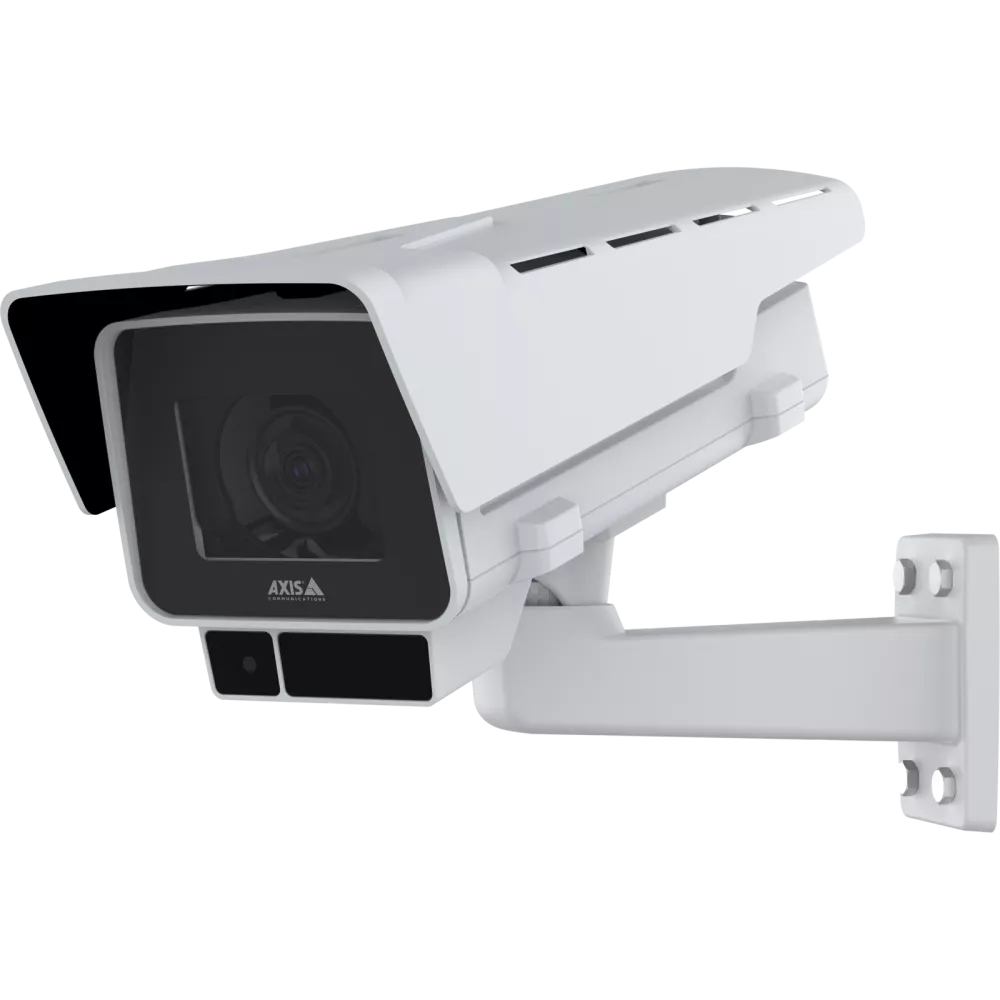

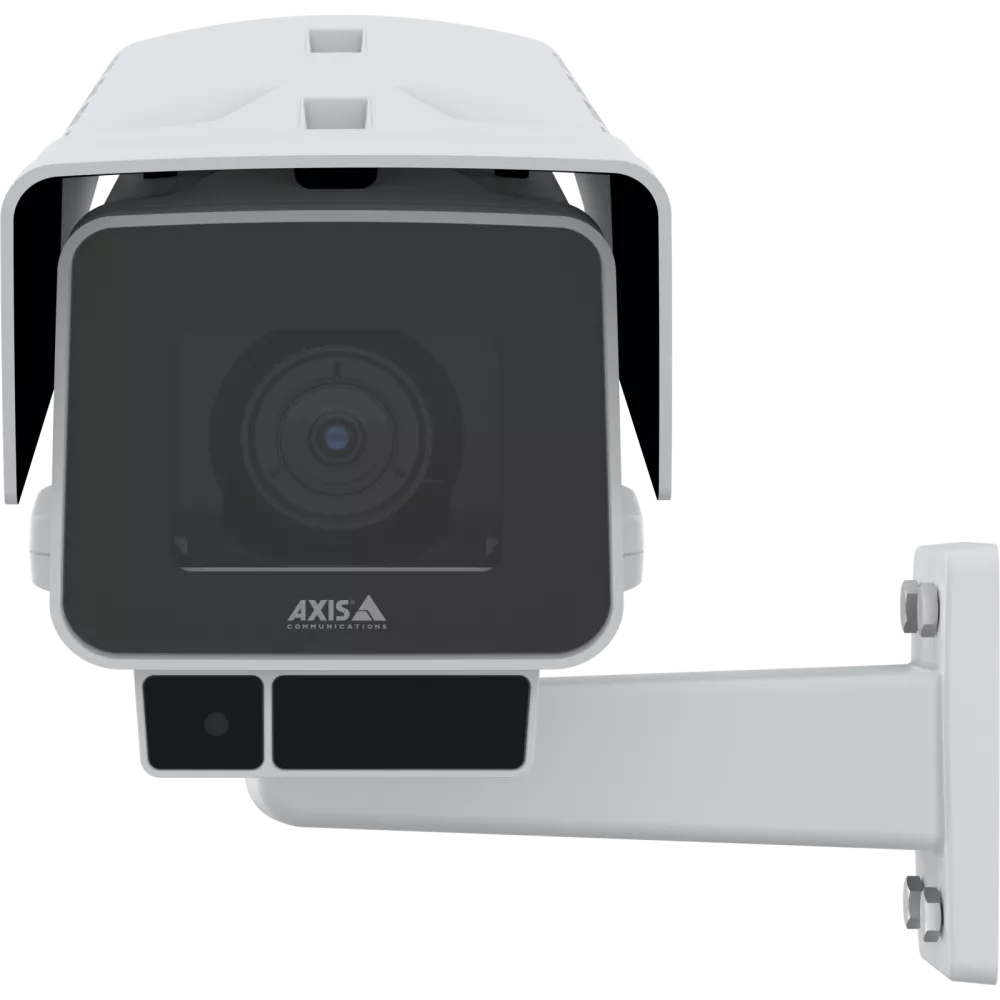

AXIS M1137-E Mk II 5MP Outdoor Box Network Camera Lightfinder Forensic WDR

Model: AXIS M1137-E Mk II

Who This Is For

For installers and integrators who need a fixed outdoor camera where lens choice cannot be left to chance, the AXIS M1137-E Mk II delivers a 5MP box camera platform built for CS-mount lenses and demanding outdoor environments. Box cameras suit applications where the focal length must be matched precisely to a scene - licence plate capture at a car park entry, facial detail on a pedestrian chokepoint, or long-corridor coverage inside a covered industrial facility. The weatherproof IP66 and NEMA 4X housing with IK10 impact protection handles outdoor placement across Australian conditions, while Lightfinder 2.0 and Forensic WDR address the mixed-lighting challenges common to loading docks, gatehouse approaches, and transit infrastructure. This is a camera for professionals specifying a system where every field of view has been planned, not estimated.

What This Camera Actually Does

Who Buys This Model

• Security integrators on infrastructure projects: Specifying cameras for transport hubs, government facilities, or critical infrastructure where lens choice is driven by a calculated field of view and fixed-lens cameras cannot meet the brief.
• Industrial site managers: Deploying on outdoor perimeters, loading dock approaches, or yard coverage where mixed light, vehicle headlights, and wide contrast ranges make Forensic WDR a functional requirement rather than a nice-to-have.
• Car park and access control operators: Pairing a telephoto CS-mount lens with the 5MP sensor to capture licence plate detail at a specific read distance, where a fixed-lens box camera would either be too wide or too narrow.
• System designers replacing analogue box cameras: Transitioning existing installations that already use adjustable lens mounts and housing infrastructure - the M1137-E Mk II drops into familiar box-camera workflows while delivering a modern IP and analytics platform.

Honest Assessment

The M1137-E Mk II does two things genuinely well: it gives the installer complete control over field of view through CS-mount lens selection, and it handles difficult light through the combination of Lightfinder 2.0 and Forensic WDR. At 5MP with on-camera AXIS Object Analytics, it is a capable outdoor platform for sites where scene geometry and lighting conditions have been professionally assessed. The IK10 housing makes it appropriate for locations where camera integrity under impact is a consideration. What it will not do is function out of the box without a separately sourced lens - this is not the right choice for buyers who want a ready-to-run camera with no configuration. For straightforward outdoor coverage where lens selection is not a priority, a fixed-lens turret or bullet camera will be faster to deploy and less costly overall. The M1137-E Mk II is available through Security Australia and suits integrators who are specifying rather than simply installing.

Before You Buy

Quick Fit Check

• Good match if: Your installation requires a specific focal length that no fixed-lens outdoor camera covers - for example, a narrow telephoto angle for licence plate capture at 8-15m, or a custom field of view on a long industrial approach.
• Good match if: The scene involves high contrast between light and shadow - gatehouse entries, covered loading areas with open yard beyond, or tunnel portals - where Forensic WDR is needed to retain detail across the full frame.
• You may need a different model if: You need a camera that is ready to install without additional lens procurement and configuration. A fixed-lens outdoor bullet or turret camera will be faster to deploy, simpler to commission, and more cost-effective for standard perimeter and entry-point coverage.

Key Features & Technical Specifications

Real-World Scenarios

How It Compares

• Choose this if: Your specification requires a defined focal length that no fixed-lens outdoor camera meets, or the scene demands Forensic WDR and Lightfinder 2.0 in an IP66/IK10-rated outdoor housing.
• You may need a different model if: Speed and simplicity of deployment matter more than lens flexibility - a fixed-lens outdoor bullet or turret camera will commission faster, require less pre-planning, and cost less overall for standard perimeter and entry-point applications.
• Pairs well with: A compatible AXIS NVR or AXIS Camera Station server for recording and analytics management, plus a PoE switch with sufficient ports to support the number of cameras in the deployment.

Common Questions

1. Does the AXIS M1137-E Mk II come with a lens?

   No. The M1137-E Mk II is a body-only camera - a CS-mount lens must be purchased separately. This is intentional for a box camera platform: the installer selects the focal length to match the specific scene. AXIS and third-party CS-mount lenses are compatible, including varifocal, fixed, DC-iris, and P-iris options. Confirm lens type with your supplier before ordering.

2. Will this camera work for licence plate capture?

   Yes, with the correct lens. The 5MP sensor provides sufficient pixel density for licence plate identification when a telephoto CS-mount lens is chosen to match the read distance. Forensic WDR also helps manage the contrast from headlights at night or bright ambient light behind the vehicle. Lens focal length must be calculated based on the specific read distance at your site.

3. What does Forensic WDR actually mean for outdoor use?

   Forensic WDR is AXIS's implementation of wide dynamic range processing, designed so that footage retains evidential detail across both bright and dark areas in the same frame. In practice this means a camera covering a gate entry can show both a sunlit background and a person standing in shadow within the same image, without one area being overexposed or crushed to black. This is important when footage may be reviewed for identification purposes.

4. Does this camera require PoE+ or will a standard PoE switch work?

   Standard IEEE 802.3af PoE is sufficient. The M1137-E Mk II does not require PoE+ (802.3at). A standard 802.3af port on a managed or unmanaged PoE switch will power the camera over a single Cat5e or Cat6 cable. Note that if you select a P-iris lens with motorised iris control, that control signal runs separately via the camera's iris connector - it does not increase the PoE power requirement.

5. How does AXIS Object Analytics reduce false alarms on this outdoor camera?

   AXIS Object Analytics runs on the camera's processor and classifies detected motion as either a human or a vehicle before triggering an alert. This means wind-blown foliage, small animals, rain, and lighting changes do not generate alarms. For outdoor sites with high ambient movement - industrial yards, open perimeters, roadside installations - this significantly reduces nuisance alerts compared to standard pixel-change motion detection.

6. Is the M1137-E Mk II compatible with third-party VMS platforms?

   Yes. The camera is ONVIF Profile S, Profile G, and Profile T compliant, which provides broad compatibility with third-party video management software platforms. It also integrates natively with AXIS Camera Station. For integration with a specific VMS, check the manufacturer's compatibility list - ONVIF compliance covers the majority of current platforms used by Australian integrators. The M1137-E Mk II is stocked by Security Australia and supported through their team for integration queries.

7. Can a C-mount lens be used on this camera instead of CS-mount?

   Yes, with an adapter. A 5mm CS-to-C adapter ring allows C-mount lenses to be used on the CS-mount body. The adapter shifts the lens back the additional 5mm required for correct flange distance. This is a standard accessory in the industry but must be specified and sourced separately. Confirm that the adapter is sourced from a reputable supplier to avoid focus or sealing issues at the lens-body interface.
