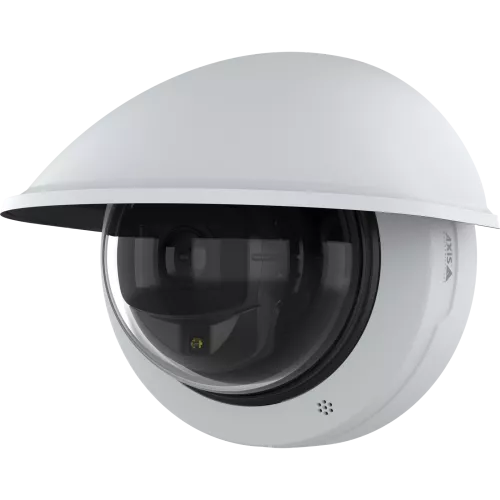

AXIS M4228-LVE Compact 8 MP (4K) Outdoor AI Dome with Audio & Video Analytics 02816-001

Model: AXIS M4228-LVE

Who This Is For

For security integrators and facility managers who need a single compact dome to cover wide-area outdoor scenes in genuine 4K detail - without sacrificing analytics capability or audio. The AXIS M4228-LVE is built for locations where image resolution directly affects investigation outcomes: carpark entries, building perimeters, logistics yards, and retail forecourts where licence plates, faces, and merchandise all need to be resolved in the same frame. At 8MP, the camera delivers substantial more usable detail than a 4MP or 5MP unit at comparable fields of view, and the onboard AXIS Object Analytics means classification decisions happen at the edge rather than burdening the VMS server. The outdoor IP66-rated compact dome housing keeps the install footprint small, making it suited to eave mounts, fascia boards, and exposed wall positions where a full-size dome or bullet would look out of proportion or attract unwanted attention.

What This Camera Actually Does

Who Buys This Model

• Commercial property integrators: Specifying outdoor perimeter coverage for multi-tenancy buildings, strata complexes, or retail centres where 4K detail is required for incident review but a compact housing is specified by the body corporate or architect.
• Logistics and warehouse operators: Mounting above loading dock aprons and yard entry points where vehicle activity needs to be tracked by AI classification, and where audio capture during driver interactions adds an evidentiary layer.
• Local government and council facilities managers: Deploying at outdoor community facilities, transport interchanges, and park entry points where IK10 vandal resistance and edge analytics reduce infrastructure and maintenance costs versus server-side processing.
• Axis ecosystem integrators: Adding a 4K outdoor node to an existing AXIS Camera Station or AXIS ACAP-compatible VMS deployment, where camera-to-platform consistency matters and ONVIF interoperability needs to be confirmed in a mixed-brand environment.
• Retail loss prevention managers: Positioning above external entrances and delivery areas where the 8MP sensor allows a single camera to cover a wide entry zone while still retaining enough resolution for forensic post-event zoom.

Honest Assessment

The AXIS M4228-LVE does two things genuinely well: it delivers verified 4K resolution in a compact weatherproof dome that does not look out of place on a commercial facade, and its onboard AXIS Object Analytics handles human-versus-vehicle classification at the edge so your NVR storage and VMS event queues are not clogged with irrelevant triggers. The audio integration is a practical addition for sites where verbal exchanges need to be captured without secondary devices. What the M4228-LVE will not do is give you motorised optical zoom for variable standoff distances - the lens is fixed, so focal length selection at install is final. If your brief requires active pan-tilt-zoom tracking of moving subjects across a large open area, a PTZ camera will serve that scenario better. For wide-area fixed outdoor coverage with genuine 4K detail and AI analytics in a single unit, this camera is a well-specified option available through Security Australia.

Before You Buy

Quick Fit Check

• Good match if: You need outdoor 4K coverage at a fixed position - carpark entry, building corner, or loading dock - where IK10 vandal resistance, edge AI classification, and audio capture in a single compact unit are all required in the same install.
• Good match if: You are deploying into an existing Axis ecosystem using AXIS Camera Station or an ACAP-compatible VMS, and you need a 4K outdoor dome that runs AXIS Object Analytics locally without additional licensing for each channel.
• You may need a different model if: Your application requires active pan, tilt, and optical zoom to follow subjects across large open areas - a PTZ camera with auto-tracking will cover that scenario in a way a fixed dome cannot. Browse the PTZ range on securityaustralia.com.au for options suited to wide-area tracking requirements.

Key Features & Technical Specifications

Real-World Scenarios

How It Compares

• Choose this if: You need outdoor 4K resolution with on-camera AI classification and audio in a compact IK10 dome housing - particularly in an Axis ecosystem where ACAP application compatibility and AXIS Camera Station integration are already specified.
• You may need a different model if: Your site requires long-range IR illumination beyond 30-40 metres or active optical zoom to track subjects across open ground - an outdoor bullet camera with long-range IR or a PTZ with optical zoom will better serve those requirements. Both types are available on securityaustralia.com.au.
• Pairs well with: A PoE+ managed switch with VLAN support for network segmentation, a compatible NVR or VMS server running AXIS Camera Station, and a UPS at the IDF cabinet to maintain camera uptime during mains interruptions.

Common Questions

1. Does this camera work with non-Axis VMS platforms?

   Yes. The AXIS M4228-LVE supports ONVIF Profile S, G, and T, which means it integrates with Milestone, Genetec, Hanwha Wisenet WAVE, and other major VMS platforms that support ONVIF. Full AXIS Object Analytics event metadata and ACAP application outputs are most reliably consumed by AXIS Camera Station, but basic video and motion events pass through ONVIF to any compatible system.

2. Will this camera stream 4K at full frame rate continuously?

   Yes, at up to 30fps in 4K (3840x2160). In practice, most deployments use a combination of H.265 compression and frame rate management to balance storage consumption against image quality. 4K continuous recording at 30fps generates substantially more data than a 4MP stream, so storage planning at the NVR or server level should account for the higher bitrate before the system goes live.

3. What PoE standard does the M4228-LVE require?

   The camera supports both IEEE 802.3af (PoE, up to 15.4W) and IEEE 802.3at (PoE+, up to 30W). Under full load - 4K streaming, onboard analytics processing, and audio active simultaneously - power draw will push toward the upper end of the 802.3af budget. Using a PoE+ capable switch port removes that headroom concern entirely and is the recommended approach for any installation running analytics continuously.

4. Does this camera work for licence plate capture?

   It can contribute to licence plate identification depending on lens selection, mounting angle, and vehicle speed, but it is not a dedicated ANPR camera. At 8MP, there is substantial pixel density available for post-event zoom into a plate area, but the fixed lens means the field of view and pixel-per-metre density at the plate are fixed at install. For formal ANPR requirements with high vehicle speeds or multiple lanes, a dedicated ANPR camera with a purpose-configured lens is the more appropriate product type.

5. How does AXIS Object Analytics reduce false alarms compared to standard motion detection?

   Standard motion detection triggers on any pixel change in the scene - shadows, reflections, rain, moving branches. AXIS Object Analytics uses an AI model running on the camera's processor to classify detected movement as a human or vehicle before generating an event. Only classified objects trigger alerts. In outdoor environments with variable lighting and ambient movement, this typically reduces nuisance alert volume substantially compared to a pixel-change trigger threshold, without requiring server-side video analysis. The team at Security Australia can advise on analytics configuration for specific site types.

6. What audio capability does the M4228-LVE have?

   The M4228-LVE has a built-in acoustic sensor rather than a full microphone and speaker pair. It runs AXIS Audio Analytics on the edge, detecting and classifying sounds such as screaming, shouting, speech and glass breaking, and raising those as events. There is no speaker and no audio streaming, so it is not a recording microphone and not a two-way communication point. For audio capture or talk-down, add a compatible Axis audio device or network intercom on the same PoE network.

7. Is edge storage on the microSD card usable as a failover if the network drops?

   Yes. The microSD slot supports SD/SDHC/SDXC cards and the camera's firmware includes AXIS Edge Storage with failover recording - if the network link to the NVR is lost, recording continues locally to the card and syncs back when connectivity is restored. This is particularly useful at remote sites or where network reliability cannot be guaranteed, as it prevents gaps in the recorded timeline during outages.

Downloads & Resources

• AXIS M4228-LVE Datasheet (PDF)
• AXIS M4228-LVE Product Page - Axis Communications
