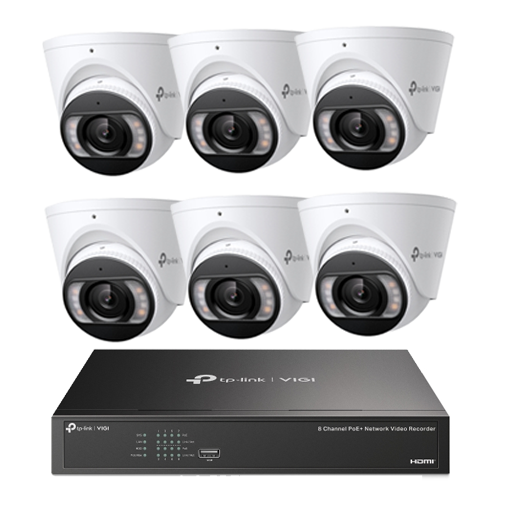

8MP 8CH TP-Link CCTV Kit: 6 x IP Turret Cameras (Full-Colour Speaker / Mic / Light) + 8CH NVR
The TP-Link 8 MP + 8 Channels Kit offers a complete surveillance solution, featuring six Turret Network Cameras with 8 MP resolution. These cameras deliver high-quality video even in low-light conditions. The kit also includes an Network Video Recorder (NVR) with 8 channels, providing efficient and intelligent monitoring capabilities.
TP-Link Camera Kit includes:
6 x VIGI 8MP Full-Color Turret Network Camera
The VIGI C485 includes active defense features such as two-way audio for real-time communication and a built-in alarm system. It supports efficient H.265+ video compression, which significantly reduces bandwidth and storage needs without compromising image quality. The camera is designed to withstand harsh conditions, with an IP67 weatherproof rating, ensuring durability outdoors. It can be powered via PoE (Power over Ethernet), simplifying installation, and offers a range of mounting options.
Key Features
- 4K (8MP) Ultra HD and 24h Full-Color
- Human & Vehicle Classification
- Smart Detection
- Smart Video Enhancement Technology
- Active Defense and Two-Way Audio
- IP67 Waterproof
- H.265+ Compression Technology
- 12V DC/PoE
Code/SKU: VIGI C485
Quick Specs:
- Image Sensor: 1/2.7” Progressive Scan CMOS
- Shutter Speed: 1/3 to 1/10000 s
1 x VIGI 8 Channel PoE+ Network Video Recorder
The NVR1008H-8MP offers intuitive management through its user-friendly interface, making it easy for users to configure and monitor their surveillance system. It supports a range of storage options, allowing users to select the appropriate hard drive size to meet their recording needs. Additionally, the device provides remote access capabilities, enabling users to view live footage and playback recordings from anywhere using a smartphone or computer. With its robust build and reliable performance, the VIGI NVR1008H-8MP is designed to operate continuously, ensuring constant surveillance and peace of mind.
Key Features
- 8-Channel Live View and 4K HDMI Video Output
- 8× 10/100 Mbps PoE+ Ports with 113 W PoE Budget△
- 8-ch @ 2MP/ 4-ch @ 4MP Decoding Capability
- 8-Channel Synchronous Playback†
- 80 Mbps Incoming Bandwidth and 60 Mbps Outgoing Bandwidth
- 1 SATA Interface (up to 10 TB) *
- H.265+ Compression Technology
- HDMI and VGA Simultaneous Output
- Remote Monitoring
Code/SKU: VIGI NVR1008H-8MP
Quick Specs:
- Audio Compression: G.711A/G.711U/G.726
- Video Compression: H.265+/H.265/ H.264+/H.264
Accessories
Select options before adding this product to cart.
Need help choosing?
Click to ask a question - same day response (~2 hours during business hours)
Product Overview
The VIGI C485 is an 8MP Full-Color Turret Network Camera designed to deliver ultra-high-definition security footage with advanced features. It offers 4K resolution for crisp and detailed video, ensuring clear visibility even in challenging lighting conditions. This camera is equipped with human and vehicle classification technology, allowing it to distinguish between objects and send more accurate notifications. Its smart video enhancement capabilities, including True WDR (Wide Dynamic Range), 3D DNR (Digital Noise Reduction), and smart IR, help balance exposure and reduce noise for clear images in various environments.
The VIGI C485 also includes active defense features such as two-way audio for real-time communication and a built-in alarm system. It supports efficient H.265+ video compression, which significantly reduces bandwidth and storage needs without compromising image quality. The camera is designed to withstand harsh conditions, with an IP67 weatherproof rating, ensuring durability outdoors. It can be powered via PoE (Power over Ethernet), simplifying installation, and offers a range of mounting options. Additionally, it provides storage flexibility with support for a microSD card of up to 512 GB.
Features
-
True WDR: Analyzes and blends different exposures to ensure both bright and dark areas are properly exposed, delivering a well-balanced and natural-looking image in high-contrast lighting environments.
-
Smart IR: Dynamically adjusts infrared lighting to prevent overexposure and glare, improves visibility at different distances, and ensures clearer footage.
-
3D DNR: A noise reduction technology that analyzes image data across frames to selectively reduce noise while preserving important details.
-
White Balance: Ensures neutral whites in an image, regardless of the lighting conditions.
Technical Specifications
| VIDEO | |
|---|---|
| Max. Resolution | 3840 X 2160 |
| Main Stream | • Frame Rate: 50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps 60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps • Resolution: 3840x2160, 2560x1440, 2304x1296, 2048x1280, 1920x1080, 1280x720 • Note: If the image rotation is set to 90° or 270°, the frame rate only supports up to 20fps. If 120dB is turned on, the frame rate can only support up to 20fps. |
| Sub-Stream | • Frame Rate: 50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps 60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps • Resolution: 704x576, 640x480, 352x288, 320x240 • Note: If the image rotation is set to 90° or 270°, the frame rate only supports up to 20fps. If 120dB is turned on, the frame rate can only support up to 20fps. |
| Bit Rate Control | CBR, VBR |
| Video Compression | Main Stream: H.265+/H.265/H.264+/H.264 Sub-Stream: H.265/H.264 |
| H.264 Type | High Profile |
| H.264+ | Main Stream Supported |
| H.265 Type | Main Profile* |
| H.265+ | Main Stream Supported* |
| Video Bit Rate | Main Stream: 256 Kbps to 6 Mbps Sub-Stream: 64 Kbps to 512 Kbps |
| IMAGE | |
| Image Settings | • Mirror • Brightness • Contrast • Saturation • Sharpness • Exposure • WDR • White Balance • Prevent Overexposure to Infrared Light • HLC Adjustable by Client Software |
| Image Enhancement | BLC/3D DNR/HLC/SmartIR |
| Wide Dynamic Range | 120 dB |
| SNR | ≥ 52 dB |
| Image Parameters Switch | Yes |
| Privacy Mask | Up to 4 Masks |
| ROI | 1 Region |
| OSD Setting | Yes |
| AUDIO | |
| Audio Communication | Two-Way Audio |
| Audio Input | Yes |
| Audio Output | Yes |
| Audio Compression | Yes |
| Audio Sampling Rate | 8KHz |
| Environment Noise Filtering | Yes |
| Audio Bit Rate | 64 Kbps(G.711 alaw) |
Videos
The VIGI 8 Channel PoE+ Network Video Recorder (NVR1008H-8MP) from TP-Link offers a comprehensive surveillance solution for both residential and commercial properties. With its support for 8 channels, it allows users to connect up to 8 IP cameras, providing extensive coverage and detailed monitoring. The PoE+ (Power over Ethernet Plus) feature simplifies installation by delivering power and data over a single cable, reducing the need for additional wiring. This model supports high-definition recording with up to 8 megapixels resolution, ensuring clear and detailed video footage. It is equipped with advanced H.265+ video compression technology, which efficiently reduces storage space and bandwidth usage while maintaining high video quality. The NVR1008H-8MP offers intuitive management through its user-friendly interface, making it easy for users to configure and monitor their surveillance system. It supports a range of storage options, allowing users to select the appropriate hard drive size to meet their recording needs. Additionally, the device provides remote access capabilities, enabling users to view live footage and playback recordings from anywhere using a smartphone or computer. With its robust build and reliable performance, the VIGI NVR1008H-8MP is designed to operate continuously, ensuring constant surveillance and peace of mind. The recorder also includes features like motion detection and alarm notifications, enhancing the security system's responsiveness to potential threats. Integration with TP-Link's VIGI cameras ensures seamless compatibility and optimized performance. The NVR's compact design allows it to fit into various environments without occupying too much space. Furthermore, the device supports multiple languages, making it accessible to a diverse user base.
Features
- 4K HDMI Video Output & 16MP Decoding Capacity: Sharp image definition up to 8MP and an 8-channel display ensures you capture every detail, from every angle‡.
- Simplified Deployment with PoE+: Easily connect and power your PoE camera with one RJ45 cable transmitting both data and power. No power adapter needed.
- 8-Channel Simultaneous Playback*: Replay the feed from up to 8 cameras at the same time, increase replay speed, and find events in the video schedule to easily review footage.
- H.265+: Without using any extra bandwidth, your camera transmits compressed crystal-clear video to save disk space, ease network loads, and reduce monitoring costs without sacrificing image quality.
- ONVIF Ensures Compatibility△: Easily add IPCs from VIGI and other brands to establish a powerful and varied network thanks to barrier-free compatibility.
- Plug & Play: Allows new and unused VIGI IP Cameras to be added automatically to the new NVR and activated instantly, making installation faster than ever before.
- 24/7 Continuous Recording: Stores up to 10 TB of footage from connected cameras to secure your data for quick, convenient access.
- Remote Monitoring: The dedicated VIGI app, web UI, and VIGI Security Manager enable remote monitoring, providing ease and convenience.
- Flexible Installation: Choose the suitable installation method by simply housing your NVR on a rack, or placing it on or under a desk for greater convenience.
- Two-Way Audio: With voice intercom support, carry two-way conversations while watching your feed from anywhere. Suitable for management.
Technical Specifications
| Product Model | VIGI NVR1008H-8MP |
| Video and Audio | |
| IP Video Input | 8-Channel |
| Incoming Bandwidth | 80 Mbps |
| Outgoing Bandwidth | 60 Mbps |
| HDMI Output Resolution | 1 Channel, Resolution: 3840x2160/30Hz, 1920x1080/60Hz, 1680x1050/60Hz, 1440x900/60Hz, 1280x1024/60Hz, 1280x720/60Hz |
| VGA Output Resolution | 1 Channel, Resolution: 1920x1080/60Hz, 1680x1050/60Hz, 1440x900/60Hz, 1280x1024/60Hz, 1280x720/60Hz |
| Video Output Mode | HDMI/VGA Simultaneous Output |
| Multi-View Display | 1/4/6/8 |
| Audio Compression | G.711A/G.711U/G.726 |
| Video Compression | H.265+/H.265/ H.264+/H.264 |
| Record Resolution | 8MP/5MP/4MP/3MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF |
| Synchronous Playback | 8-Channel Capability 2-ch @ 8MP, 4-ch @ 4MP, 8-ch @ 2MP |
| Record Mode | Manual Recording, Scheduling Recording, Motion Detection Recording |
| Playback Mode | Instant Playback, Regular Playback, Tag Playback, Event Playback |
| Backup Mode | Regular Backup, Video Clip Backup |
| Playback Function | Play, Pause, Stop, Fast Forward, Fast Backward, Play By Frame, Full Screen, Video Clip, Export Clip, Digital Zoom, Lock Recording, Audio On/Off |
| Network Protocols | UPnP (Plug and Play), NTP (Network Timing) |
Videos
Key Features
Trusted Brand Partner & Security Equipment Wholesaler
- Authorised Brand Partner with Responsive & Fast Aussie Sales Support Team ★★★★★
- Best After-Sales Support and Troubleshooting Team with Years of Installation Experience.
What This Product Does
The TP-Link 8 MP + 8 Channels Kit offers a complete surveillance solution, featuring six Turret Network Cameras with 8 MP resolution. These cameras deliver high-quality video even in low-light conditions. The kit also includes an Network Video Recorder (NVR) with 8 channels, providing efficient and intelligent monitoring capabilities.
TP-Link Camera Kit includes:
6 x VIGI 8MP Full-Color Turret Network Camera
The VIGI C485 includes active defense features such as two-way audio for real-time communication and a built-in alarm system. It supports efficient H.265+ video compression, which significantly reduces bandwidth and storage needs without compromising image quality. The camera is designed to withstand harsh conditions, with an IP67 weatherproof rating, ensuring durability outdoors. It can be powered via PoE (Power over Ethernet), simplifying installation, and offers a range of mounting options.
Key Features
- 4K (8MP) Ultra HD and 24h Full-Color
- Human & Vehicle Classification
- Smart Detection
- Smart Video Enhancement Technology
- Active Defense and Two-Way Audio
- IP67 Waterproof
- H.265+ Compression Technology
- 12V DC/PoE
Code/SKU: VIGI C485
Quick Specs:
- Image Sensor: 1/2.7” Progressive Scan CMOS
- Shutter Speed: 1/3 to 1/10000 s
1 x VIGI 8 Channel PoE+ Network Video Recorder
The NVR1008H-8MP offers intuitive management through its user-friendly interface, making it easy for users to configure and monitor their surveillance system. It supports a range of storage options, allowing users to select the appropriate hard drive size to meet their recording needs. Additionally, the device provides remote access capabilities, enabling users to view live footage and playback recordings from anywhere using a smartphone or computer. With its robust build and reliable performance, the VIGI NVR1008H-8MP is designed to operate continuously, ensuring constant surveillance and peace of mind.
Key Features
- 8-Channel Live View and 4K HDMI Video Output
- 8× 10/100 Mbps PoE+ Ports with 113 W PoE Budget△
- 8-ch @ 2MP/ 4-ch @ 4MP Decoding Capability
- 8-Channel Synchronous Playback†
- 80 Mbps Incoming Bandwidth and 60 Mbps Outgoing Bandwidth
- 1 SATA Interface (up to 10 TB) *
- H.265+ Compression Technology
- HDMI and VGA Simultaneous Output
- Remote Monitoring
Code/SKU: VIGI NVR1008H-8MP
Quick Specs:
- Audio Compression: G.711A/G.711U/G.726
- Video Compression: H.265+/H.265/ H.264+/H.264
Not sure if this suits your site?
Ask our team before ordering. We can help confirm lens choice, recorder compatibility, mounting accessories and project quantities.
Specifications
Specifications
| CAMERA | |
|---|---|
| Image Sensor | 1/2.7” Progressive Scan CMOS |
| Shutter Speed | 1/3 to 1/10000 s |
| Slow Shutter | Yes |
| Minimum Illumination | 0.005 Lux; 0 Lux with IR/White light |
| Day/Night Mechanism | IR Cut Filter |
| Day/Night Switch | Unified/ Scheduled/ Auto |
| LENS | |
| Type | Fixed Focal Lens |
| Focal Length | 2.8/4 mm |
| Aperture | F1.6 |
| FOV | • 2.8 mm: Horizontal FOV: 111.4°, Vertical FOV: 58.8°, Diagonal FOV: 134° • 4 mm: Horizontal FOV: 91.5°, Vertical FOV: 46.1°, Diagonal FOV: 109.6° |
| Lens Mount | M12*P 0.5 |
| DORI Distance | • 2.8 mm Detect: 85 m (278 ft) Observe: 35 m (116 ft) Recognize: 17 m (56 ft) Identify: 8 m (28 ft) • 4 mm Detect: 107 m (350 ft) Observe: 44 m (146 ft) Recognize: 21 m (70 ft) Identify: 11 m (35 ft) |
| ANGLE ADJUSTMENT (MANUAL) | |
| Range | Pan: 0° to 360°, Tilt: 0° to 85°, Rotation: 0° to 360° |
| ILLUMINATOR | |
| IR LED | Quantity: 4 Range: 30m Wavelength: 850nm |
| White LED | Quantity: 4 Range: 30m |
| Illuminator On/Off Control | Auto/Scheduled/Always on/Always off |
| VIDEO | |
| Max. Resolution | 3840 X 2160 |
| Main Stream | • Frame Rate: 50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps 60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps • Resolution: 3840x2160, 2560x1440, 2304x1296, 2048x1280, 1920x1080, 1280x720 • Note: If the image rotation is set to 90° or 270°, the frame rate only supports up to 20fps. If 120dB is turned on, the frame rate can only support up to 20fps. |
| Sub-Stream | • Frame Rate: 50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps 60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps • Resolution: 704x576, 640x480, 352x288, 320x240 • Note: If the image rotation is set to 90° or 270°, the frame rate only supports up to 20fps. If 120dB is turned on, the frame rate can only support up to 20fps. |
| Bit Rate Control | CBR, VBR |
| Video Compression | Main Stream: H.265+/H.265/H.264+/H.264 Sub-Stream: H.265/H.264 |
| H.264 Type | High Profile |
| H.264+ | Main Stream Supported |
| H.265 Type | Main Profile* |
| H.265+ | Main Stream Supported* |
| Video Bit Rate | Main Stream: 256 Kbps to 6 Mbps Sub-Stream: 64 Kbps to 512 Kbps |
| IMAGE | |
| Image Settings | • Mirror • Brightness • Contrast • Saturation • Sharpness • Exposure • WDR • White Balance • Prevent Overexposure to Infrared Light • HLC Adjustable by Client Software |
| Image Enhancement | BLC/3D DNR/HLC/SmartIR |
| Wide Dynamic Range | 120 dB |
| SNR | ≥ 52 dB |
| Image Parameters Switch | Yes |
| Privacy Mask | Up to 4 Masks |
| ROI | 1 Region |
| OSD Setting | Yes |
| AUDIO | |
| Audio Communication | Two-Way Audio |
| Audio Input | Yes |
| Audio Output | Yes |
| Audio Compression | Yes |
| Audio Sampling Rate | 8KHz |
| Environment Noise Filtering | Yes |
| Audio Bit Rate | 64 Kbps(G.711 alaw) |
| NETWORK | |
| Protocol | TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS |
| ONVIF | Yes |
| API | Open Network Video Interface (Profile S) |
| Simultaneous Live View | 3 Main Streams & 3 Sub-Streams |
| Client | VIGI App, VIGI Security Manager, Web UI, VIGI VMS |
| Web Browser | Google Chrome® 57 and above Firefox® 52 and above Safari® 11 and above Microsoft® Edge 91 and above |
| Cloud | Yes |
| Security | Password Protection, HTTPS Encryption, IP Address Filter, Digest Authentication |
| ALARM AND EVENT MANAGEMENT | |
| Smart Event | • Human & Vehicle Classification • Intrusion Detection • Line-Crossing Detection • Region Entering Detection • Region Exiting Detection • Object Abandoned Detection • Object Removal Detection • Loitering Detection • Smart Frame • People Detection • Vehicle Detection |
| Basic Event | • Motion Detection • Video Tampering Detection • Exception ( Illegal Login) • Scene Change Detection |
| Alarm Linkage | • Memory Card Video Recording • Message Push • Audible Warning • White Light Flashing |
| Linkage Method | N/A |
| Output Notification | Message Push |
| INTERFACES | |
| Network Interface | 1 RJ45 10/100M Self-Adaptive Ethernet Port, PoE |
| Alarm | N/A |
| Reset Button | Yes |
| Power | DC Power Port |
| On-board Storage | Built-In Memory Card Slot, Support MicroSD Card, up to 256 GB** |
| Built-in Microphone | Yes; Records Anything Going on within a 15-ft Radius of the Camera |
| Built-in Speaker | Yes |
| Audio | N/A |
| GENERAL | |
| Operating Temperature | -30–60 °C |
| Storage Temperature | -40–60 °C |
| Operating Humidity | 95% or Less (Non-Condensing) |
| Storage Humidity | 95% or Less (Non-Condensing) |
| Package Contents | VIGI Network Camera Quick Start Guide Waterproof Cable Attachments Mounting Accessories |
| Material | Metal |
| Net Weight | 0.48 Kg |
| Power Supply | 12V DC ± 5%, Max. 11.5 W, 5.5 mm Coaxial Power Plug PoE: 802.3af/at, class 0, Max. 12.5 W |
| Protection | IP67 |
| Product Dimensions (L x W x H) | 111 × 111 × 83.7 mm |
| Certifications | CE, NTRA, VCCI, KC, BSMI, FCC, IC |
