Free Shipping

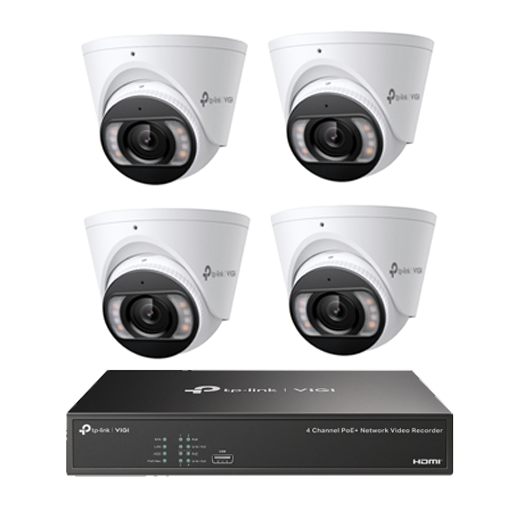

8MP TP-Link VIGI CCTV Kit: 4 x IP Turret Cameras (Full-Colour Speaker / Mic / Light) + 4CH NVR
- Sku: kit-tp-link-vigi4x8mp4ch
- Vendor: SecurityAustralia
$949.50 AUD
Tax included.
Shipping calculated at checkout.
Quick Buying Summary
The TP-Link 8 MP + 4 Channels Kit offers a complete surveillance solution, featuring four Turret Network Cameras with 8 MP resolution. These cameras deliver high-quality video even in low-light conditions. The kit also includes an Network Video Recorder (NVR) with 4 channels, providing efficient and intelligent monitoring capabilities.
TP-Link Camera Kit includes:
4 x VIGI 8MP Full-Color Turret Network Camera
The VIGI C485 includes active defense features such as two-way audio for real-time communication and a built-in alarm system. It supports efficient H.265+ video compression, which significantly reduces bandwidth and storage needs without compromising image quality. The camera is designed to withstand harsh conditions, with an IP67 weatherproof rating, ensuring durability outdoors. It can be powered via PoE (Power over Ethernet), simplifying installation, and offers a range of mounting options.
Key Features
- 4K (8MP) Ultra HD and 24h Full-Color
- Human & Vehicle Classification
- Smart Detection
- Smart Video Enhancement Technology
- Active Defense and Two-Way Audio
- IP67 Waterproof
- H.265+ Compression Technology
- 12V DC/PoE
Code/SKU: VIGI C485
Quick Specs:
- Image Sensor: 1/2.7” Progressive Scan CMOS
- Shutter Speed: 1/3 to 1/10000 s
1 x VIGI 4 Channel PoE+ Network Video Recorder
TP-Link's VIGI professional surveillance system is designed to protect the business you’ve worked hard to build—anytime, anywhere. With advanced features, dependable quality, and easy installation, VIGI ensures your business remains secure and safeguarded.
Key Features
- 4-Channel Live View and 4K HDMI Video Output
- 4× 10/100 Mbps PoE+ Ports with 53 W PoE Budget△
- 2-ch @ 8MP/ 4-ch @ 4MP Decoding Capability§
- 4-Channel Synchronous Playback†
- 80 Mbps Incoming Bandwidth and 60 Mbps Outgoing Bandwidth
- 1× SATA Interface and 1 Up to 10 TB*
- H.265+ Compression Technology
- HDMI and VGA Simultaneous Output
- Remote Monitoring
Code/SKU: VIGI NVR1004H-4P
Quick Specs:
- Power Supply: 53.5V DC/1.31A
- PoE Ports: Standard 802.3af/at, Ports 1-4, PoE Budget: 53 W
- Working Temperature: -10~55°C
- Product Dimensions: 246.2 × 148.2 × 45 mm
Accessories
Select options before adding this product to cart.
Free shipping - Enjoy free shipping when your order exceeds $100!
All orders are despatched within the next business day!
Best local support in Aus! We back all products with a 3 year manufacturer warranty.
Not sure if this suits your site?
Ask our team before ordering. We can help confirm lens choice, recorder compatibility, mounting accessories and project quantities.
Product Overview
The VIGI C485 is an 8MP Full-Color Turret Network Camera designed to deliver ultra-high-definition security footage with advanced features. It offers 4K resolution for crisp and detailed video, ensuring clear visibility even in challenging lighting conditions. This camera is equipped with human and vehicle classification technology, allowing it to distinguish between objects and send more accurate notifications. Its smart video enhancement capabilities, including True WDR (Wide Dynamic Range), 3D DNR (Digital Noise Reduction), and smart IR, help balance exposure and reduce noise for clear images in various environments.
The VIGI C485 also includes active defense features such as two-way audio for real-time communication and a built-in alarm system. It supports efficient H.265+ video compression, which significantly reduces bandwidth and storage needs without compromising image quality. The camera is designed to withstand harsh conditions, with an IP67 weatherproof rating, ensuring durability outdoors. It can be powered via PoE (Power over Ethernet), simplifying installation, and offers a range of mounting options. Additionally, it provides storage flexibility with support for a microSD card of up to 512 GB.
Features
-
True WDR: Analyzes and blends different exposures to ensure both bright and dark areas are properly exposed, delivering a well-balanced and natural-looking image in high-contrast lighting environments.
-
Smart IR: Dynamically adjusts infrared lighting to prevent overexposure and glare, improves visibility at different distances, and ensures clearer footage.
-
3D DNR: A noise reduction technology that analyzes image data across frames to selectively reduce noise while preserving important details.
-
White Balance: Ensures neutral whites in an image, regardless of the lighting conditions.
Technical Specifications
| VIDEO | |
|---|---|
| Max. Resolution | 3840 X 2160 |
| Main Stream | • Frame Rate: 50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps 60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps • Resolution: 3840x2160, 2560x1440, 2304x1296, 2048x1280, 1920x1080, 1280x720 • Note: If the image rotation is set to 90° or 270°, the frame rate only supports up to 20fps. If 120dB is turned on, the frame rate can only support up to 20fps. |
| Sub-Stream | • Frame Rate: 50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps 60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps • Resolution: 704x576, 640x480, 352x288, 320x240 • Note: If the image rotation is set to 90° or 270°, the frame rate only supports up to 20fps. If 120dB is turned on, the frame rate can only support up to 20fps. |
| Bit Rate Control | CBR, VBR |
| Video Compression | Main Stream: H.265+/H.265/H.264+/H.264 Sub-Stream: H.265/H.264 |
| H.264 Type | High Profile |
| H.264+ | Main Stream Supported |
| H.265 Type | Main Profile* |
| H.265+ | Main Stream Supported* |
| Video Bit Rate | Main Stream: 256 Kbps to 6 Mbps Sub-Stream: 64 Kbps to 512 Kbps |
| IMAGE | |
| Image Settings | • Mirror • Brightness • Contrast • Saturation • Sharpness • Exposure • WDR • White Balance • Prevent Overexposure to Infrared Light • HLC Adjustable by Client Software |
| Image Enhancement | BLC/3D DNR/HLC/SmartIR |
| Wide Dynamic Range | 120 dB |
| SNR | ≥ 52 dB |
| Image Parameters Switch | Yes |
| Privacy Mask | Up to 4 Masks |
| ROI | 1 Region |
| OSD Setting | Yes |
| AUDIO | |
| Audio Communication | Two-Way Audio |
| Audio Input | Yes |
| Audio Output | Yes |
| Audio Compression | Yes |
| Audio Sampling Rate | 8KHz |
| Environment Noise Filtering | Yes |
| Audio Bit Rate | 64 Kbps(G.711 alaw) |
Videos
The VIGI 4 Channel PoE+ Network Video Recorder NVR1004H-4P by TP-Link is a versatile and reliable surveillance solution designed to enhance security. It supports up to four PoE (Power over Ethernet) IP cameras, allowing for easy installation and seamless integration into existing security systems. The NVR1004H-4P features high-definition recording capabilities, ensuring clear and detailed footage for better identification and monitoring. With a user-friendly interface, it offers simple navigation and control for managing multiple cameras. The device supports real-time live viewing and playback of recorded video, providing users with flexibility and convenience. Equipped with advanced motion detection and alert features, it enhances the ability to respond to potential security threats promptly. The NVR1004H-4P also includes remote access capabilities, enabling users to monitor their property from anywhere via a smartphone or computer. Its robust build and reliable performance make it suitable for both residential and commercial applications. The unit supports up to 6TB of storage, allowing for extensive recording without frequent data management. Additionally, it is designed with energy efficiency in mind, reducing overall power consumption. The NVR1004H-4P is compatible with TP-Link’s VIGI series cameras, ensuring optimal performance and interoperability. Its compact design allows for easy placement in various locations, and it includes multiple backup options to safeguard important footage. Overall, the VIGI NVR1004H-4P delivers a comprehensive solution for effective video surveillance and security management.
Features
- 4K HDMI Video Output & 16MP Decoding Capacity: Sharp image definition up to 8MP, and 2-ch @ 8MP, 4-ch @ 4MP decoding capacity allows you to enjoy more-channels live view and playback at the same time.
- 53 W PoE Budget: 4× 802.3af/at-compliant PoE+ ports with a total power supply of 53 W.†
- 4-Channel Simultaneous Playback*: Replay the feed from up to 4 cameras at the same time, increase replay speed, and find events in the video schedule to easily review footage.
- H.265+: Compresses the video size without sacrificing video quality, easing the network load and saving disk space.
- ONVIF Ensures Compatibility△: Easily add IPCs from VIGI and other brands to establish a powerful and varied network thanks to barrier-free compatibility.
- Auto Initialize for Quick Configuration: Just click "Auto Initialize" to set up basic IPC and hard disk parameters, significantly reducing your configuration time.
- 24/7 Continuous Recording: With the 2TB HDD preinstalled and the storage capacity of up to 10TB, the NVR ensures non-stop recording.
- Two-Way Audio: With voice intercom support, scare off any potential thieves or intruders from wherever you are.
- Remote Monitoring: The dedicated VIGI app and client enable remote monitoring, providing ease and convenience.
Technical Specifications
| Models VIGI NVR1004H-4P | |
|---|---|
| Video Input | IP Video Input, 4-Channel, Up to 8 MP Resolution |
| Network | Incoming Bandwidth: 80 Mbps Outgoing Bandwidth: 60 Mbps |
| Video Output | Recording Resolution: 8 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF HDMI Output Resolution: 1 Channel, Resolution: 3840x2160/30Hz, 1920x1080/60Hz, 1680x1050/60Hz, 1440x900/60Hz, 1280x1024/60Hz, 1024x768/60Hz, 1280x720/60Hz VGA Output Resolution: 1 Channel, Resolution: 1920x1080/60Hz, 1680x1050/60Hz, 1440x900/60Hz, 1280x1024/60Hz, 1024x768/60Hz, 1280x720/60Hz |
| Decoding | Decoding Format: H.265+/H.265/H.264+/H.264 Live View/Playback Resolution: 8MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF Synchronous Playback: 4-Channel Capability: 2-ch @ 8MP, 4-ch @ 4MP |
| Network Management | Network Protocols: TCP/IP, DHCP, DNS, NTP, UPnP |
| Hard Disk | SATA: 1 SATA Interface Capacity: Up to 10 TB |
| External Interface | Network Interface: 1, RJ-45 10/100 Mbps Self-Adaptive Ethernet Interface USB Interface: 2 × USB 2.0 |
| General | Power Supply: 53.5V DC/1.31A PoE Ports: Standard: 802.3af/at, Ports 1-4, PoE Budget: 53 W Working Temperature: -10~55°C Product Dimensions: 246.2 × 148.2 × 45 mm |
Videos
| CAMERA | |
|---|---|
| Image Sensor | 1/2.7” Progressive Scan CMOS |
| Shutter Speed | 1/3 to 1/10000 s |
| Slow Shutter | Yes |
| Minimum Illumination | 0.005 Lux; 0 Lux with IR/White light |
| Day/Night Mechanism | IR Cut Filter |
| Day/Night Switch | Unified/ Scheduled/ Auto |
| LENS | |
| Type | Fixed Focal Lens |
| Focal Length | 2.8/4 mm |
| Aperture | F1.6 |
| FOV | • 2.8 mm: Horizontal FOV: 111.4°, Vertical FOV: 58.8°, Diagonal FOV: 134° • 4 mm: Horizontal FOV: 91.5°, Vertical FOV: 46.1°, Diagonal FOV: 109.6° |
| Lens Mount | M12*P 0.5 |
| DORI Distance | • 2.8 mm Detect: 85 m (278 ft) Observe: 35 m (116 ft) Recognize: 17 m (56 ft) Identify: 8 m (28 ft) • 4 mm Detect: 107 m (350 ft) Observe: 44 m (146 ft) Recognize: 21 m (70 ft) Identify: 11 m (35 ft) |
| ANGLE ADJUSTMENT (MANUAL) | |
| Range | Pan: 0° to 360°, Tilt: 0° to 85°, Rotation: 0° to 360° |
| ILLUMINATOR | |
| IR LED | Quantity: 4 Range: 30m Wavelength: 850nm |
| White LED | Quantity: 4 Range: 30m |
| Illuminator On/Off Control | Auto/Scheduled/Always on/Always off |
| VIDEO | |
| Max. Resolution | 3840 X 2160 |
| Main Stream | • Frame Rate: 50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps 60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps • Resolution: 3840x2160, 2560x1440, 2304x1296, 2048x1280, 1920x1080, 1280x720 • Note: If the image rotation is set to 90° or 270°, the frame rate only supports up to 20fps. If 120dB is turned on, the frame rate can only support up to 20fps. |
| Sub-Stream | • Frame Rate: 50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps 60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps • Resolution: 704x576, 640x480, 352x288, 320x240 • Note: If the image rotation is set to 90° or 270°, the frame rate only supports up to 20fps. If 120dB is turned on, the frame rate can only support up to 20fps. |
| Bit Rate Control | CBR, VBR |
| Video Compression | Main Stream: H.265+/H.265/H.264+/H.264 Sub-Stream: H.265/H.264 |
| H.264 Type | High Profile |
| H.264+ | Main Stream Supported |
| H.265 Type | Main Profile* |
| H.265+ | Main Stream Supported* |
| Video Bit Rate | Main Stream: 256 Kbps to 6 Mbps Sub-Stream: 64 Kbps to 512 Kbps |
| IMAGE | |
| Image Settings | • Mirror • Brightness • Contrast • Saturation • Sharpness • Exposure • WDR • White Balance • Prevent Overexposure to Infrared Light • HLC Adjustable by Client Software |
| Image Enhancement | BLC/3D DNR/HLC/SmartIR |
| Wide Dynamic Range | 120 dB |
| SNR | ≥ 52 dB |
| Image Parameters Switch | Yes |
| Privacy Mask | Up to 4 Masks |
| ROI | 1 Region |
| OSD Setting | Yes |
| AUDIO | |
| Audio Communication | Two-Way Audio |
| Audio Input | Yes |
| Audio Output | Yes |
| Audio Compression | Yes |
| Audio Sampling Rate | 8KHz |
| Environment Noise Filtering | Yes |
| Audio Bit Rate | 64 Kbps(G.711 alaw) |
| NETWORK | |
| Protocol | TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS |
| ONVIF | Yes |
| API | Open Network Video Interface (Profile S) |
| Simultaneous Live View | 3 Main Streams & 3 Sub-Streams |
| Client | VIGI App, VIGI Security Manager, Web UI, VIGI VMS |
| Web Browser | Google Chrome® 57 and above Firefox® 52 and above Safari® 11 and above Microsoft® Edge 91 and above |
| Cloud | Yes |
| Security | Password Protection, HTTPS Encryption, IP Address Filter, Digest Authentication |
| ALARM AND EVENT MANAGEMENT | |
| Smart Event | • Human & Vehicle Classification • Intrusion Detection • Line-Crossing Detection • Region Entering Detection • Region Exiting Detection • Object Abandoned Detection • Object Removal Detection • Loitering Detection • Smart Frame • People Detection • Vehicle Detection |
| Basic Event | • Motion Detection • Video Tampering Detection • Exception ( Illegal Login) • Scene Change Detection |
| Alarm Linkage | • Memory Card Video Recording • Message Push • Audible Warning • White Light Flashing |
| Linkage Method | N/A |
| Output Notification | Message Push |
| INTERFACES | |
| Network Interface | 1 RJ45 10/100M Self-Adaptive Ethernet Port, PoE |
| Alarm | N/A |
| Reset Button | Yes |
| Power | DC Power Port |
| On-board Storage | Built-In Memory Card Slot, Support MicroSD Card, up to 256 GB** |
| Built-in Microphone | Yes; Records Anything Going on within a 15-ft Radius of the Camera |
| Built-in Speaker | Yes |
| Audio | N/A |
| GENERAL | |
| Operating Temperature | -30–60 °C |
| Storage Temperature | -40–60 °C |
| Operating Humidity | 95% or Less (Non-Condensing) |
| Storage Humidity | 95% or Less (Non-Condensing) |
| Package Contents | VIGI Network Camera Quick Start Guide Waterproof Cable Attachments Mounting Accessories |
| Material | Metal |
| Net Weight | 0.48 Kg |
| Power Supply | 12V DC ± 5%, Max. 11.5 W, 5.5 mm Coaxial Power Plug PoE: 802.3af/at, class 0, Max. 12.5 W |
| Protection | IP67 |
| Product Dimensions (L x W x H) | 111 × 111 × 83.7 mm |
| Certifications | CE, NTRA, VCCI, KC, BSMI, FCC, IC |
