6MP 4CH Hikvision CCTV Kit: 4 x IP Vandalproof Dome Cameras with Acusense + 4CH NVR

Model: DS-2CD2166G / DS-7604NI-I1-4P

Who This Is For

When specifying a complete IP CCTV system that needs to distinguish people and vehicles from other motion triggers, this 6MP 4-channel Hikvision AcuSense kit is built for that brief. The package pairs 4 x DS-2CD2166G2-I vandalproof dome cameras with the DS-7604NI-I1-4P 4-channel PoE NVR - a matched system that arrives ready to install without compatibility guesswork. Each camera delivers 3200 x 1800 resolution with 30m IR range, and the AcuSense Gen 2 deep learning engine classifies alarms by human or vehicle target rather than responding to every leaf or shadow. This is particularly suited to small commercial sites, strata complexes, childcare centres, and retail premises where false alarm fatigue is a genuine operational problem and where a ceiling or eave-mounted dome profile keeps the install tidy and vandal-resistant.

What This System Actually Does

Who Buys This Model

• Strata and Body Corporate Managers: Specifying a matched 4-camera IP system for common areas - lobbies, car parks, bin bays - where a dome profile is required and false alarm call-outs from standard motion detection have been an ongoing issue.
• Small Retail and Hospitality Operators: Fitting out a shop, cafe, or bottle shop with up to 4 cameras where the single-cable PoE install keeps labour costs down and the NVR sits in a back-office cabinet without requiring a separate network switch.
• Childcare and Education Facilities: Installing cameras in outdoor play areas, entry points, and car parks where a vandal-resistant dome housing is specified and after-hours human detection alerts are needed without the noise of wind or animal triggers.
• Licensed Security Installers: Looking for a pre-matched Hikvision kit that ships as a complete system - cameras, NVR, and PoE switching in one order - reducing procurement time and ensuring firmware and protocol compatibility from day one.
• Small Office and Professional Services Premises: Fitting a reception, server room corridor, and 2 external entry points with a single 4-channel system where 6MP detail and after-hours human-only alert capability are preferred over a basic 1080p setup.

Honest Assessment

This kit does two things genuinely well. First, the AcuSense Gen 2 classification on the DS-2CD2166G2-I cameras is a meaningful step above basic motion detection - if you are managing a site where unnecessary alerts drain staff time or trigger monitored response costs, the human/vehicle filter has real operational value. Second, the matched NVR with integrated PoE ports makes for a clean, straightforward install that a competent installer can complete without additional switching infrastructure.

What this kit will not do: the 2.8mm fixed lens on each camera is wide-angle and cannot be adjusted or swapped out post-install, so it is not suited to long-distance coverage like a driveway approach or perimeter fence line beyond 15-20 metres. It is also a 4-channel system only - if you need 6 or 8 cameras now or anticipate expansion, a higher-channel NVR is worth specifying from the start. Available through Security Australia, this kit is best matched to contained, fixed-camera applications where 4 positions cover the site and wide-angle dome coverage is the right fit.

Complete Package Contents

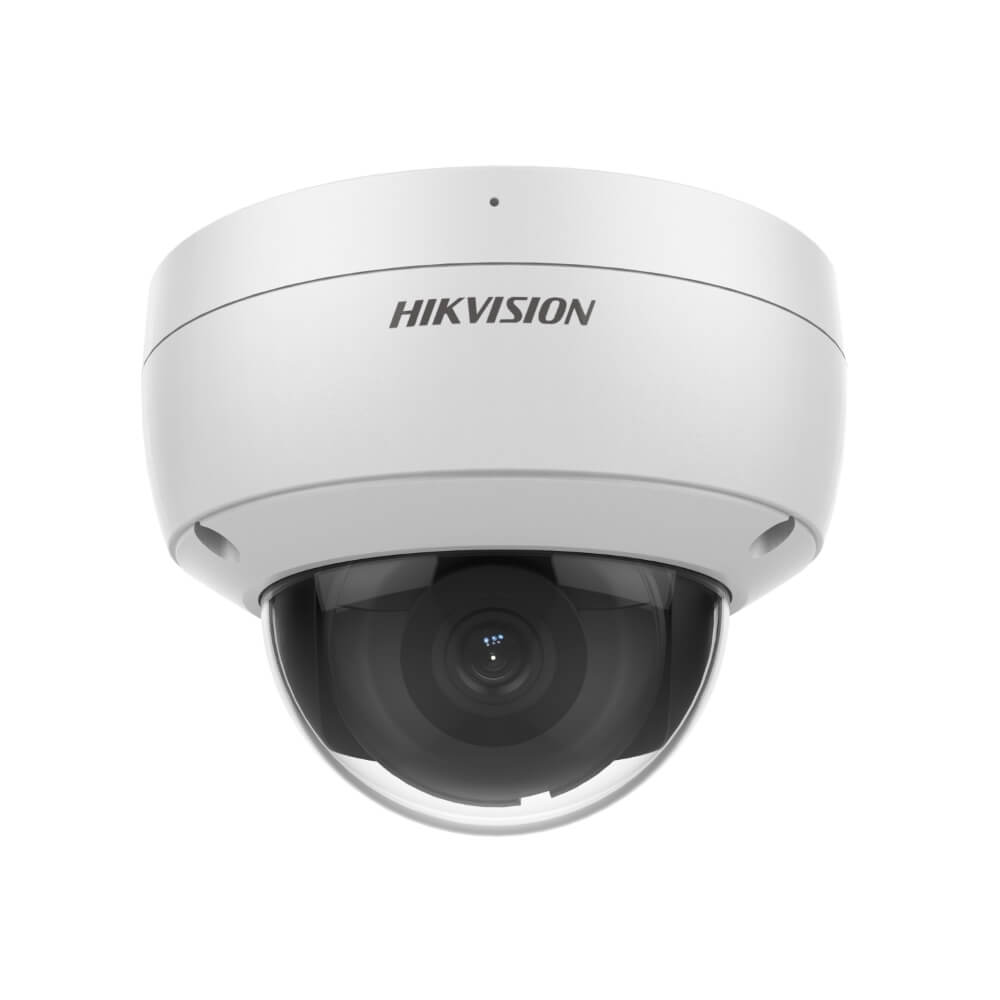

• 4 x Hikvision DS-2CD2166G2-I - 6MP AcuSense Gen 2 vandalproof dome camera, 2.8mm fixed lens, 30m IR, PoE (802.3af), microSD slot up to 256GB
• 1 x Hikvision DS-7604NI-I1-4P - 4-channel NVR with 4 built-in PoE ports, supports up to 8MP cameras, single HDD bay

Before You Buy

Quick Fit Check

• Good match if: You need a complete, pre-matched IP CCTV system for up to 4 camera positions and want AcuSense human/vehicle classification to filter out nuisance alerts on a small commercial or residential site.
• Good match if: Your install is ceiling or eave-mounted and a single Cat5e or Cat6 run per camera is the preferred cabling approach - the NVR's built-in PoE ports eliminate the need for a separate network switch entirely.
• You may need a different model if: Your site has more than 4 camera positions, long-distance approaches requiring a varifocal or bullet-style camera, or you need full-colour night vision - a TiOC or full-colour turret kit from the Security Australia range would be more appropriate in those cases.

Key Features & Technical Specifications

Real-World Scenarios

How It Compares

• Choose this if: You want a complete, pre-matched 4-camera IP system with AcuSense Gen 2 AI classification, PoE simplicity, and 6MP resolution in a single order - without sourcing cameras and NVR separately.
• You may need a different model if: Your site requires more than 4 cameras, colour night vision rather than IR monochrome, or long-range coverage from a varifocal bullet camera - an 8-channel kit or a TiOC-based system would serve those requirements better.
• Pairs well with: A surveillance-grade SATA hard drive (4TB or larger recommended for 4-camera continuous recording), surge protection on the NVR power input, and a UPS for power continuity.

Common Questions

1. Does this kit include a hard drive?

   No. The DS-7604NI-I1-4P NVR ships without a hard drive installed. You will need to purchase a surveillance-grade SATA HDD separately. For 4 cameras recording continuously at 6MP with H.265+ compression, a 4TB drive is a practical starting point, though actual retention will vary depending on your frame rate settings, scene activity, and whether you use continuous or event-triggered recording modes.

2. Will this camera system work with a separate PoE switch and third-party NVR?

   Yes, the DS-2CD2166G2-I cameras are standard IP cameras and can operate on any PoE switch supplying IEEE 802.3af (Class 3) power. They are also compatible with ONVIF-compliant NVRs outside the Hikvision ecosystem, though AcuSense AI features - including human and vehicle classification alerts - are only fully functional when paired with a compatible Hikvision NVR or Hik-Connect platform. Using the cameras with a third-party recorder means you retain video recording but lose the AcuSense smart alarm functions.

3. How does AcuSense Gen 2 actually reduce false alarms compared to standard motion detection?

   AcuSense Gen 2 processes video on the camera itself using a deep learning model trained to recognise the silhouettes and movement patterns of people and vehicles. Standard motion detection triggers on any pixel change in a defined zone - a blowing tree branch, a cat, a shadow, or even rain can all produce alerts. AcuSense only fires a classified alarm when the on-board AI identifies a human or vehicle target within the detection zone. The practical result is that irrelevant environmental triggers are suppressed at the camera before the event ever reaches the NVR's notification engine, which is where the reduction in after-hours alert volumes comes from. This is particularly relevant for sites connected to a monitoring station, where each false alert can carry a response fee.

4. Can I remote-view this system on my phone?

   Yes. The DS-7604NI-I1-4P NVR supports remote viewing via the Hik-Connect app on iOS and Android. You can view live feeds from all 4 cameras, review recorded footage, and receive push notifications for AcuSense-triggered events directly to your phone. Network setup requires the NVR to have internet access and a Hik-Connect account to be created during commissioning - this is a standard part of the Hikvision setup process and is covered in the NVR's quick start guide.

5. Will the 2.8mm lens cover a wide enough area for a car park or room?

   Yes, for most indoor and covered outdoor applications at normal ceiling heights. A 2.8mm lens on a 1/2.4" sensor produces a wide field of view - typically around 100-110 degrees horizontally. Mounted at 3 metres height in a room, it covers a broad area suitable for a reception, retail floor, or corridor. It is not designed for narrow long-distance coverage like a driveway approach or a gate 40+ metres away - for those scenarios a varifocal or longer focal length camera is the right choice. The stocked by Security Australia range includes options with motorised varifocal lenses if your site has that requirement.

6. What is the maximum cable run from the NVR to each camera?

   Up to 100 metres per PoE run using Cat5e or Cat6 cable. This is the IEEE 802.3af standard limit for PoE over structured cabling. If your camera positions are further than 100 metres from the NVR location, you would need a PoE extender or a separate PoE switch positioned closer to the cameras, connected back to the NVR via a fibre or extended link. Within 100 metres, a standard Cat5e or Cat6 run with RJ45 terminations is sufficient for both power and 6MP video simultaneously.

7. Does the DS-7604NI-I1-4P NVR support cameras beyond the 4 included in this kit?

   No. The DS-7604NI-I1-4P is a 4-channel NVR with 4 PoE ports and can only record from 4 IP cameras total. There is no channel expansion option on this model. If you anticipate needing more than 4 cameras - either now or within the next 12-24 months - specifying an 8-channel or 16-channel NVR from the outset is significantly more cost-effective than replacing the NVR later once your 4 channels are full.

Cabling Considerations

• Cable Type: Cat5e or Cat6 UTP or FTP for each camera-to-NVR run. FTP (foil-shielded) recommended for outdoor trenched or exposed runs to reduce interference.
• Max Cable Run: 100 metres per PoE segment from NVR PoE port to camera. Beyond 100 metres, a PoE extender is required.
• PoE Notes: Each DS-2CD2166G2-I draws Class 3 PoE (up to 15.4W max). The DS-7604NI-I1-4P NVR provides PoE across all 4 ports with a total PoE power budget - verify the NVR's aggregate PoE budget against 4 simultaneous connected cameras, particularly if IR is active on all cameras overnight.
• Wiring Tips: Run cables before mounting cameras - the dome housing requires a cable entry from ceiling or wall before the base plate is fixed. Allow 300-400mm of slack at the camera end for housing rotation during mount alignment. Seal outdoor cable entries with a weatherproof gland or self-amalgamating tape to prevent water ingress over time.
